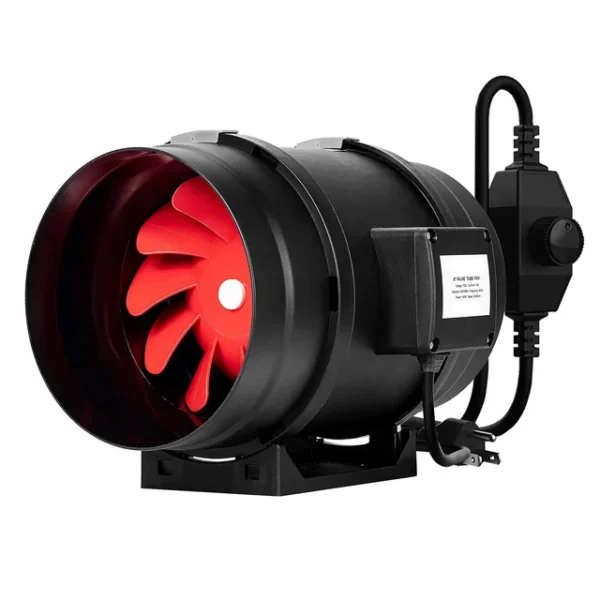

Inline Plastic Duct Fan, 110, Corded Electric

Inline plastic duct fan — voltage 110/220V/380V, power source type Corded Electric. The complete factory specification follows. Made by Taizhou Defeng Mechanical And Electrical Co., Ltd. (12 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Inline Plastic Duct Fan

• Model Number: GDFP200
• Power Source Type: Corded Electric
• Voltage: 110/220V/380V
• Material: Plastic
• Blade Material: Plastic
• Noise Level: 35–39 dB

Technical Specifications

Product Details

Source Factory inline fan 4 6 8 10 12 inch silent inline duct fan for grow tent

* EFFECTIVE VENTILATION: Powerful blower with a fan speed of 2450 RPM for an air flow of 735 CFM. Moves air through your target location efficiently for optimal ventilation

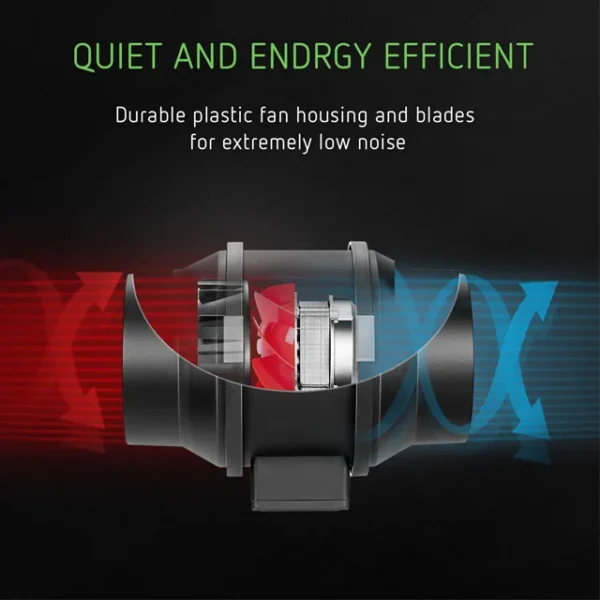

* LOW NOISE LEVEL: Durable plastic fan housing and blades for extremely low noise; Variable speed controller for easy fan speed adjustment.
* EASY INSTALLATION: Removable duct ends with locking tabs for quick removal and easy maintenance and a cord length of 5.9 feet for hassle free setup.
* VERSATILE APPLICATIONS: Suitable for industrial, household and horticulture ventilation applications for air clean and
temperature control.
* NOTE: Comes with an installation bracket indicating the direction of the airflow. Max Ambient Temp is 104℉ / 40℃

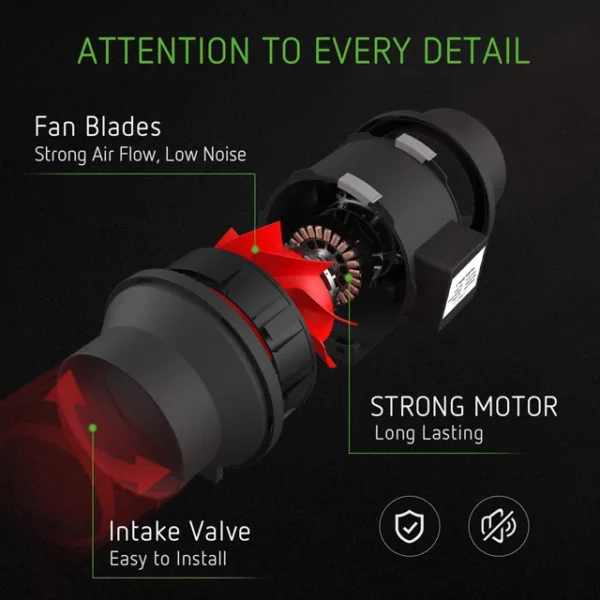

* Balanced blades are ideal for boosting air supply and venting exhaust air.
* Motor features a permanently lubricated bearing that operates quietly and requires no maintenance.
* Solve air delivery problems without major system rework or expense.
* Can be installed in any location, such as greenhouses, tents, etc.

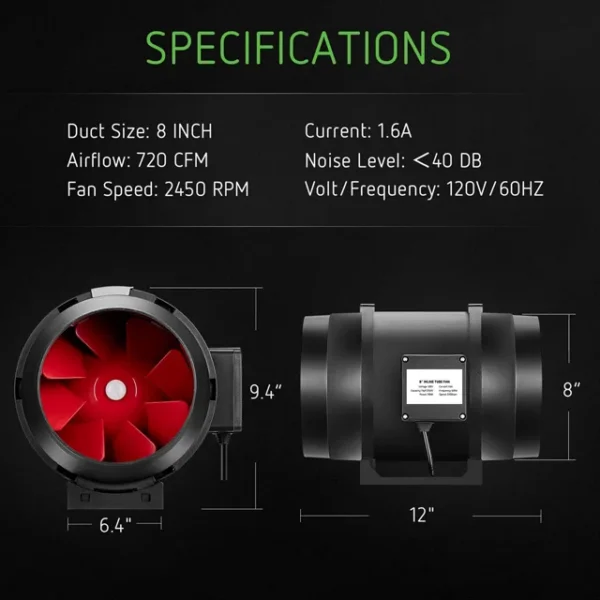

Diameter: 8 inch
Power Supply: 110/120V
Power: 190 W
Speed: 2450 RPM
Air Flow: 720 CFM

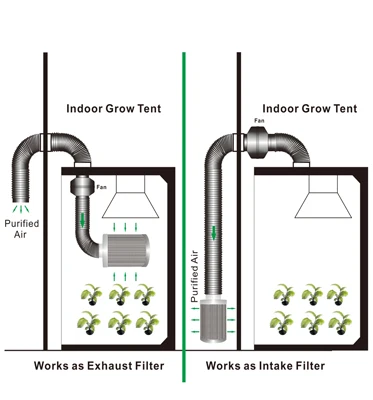

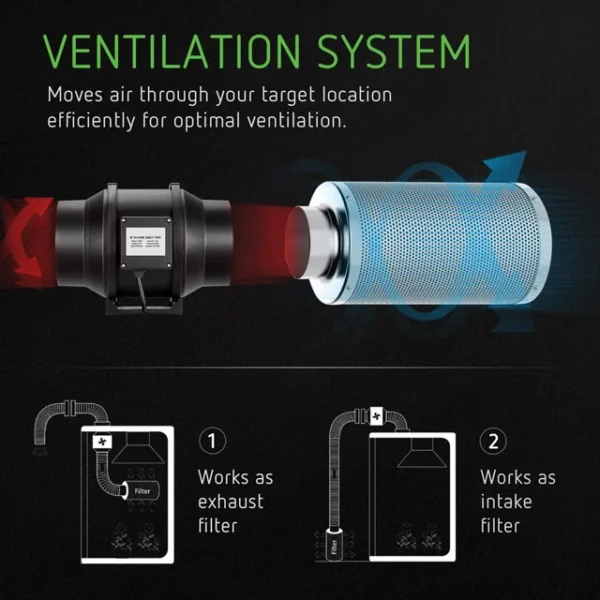

Used as intake fan to bring fresh air into grow rooms; Also used as exhaust fan in setups with LEDs or Lights .

Used to extract odors from grow tents and powerful enough to pull air through carbon filters. When using this unit with a filter,attach the fan as close to the filter as possible.

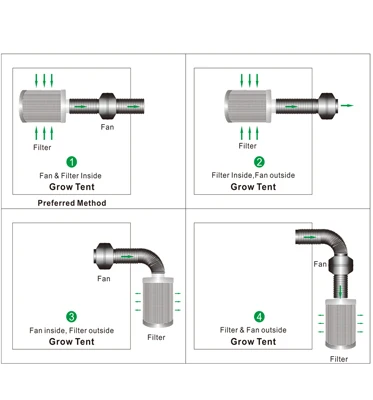

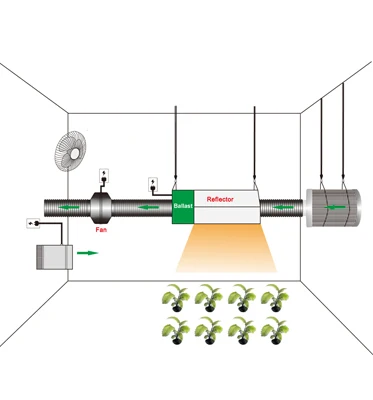

Four different installation methods for you to choose the better one in your green house.

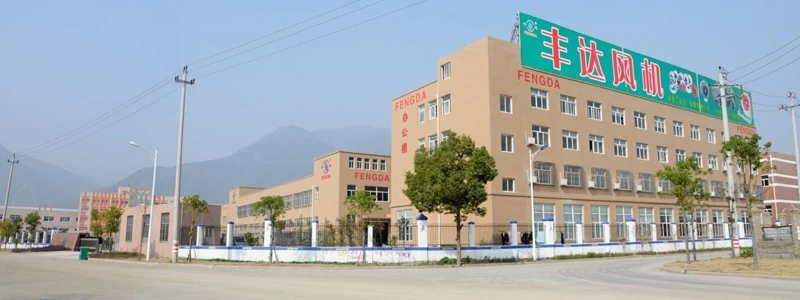

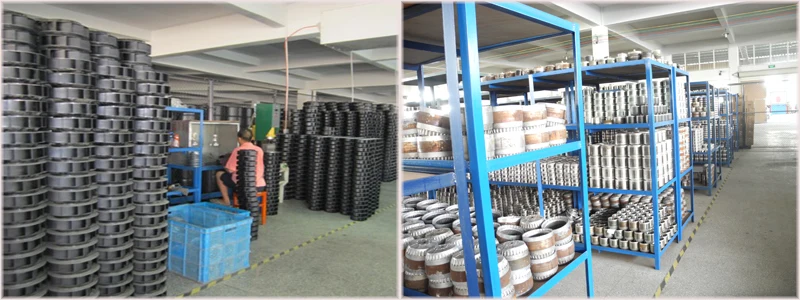

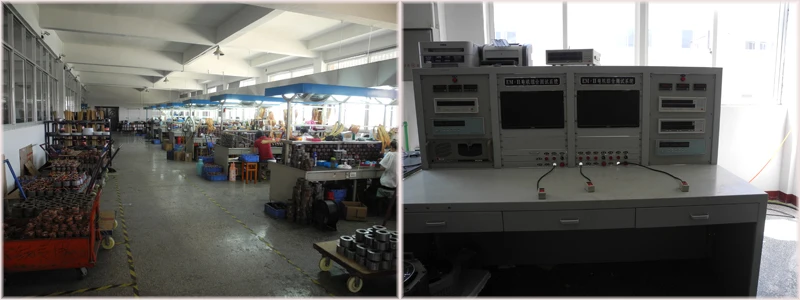

Company Profie

Specification

Model	Voltage	Power	Current	Airflow	Speed
GDFP100	120V/60Hz	60W	0.85A	188CFM	2400RPM
GDFP125	120V/60Hz	60W	0.85A	205CFM	2400RPM
GDFP150	120V/60Hz	70W	0.58A	395CFM	2400RPM
GDFP200	120V/60Hz	190W	1.59A	735CFM	2450RPM
GDFP250	120V/60Hz	219W	1.82A	1088CFM	2481RPM

Model	Voltage	Power	Current	Airflow	Speed
GDFP100	220V/50Hz	50W	0.4A	322m3/h	2350rpm
GDFP125	220V/50Hz	50W	0.40A	358m3/h	2350rpm
GDFP150	220V/50Hz	62W	0.49A	660m3/h	2400rpm
GDFP160	220V/50Hz	62W	0.49A	700m3/h	2400rpm
GDFP200	220V/50Hz	132W	0.61A	900m3/h	2310rpm
GDFP250	220V/50Hz	175W	0.68A	1600m3/h	2350rpm
GDFP315	220V/50Hz	280W	0.97A	2500m3/h	2350rpm

Packing & Delivery

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $35 / piece
  • 50–99 piece: US $34 / piece
  • 100–999 piece: US $33 / piece
  • 1000+ piece: US $31 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inline plastic duct fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this inline plastic duct fan carry?

It is supplied with ETL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the inline plastic duct fan be supplied for my local voltage?

The standard configuration is 110/220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Taizhou Defeng Mechanical And Electrical Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taizhou Defeng Mechanical And Electrical Co., Ltd. range on HVACR Nexus.
