This integrated motor is published with the manufacturer’s full specification — voltage DC 48V, type Permanent Magnet. Made by Shenzhen Xinlichuan Electric Co., Ltd. (10 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Integrated Motor
- Model Number: TLC86P
- Voltage: DC 48V
- Supply Voltage: 48V
- Warranty: 3 months ~ 1 year
- Place Of Origin: Guangdong, China
- Type: Permanent Magnet

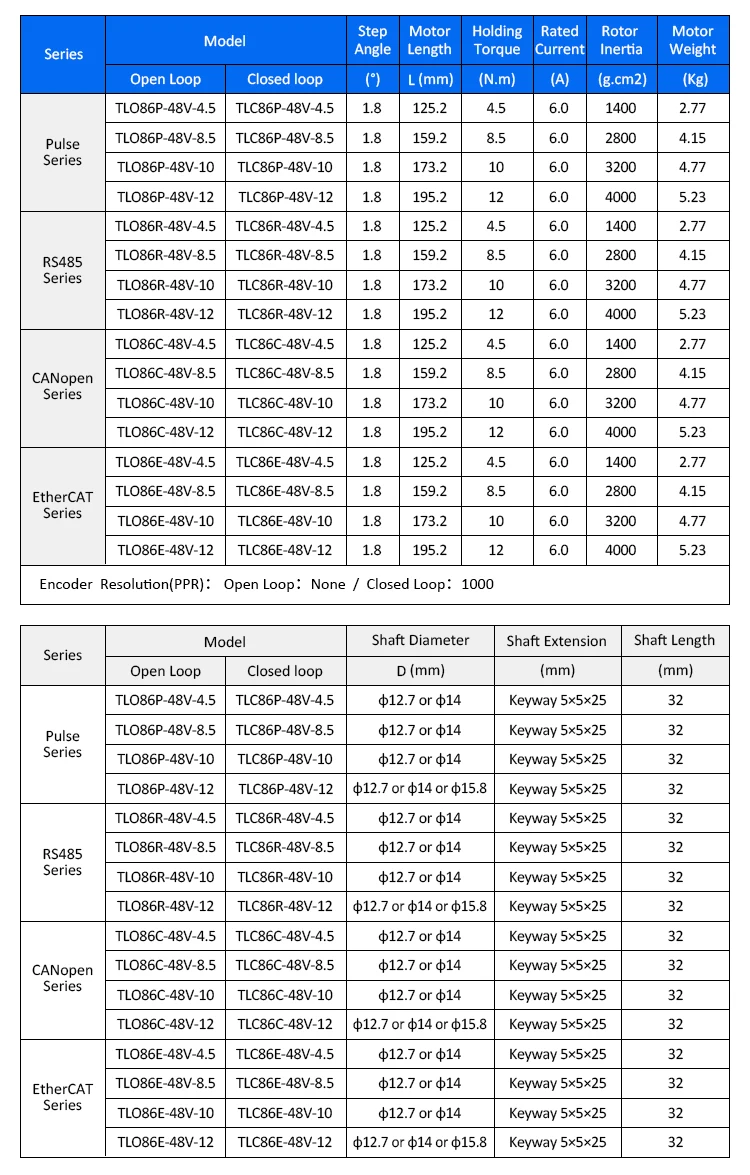

Technical Specifications
| Nema Frame Size | NEMA 34 |
|---|---|
| Voltage | DC 48V |
| Type | Permanent Magnet |
| Phase | 2 |
| Shaft Diameter | 12.7/14/15.8mm |
| Torque | 4.5/8.5/10/12N.m |
| Warranty | 3 months ~ 1 year |
| Place Of Origin | Guangdong, China |
| Model Number | TLC86P |
| Brand Name | LICHUAN |
| Current / Phase | 6.0A |
| Brand | LICHUAN |
| Holding Torque | 4.5N.m/8.5N.m/10N.m/12N.m |
| Frame Size | Nema34 |
| Encoder Resolution(PPR) | 1000PPR |
| Supply Voltage | 48V |

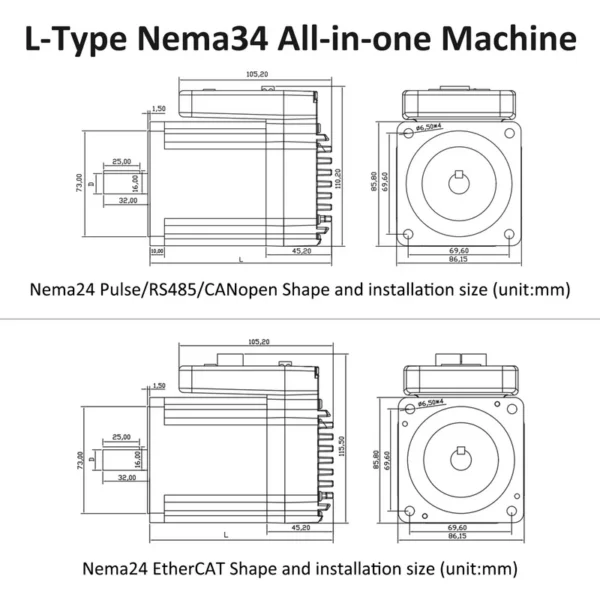

| Motor Length(Mm) | 125.2mm/159.2mm/173.2mm/195.2mm |
| Rotor Inertia(G.Cm²) | 1400g.cm²/2800g.cm²/3200g.cm²/4000g.cm² |
| Selling Units | Single item |
| Single Package Size | 35X30X25 cm |
| Single Gross Weight | 6.500 kg |
Product Details
Title goes here.
Closed Loop Integrated Stepper Motors Driver ,Closed Loop Integrated Stepper Motor Controller Driver ,Closed Loop Stepper Motor with Integrated Controller ,Closed Loop Integrated Stepper Motor with Driver ,Closed Loop Stepper Motor Drivers Integrated ,Closed Loop Stepper Motor Integrated Controller ,Closed Loop Stepper Motor Integrated Driver ,Closed Loop Integrated Driver Stepper Motor ,Closed Loop Stepper Motor with Integrated Driver ,Closed Loop Integrated Stepping Motor Driver ,Closed Loop Integrated Stepper Motor with Encoder Controller ,Integrated Closed Loop Stepper Motor Driver ,Integrated Stepper Closed Loop Motor Driver ,Closed Loop Micro Integrated Stepper Motor Driver ,Closed Loop Mini Integrated Stepper Motor Driver ,Closed Loop Small Integrated Stepper Motor Driver |
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this integrated motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the integrated motor be supplied for my local voltage?
The standard configuration is DC 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Xinlichuan Electric Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Xinlichuan Electric Co., Ltd. range on HVACR Nexus.
