Key specification for this stepper motor: 48 V DC, type Hybrid. Everything below is reproduced from the factory data sheet. Made by Shenzhen Lisan Intelligent Control Co., Ltd. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Stepper Motor

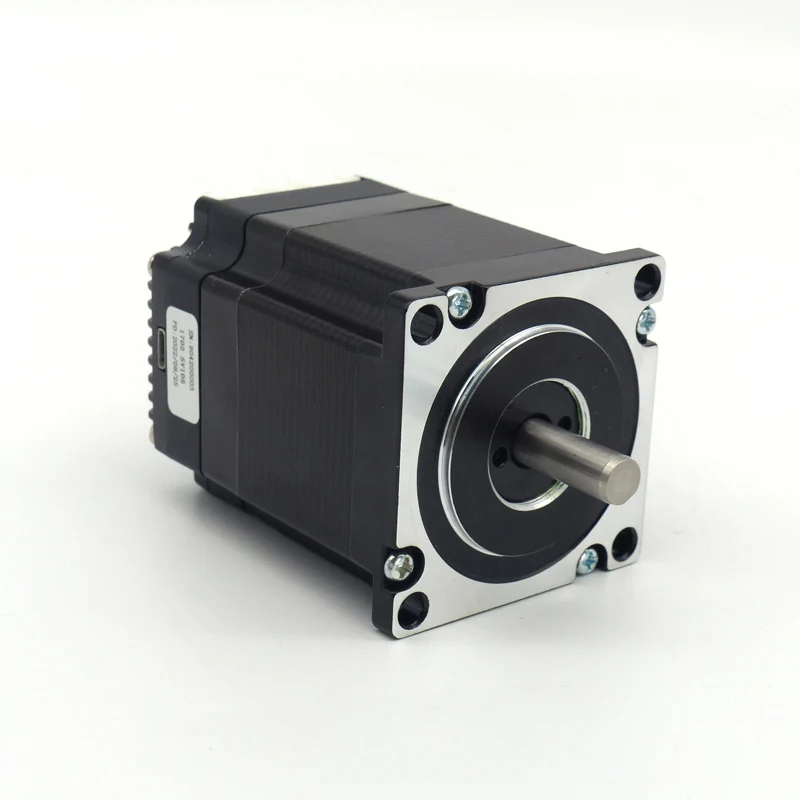

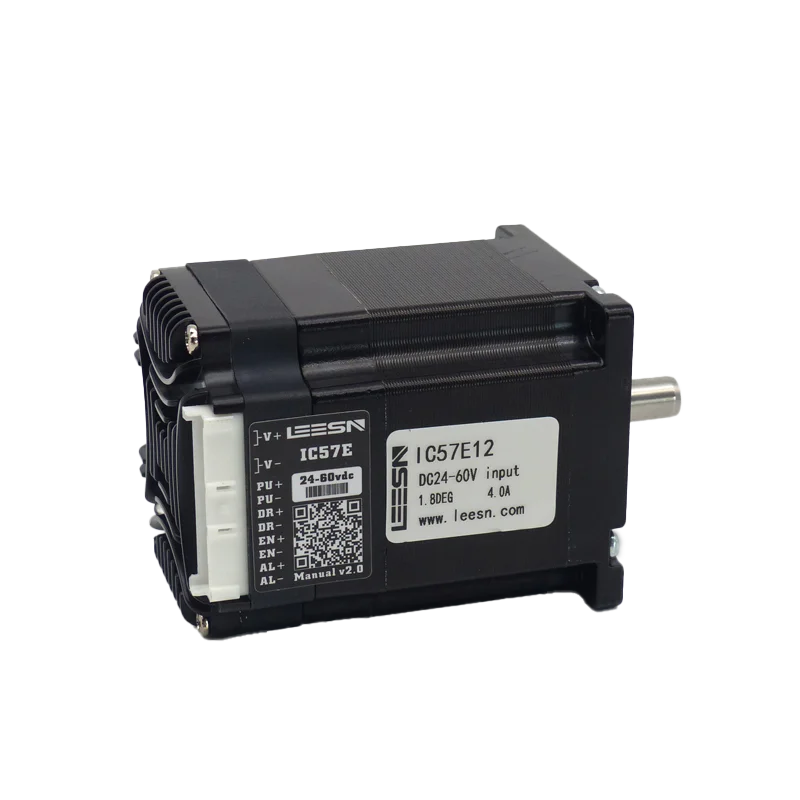

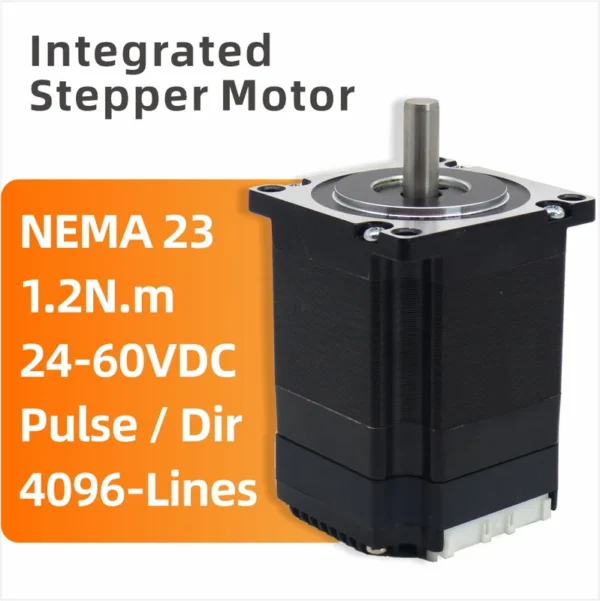

- Model Number: IC57E12
- Voltage: 48 V DC
- Input Voltage: 24-60VDC
- Warranty: 3 months ~ 1 year
- Certification: CE / RoHS
- Place Of Origin: Guangdong, China
Technical Specifications
| Nema Frame Size | NEMA 23 |
|---|---|
| Voltage | 48 V DC |
| Type | Hybrid |
| Phase | 2 |
| Shaft Diameter | 8.0 mm |
| Torque | 1.2 N.m |
| Warranty | 3 months ~ 1 year |
| Place Of Origin | Guangdong, China |
| Model Number | IC57E12 |
| Brand Name | LEESN |
| Current / Phase | 4 A |
| Model | IC57E12 |
| Product Type | Pulse integrated closed-loop step servo motor |
| Frame Size | 57 mm |
| Input Voltage | 24-60VDC |
| Rated Current | 4.0 A |
| Control Mode | Pulse / direction / I/O control |
| Configuration | TTL via Micro USB / Step-Config |
| Encoder Feedback | 4096 lines / 16384 counts |
| Certification | CE / RoHS |
| Selling Units | Single item |
| Single Package Size | 21X13X10 cm |
| Single Gross Weight | 1.2 kg |
Product Details

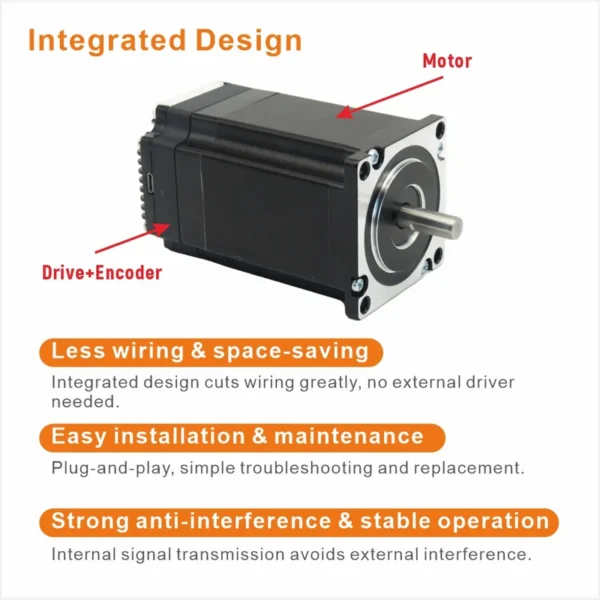

- Integrated motor + driver design closed up stepper servo motor
- 4096-line / 16384-count feedback
- 1.2 N.m NEMA23 torque class
- 24-50VDC wide DC input
- Pulse / direction control
- Closed-loop step servo performance
- ———————————————————————

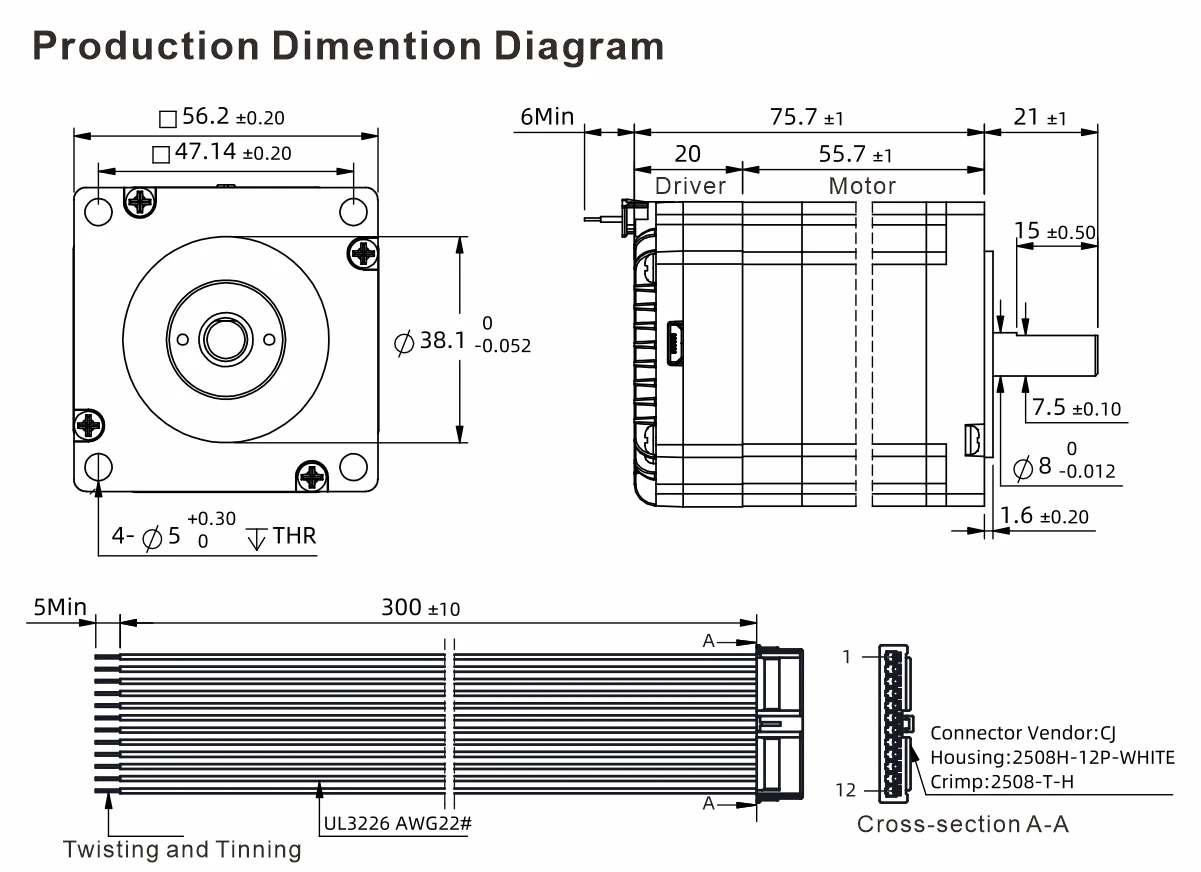

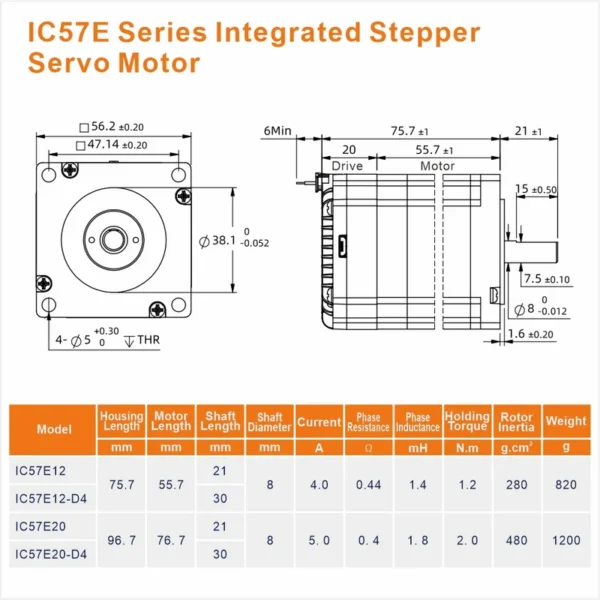

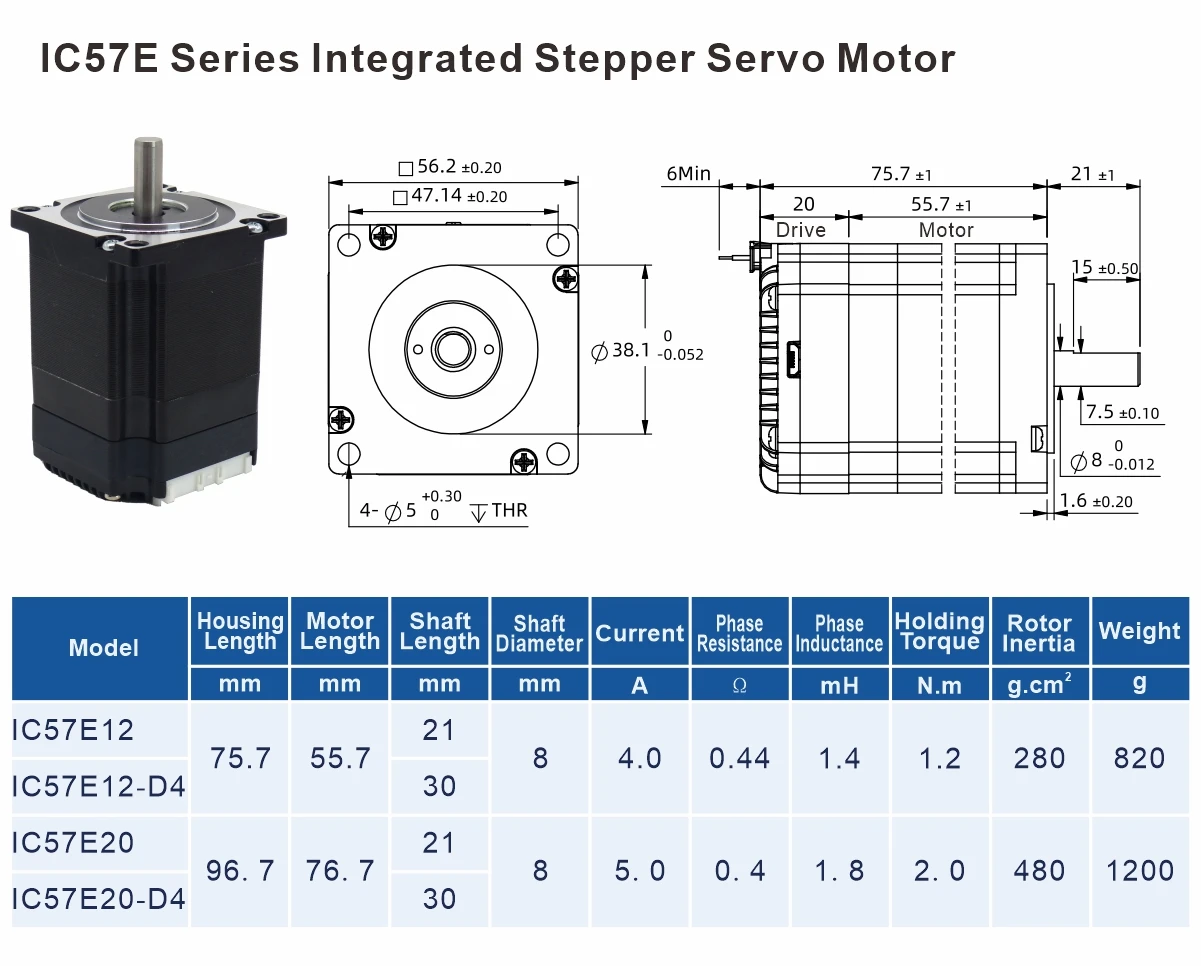

- Body Length : 75.7mm
- Shaft Length : 21mm
- Shaft Diameter : 8mm
- Current : 4.0A
- Supply Voltage : 24-60VDC
- Holding Torque : 1.2 N.m
- Phase Resistance 0.44Ω±20%
- Phase Inductance : 2 mH±20%
- Weight : 820g
- Rotor Inertia : 280g.cm
- Max Speed : 3000 RPM
- Encoder : 4096 Lines / 16384 Counts
- Protection : OV / UV / OC / open-phase / position error
- ————————————————————————————-

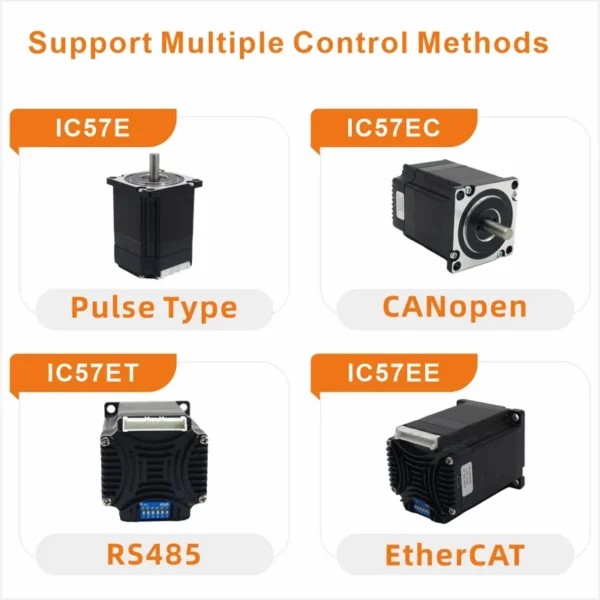

- Other Torque and Control Methods : 2.2 N.m / 3.0 N.m / RS485 /CANopen / EtherCAT
- Related Products :
- Stepper Motor Drives
- Integrated & 2/3/5-Phase Stepper Motors
- Multi-Turn Absolute Value Motors
- Electric Grippers & Hollow-Shaft Motors
- Lead Screw Motors & Planetary Gearboxes
- ———————————————————————————
- Product Applications :
- Stepper motor for 3D printer, CNC machine, engraving machine, packaging machine, textile machine, medical equipment, dispensing machine, labeling machine, automation equipment
- For driving 2-phase/3-phase stepper motors, used in CNC, packaging machinery, automation equipment, laser machines, engraving machines, textile machines
- Integrated stepper motor for compact automation equipment, packaging machines, labeling machines, dispensing machines, inspection equipment, multi-axis motion control systems
Brand | LEESN |
Product Model | IC57E12 |
Body Length | 75.7 mm |
Shaft Length | 21 mm |
Shaft Diameter | 8 mm |
Current | 4.0 A |
Supply Voltage | 24-60 VDC |
Holding Torque | 1.2 N.m |
Phase Resistance | 0.44Ω ± 20% |
Phase Inductance | 2 mH ± 20% |
Weight | 850g |
Rotor Inertia | 280g.c㎡ |
Temperature Range | 0℃～40℃ |
Operating humidity | 20%RH～90%RH |
Speed Range | 0.01～3000 RPM |
Encoder Feedback | 4096 lines / 16384 counts |
Contact Imformation | TTL |
Braud Rate | 115200 |
Data Bit | 8 |
Stop Bit | 1 |
Check Digit | None |
Protection | OV / UV / OC / open-phase / position error |

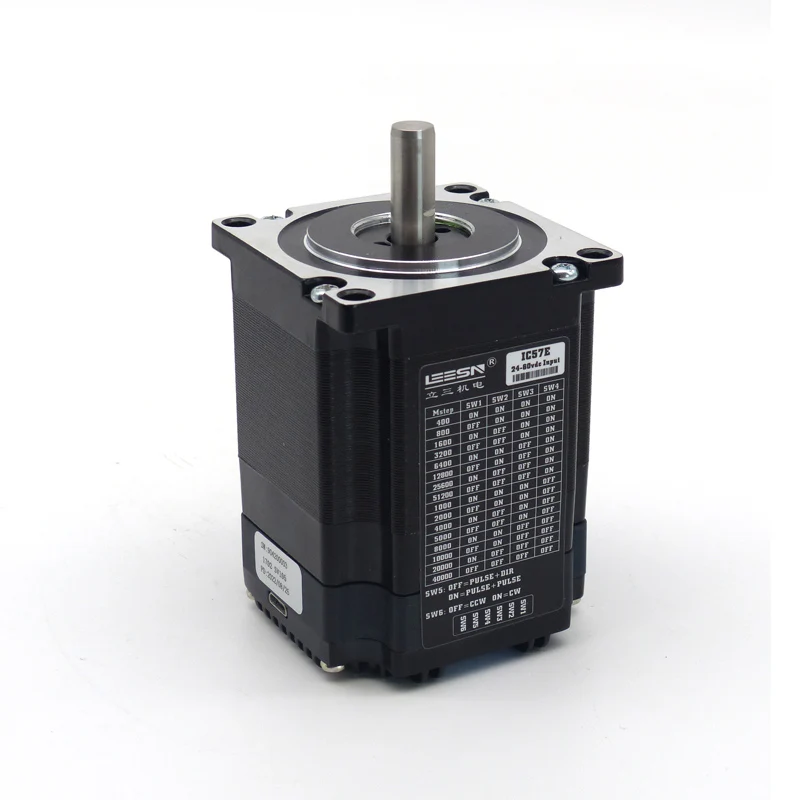

Sub Setting | 8-position DIP switch, adjustable to any positive integer greater than or equal to 200 via software |
Current Setting | 0.2-3.2 adustable via software, factory-rated motor current：4.0A |
Filter Frequency | Factory default: 400kHz, can be configured via sofrware |
Non-volatile Memory | Configuration parameters are stored in the FLASH memory inside the MCU |
Our main products include stepper motor drivers, integrated stepper motors, multi-turn absolute value motors, lead screw motors,electric grippers, and planetary gearboxes.
All products are CE and RoHS certified with strict quality control. Our solutions are widely used in medical devices, robotics, 3C electronics, CNC machining, and new energy industries.
Exporting to Europe, Americas, Middle East, and Southeast Asia, we are trusted partners of Foxconn, Huawei, BYD, and Han's Laser.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $43.5 / piece
- 100–499 piece: US $40.8 / piece
- 500+ piece: US $37.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stepper motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this stepper motor carry?
It is supplied with CE / RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the stepper motor be supplied for my local voltage?
The standard configuration is 48 V DC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
