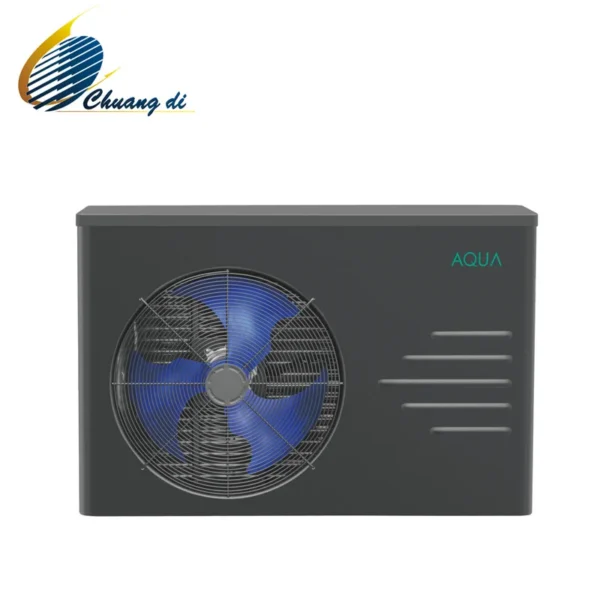

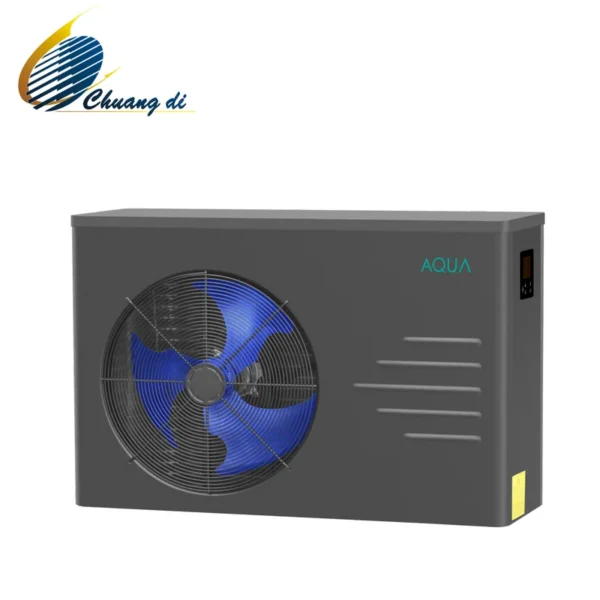

Inverter Heat Pump, AQUA, 220V, Galvanized Sheet

Key specification for this inverter heat pump: 220V, material Galvanized Sheet. Everything below is reproduced from the factory data sheet. Made by Guangzhou Chuangdi M & E Technology Co., Ltd (21 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Inverter Heat Pump

• Model Number: AQS-HF
• Voltage: 220V
• Material: Galvanized Sheet
• Certification: CE Certificate
• Place Of Origin: Guangdong, China
• Application: Swimming Pools

Technical Specifications

Product Details

Product Description

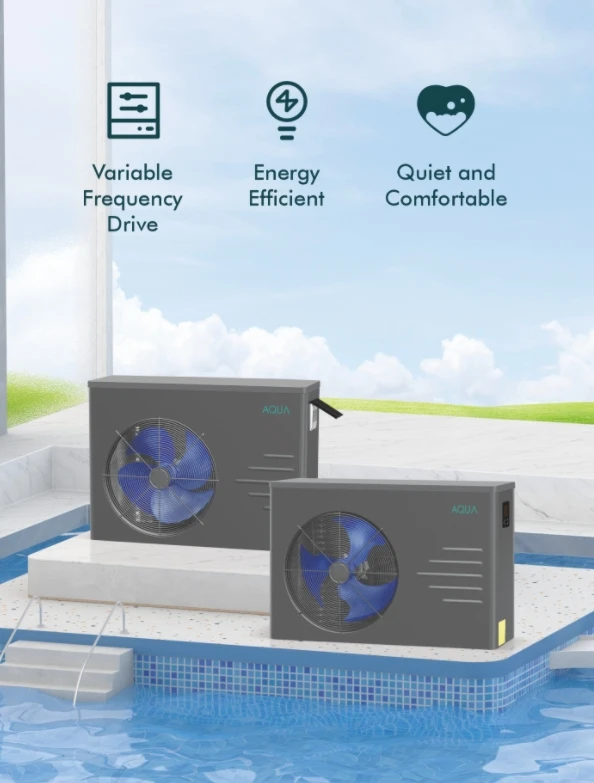

DC lnverter Technology

The core of DC inverter technology is the frequency conversion control system, which drives the DC inverter compressor to operate in units of Hertz (Hz) by controlling the operating speed and frequency of the compressor. Adjust the operating speed and frequency of the compressor in real time according to changes in the ambient temperature and water temperature, so that the equipment can achieve optimal performance.

The whole system operates with frequency conversion. The DC inverter technology allows the heat pump to operate at the highest frequency at the beginning of the initial heating of the swimming pool, so that the whole machine completes the initial heating of the pool water at the highest heating rate, and the later pool water constant temperature equipment operates at a low frequency of the compressor to maintain a high COP Energy-efficient operation reduces equipment energy consumption and maintains a constant pool water temperature.

Therefore, compared with the fixed frequency swimming pool heat pump the DC frequency conversion consumes less than half of the running energy, which is more in line with the concept of green and energy-saving life.

Specification

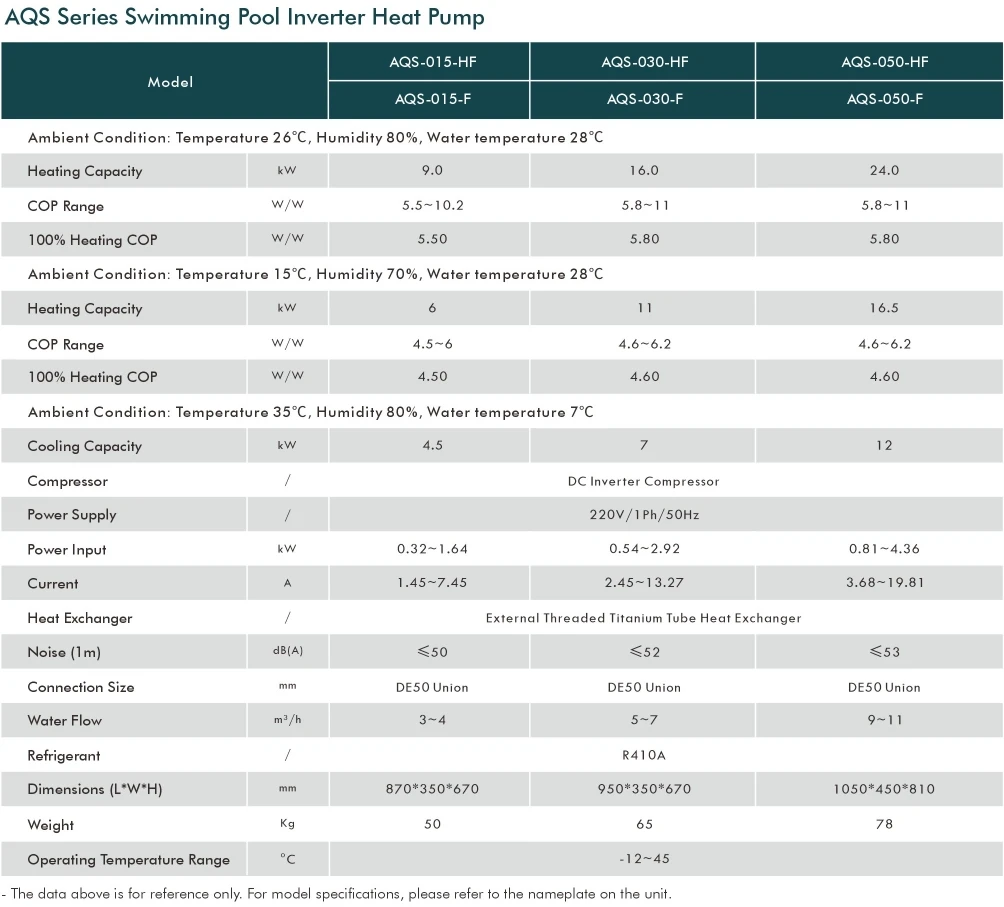

AQS Series Swimming Pool Inverter Heat Pump

Suitable for swimming pool heating,constant temperature and cooling in various places.

– DC inverter compressor, high efficiency, energy saving, quiet and comfortable.
– High-efficiency pure titanium tube heat exchanger with external thread, the temperature rises rapidly.
– Electronic expansion valve, the throttling control is more precise.
– Four-way valve to switch, the defrosting is faster and the heat loss is reduced.

– Flexible setting, automatic control of heating mode,energy saving and low noise, all-weather operation.
– Multiple protections, safe and reliable, built-in water flow protection,compressor exhaust temperature protection compressor high and low pressure protection,compressor over current, winter anti-freezing protection.

Two types of controllers are available to choice.

HF type control panel

Acrylic waterproof LED control panel,clear display, elegant appearance.

F type control panel

Waterproof box control panel, LCD display, simple and elegant.

Model			AQS-015-HF AQS-015-F	AQS-030-HF AQS-030-F	AQS-050-HF AQS-050-F
Ambient Condition: Temperature 26°C,Humidity 80%, Water temperature 28°C
Heating Capacity	kW	9.0	16.0	24.0
COP Range	W/W	5.5~10.2	5.8~11	5.8~11
100% Heating COP	W/W	5.50	5.80	5.80
Ambient Condition: Temperature 15°C,Humidity 70%, Water temperature 28°C
Heating Capacity	kW	6	11	16.5
COP Range	W/W	4.5~6	4.6~6.2	4.6~6.2
100% Heating COP	W/W	4.50	4.60	4.60
Ambient Condition: Temperature 35°C, Humidity 80%, Water temperature 7°C
Cooling Capacity	kW	4.5	7	12
Compressor	/	DC inverter Compressor
Power Supply	/	220V/1Ph/50Hz
Power Input	kW	0.32~1.64	0.54~2.92	0.81~4.36
Current	A	1.45~7.45	2.45~13.27	3.68~19.81
Heat Exchanger	/	External Threaded Titanium Tube Heat Exchanger
Noise (1m)	dB(A)	≤50	≤52	≤53
Connection Size	mm	DE50 Union	DE50 Union	DE50 Union
Water Flow	m³/h	3~4	5~7	9~11
Refrigerant	/	R410A
Dimensions (L*W"H)	mm	870*350*670	950*350*670	1050*450*810
Weight	Kg	50	65	78
Operating Temperature Range	°C	-12~45

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $860 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inverter heat pump?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Which certifications does this inverter heat pump carry?

It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the inverter heat pump be supplied for my local voltage?

The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Chuangdi M & E Technology Co., Ltd, based in China. The company 21 years as a verified Alibaba.com supplier, Trading Company. Browse the full Guangzhou Chuangdi M & E Technology Co., Ltd range on HVACR Nexus.
