Temperature Commercial Heat Pump, 7.4KW, 82.6kw, 85C

Key specification for this temperature commercial heat pump: power source Electric, type Air Source Heat Pump. Everything below is reproduced from the factory data sheet. Made by Shenzhen Power World New Energy Technology Co., Ltd. (21 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Temperature Commercial Heat Pump

• Model Number: PF030-KFGRS-S
• Power Source: Electric
• Housing Material: galvanized sheet
• Warranty: 2 Years
• Place Of Origin: Guangdong, China
• Application: Outdoor, Hotel, Commercial, Household

Technical Specifications

Product Details

Products Description

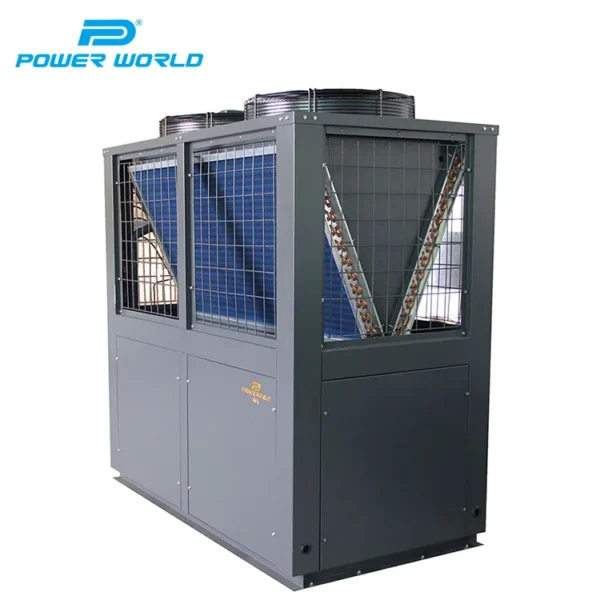

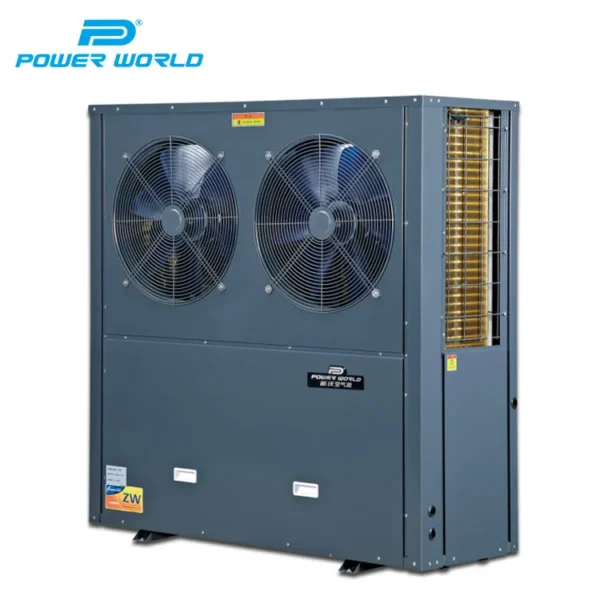

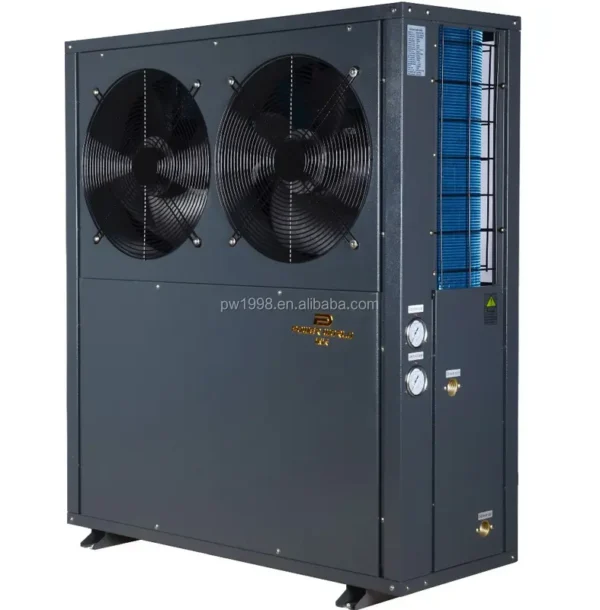

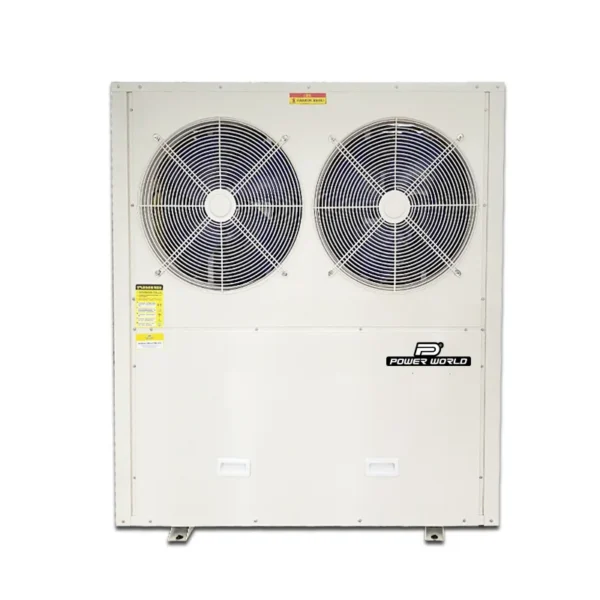

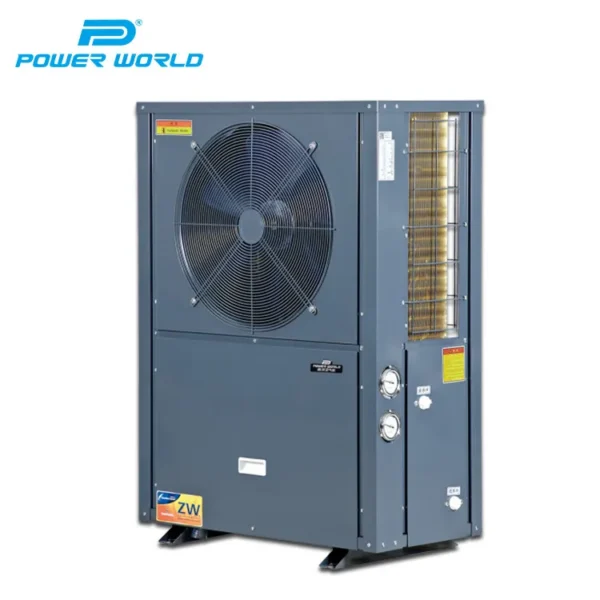

EVI 80℃ high Temperature Heat Pump For Hot Water

These series adopt environmental-friendly refrigerant R134A and EVI (Enhanced Vapor Injection) technology. They can produce stable 75 ℃ hot water,max hot water temp up to 80℃,widely using for industry area.

Product model			PF030-KFGRS-S	PF030-KFGRS	PF050-KFGRS	PF100-KFGRS	PF150-KFGRS	PF200-KFGRS	PF250-KFGRS	PF300-KFGRS
heating*	Heating capacity (kW)	7.4	8.3	13.8	27.6	41.1	55.1	65.3	82.6
		Input power (kW)	2.9	3.3	5.4	10.8	16	21.5	25.4	32.3
		COP (Coefficient of Performance)	2.55	2.52	2.56	2.56	2.57	2.56	2.57	2.56
Max input power (kW)			3.92	4.46	7.3	14.6	21.6	29.0	34.3	43.6
Rated current (A)			13.2	6.6	10.8	21.6	32.2	43	51	64.6
Max current (A)			17.8	8.9	14.6	29.2	43.5	58.1	69.0	87.2
Refrigerant			R134A	R135A	R136A	R137A	R138A	R139A	R140A	R141A
Compressor			EVI Copeland	EVI Copeland	EVI Copeland	EVI Copeland	EVI Copeland	EVI Copeland	EVI Copeland	EVI Copeland
Power supply			220V/50Hz	380V/50Hz	380V/51Hz	380V/52Hz	380V/53Hz	380V/54Hz	380V/55Hz	380V/56Hz
Rated outlet water temperature (℃)			75	75	75	75	75	75	75	75
Highest outlet water temperature(℃)			80	80	80	80	80	85	85	85
Production capacity (L/H)			106	119	198	396	589	790	987	1184
Water circulation （m³/H）			3	3	5	10	15	20	25	30
Water pressure drop （kPa）			25	25	30	35	38	46	48	52
IP Grade (Level of protection)			IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Anti-electric shock Rate			I	I	I	I	I	I	I	I
Noise (dB(A))			≤55	≤55	≤58	≤66	≤68	≤68	≤70	≤75
Net weight/Gross weight(kg)			105/111	105/111	150/160	310/330	372/412	482/532	582/642	612/675
Diameter of pipe (mm)			DN25	DN25	DN25	DN32	DN50	DN50	DN65	DN65
Body size(W*D*H)			710*710*870	710*710*870	810*800*1030	1580*800*1600	1580*800*1600	1850*1000*1950	2000*1100*2080	2300*1100*2300
Packing size(W*D*H)			810*810*1070	810*810*1070	910*900*1230	1680*900*1800	1680*900*1800	1950*1100*2050	2100*1200*2280	2400*1200*2500
Loading quantity (20GP/40GP/40HQ)			28/56/56	28/56/56	12/24/52	6/12/12	6/12/12	6/12/12	4/10/10	0/0/5
Working condition: heating*:Inlet water temperature 15℃, Outlet water temperature 75℃, Dry bulb temperature 20℃, Wet bulb temperature15℃.

Advantage

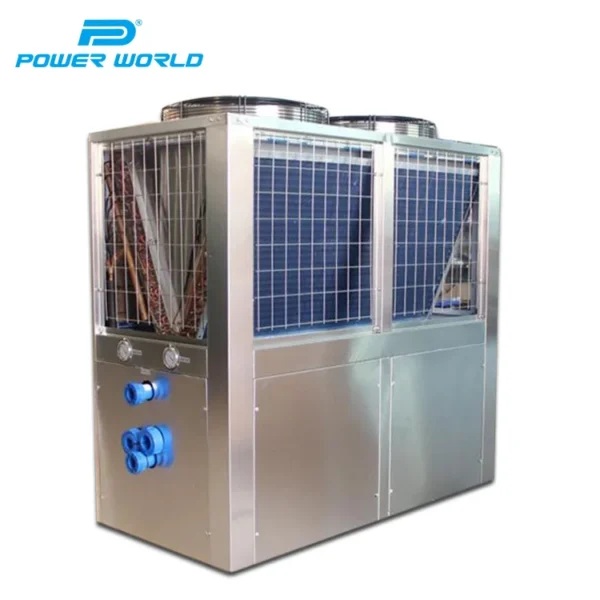

1. Stainless steel/ galvanized powder coated steel resist corrosion. 2. American Copeland EVI scroll compressor supplement more capacity through economizer for high outlet water temp. 3. High efficient tube in shell heat exchanger and Tube in tube heat exchanger. 4. Intelligent EEV,precise control and excellent efficiency at different ambient temperature. 5. Intelligent control and Automatic Data Backup (with self-diagnosis function,auto-defrosting function, complete protection function) to ensure reliable operation. 6. LCD display with touch keys for easy access, LCD display is very convenient for checking and setting.

Product packaging

Packaging	Packed by Plywood case/ cardboard case
Timing	Send out next day after payment if in stock 4-7 working days to deliver
Logistics	DHL ,UPS,FedEx or as you request

Company Profile

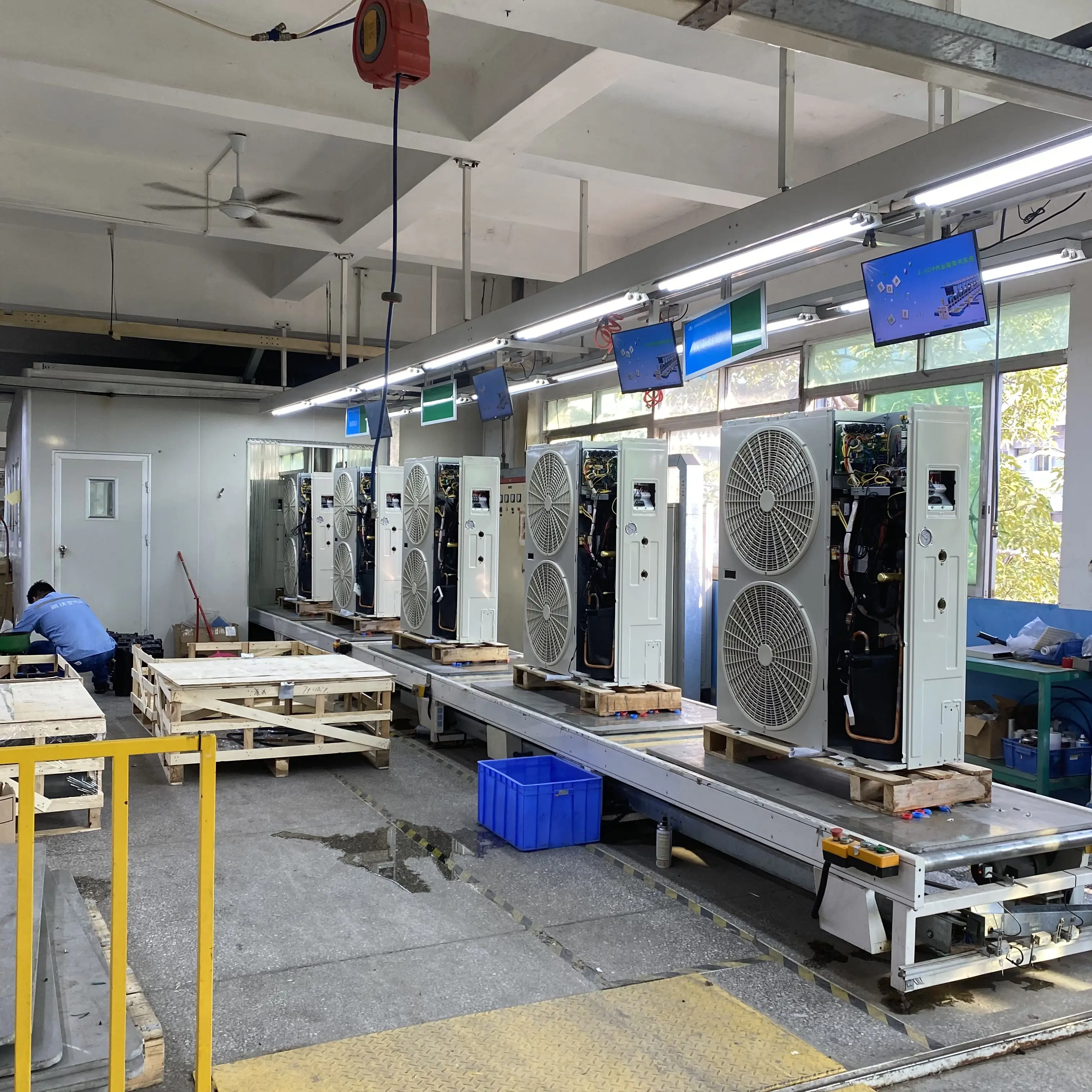

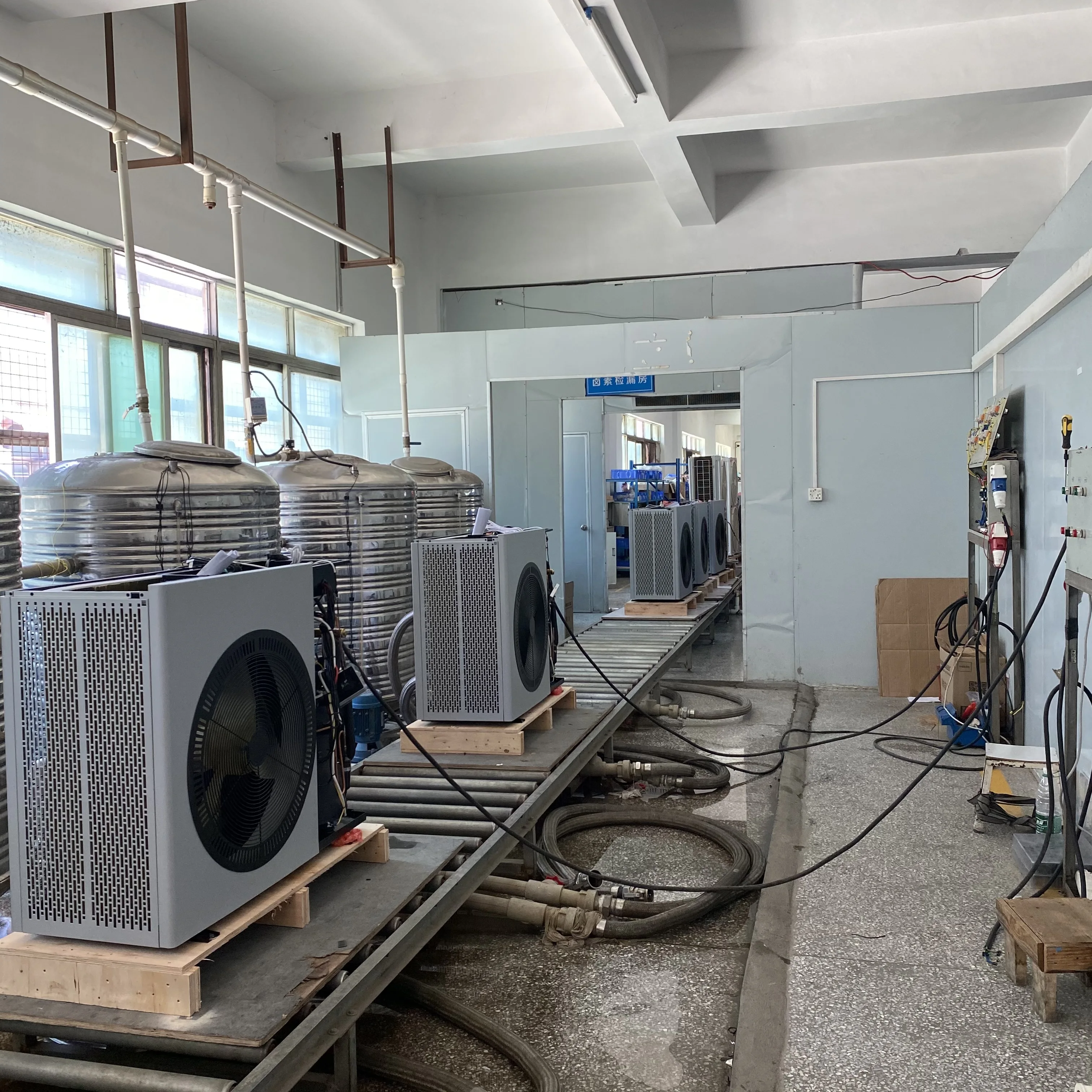

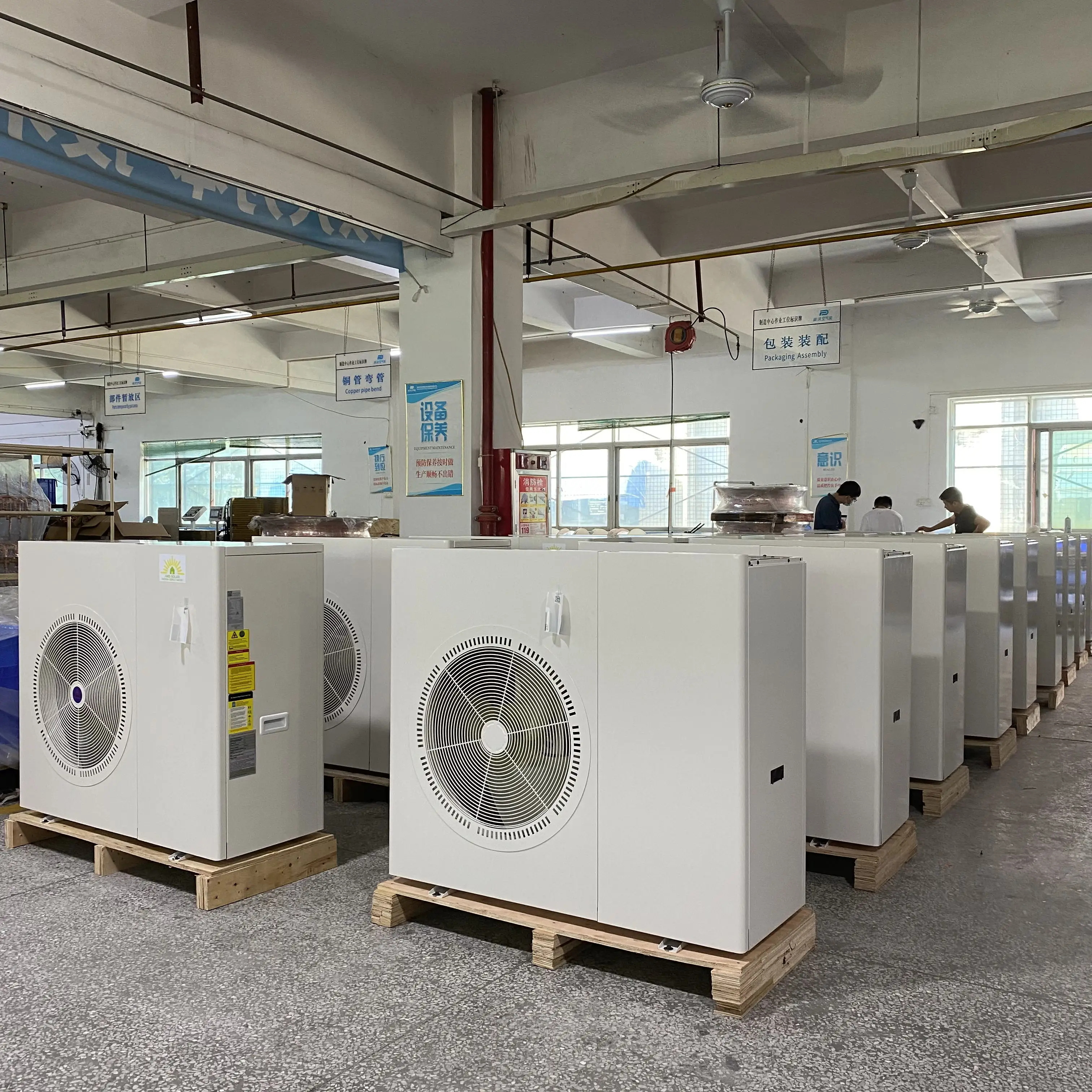

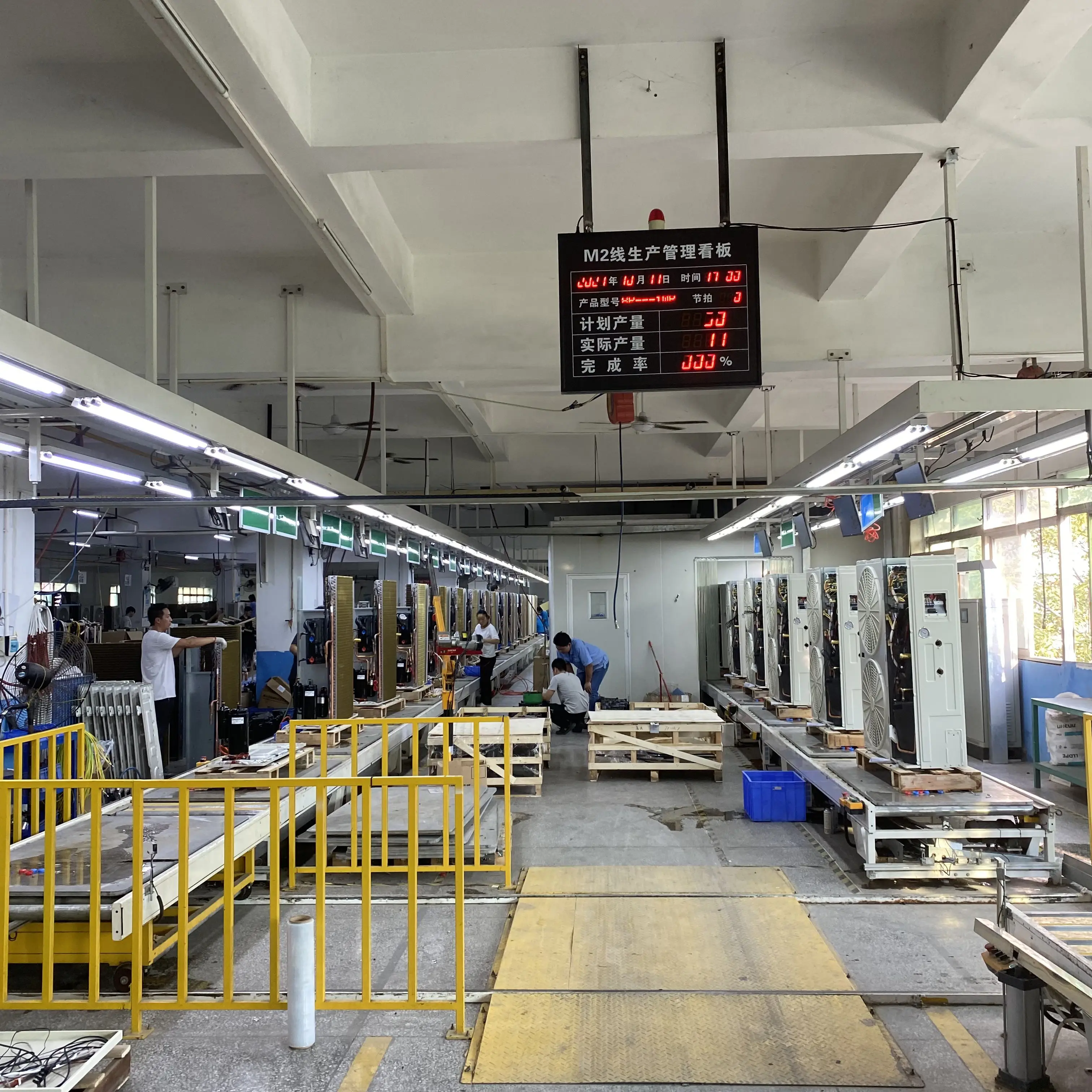

Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 500 emplyees.With 8 flexible production line,it's honored to be top 10 brand heat pump supplier in China with one billion USD output value per year.

Power World has a heat pump R&D center with a team of more than 20 engineers and 4 professional laboratories.Complying with ISO9001:2008 & ISO14001:2004,all products get CE,CB(IEC)certificate and ERP Energy Label based on EN14825,EN14511,strictly according to latest EHPA requirement.

Market Overview

Through years of technological innovation and strategic market expansion, power world has become one of the

most famous and influential brands of heat pump in china. Now power world committed to development of the international market, the products sold to more than 60countries ,serving more than 1/10 of the world’s population.get highly praised by customers

Popular Products With Discount

Exihibition

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $2223 / set
  • 10–49 set: US $2198 / set
  • 50+ set: US $1971 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this temperature commercial heat pump?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
