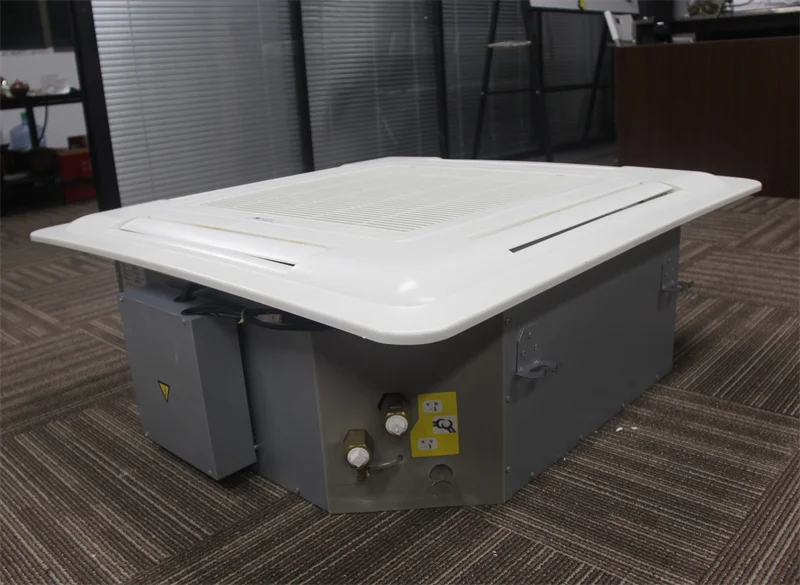

Inverter Motor, Ceiling, Units700CFM, MR4K700-A-D

The inverter motor listed here carries 6.3kW, type Fan Coil Unit, documented exactly as the manufacturer publishes it. Made by Shenzhen Monchrui Industry Development Co., Ltd. (9 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Inverter Motor

• Model Number: MR4K700-A-D
• Cooling Capacity: 6.3kW
• Heating Capacity: 9.5kW
• Airflow: 700 CFM
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

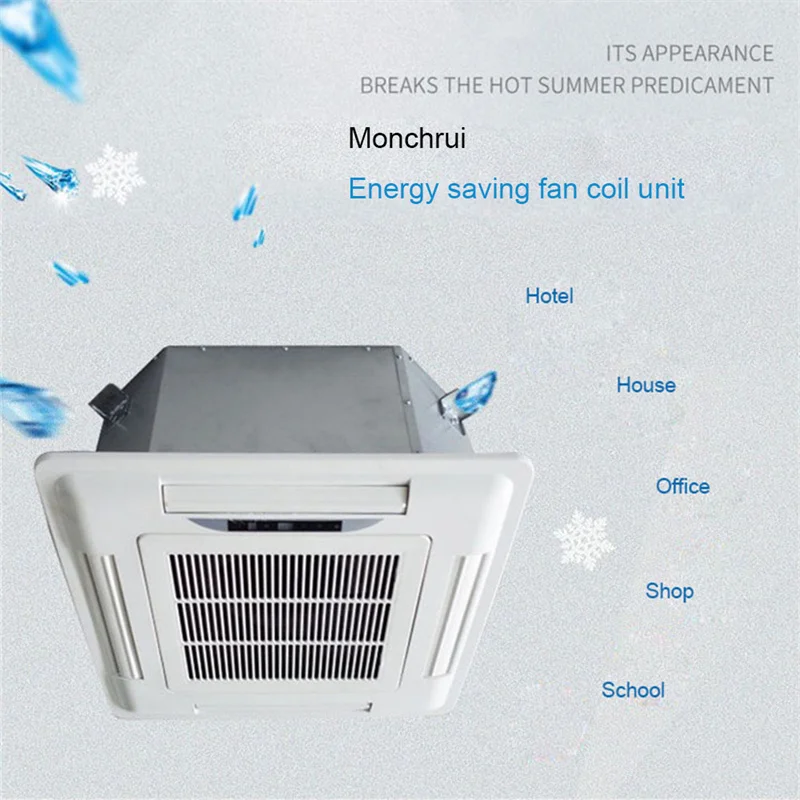

Product Overview

Products Description

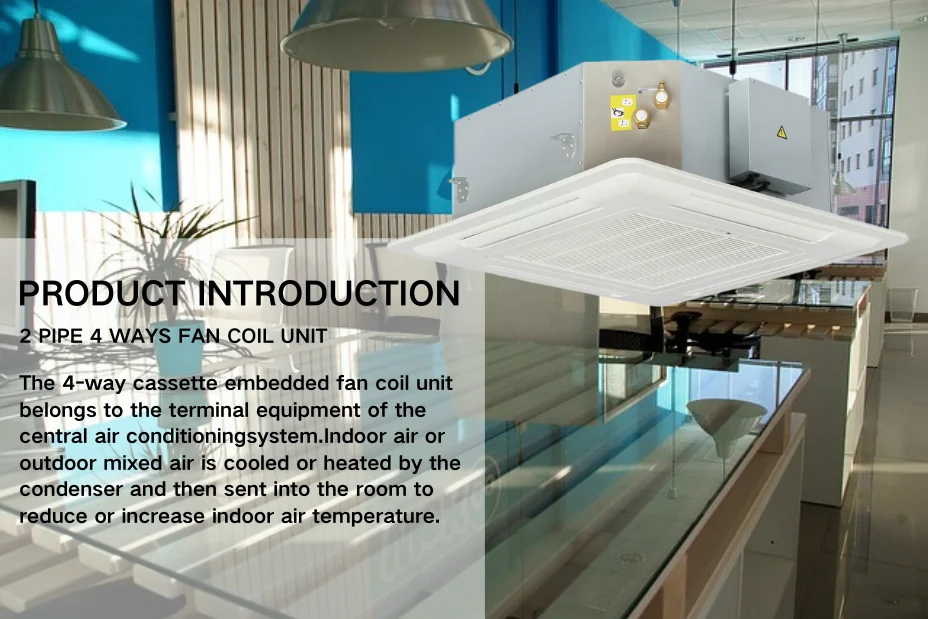

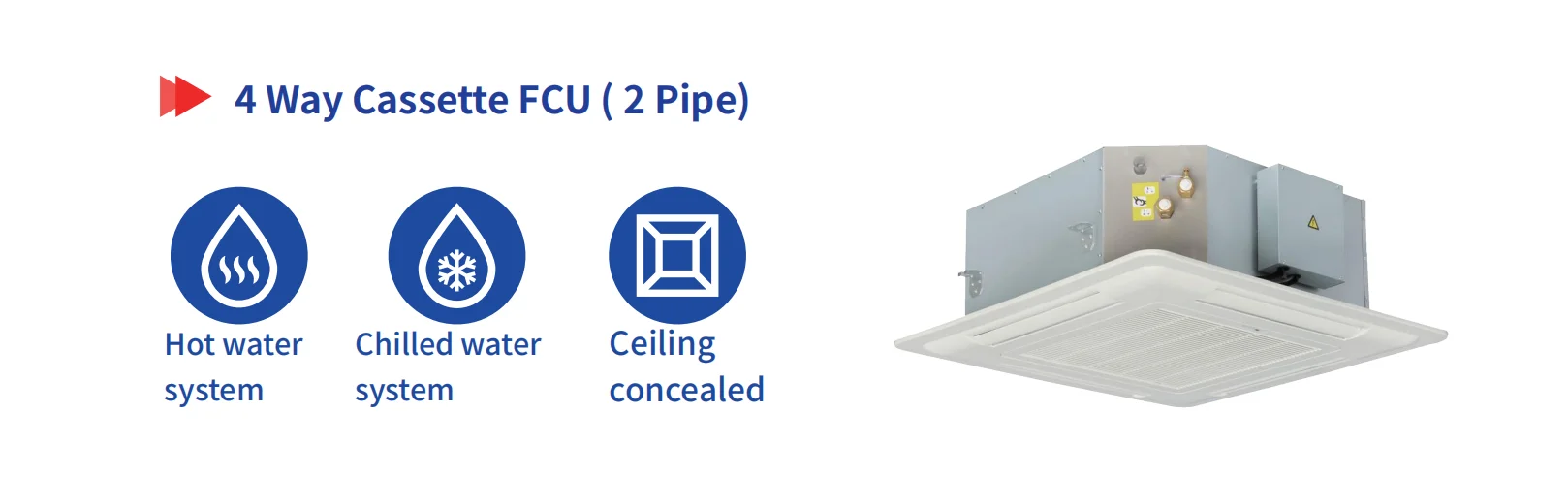

2 PIPE 4 WAYS FAN COIL UNIT

High Efficiency Coil Design

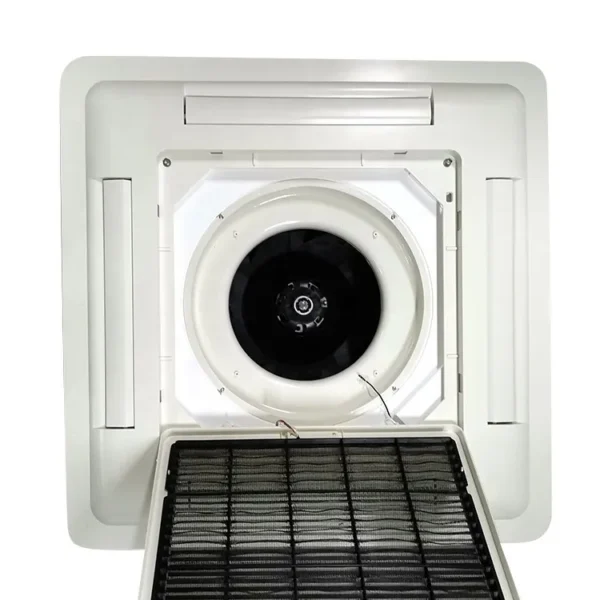

Silent Hi-Quality Plastic Wheel Fan

Fresh Air Intake Optional

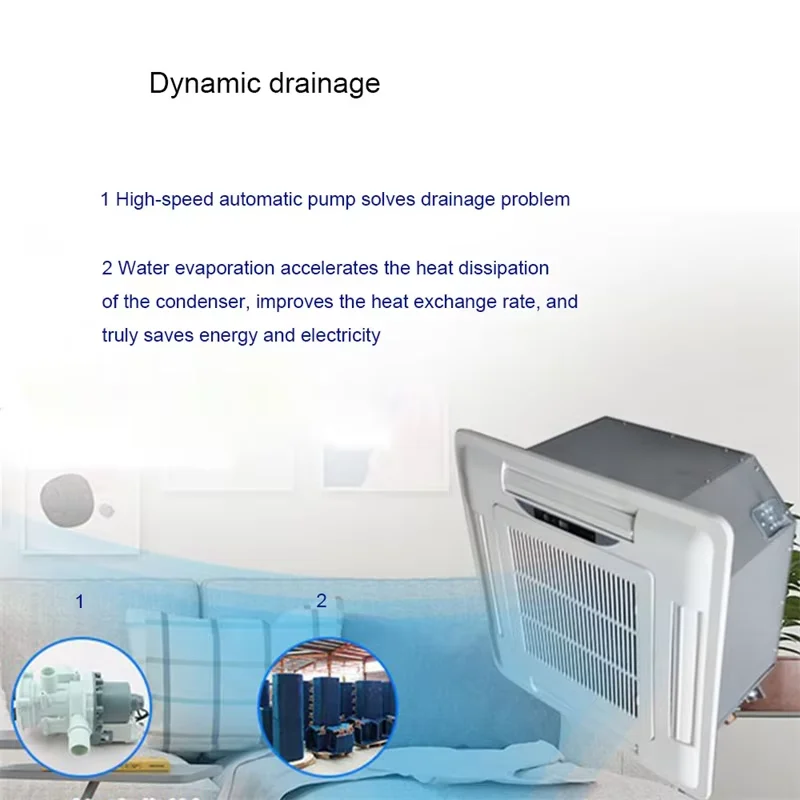

Built- in Drain Pump and Float Switch

100% On-line Test

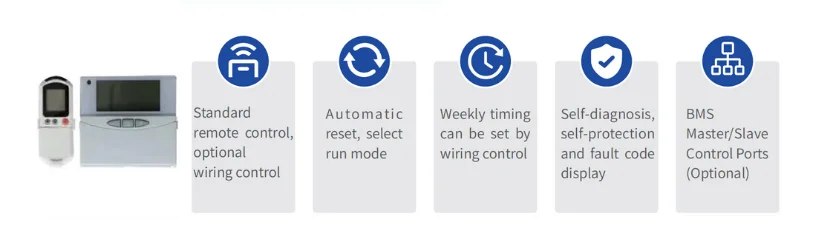

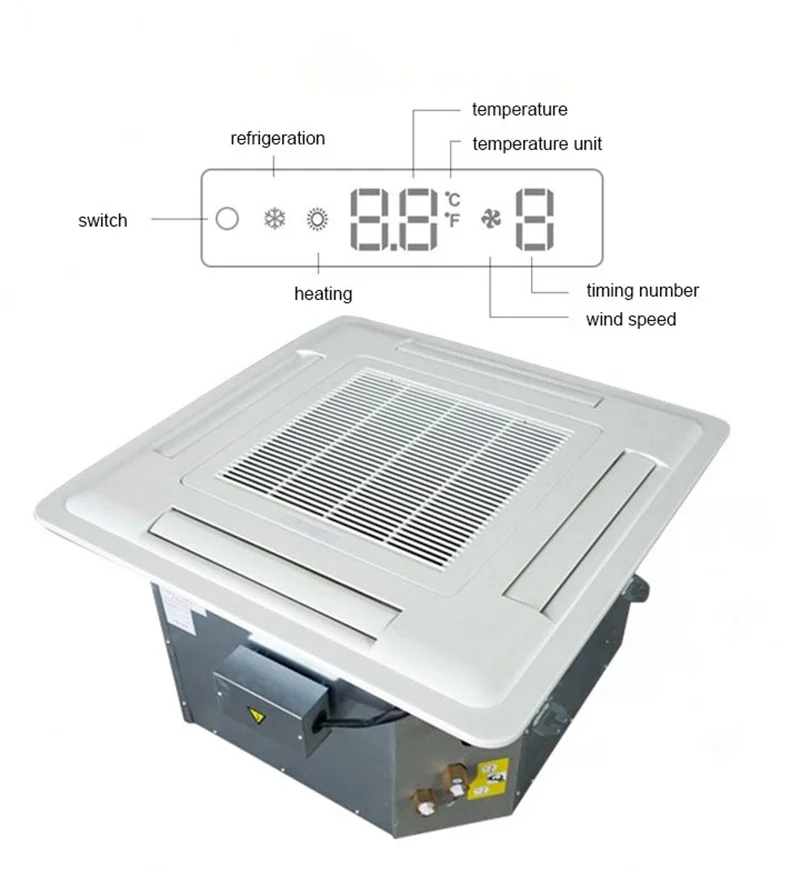

Control introduction

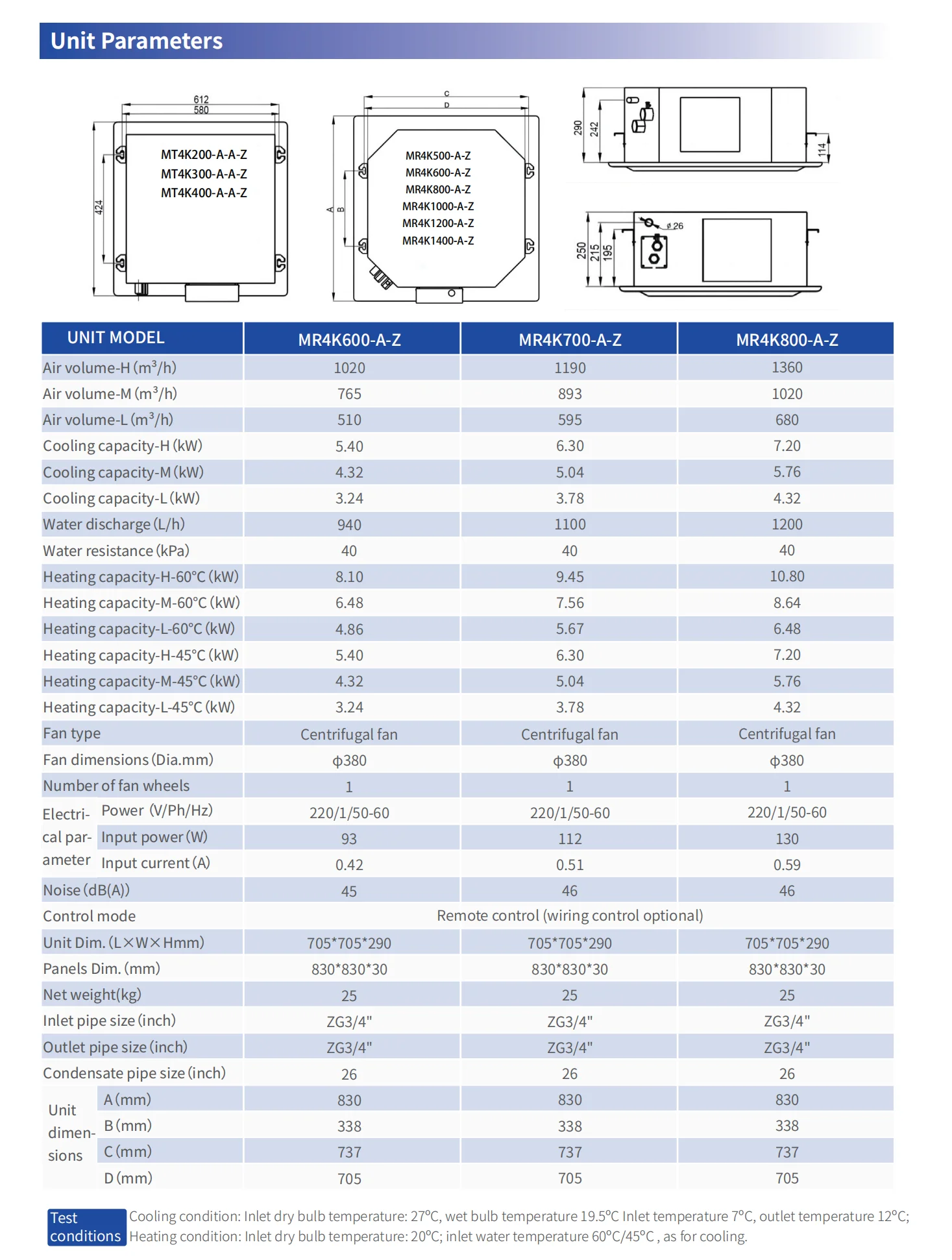

Product Specifications

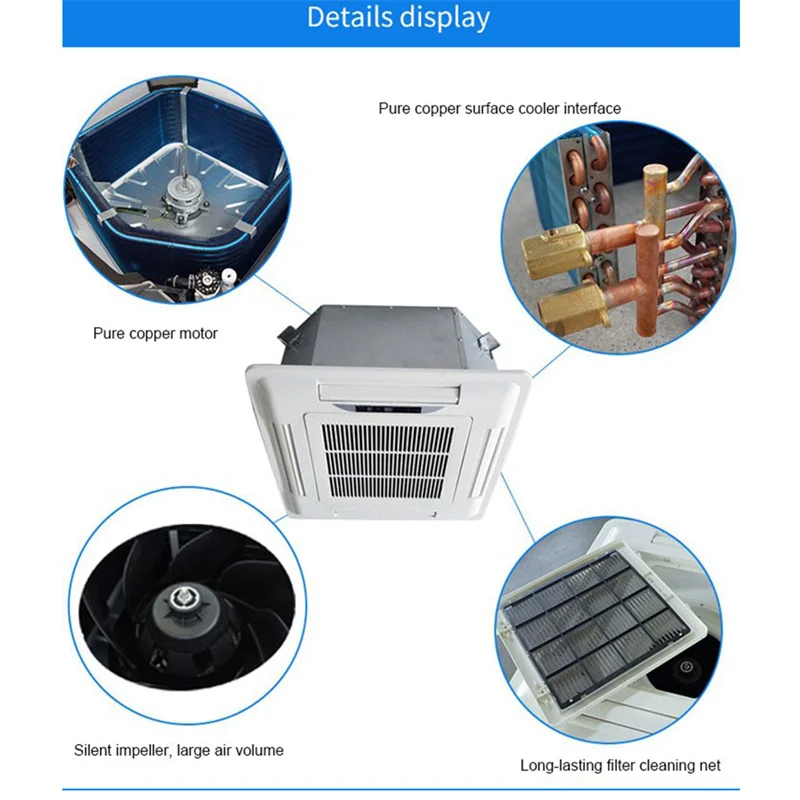

Design features

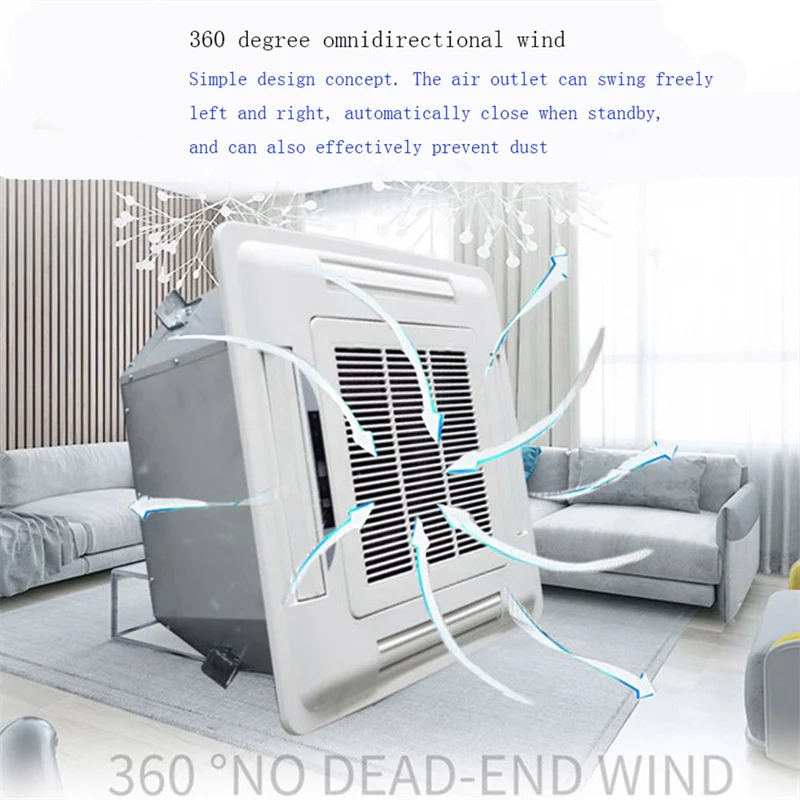

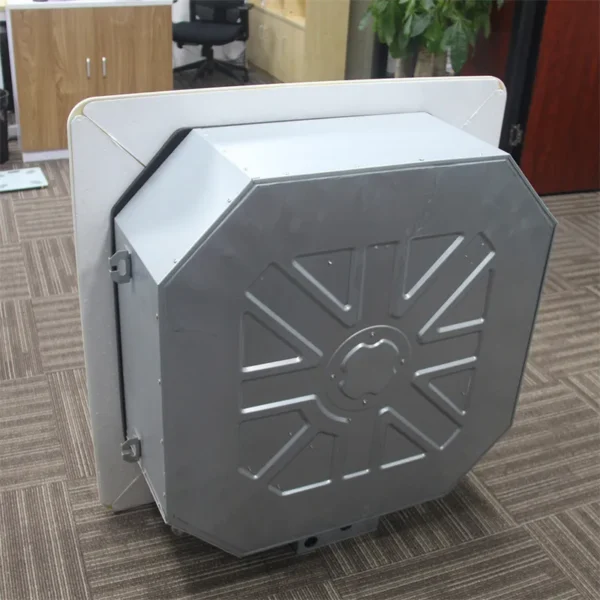

1 Unit Body Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation. 2 Panel Assembly Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing. 3 Plastic Wheel-Quite running One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration, low noise on the wheels and motors. Each wheel will be balanced under G0.5mm/s. 4 Fresh air intake Fresh air intake is optional. 5 High Efficiency Coil Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 30bar(3Mpa) air pressure. with 3/4” pipe connections and air bleed vent. 6 Condensate Drain Pan In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a condensates draining pump and a safety float. 7 Drain pump and Float Switch 700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.

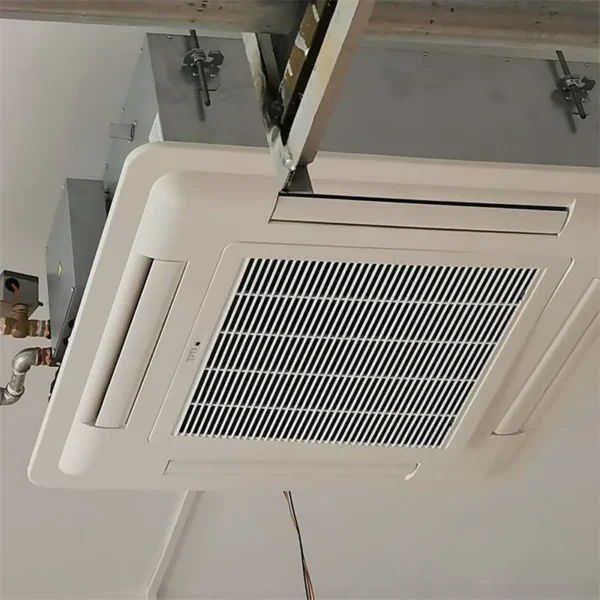

Applicable occasions

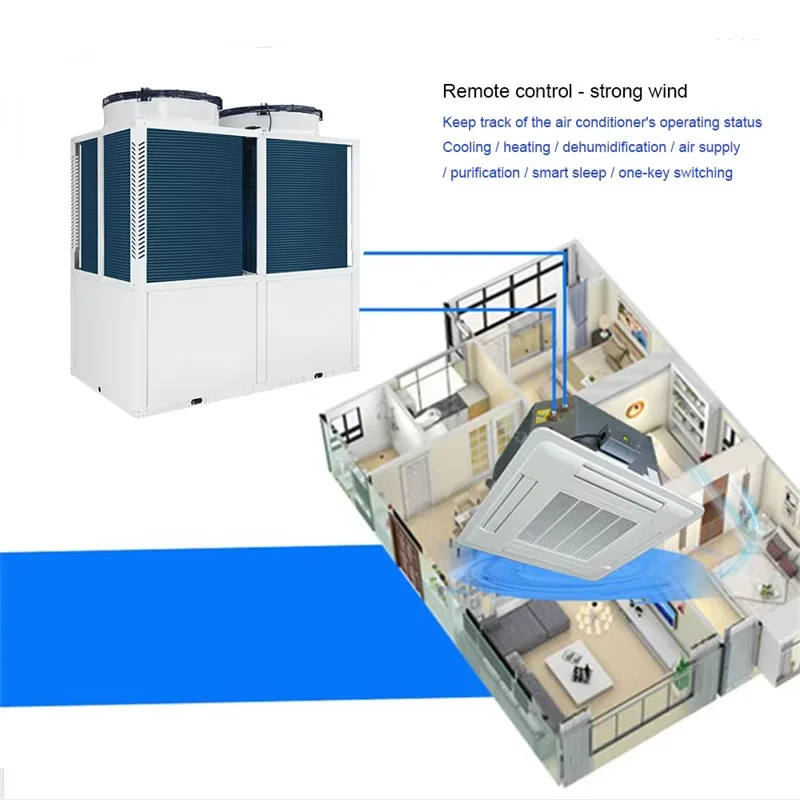

Suitable for many occasions, such as living room, bedroom, gym, office, etc.

Why Choose Us

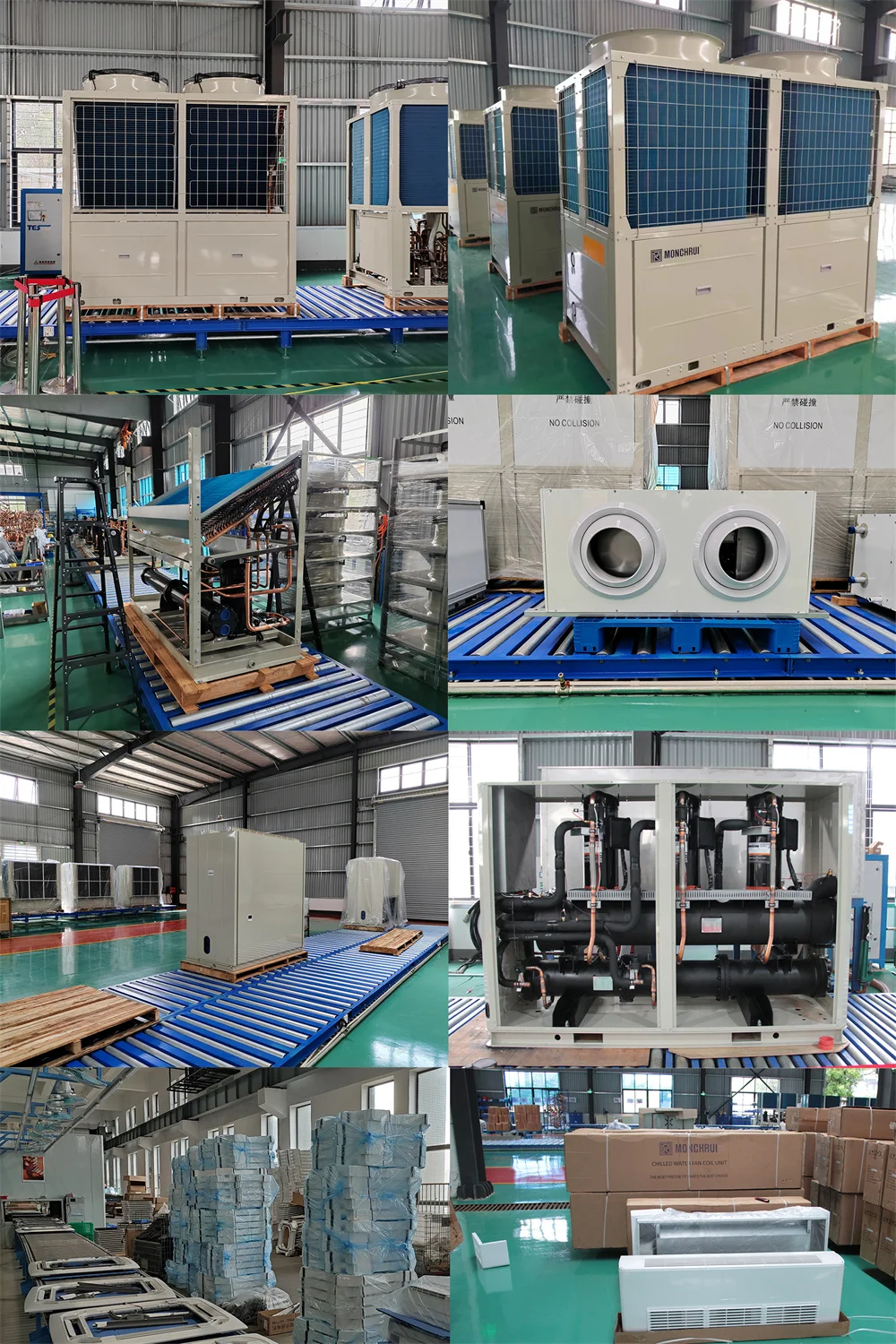

Advanced Equipment Factory

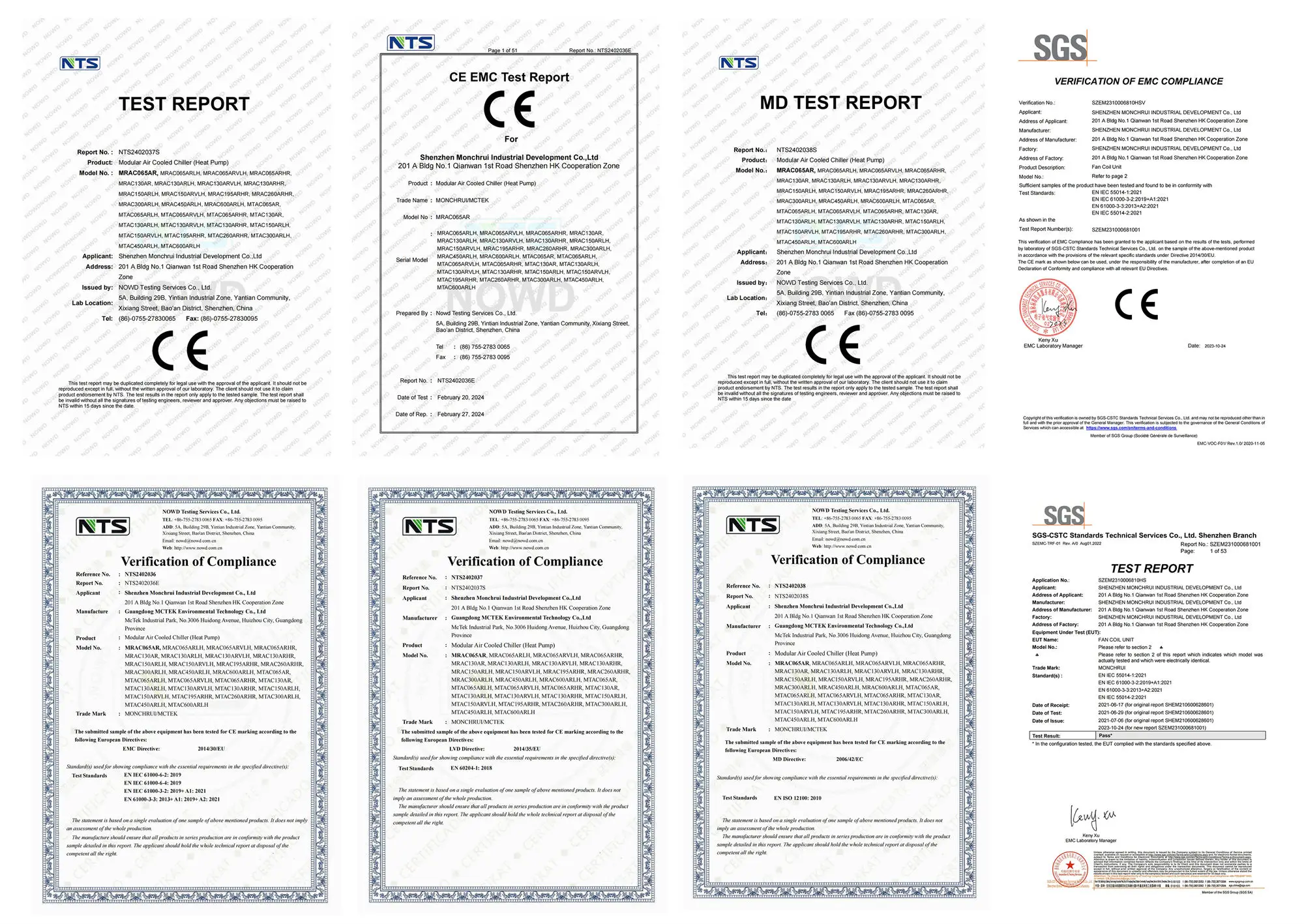

Complete product certificates

Exhibition

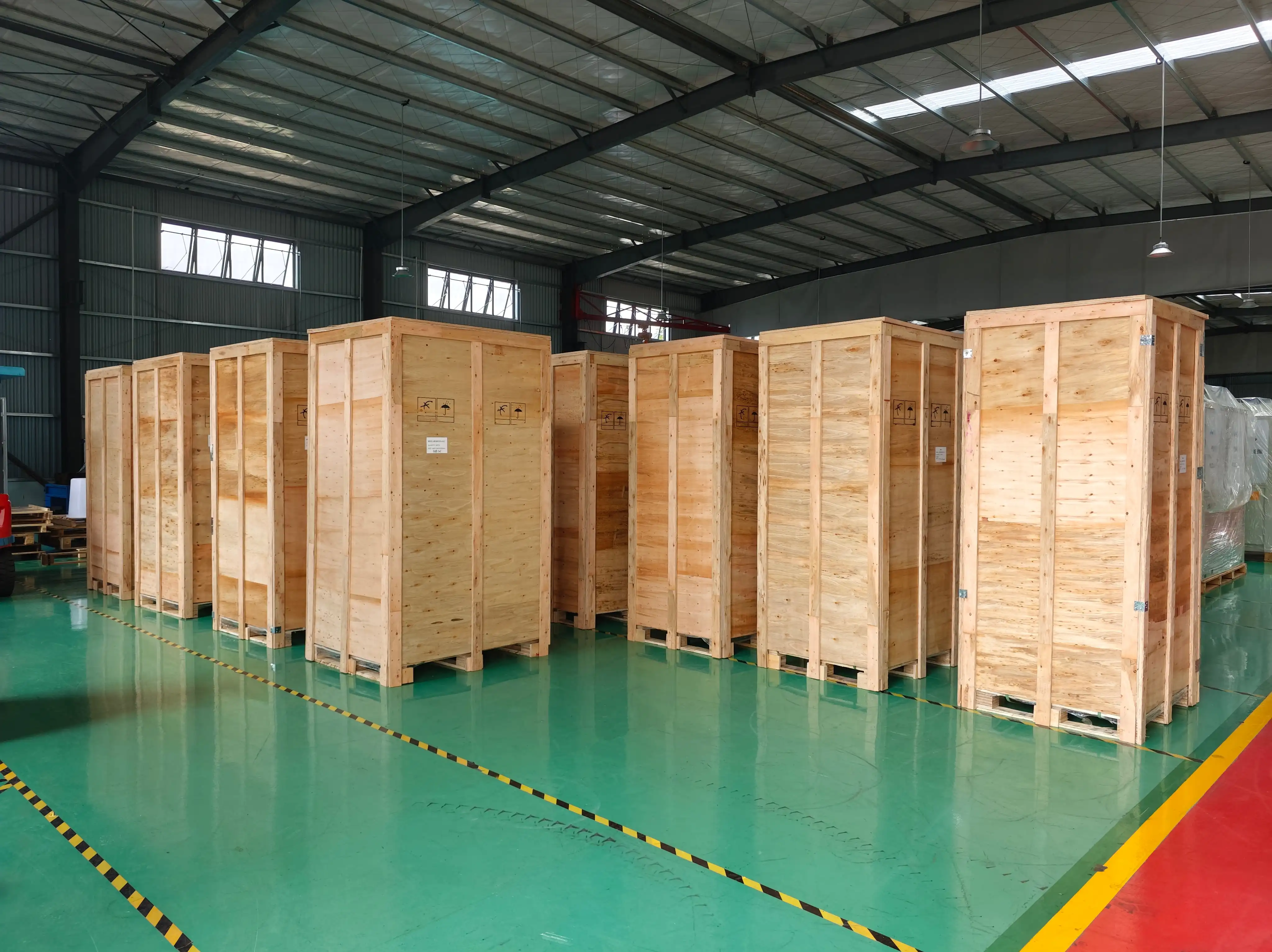

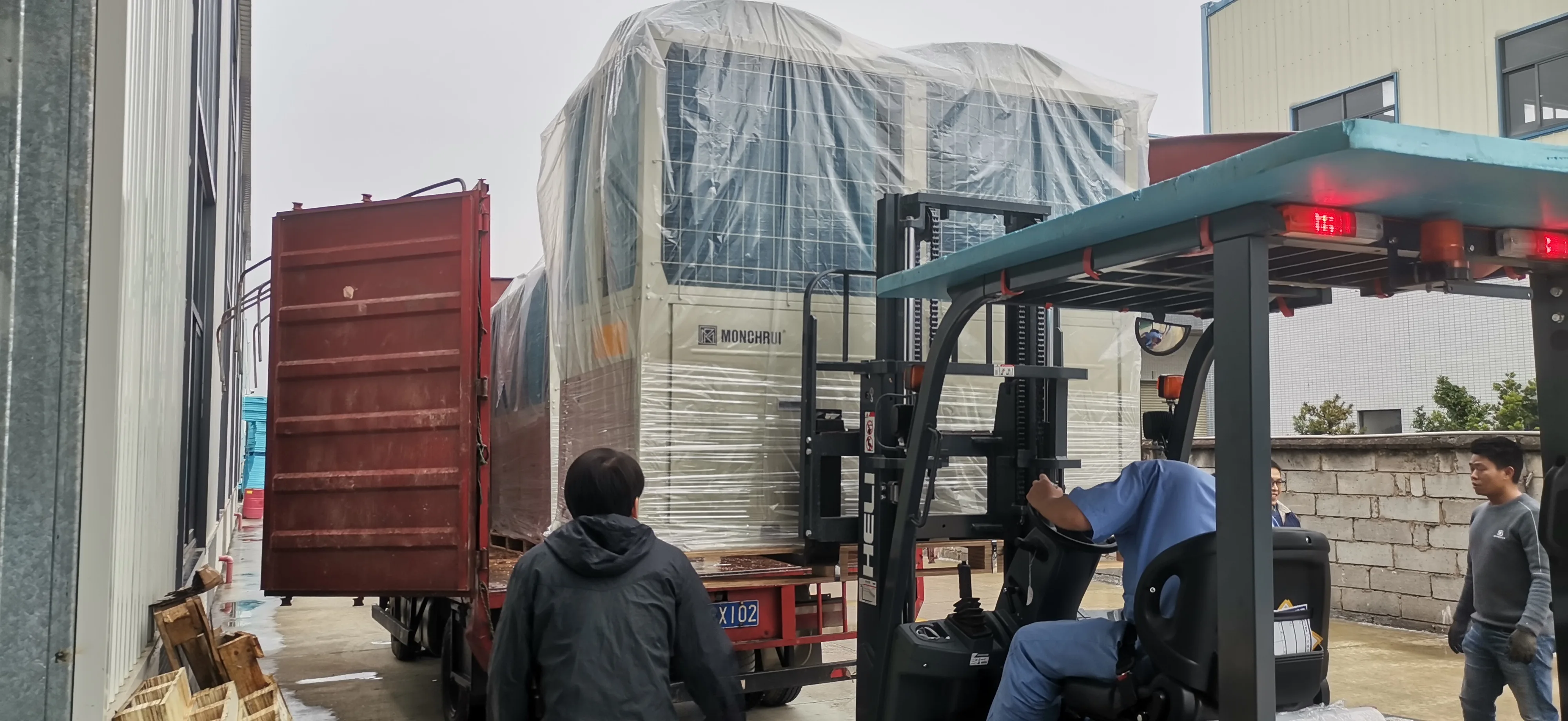

Packing & Shipping

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–29 set: US $271 / set
  • 30+ set: US $250 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inverter motor?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Monchrui Industry Development Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Monchrui Industry Development Co., Ltd. range on HVACR Nexus.

See more in Fan Coil Units on HVACR Nexus.
