Certification Heat Pump, HVAC, 380V, 152kW

The certification heat pump listed here carries 380V/3N~/50HZ, 152kW, documented exactly as the manufacturer publishes it. Made by Shenzhen Monchrui Industry Development Co., Ltd. (9 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Certification Heat Pump

• Model Number: MRC150PLH
• Power: 43.8KW
• Voltage: 380V/3N~/50HZ
• Nominal Cooling Capacity: 152kW
• Nominal Heating Capacity: 160kW
• Refrigerant: R410A

Technical Specifications

Product Details

Our Advantages

Product core advantage

Monchrui modular air-cooled/water-cooled chiller is one of the leading products carefully designed by Monchrui Company with many years of design experience and integrating the advantages of similar products at home and abroad. It has more than 20 years of design and production history. Monchrui air-conditioning design , Production, technology, operation and maintenance, and service technology are mature, and the unit performance is superior. Monchrui Air Conditioning adopts self-developed modular chiller technology, which is stable and reliable. It is your best choice for energy saving, environmental protection and comfort of the central air conditioning system. We have standard air-cooled series chillers (including standard series chillers, low-temperature series chillers, ultra-low temperature series chillers, inverter series chillers, heat recovery series chillers) and water-cooled series chillers

Products Description

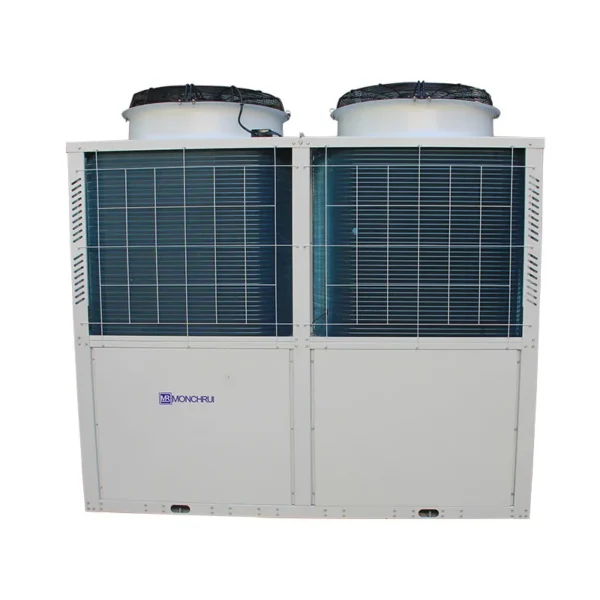

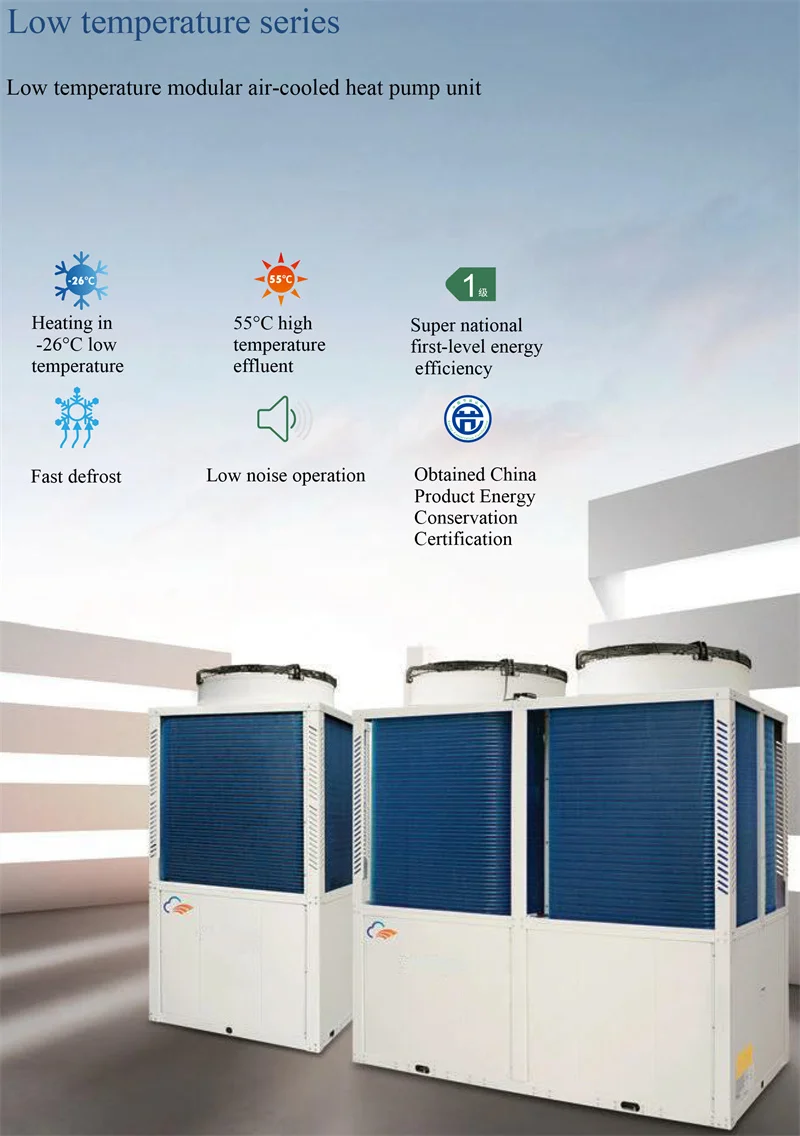

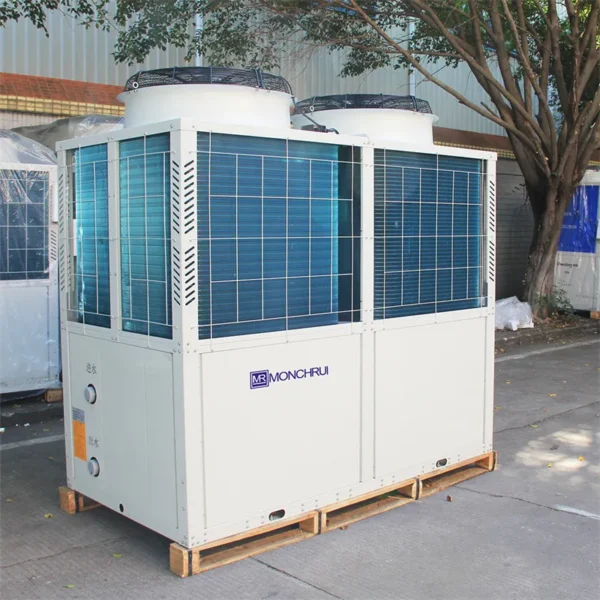

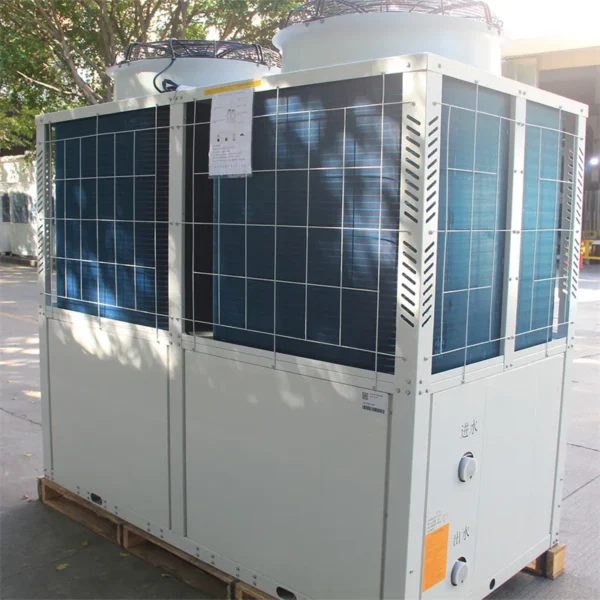

Low temperature series MRC150PLH air cooled chiller

Low temperature modular air-cooled heat pump unit

1.Heating in -26°C low temperature

2.55°C high temperature effluent

3.ESuper national first-level energy efficiency

4.Fast defrost

5.Low noise operation

6.Obtained China Product Energy Conservation Certification

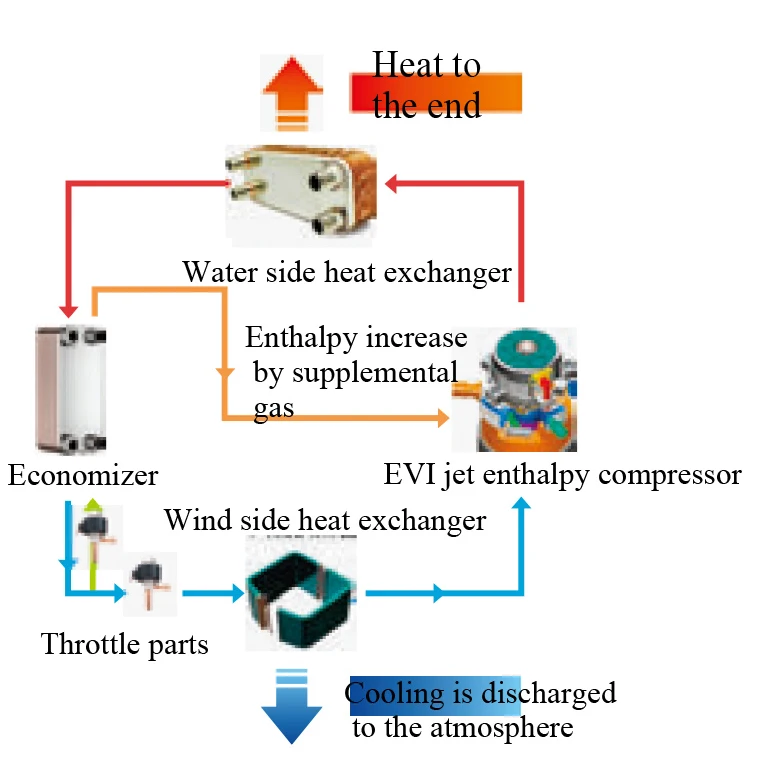

Jet Enthalpy Technology

1 High-efficiency jet compressor: The whole series of air-jet compressors are used for the whole series of air-jet roasting compressors, which have a wider operating range. The heating power is far superior to conventional compressors in low temperature environments, and the energy efficiency is higher.

2 High efficiency economizer: On the one hand, it can increase the subcooling degree of the refrigerant in the main circuit before the valve, and on the other hand, it can increase the superheat degree of the auxiliary circuit refrigerant to supply air to the compressor, increase the circulation of the system and improve the performance of the unit

3 Auxiliary circuit electronic expansion valve control: The auxiliary circuit is also controlled by a high-precision electronic expansion valve, which has a larger adjustment range, higher precision, faster response speed, and more stable system.

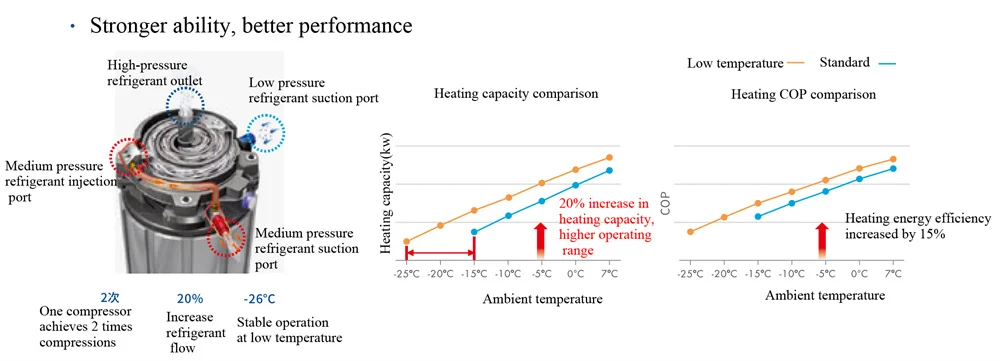

Stronger ability, better performance

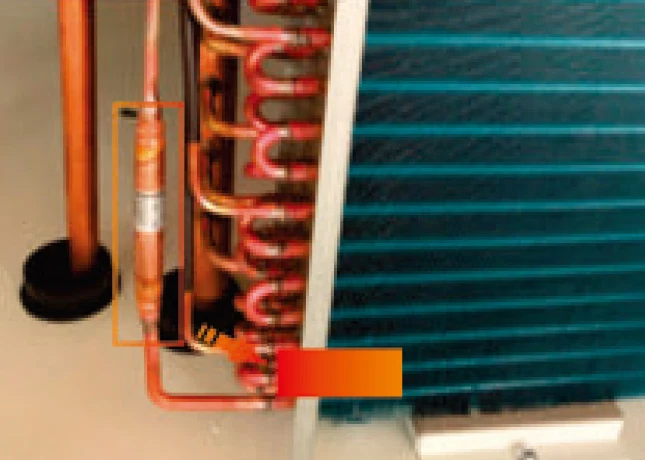

The first technology: the one-way valve is set at the bottom of the heat exchanger. The one-way valve is closed during heating and the refrigerant does not pass through to avoid frosting. During defrosting,the high-temperature refrigerant passes through the one-way valve to quickly defrost.

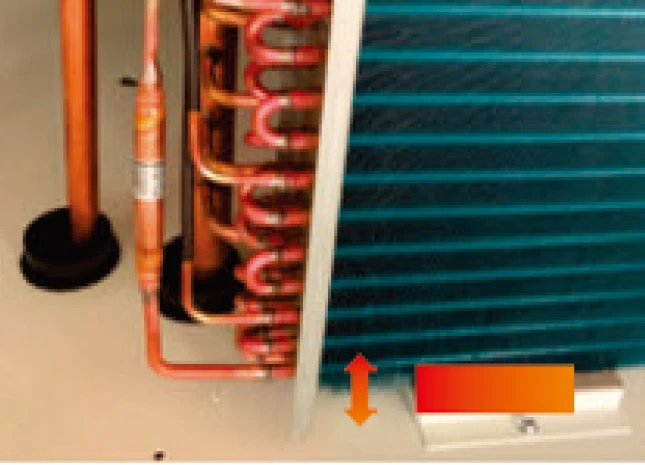

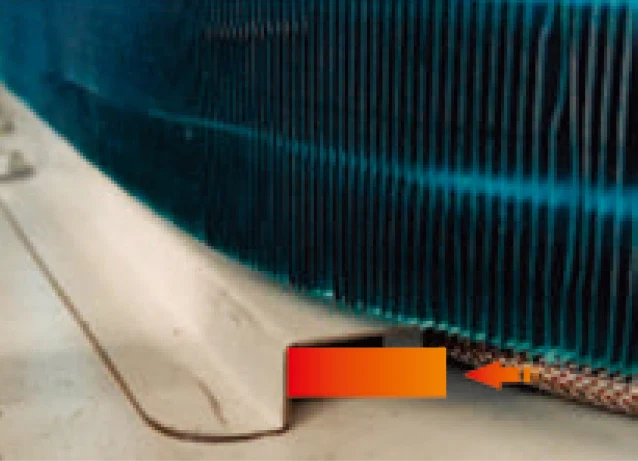

The second technology: thermal bottom suspension technology, Set a certain height difference between the bottom of the heat exchanger and the drain pan to avoid freezing and accumulation and quickly drain the condensate during defrosting.

The third technology: the electric heating belt of the hot plate water tray It is automatically turned on at low temperatures to prevent accumulation of frost in the water pan and ensure smooth drainage.

Product Paramenters

Low temperature series				MRC075PLH	MRC150PLH	MRC320LH
Nominal cooling capacity			KW	76	152	304
Nominal cooling power consumption			KW	21.9	43.8	87.6
Nominal heating capacity			KW	80	160	320
Nominal heating power consumption			KW	22.3	44.6	89.2
Heating capacity in low temp.			KW	59	118	236
Heating Power Consumption in low temp.			KW	21.8	43.5	87
Power supply				380V/3N~/50HZ
Max. operating current			A	54	100	200
Refrigerant				R410a
Throttling device				Electronic expansion valve
Compressor		Type	Hermetic scroll compressor
			Qty	1	2	4
Water side heat exchanger	Type		High-efficiency vacuum brazed plate heat exchange
		water flow	m³/h	13.1	26.1	52.2
Water resistance			kPa	45	48	40
Unit inlet and outlet pipe size				R1-1/2	R2-1/2	R3
Power cord specifications	Main Line cross sectional area		≥16	≥35	≥95
		Qty of main lines	m㎡	3	3	3
		N wires cross sectional area		≥16	≥16	≥50
		Qty of N wires	m㎡	1	1	1
		E wire cross sectional area		≥16	≥16	≥50
	Qty of E wires	m㎡	1	1	1
Dimensions	L*W*H	mm	1150*1100*2300	2200*1100*2300	2360*2210*2520
Net weight			kg	450	950	1900
Wire controller				PJACT-A301
Cooling Mode Operating Range			℃	5~48
Heating Mode Operating Range			℃	-26~30
Cooling Mode Water Temp Range			℃	5~20
Heating Mode Water Temp Range			℃	30~55

Remark

Nominal refrigeration test conditions: rated water flow rate 0.172m³/(h/kw), outlet water temperature 7℃， outdoor environment dry bulb temperature 35℃. Nominal heating test conditions: rated water flow 0.172m³(h/kw), outlet water temperature 45℃, outdoor environment dry bulb/wet bulb temperature 7/6℃. Low temperature heating test conditions: rated water flow 0.172m³(h/kw), outlet water temperature 41℃, outdoor environment dry/wet bulb temperature -12/-14℃. The performance parameters of the unit will be adjusted due to product improvement, without notice, please refer to the specific parameters, nameplate parameters shall prevail.

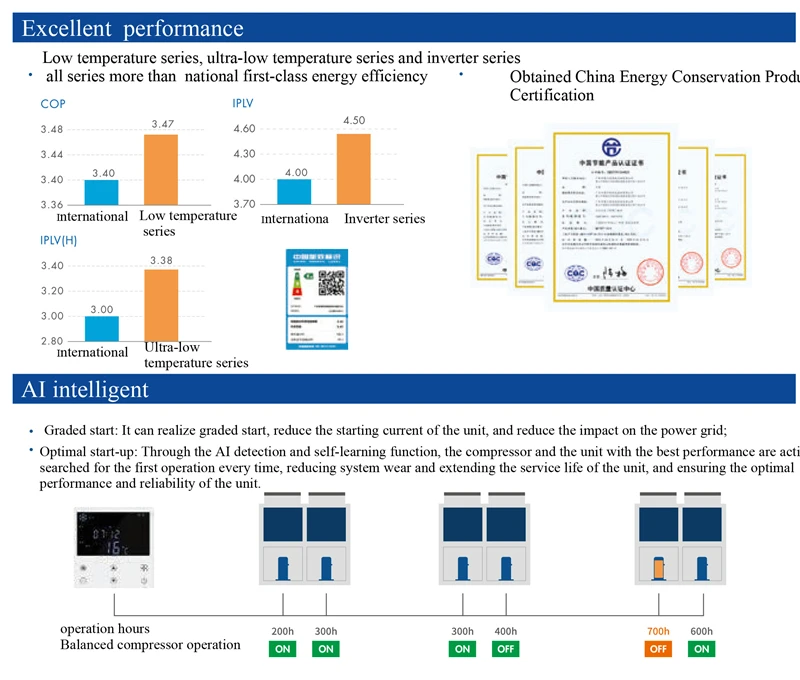

1.Excellent performance Low temperature series, ultra-low temperature series and inverter series, The performance of all series chillers is higher than China's national first-class energy efficiency standards 2.AI intelligent Graded start: It can realize graded start, reduce the starting current of the unit, and reduce the impact on the power grid; Optimal start-up: Through the AI detection and self-learning function, the compressor and the unit with the best performance are actively searched for the first operation every time, reducing system wear and extending the service life of the unit, and ensuring the optimal performance and reliability of the unit.

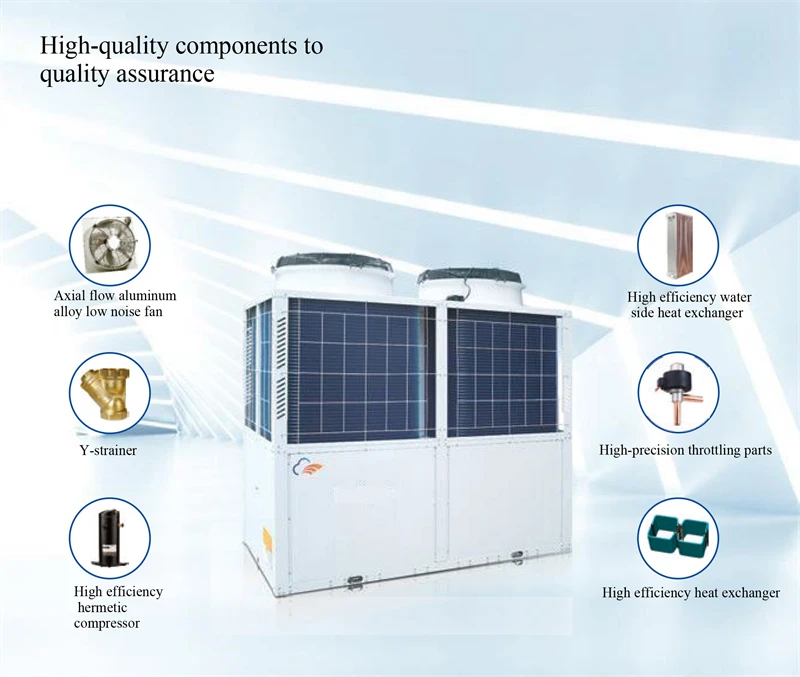

High-quality components to quality assurance

1.High efficiency hermetic compressor2.Axial flow aluminum alloy low noise fan
3.High efficiency heat exchanger
4.High efficiency water side heat exchanger
5.High-precision throttling parts
6.Y-strain

Strong antifreeze, needn't to worry about operation

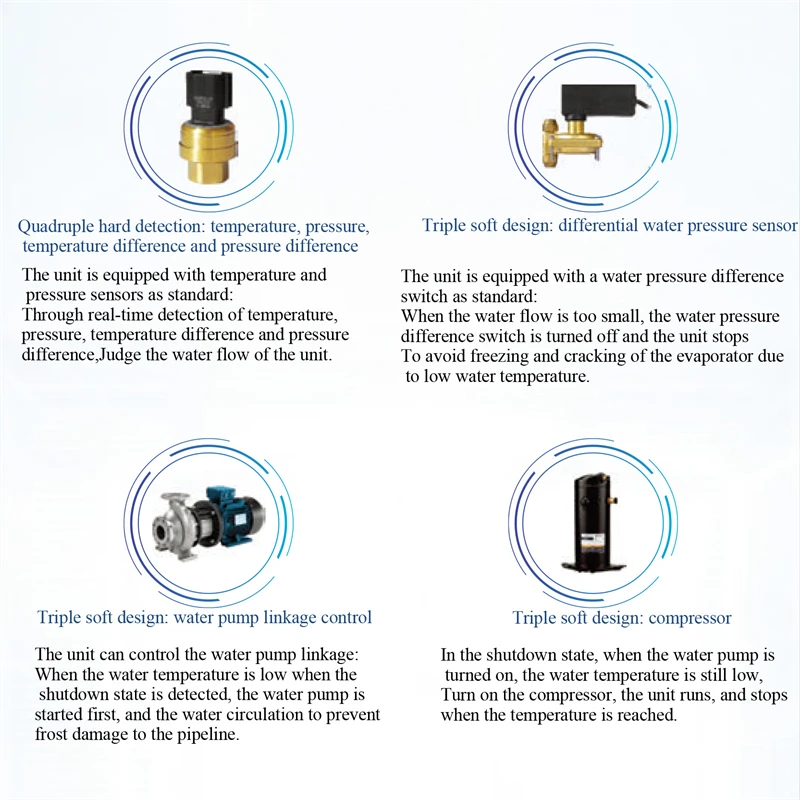

1.Quadruple hard detection: temperature, pressure, temperature difference and pressure difference

2.Triple soft design: differential water pressure sensor

3.Triple soft design: water pump linkage control

4.Triple soft design: compressor

Four hard and three soft antifreeze:

Real-time detection of four-fold hardware such as temperature, pressure, pressure difference, and temperature difference. Through the triple-soft design of water flow sensor, water pump, and compressor automatic operation, the evaporator is fully protected against

Intelligent defrosting water temperature is constant

Multiple choice,It can be defrosted automatically or manually. Intelligent judgmen,The unit accurately judges the frosting situation through multi-variable. comprehensive and comprehensive, so as to achieve defrosting with frost,retreat after defrosting, and no defrosting without frost. It can achieve up to 180 minutes without defrosting in low temperature environment, longer heating time and higher comfort. Non-stop heating when defrosting,In the case of a single machine with multiple compressors or modular combination, the number of defrosting systems does not exceed 1/2 of the total number of systems, which can realize heating while defrosting, avoiding water temperature fluctuations; the water temperature is more constant, preventing cold wind from blowing.

Intelligent protection, stable and reliable

1.Environmental temperature protection. 2 High and low voltage protection. 3 Fan overload protection. 4 Unit frequent start protection. 5 Sensor failure. 6 Compressor wear leveling function. 7 Frost protection. 8.Power supply lack and reverse phase protection. 9.Compressor overload protection. 10.Overheat protection

Smart control

1 Smart 5G IoT cloud control 2 Smart building control 3 Smart network control

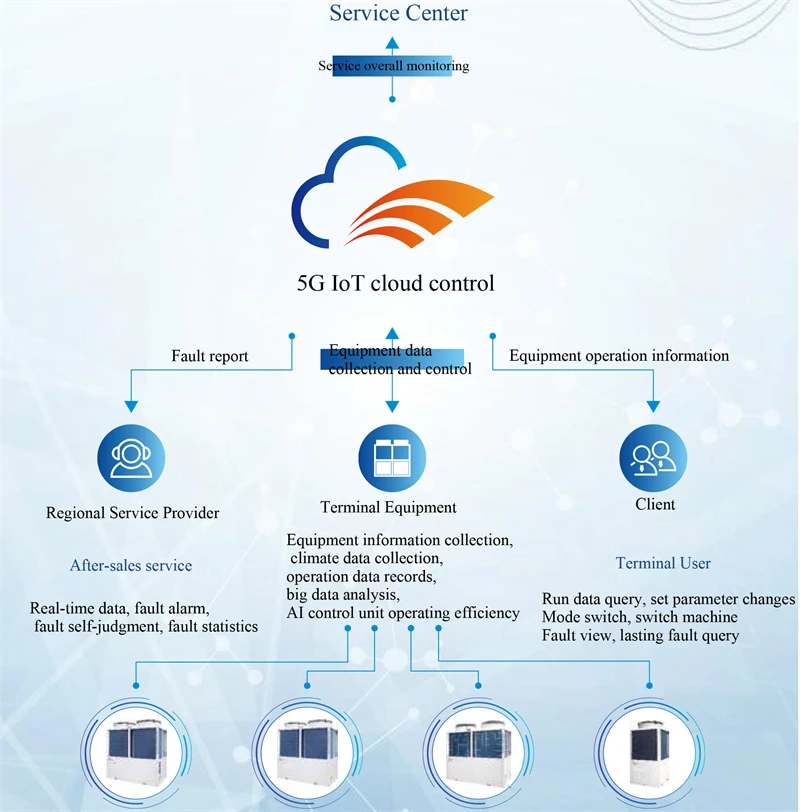

5G IoT cloud control

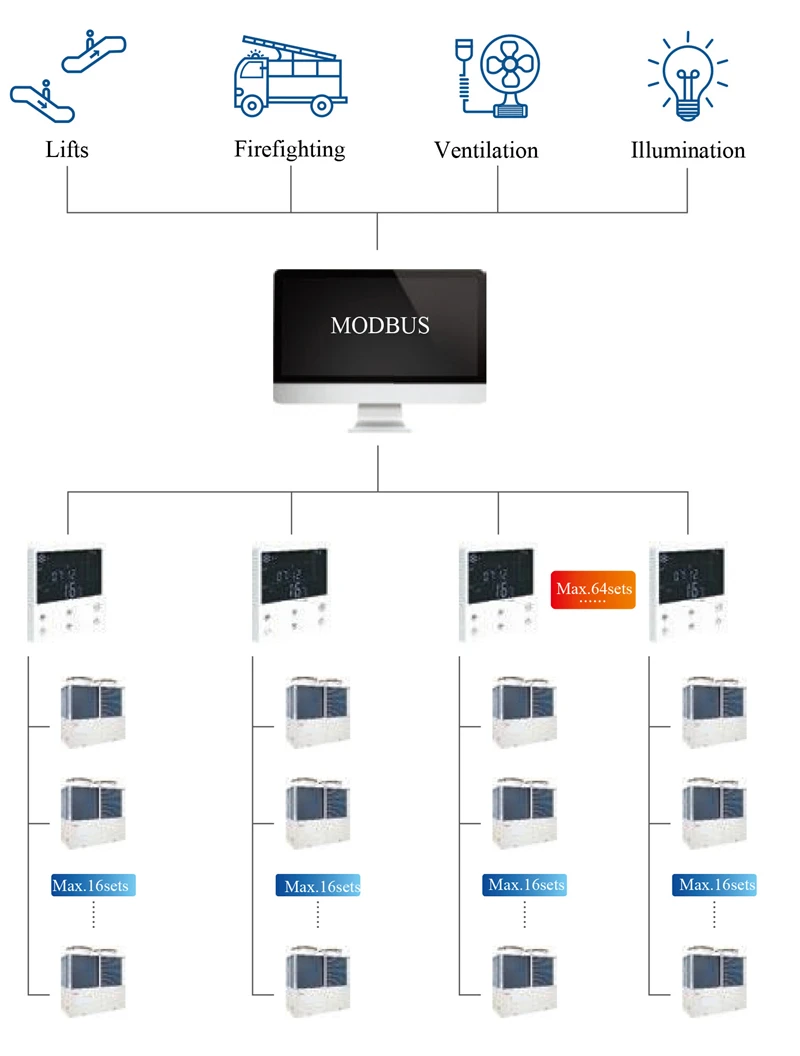

Smart building control

Provide Modbus protocol, standard RS485 building communication interface, which can be connected with the unit to the building automatic control system and centralized control of other building equipment. Up to 64 systems can be connected, and each system can be connected to 16 modules, which can control up to 1024. A modular machine, easy to manage without worry.

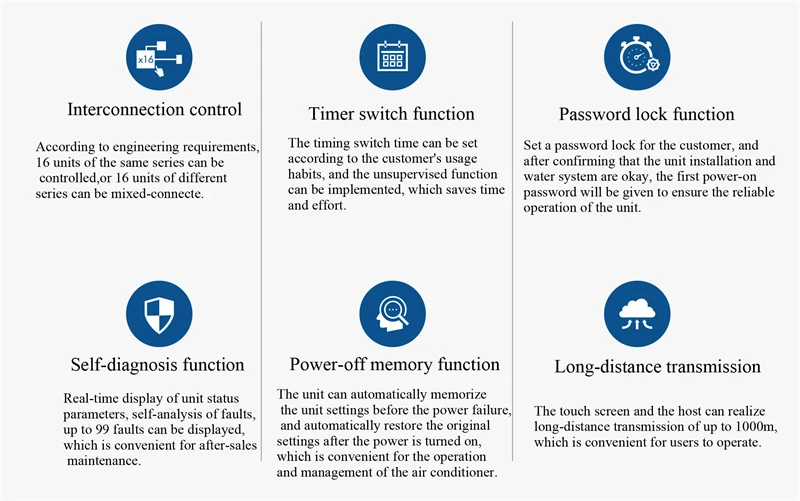

Smart network control

The large-screen LCD Chinese display interface is simple and convenient to operate. The status parameters of up to 16 units can be viewed, and the operating mode and outlet temperature can be modified.

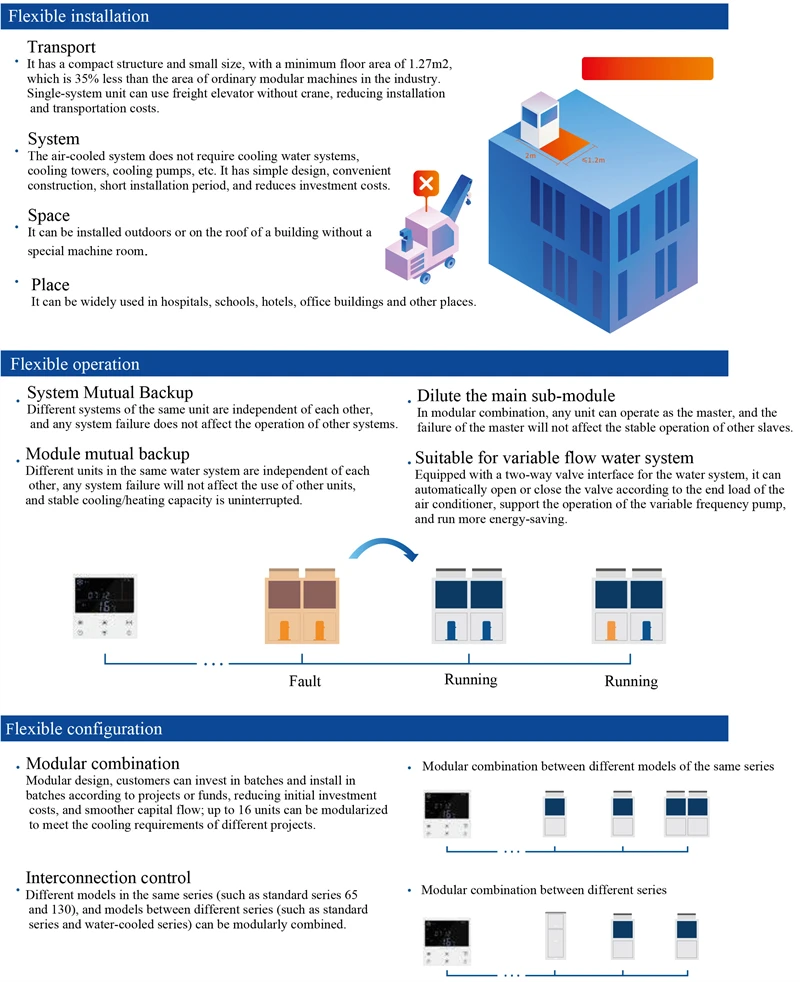

Flexible application

1 Flexible installation. 2 Flexible operation. 3 Flexible configuration

Recommend Products

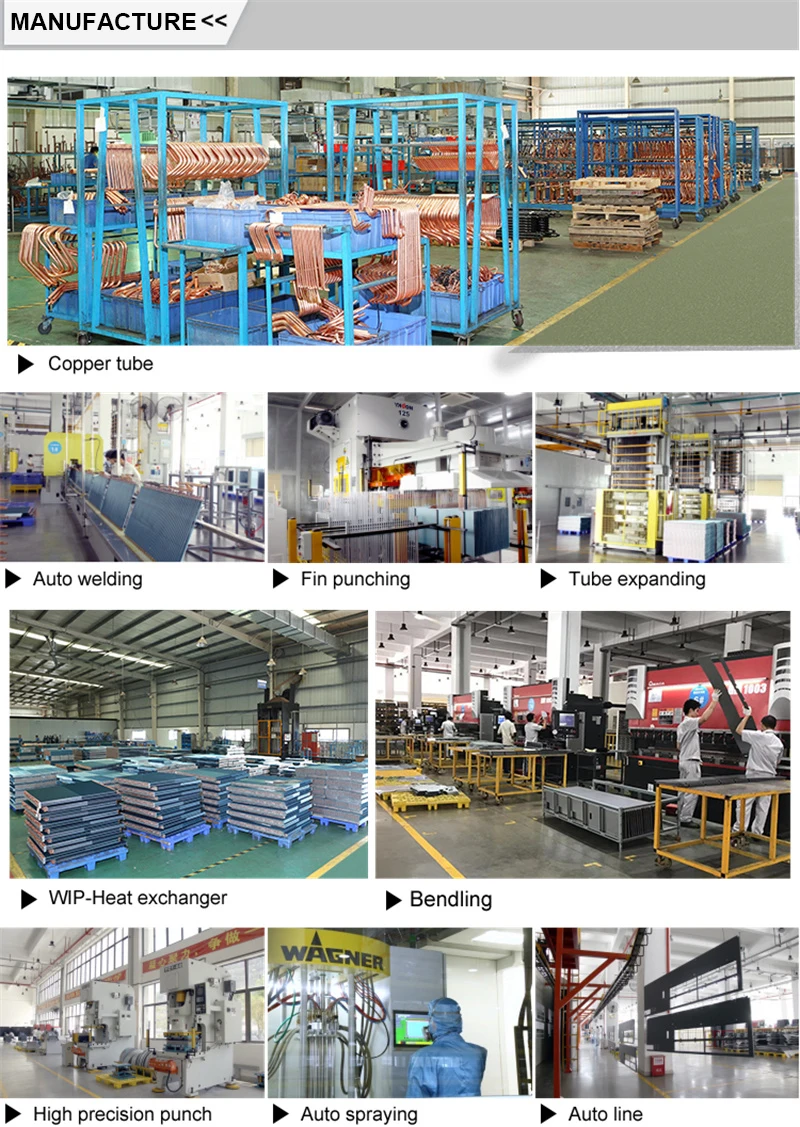

Manufacturing

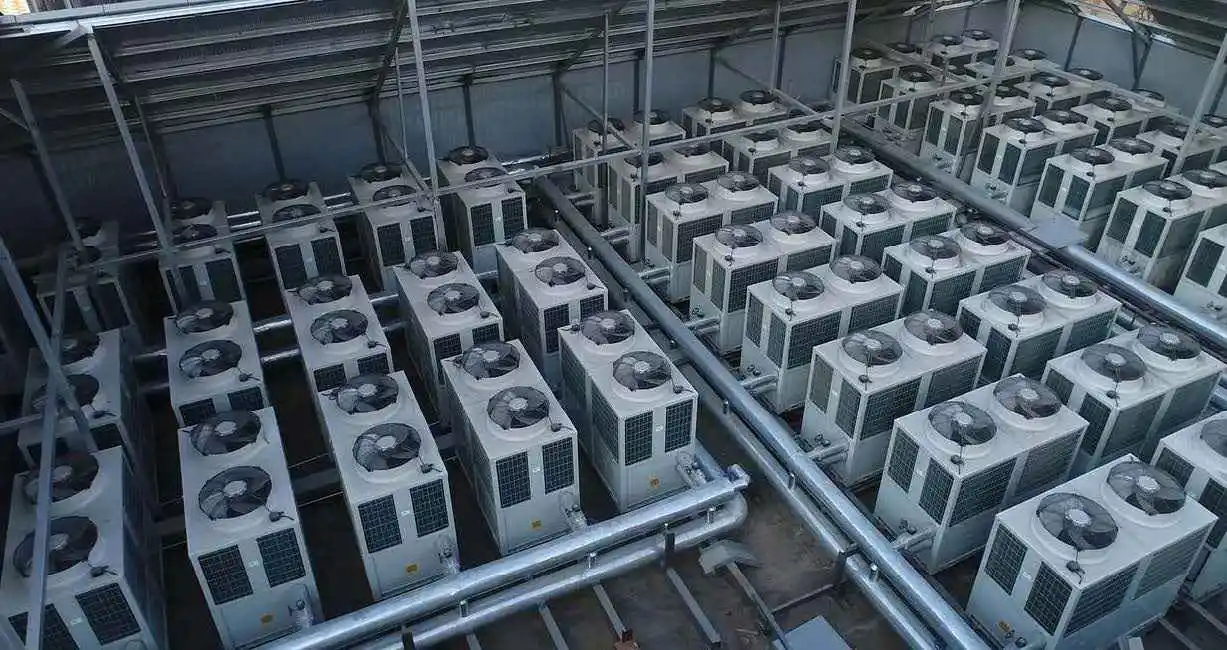

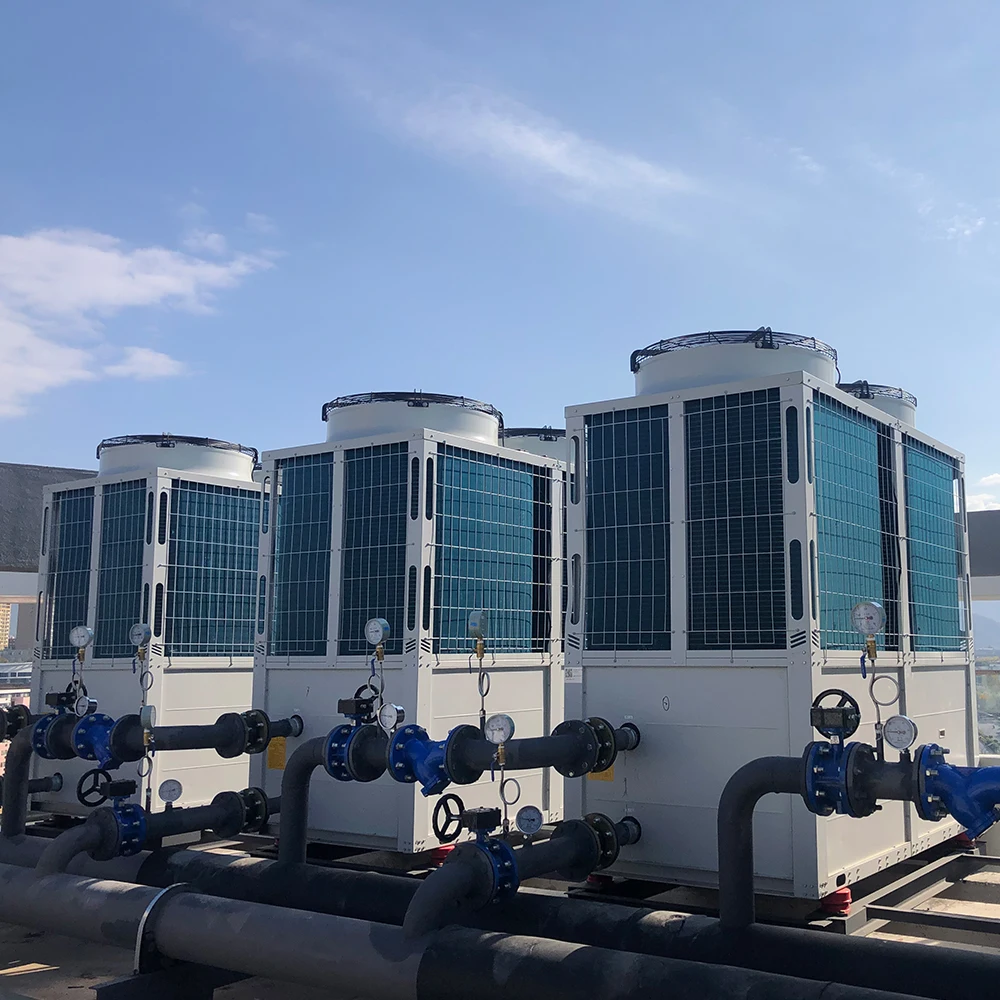

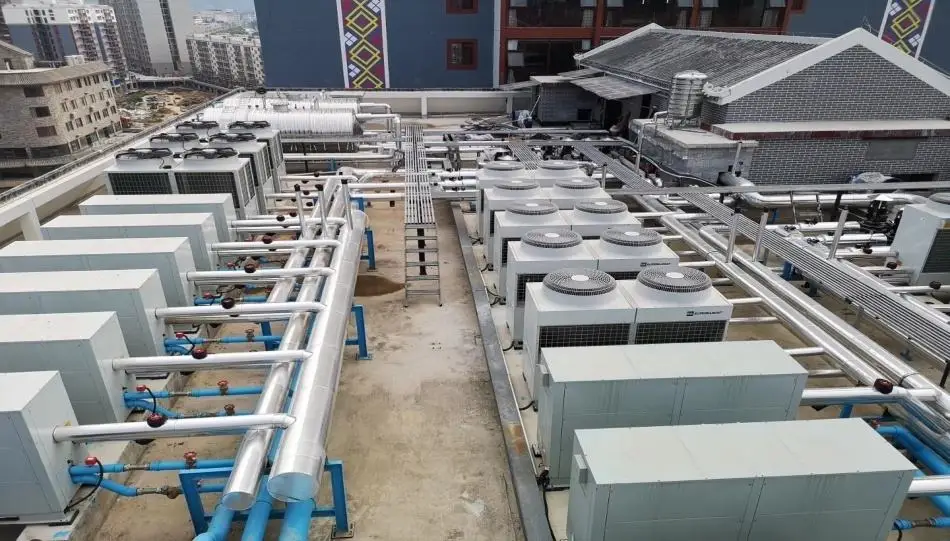

Project cases

Our partners

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $7859 / piece
  • 10–19 piece: US $7563 / piece
  • 20+ piece: US $7366 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this certification heat pump?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the certification heat pump be supplied for my local voltage?

The standard configuration is 380V/3N~/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Monchrui Industry Development Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Monchrui Industry Development Co., Ltd. range on HVACR Nexus.
