This ip55 ball bearing is published with the manufacturer’s full specification — 400V, power source type Electric. Made by Beijing Henry Mechanical & Electrical Equipment Co,Ltd (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ip55 Ball Bearing
- Model Number: W3G710-GU23-03
- Power Source Type: Electric
- Power Consumption: 3700 W
- Voltage: 400V
- Nominal Voltage: 400V
- Blade Material: Sheet aluminum insert, sprayed with PP plastic
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 400V |
| Blade Material | Sheet aluminum insert, sprayed with PP plastic |
| Power Source Type | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Germany |
| Brand Name | ebmpapst |
| Model Number | W3G710-GU23-03 |
| Nominal Voltage | 400V |
| Power Consumption | 3700 W |
| Speed | 1360RPM |
| Current | 5.6A |
| Frequency | 50~60Hz |
| Number Of Blades | 5 |
| Insulation Class | B |
| IP Rating | IP55 |
| Motor Bearing | Ball bearing |
| Weight | 40.5Kg |
| Selling Units | Single item |
| Single Package Size | 100X100X45 cm |
| Single Gross Weight | 68.0 kg |
Product Details

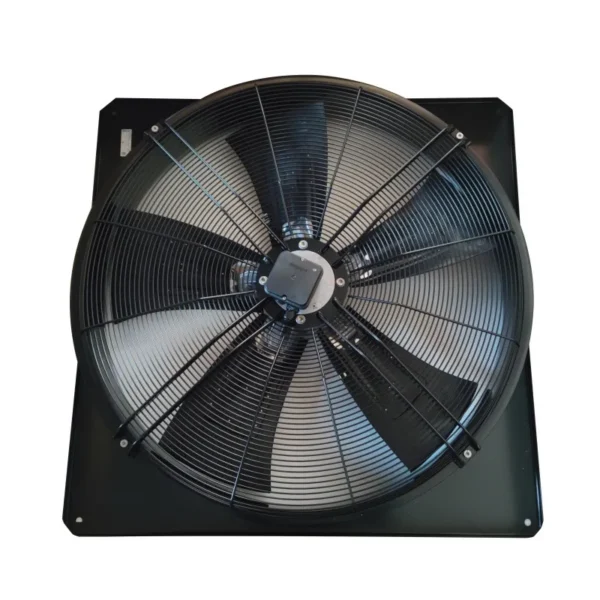

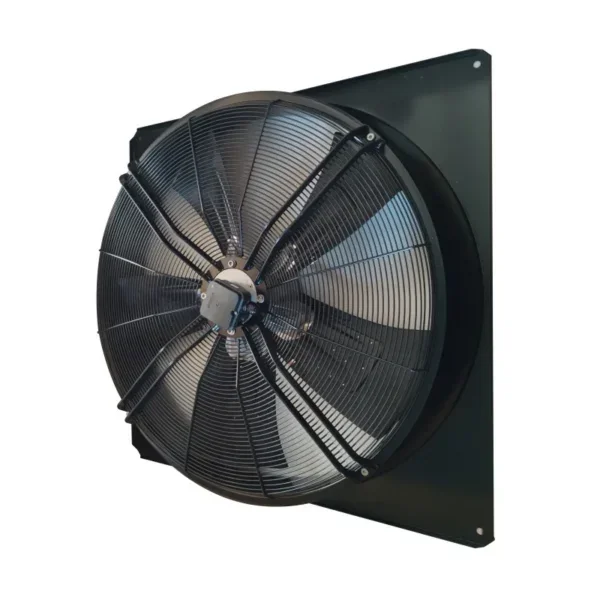

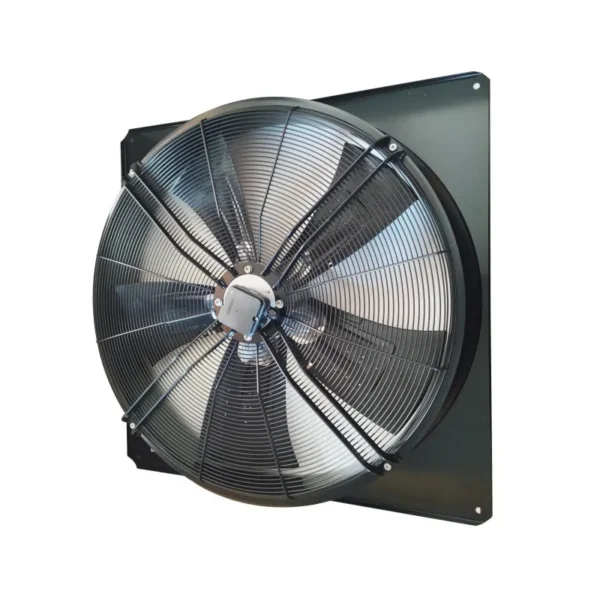

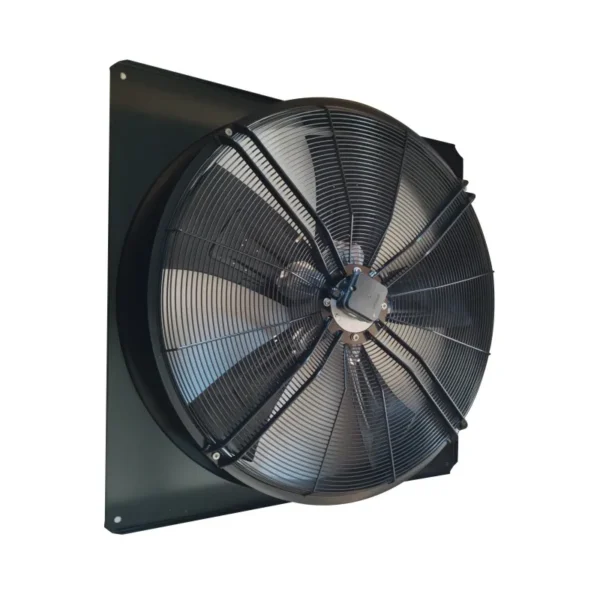

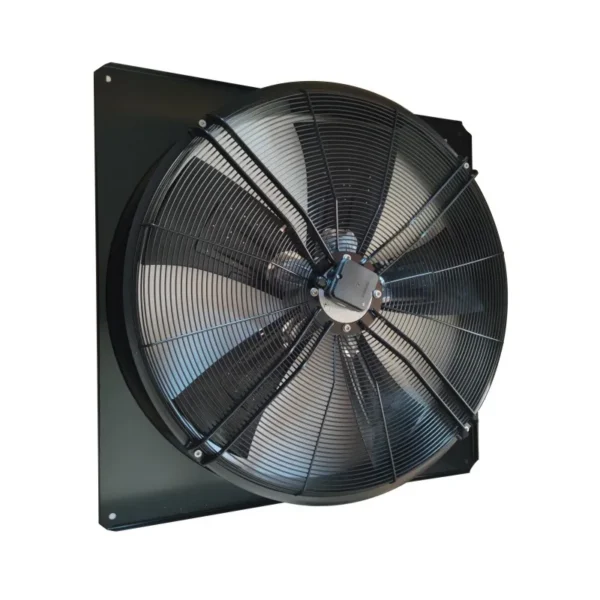

ebmpapst W3G710-GU23-03 400V 1360RPM 3700W 5.6A 710mm IP55 Ball Bearing Air Conditioner Unit Fan Condenser Axial Cooling Fan
item | value |
Type | Centrifugal Fan |
Applicable Industries | Building Material Shops, Retail, Food Shop, Advertising Company |
Customized support | OEM |
Electric Current Type | AC |
Blade Material | Steel |
Mounting | FREE STANDING |
Place of Origin | Germany |
Brand Name | ebmpapst |
Model Number | W3G710-GU23-03 |
Voltage | 400V |
Certification | complete certification |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Nominal voltage | 400V |
Power consumption | 3700W |
Speed | 1360RPM |
current | 5.6A |
Frequency | 50~60Hz |
Number of blades | 5 |
Insulation class | F |
Transformer Cooling Fan
Fan Technology Advantages
01. High Efficiency & Energy Saving
Adopts advanced green EC motor technology and aerodynamic design, delivering significant energy-saving effects.
02. Economical and Stable
AC fans feature simple structure, stable operation, easy installation and maintenance, wide application scenarios, and high cost-effectiveness.
03. Low-Noise Operation
Blades employ advanced aerodynamic design principles to create quiet and comfortable environments.
04. Intelligent Control
Supports 0–10VDC, 4–20mA/PWM control signals, or MODBUS-RTU for stepless speed regulation.
Innovative Technology
Impeller
High efficiency
–More efficient than conventional fans thanks to profiled bladegeometry and winglets
Quiet operation
– Aerodynamically optimized shapefor significant noise reductioncompared with conventional fans
Innovative materials
– Blades made of glass fiberreinforced composite material
–More efficient than conventional fans thanks to profiled bladegeometry and winglets
Quiet operation
– Aerodynamically optimized shapefor significant noise reductioncompared with conventional fans
Innovative materials
– Blades made of glass fiberreinforced composite material
– Core of corrosion-resistantaluminum structure
– UV-resistant
GreenTech EC motor
Top energy efficiency
-High efficiency/High power density
Long service life – Extremely durable thanks to maintenance-freebal bearings and brushless commutation
Extremely durable – lP 55 protection class for top protection against splash water
Unrivaled compactness – An axial fan unit: Direct integration of externalrotor motorinto axial impeller
Intake-side guard grill
Safety – DIN ENIS0 13857/0SHA contact protection
Rugged design – Durable and resistant to salt spray as per DlNEN ISO 12944,class C5M (color RAL 9006)
Outlet-side guard grill –Available as an option
Fan Housing
High efficiency
– Integrated nozzle on intake side
Rugged design
-Hot-dip galvanized sheet steel -Durable and resistant to salt spray as per DIN EN I5O 12944,class C5M (color RAL 9006)
Safe handling during transportation and assembly
– Motor system and impeller in housing – Direct attachment to application
Flexible installation
– Installation with horizontal and vertical motor shaft
– Installation on intake and outlet sides
Rating label
– As per DIN EN 50216-12
Electronics
Precision control
-Infinitely variable speed control with 0-10V DC /PWM control signal or MODBUS-RTU – Remote maintenance and monitoring using MODBUS-RTU interface
Safe operation
– Safety provided by integrated locked rotor and thermal overloadprotection
Universally deployable
– Suitable for use with 50 and 60 Hz networks – Worldwide voltage range and grid forms
– Suitable for use with 50 and 60 Hz networks – Worldwide voltage range and grid forms
Safe operation
– Safety provided by integrated locked rotor and thermal overloadprotection
Simple commissioning
– Simple hook-up via terminal box – Plug & play: no adjustment effort required
Application Fields
It is widely applied in fields such as power, commercial buildings, industrial manufacturing and new energy, serving to ensure equipment heat dissipation and stable operation.
Fan Recommend
Rated voltage range: 3~380-480VAC, 50/60Hz, IP55, RAL9006
Rated voltage range: 1~200-277VAC, 50/60Hz, IP55, RAL9006
The ebm-papst solution offers significantly better air performance than fans with no housing, resulting in much higher system efficiency.
The CFD simulation shows the advantages of the fan housing
Case Recommend
– AC and EC external rotor axial flow fans are widely used in transformer cooling technology due to their high efficiency,
low noise, and high reliability.
-The outer surface of the motor is wrapped in aluminum. The blades are connected to the motor via steel or aluminum
plates, with grilles for protection — which fully enhances the fan's reliability and service life. It is an excellent choice for
the harsh operating environment of transformers.
– Linear Speed Regulation – Complies with the Strictest EMC Standards – High Efficiency, Low Noise, Energy Saving – Radio Interference Filter – Commutation Filter – Motor Protection Device – ebm-BUS Remote Control Interface – Temperature Sensor – Shielded Cable
– In terms of control, ebm-papst's green technology EC fans adopt the PID algorithm to control the operating current of the fans, ensuring high efficiency in energy conversion and minimizing fan noise.Meanwhile, the MODBUS bus communication method is employed to guarantee high reliability and intelligence in information transmission.
Service Advantage
Company Introduction
Beijing Henry Mechanical and Electrical Equipment Co., Ltd. is a professional supplier of fans and industrial control products, mainly focused on: Ventilation and heat dissipation solutions Industrial control system accessories.
Our products are widely applied in:
Ventilation, air conditioning, refrigeration, heating, electrical automation, frequency converters, rail transit, HVAC (FFU/AHU), air purification, new energy vehicles, and more.
For decades, we've been committed to customer satisfaction through:
Enthusiastic service, fast response, scientific management, and a practical, innovative spirit —earning a solid reputation across industries.
FAQ
1. Who are we?Beijing Henry has been engaged in fan industry since 2006 and have become the most professional fan distributor in
China. We have a warehouse of over 8000 ㎡，and more than 100,000 units products in stock.
2. Why choose us？
Excellent Experience
>15000 Customers
Decades of accumulation
Hundreds of successful cases
Excellent Experience
>15000 Customers
Decades of accumulation
Hundreds of successful cases
Professional Team
The core staff of Sales & Technical Department have more than 5 years of experience
Diversified Product Solutions
We can offer several product solutions for customers to choose
Quick Response
Reply within 10 minutes, 24 hours online
Adequate Stock
More than 20 brands，5000 models，100000 units in our warehouse
Perfect Service
Professional technician for pre-sale & after-sale support
The core staff of Sales & Technical Department have more than 5 years of experience
Diversified Product Solutions
We can offer several product solutions for customers to choose
Quick Response
Reply within 10 minutes, 24 hours online
Adequate Stock
More than 20 brands，5000 models，100000 units in our warehouse
Perfect Service
Professional technician for pre-sale & after-sale support
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $1650 / piece
- 50–99 piece: US $1567.5 / piece
- 100+ piece: US $1489.13 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ip55 ball bearing?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ip55 ball bearing be supplied for my local voltage?
The standard configuration is 400V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
