Manufactur Freezer, 220V, 10 W

This manufactur freezer is published with the manufacturer’s full specification — 220V/380V/400V/440V, 10 W. Made by Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd. (6 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Manufactur Freezer

• Model Number: FSC50
• Power: 10 W
• Voltage: 220V/380V/400V/440V
• Material: Polyurethane Insulation Panels
• Surface Material: Galvanized Steel
• Refrigerant: R404A

Technical Specifications

Product Details

Product description

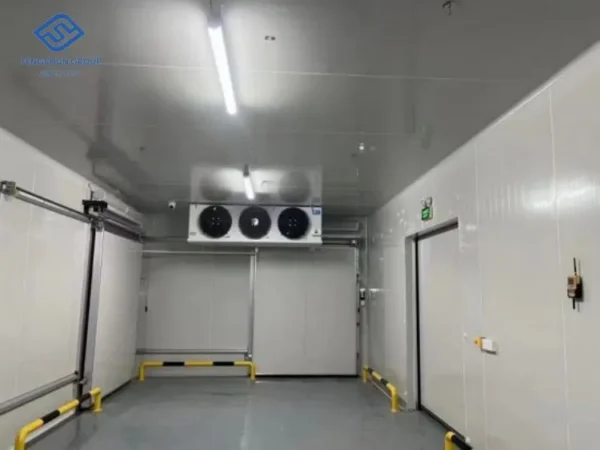

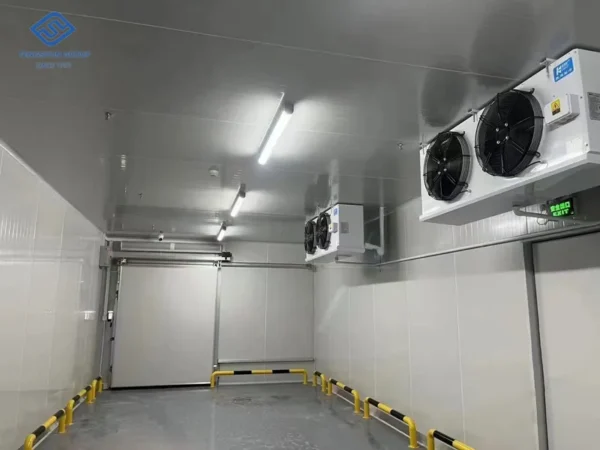

WALK IN COLD ROOM/FREEZER ROOM
Product name	Cold room storage
Dimension(L*W*H)	Customized size
Cooling model	Air cooled / water cooled / evaporation cooled
Compressor	Original new American copeland， Germany Bitzer etc
Refrigerant	R404A，R507A ，R22
Panel Thickness	75mm, 100mm, 120mm, 150m, 200mm etc..
Steel Plate Thickness	0.326mm/0.5mm/0.6mm
Service temperature	From -40°C To + 20°C
Cold Room Doors	Hinged door， Sliding door， double swing door etc
Cold Room Door Size	0.8*1.8 meters， door size can be customized
Capacity	3 CBM~ 50000 CBM (from 3ton to more than 10,000 tons)
Applications	Storage meat, vegetable, food, sea food, fish, fruits etc.

Product Details

— PU/PUR/PIR PANEL —

> Panel Material: Color steel sheet, Galvanized steel, Stainless steel sheet.

>Thickness:50mm/75mm/100mm/120mm/150mm/175mm/200mm/250mm

> Density: 42kg/M3

> Certificates: SGS, ISO14001, ISO9001

> Color: White, Gray, Sliver, Whit gray etc, as required

> Lifetime: 10-30 years

> Fire proof rate B1, B2

– COLD ROOM DOOR –

> Temperature of cold room：-45°C~+50°C
> Material: PPGI/Color steel, Stainless steel, etc.
> Inside material: PU with high density
> Thickness of door panel: 100mm,120mm, 150mm, 200mm, 250mm
> Size of door opening: Customized
> Way of control: Manual or electric
> Left-open, right-open, double-open
> Safety lock

> Escape system from cold room
> Electric heating wire
> Preventing frosting

– CONDENSING UNIT –

> For the cold room storage, we use the world famous compressor like Bitzer, Copeland, RefComp, FUSHENG, INVOTECH, HANBELL. Frascold etc. from 3HP to 50HP, and 50HP above

> It is easy to operate the automatic high-precision digital controller with high efficiency.

— EVAPORATOR —

> The brand of external rotor axial fans have motor EBM / ZIEHL-ABEGG / WEIGUANG / MAER etc..

> φ12.7 copper pipe with inner thread (thickness: 0.35+0.2mm)
> The brand of electric heating tube is Spring Filed Wire(USA)
> Fins are hydrophilic aluminum foil louvered（thickness：0.3mm）

— COLD ROOM STORAGE ACCESSORIES —

> Temperature controller

Famous brand: CAREL Danfoss or Elitech .
> Valve Parts Famous brand: Denmark Danfoss
> Copper pipe and connection
> Thermal insulation pipe, wire, PVC pipe, PVC door curtaih for sliding door, LED light, switch,electrode, insulating tape,belting, etc.

Application

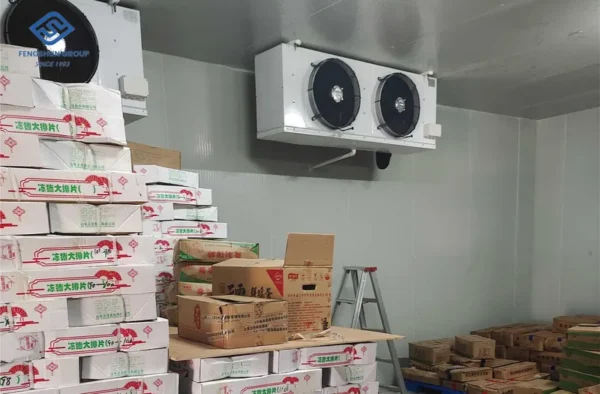

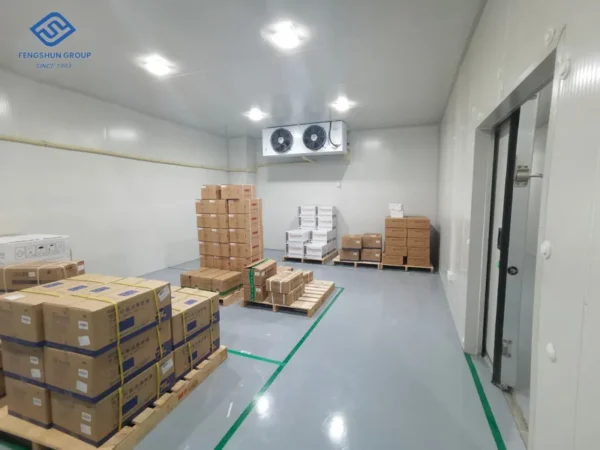

Cold Room Storage and Freezer Room Application:

> 10°C~15°C cold room storage: can be used in processing workshop, temperature control hall, receiving and delivery area, function room,etc.
> 0°C~10°C cold room storage: can be used for meat pre-cooling, meat deacidifi-cation, fruit and vegetable preservation, low temperature passage, medicine storage, etc.

> -15°C~ -30°C cold room storage: can be used for low temperature storage, cold chain logistics, etc.
> -30°C~ -40°C cold room storage: can be used for food quick-freezing, tunnel freezer, etc.
> -50°C ~ -80°C cold room storage: can be used for tuna storage, vaccine storage,

Company Profile

Fengshun Group was established since 1993, is a comprehensive high-tech enterprise integrating the design, development, manufacturing, sales, construction, operation and maintenance services of cooling and heating equipment.

The group has 5 branches, include SANESUN brand, producing Walk-in cold room storage/freezer rooms, PUR/PIR panels, condensing unit, evaporator, air condenser, compressor unit, fluorine barrel type pump system etc; All of our product with CE and ISO certificate, can supply the SASO, COC and etc. documents.

We are the one-stop refrigeration cold room storage supplier, professional engineers supply the customize solution based on customer special project need, whole system provide and OEM support. We have been successfully in offering machines to projects of logistic storage, food factory, supermarkets. packaged equipment and system, automobile components producing system, food making, bakery etc.

We exported to the USA, Canada, Australia, England, Ecuador, Sudan, Russia, South Africa, Dubai, Lebanon, India, Philippines, Singapore, Vietnam, Thailand, Korea, Japan, Peru, Chile, Mexico and more than 100 countries.

The company not only provides customers with a full set of equipment design, production and commissioning services, but also according to customer needs to provide professional technical solutions and perfect after-sales service, thus establishing a good reputation and credibility in the market

Certifications

FENGSHUN focuses on quality management systems and has passed the ISO9001, ISO14001, ISO45001 management system certification and CE certificates, to ensure that every link from the production process to product quality inspection meets the high standard requirements.

Product Recommendation

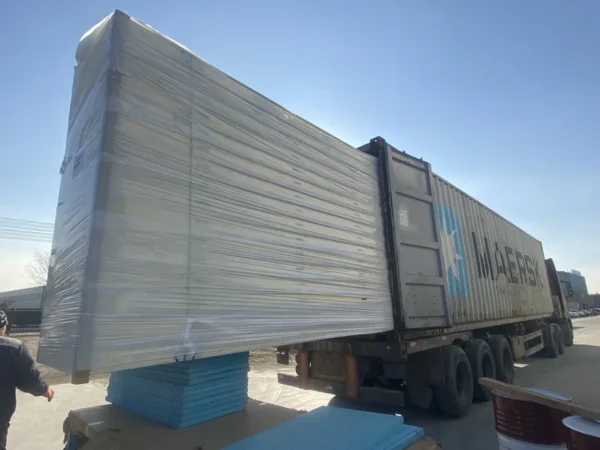

Packing & Delivery

Cold Room Storage Packing Details When Delivery
1. Conventional wooden packing

2. According to container size, stander id export package

FAQ

1: Can we customize the product based on requirements?
Sure, of course. the cold room storage we accept OEM and ODM.
2. What is your MOQ?
Our MOQ is 1 piece.
3. What compressor do you use?
We usually use , Bitzer, Copeland, RefComp,FUSHENG,HANBELL brand compressor etc.
4. What is your delivery time?
We usually prepare goods ready to ship in 15-25days.
5. Can i put my logo ?
Sure, of course. we accept OEM and ODM.
6. How about Warranty?
We provide 1 year (365 days) warranty on whole equipment(both accessories and compressor).
7. What is your payment term?
Payment term is 30% deposit upon confirm order, 70% balance before shipment. You can pay through Telex Transfer or Credit Card.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $2899 / set
  • 5–9 set: US $2650 / set
  • 10–19 set: US $1999 / set
  • 20+ set: US $899 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this manufactur freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the manufactur freezer be supplied for my local voltage?

The standard configuration is 220V/380V/400V/440V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd. range on HVACR Nexus.
