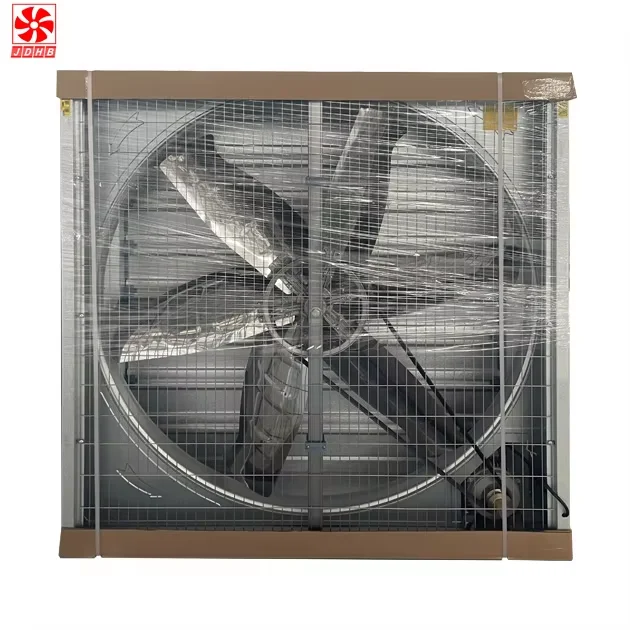

The mounted box shutter extractor listed here carries 380 V, 220 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Shandong Jindun Energy Conservation & Environmental Protection Equipment Co., Ltd. (12 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Mounted Box Shutter Extractor
- Model Number: JDFH-620, JDFH-780, JDFH-1000, JDFH-1220, JDFH-1380, JDFH-1530
- Power Source: Electric
- Voltage: 380 V, 220 V
- Blade Material: Stainless Steel
- Speed: 3 000 RPM
- Warranty: 1 Year
Technical Specifications
| Fan Type | Centrifugal Fan |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Diameter | 36 in |
| Voltage | 380 V, 220 V |
| Speed | 3 000 RPM |
| Blade Material | Stainless Steel |
| Bearing Type | hydraulic bearing |
| Power Source | Electric |
| Control Methods | Remote Control |
| Customized Support | OEM, ODM, OBM |
| Mounting Type | Wall Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Field installation, commissioning and training |
| Place Of Origin | Shandong, China |
| Brand Name | JINDUN |
| Model Number | JDFH-620, JDFH-780, JDFH-1000, JDFH-1220, JDFH-1380, JDFH-1530 |
| Product Name | greenhouse poultry farm chicken house ventilation exhaust fan |

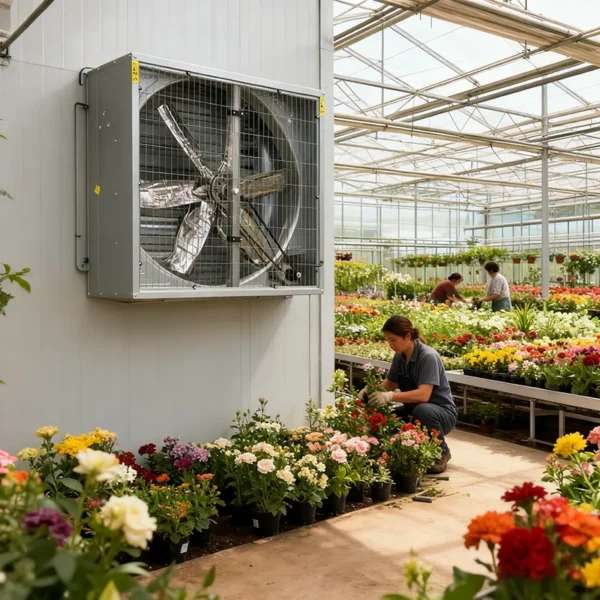

| Application | Poultry Farm Greenhouse |
| Size | 1530mm*1530mm*450 |
| Color | Customers’ Requirements |

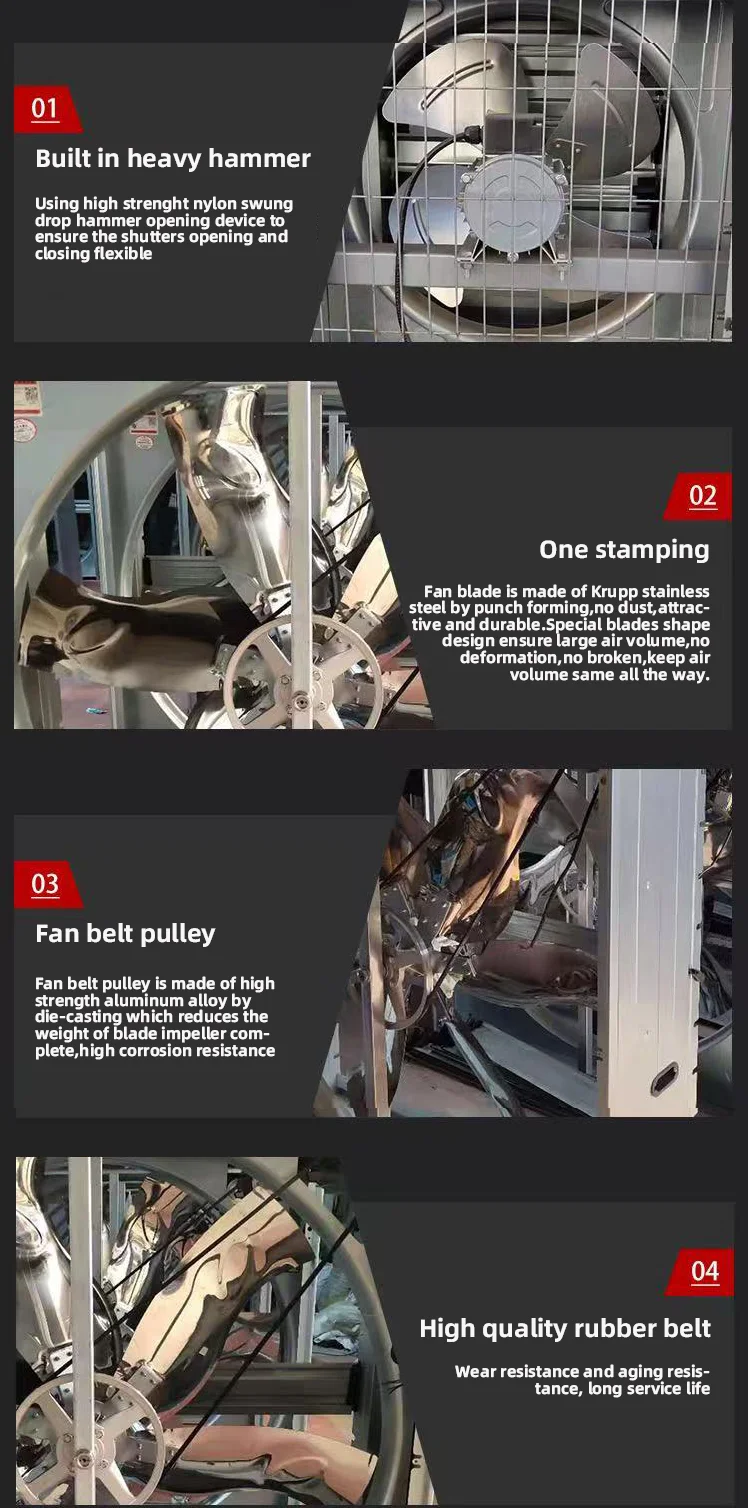

| Blade | Krupp Stainless Steel |
| Function | Ventalition |
| Fan Blades | Nylon-Fiber-Aluminum |
| Style | Modern Simple |
| Motor | Copper Motor |
| Noise | ≤70 |
| Selling Units | Single item |
| Single Package Size | 160X60X160 cm |
| Single Gross Weight | 65.0 kg |
Product Details

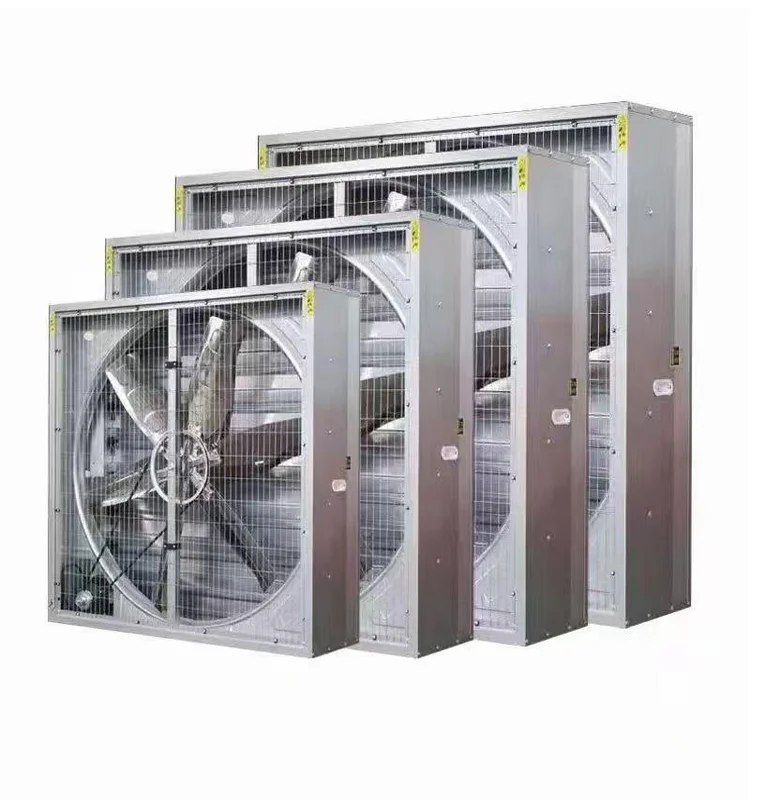

Model | Blades Diameter (mm) | Speed of Blades (r/min) | Input Power (w) | Air Flow (m³/h) | Overall Dimensions (mm) |
JDFH-620 | 500 | 1400 | 250 | 5700 | 620×620×400 |
JDFH-780 | 710 | 650 | 370 | 18000 | 780×780×400 |
JDFH-1000 | 900 | 610 | 750 | 25000 | 1000×1000×400 |
JDFH-1100 | 1000 | 600 | 750 | 32500 | 1100×1100×400 |
JDFH-1220 | 1100 | 460 | 750 | 38000 | 1220×1220×400 |
JDFH-1380 | 1270 | 439 | 1100 | 44000 | 1380×1380×400 |
JDFH-1530 | 1400 | 325 | 1500 | 55800 | 1530×1530×400 |
will be provided.
sales over $ 30 million .

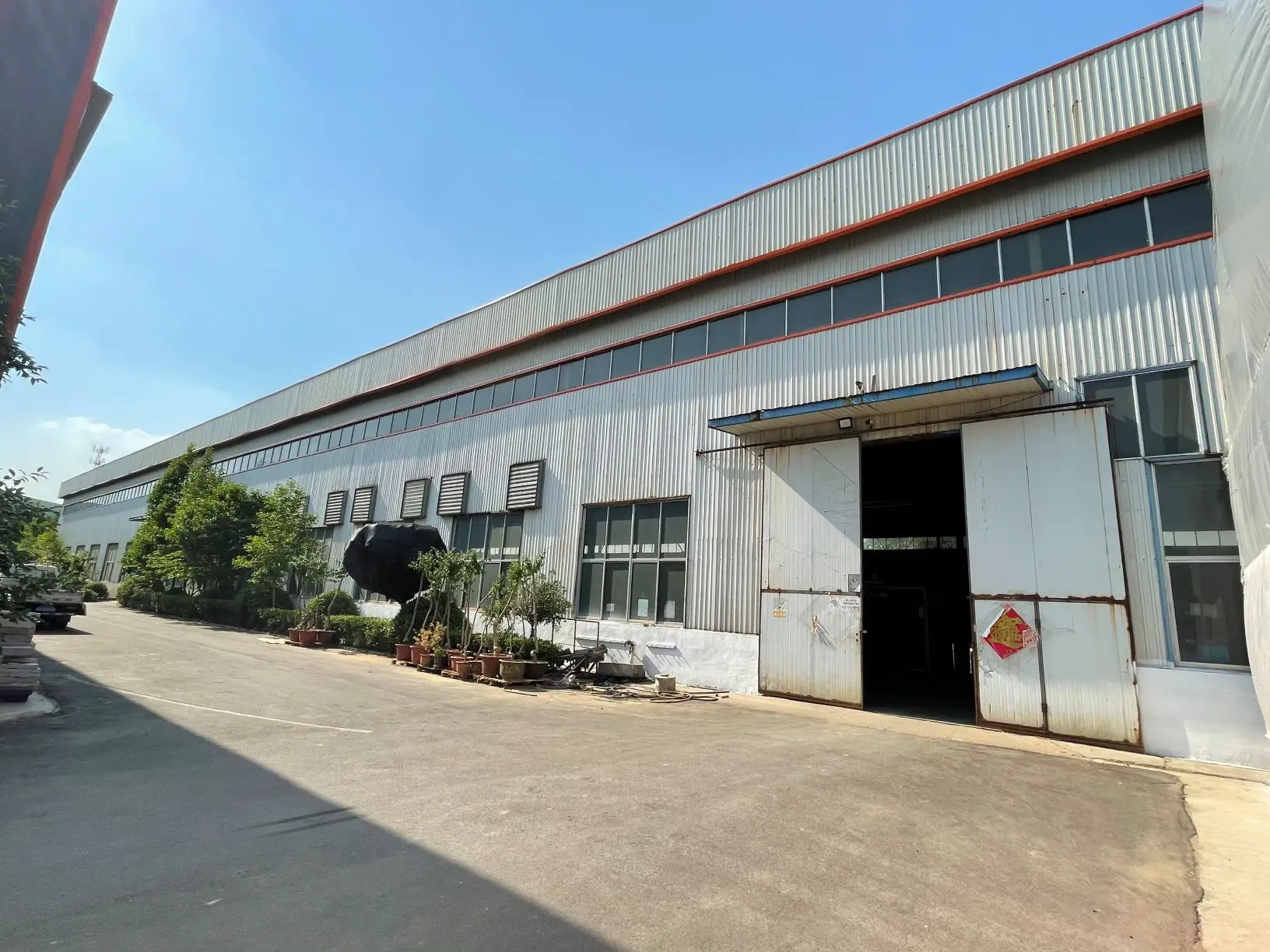

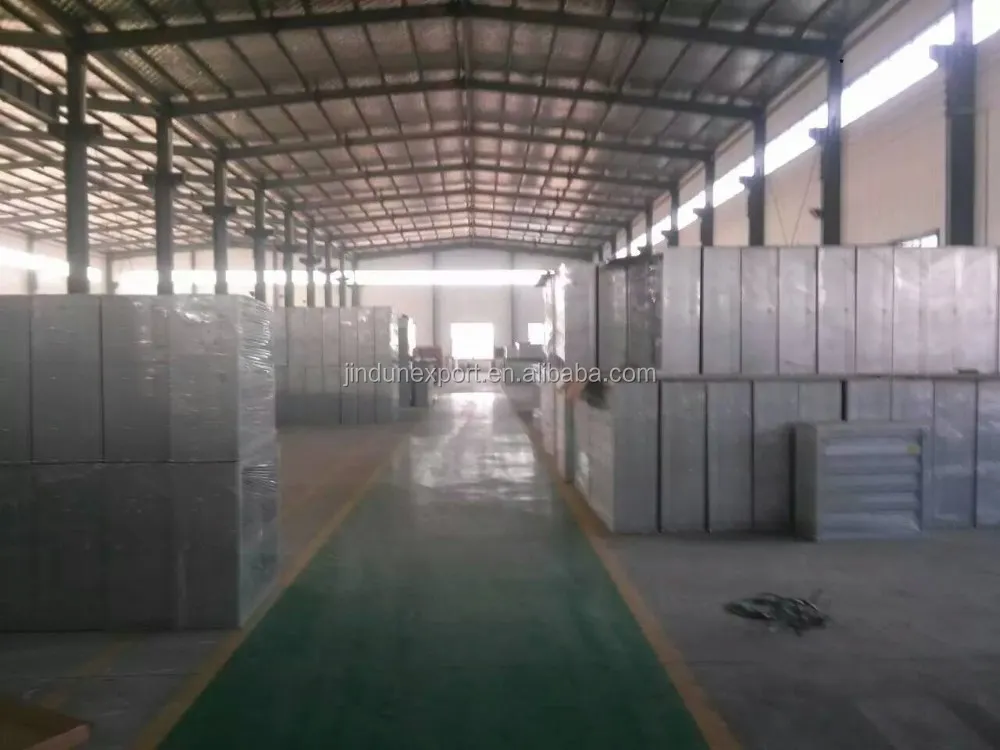

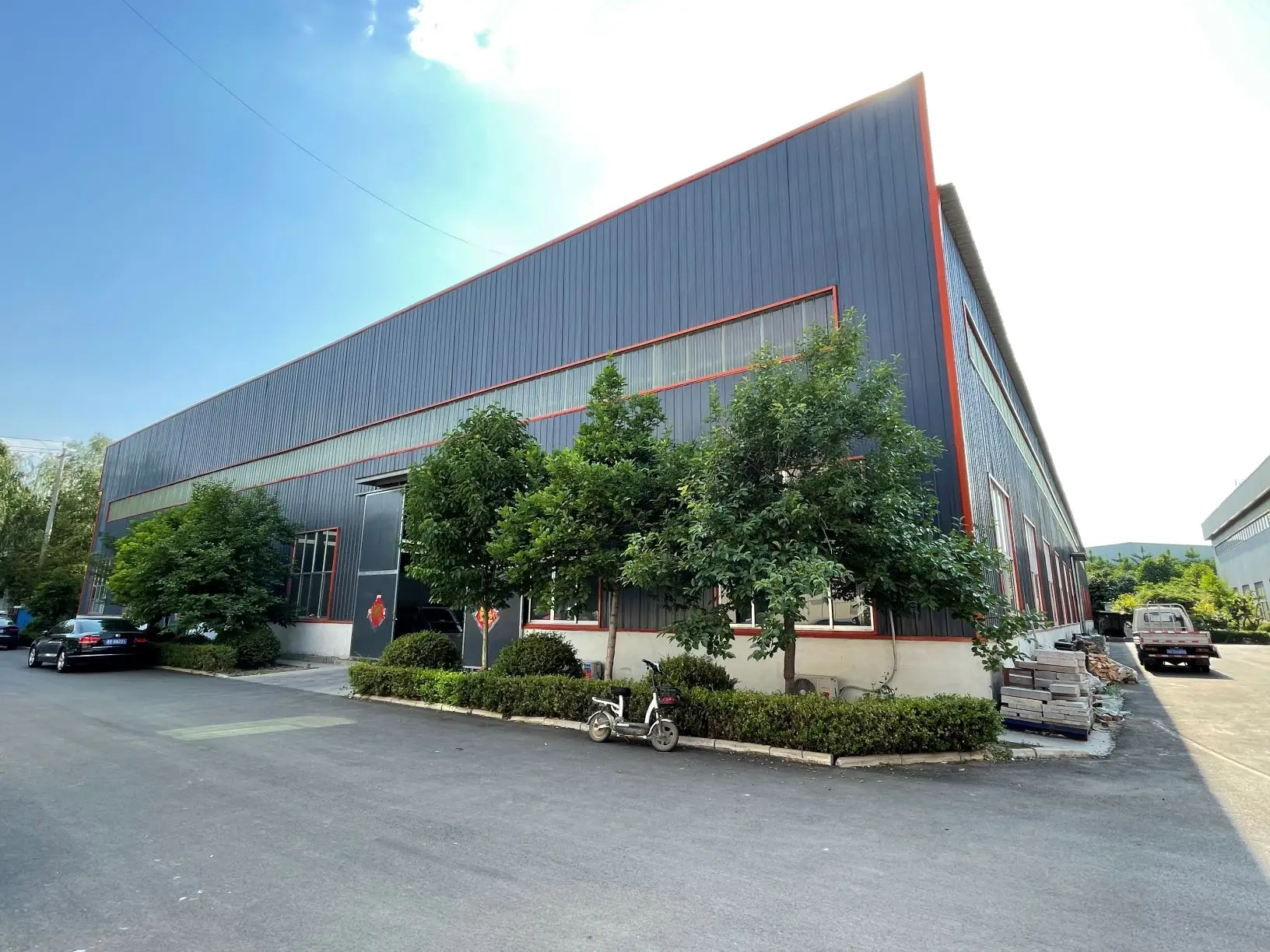

Shandong Province , with an area of 20000㎡ , is a professional manufacturer of temperature controlling equipments for large-scale
greenhouse , animal husbandry and public rooms .Since 2005 , under the lead of president Mr.Cao , Jindun company have devoted to
the research and development of new generation of
energy-conservation equipments and beconme the pioneer of air-conditioning generators . Now , series of air condition controlling
equipments are included in Jindun's product catalogue , such as Ventilation Cooling Fans , Evaporative Cooling Pads , Air
condition generators , Hot air Stovens , Hot water Oil-burning boilers , Hot water Gas-burning boilers and Hot water Electrical
boilers .
JINDUN will be your best business partner .
Ordering and Pricing
- Minimum order quantity: 100 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mounted box shutter extractor?
The standard minimum order quantity is 100 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the mounted box shutter extractor be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Jindun Energy Conservation & Environmental Protection Equipment Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Jindun Energy Conservation & Environmental Protection Equipment Co., Ltd. range on HVACR Nexus.
