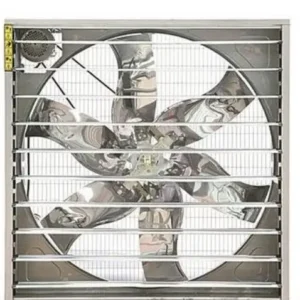

Mounted Exhaust Ventilation Fan, Wall, 380V, Electric

This mounted exhaust ventilation fan is published with the manufacturer’s full specification — 380V, 220V, 415V, 110V, 410V, 230V, power source Electric. Made by SHANDONG MOSIN MACHINERY CO., LTD. (3 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Mounted Exhaust Ventilation Fan

• Model Number: MS-1530, MS-1380, MS-1100, MS-1000, MS-800
• Power Source: Electric
• Voltage: 380V, 220V, 415V, 110V, 410V, 230V
• Blade Material: Stainless Steel
• Frame Material: Galvanize/Stainless steel
• Warranty: 1 Year

Technical Specifications

Product Details

COMPANY INFORMATION

SHANDONG MOSIN MACHINERY CO., LTD is the l professional manufacture of ventilation, cooling equipment, humidification and heating equipment, poultry and green house equipment. Our company is located in Qingzhou, Shandong Province, a developing city with long history. It is a high-tech enterprise which has a completed set of specialized designing, manufacturing, installation, sales and after-sale service. For many years we have committed ourselves to national energy-saving and environmental protection. With excellent staff, strong ability of production exploitation and development ability, comprehensive professional knowledge and customized design, we will fully meet with relevant customer’s demand. Our products have been exported to Middle East, Asia and Southeast Asia, America, South America, Europe, etc.

Products Description

MS SERIES HAMMER EXHAUST FAN

MS series centrifugal exhaust fan are widely used in agriculture and industry, with function of ventilation and
cooling.
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile ect.

(1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
(2) Special push-pull shutter mechanism can open and close the shutter automatically.
(3) Wall-Mounting fan , easy installation
and maintenance
(4) Belt Drive, Big airflow

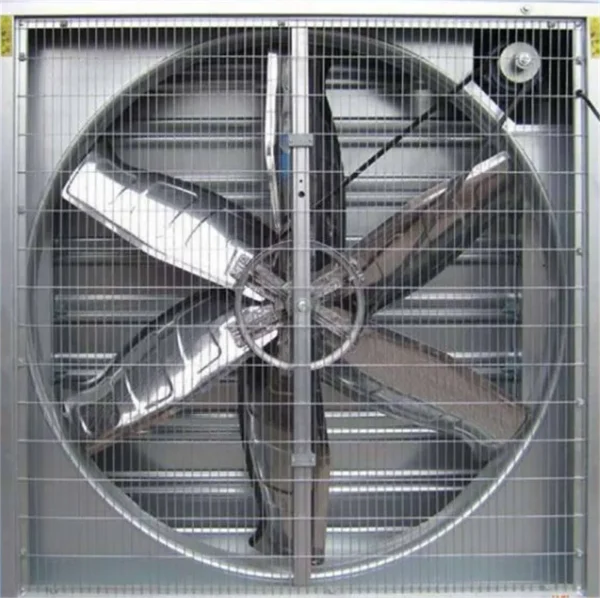

          Safety Side

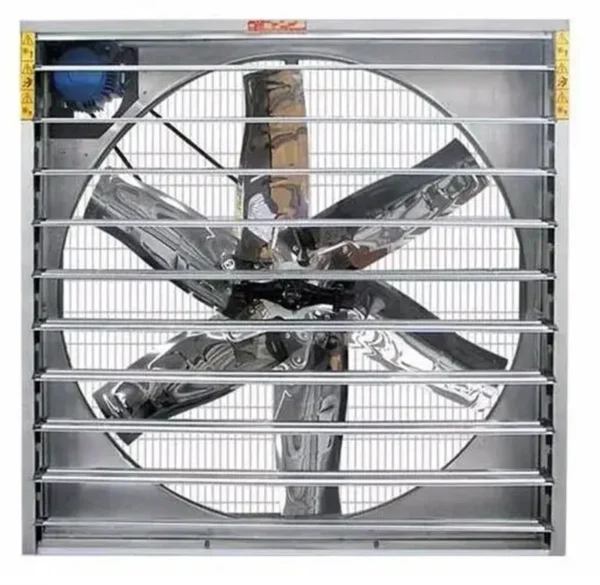

             Shutter Side

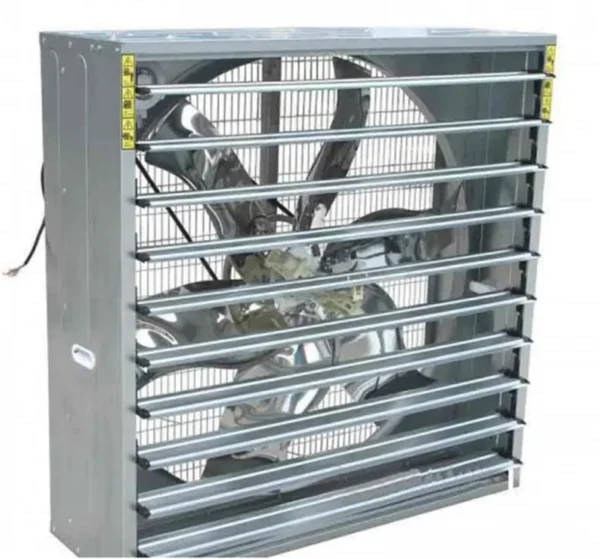

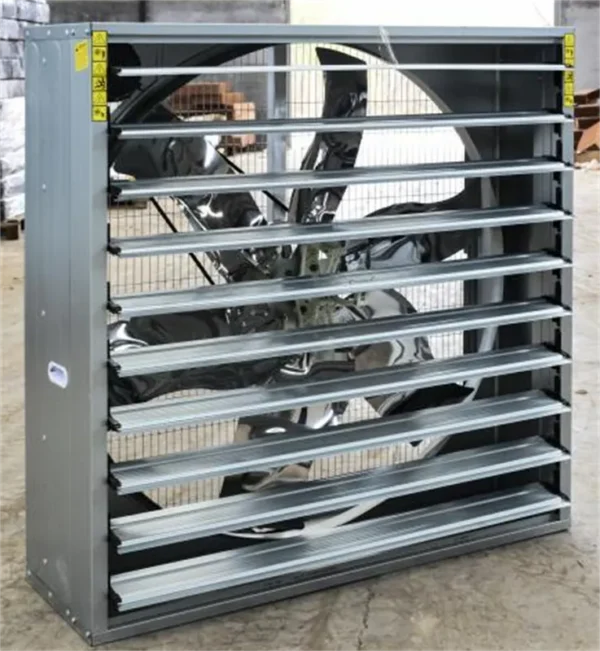

              Shutter Side

Product Paramenters

Model	Blade dia. (mm)	Power (KW)	Air flow (m3/h)	Noise (db)	Height (mm)	Width (mm)	Thickness (mm)
MS-800	710	0.37	25000	<70	800	800	450
MS-1000	900	0.55	28000	<70	1000	1000	450
MS-1100	1000	0.75	35000	<70	1100	1100	450
MS-1380	1270	1.1	44000	<70	1380	1380	450
MS-1530	1400	1.5	55800	<70	1530	1530	450

Features

Frame with Plastic Handle
1. Frame: Hot Galvanized sheet with zinc thickness of 275g/㎡, high anti-corrosion performance
2. Plastic Handle, easy to carry , Convenient to load

Advantage:
The advanced Complete CNC machine and Laser Cutting machine. Auto punching and bending, the accuracy of the hole is 100%, easy to assemble.

Shutters
1. Material: Hot Galvanized sheet with zinc thickness of 275g/㎡
2. Shutter Fixed Parts: High quality nylon.

Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation, no rust, running stable.

Fan Blades
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm

Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.

Note:
Blade material also have galvanized sheet, aluminum alloy, nylon for option

Motor

1.  Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade

Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan. Pure copper wire, High-efficiency, Energy-saving.

Belt Pulley
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability.

Advantage:
Light weight, Low vibration ,attractive appearance.

Centrifugal system

1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.

Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

Applications

Packing & Shipping

Exhibition

FAQ

1. Are you real manufacturer or ..? — Yes, we are 100% original manufacturer of exhaust fan. Our factory located at Weifang city
, ShanDong province . In design, materials procurement, manufacturing semi-finished products testing, finished products are as
such as strict control to ensure product quality. Welcome to visit us. 2. Can you do make our own brand? –Yes, we can provide the
OEM &ODM service. 3. Any guarantee for your products? –Our company's culture is "Quality is our culture!" All of our products
with 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business! 4.
How about the delivery time? –Usually for sample order 1-2 days, for mass order 7-15 days. 5.What's the payment term? A:Payment:
30% prepay By T/T ,70% pay before loading container. By T/T or L/C.

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–149 set: US $150 / set
  • 150–199 set: US $148 / set
  • 200+ set: US $145 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this mounted exhaust ventilation fan?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the mounted exhaust ventilation fan be supplied for my local voltage?

The standard configuration is 380V, 220V, 415V, 110V, 410V, 230V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
