Key specification for this mounted fresh air dehumidifier: voltage 220, capacity 20. Everything below is reproduced from the factory data sheet. Made by Beijing Holtop Air Conditioning Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Mounted Fresh Air Dehumidifier
- Model Number: DS200DB1
- Power (W): 380
- Input Power: 0.38KW
- Voltage (V): 220
- Capacity (Pints / 24h): 20
- Dehumidifying Capacity: 20L/D
Technical Specifications
| Capacity (Pints / 24h) | 20 |
|---|---|
| Coverage Area (Sq. Ft.) | 430 |
| Type | Refrigerative Dehumidifier |
| Function | Adjustable Humidistat, Auto Restart, Automatic Bucket Full Shut-Off, Automatic Defrost, Automatic Humidistat Control, Bucket Full Indicator Light, External Drain Connect, Led Display, Washable Air Filter |
| Voltage (V) | 220 |
| Brand Name | HOLTOP |
| Place Of Origin | Beijing, China |
| Dimensions (L X W X H (Inches) | 27.6*16*10.4 |
| Power (W) | 380 |
| Working Temperature Range | 5~35 C |
| Model Number | DS200DB1 |
| Product Name | Ceiling Mounted Dehumidifier |
| Dehumidifying Capacity | 20L/D |
| Material | Steel Plate |
| Air Volume | 200 |
| Dehumidifier Application | home, hotel, commercial, basement etc |
| Input Power | 0.38KW |
| E.S.P | 150 Pa |
| Current | 1.7A |
| Suitable Area | 10~40 m2 |
| Net Weight | 25KG |
| Packaging Details | Ceiling mounted fresh air dehumidifier |
| Port Of Dispatch | Tianjin |
| Selling Units | Single item |
| Single Package Size | 80X60X40 cm |
| Single Gross Weight | 30.000 kg |
| Supply Ability | 5000 units per Month |
Product Details

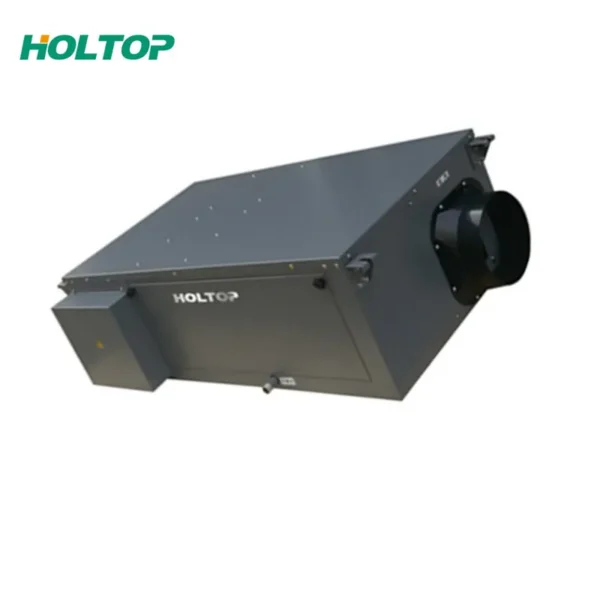

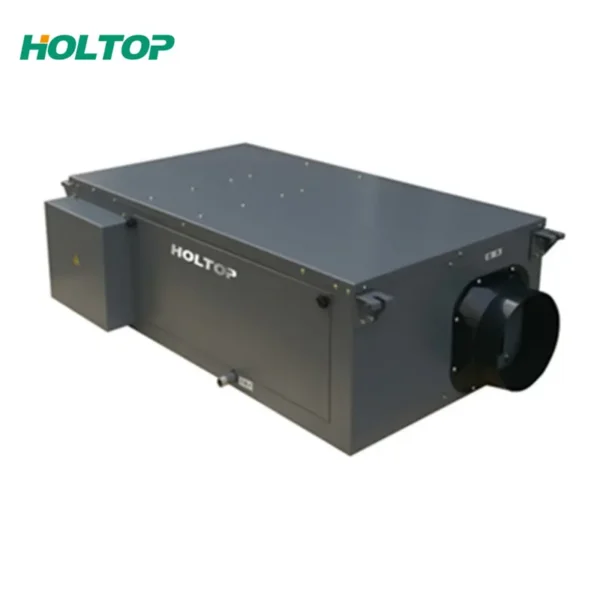

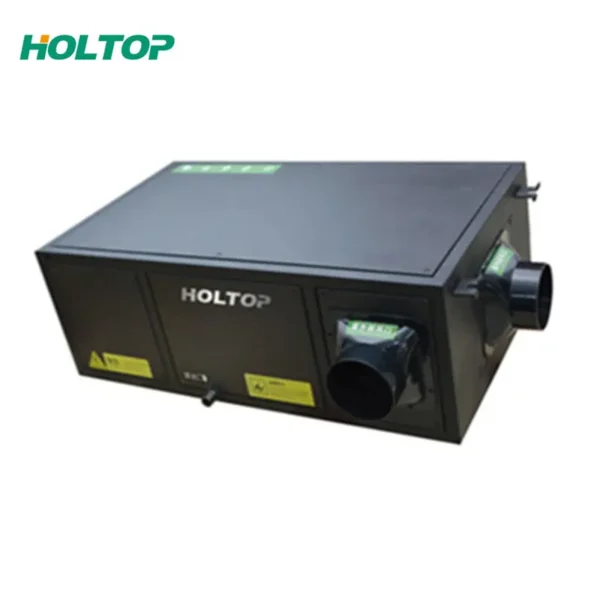

HOLTOP Home and commercial duct ceiling mounted fresh air dehumidifier

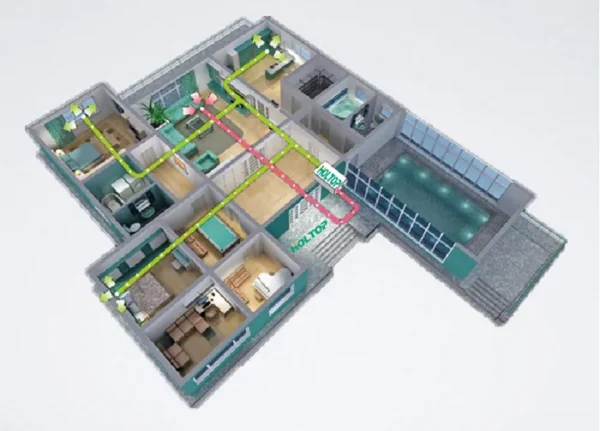

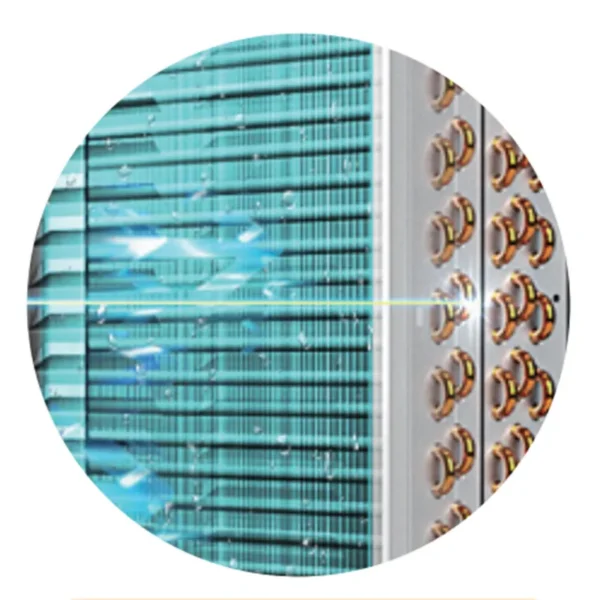

The central (fresh air anti-haze) dehumidification system adopts direct evaporative cooling design to dry and treat the air at atmospheric pressure. The dehumidification equipment can dehumidify air in 100% relative humidity and the temperature between 5 °C and +35 °C. It’s widely used in basements, swimming pools, office buildings, commercial and residential, scientific research institutions and other places. The working principle of the dehumidifier is that the fan supplies the indoor air or the outdoor mixed air through the air cooler to dehumidify and heat up, and then supplies it into the room to reduce the indoor humidity to meet people’s comfort requirements.
  |
 |
Main functions of the HOLTOP dehumidification system:
Precise Dehumidification

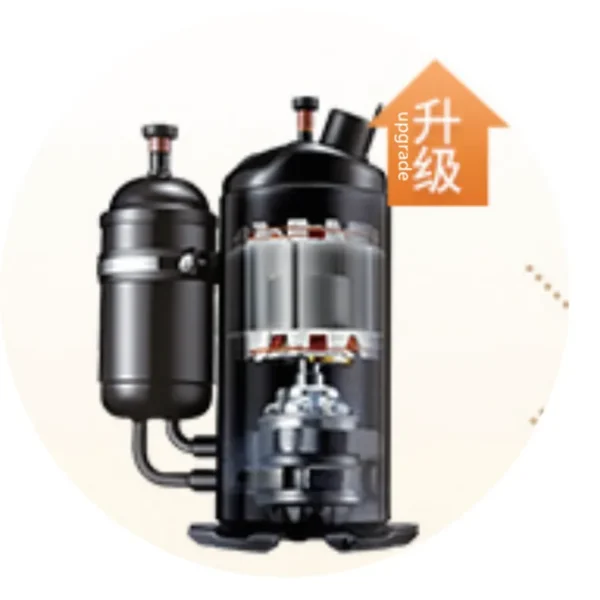

Equipped with imported compressor, high operating efficiency, energy saving, fast dehumidification.
Fresh Air Ventilation
The fresh air system can introduce outdoor fresh air into the room, reduce indoor carbon dioxide concentration and keep fresh air.
Purification Control
A comprehensive filtration system with initial-effect, high-efficiency HEPA and activated carbon filters will filter air pollutants such as dust, haze and PM2.5.
Multiple Sterilization
UV germicidal lamp with negative ion generator to effectively kill bacteria in the air.
The dehumidifier device has a wide range of applications, for example: Humidity level control in business hotels.; Humidity control in the villa; Humidity adjustment of scientific research institutions; Ensure that the humidity in museums and archives can be controlled to the appropriate range; Dry the product process; Dehumidification of wet areas to improve the environmental conditions.
Holtop Factory
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
Holtop partner
Holtop cooperate with world famous brand or offer OEM service including Hitachi, LG, McQuay, TRANE, Systemair, Aldes, York, Haier, Gree, MHI Group, Midea, Carrier, Dunham-Bush, etc.
PLEASE Click the following link to get more product information:
1) ECO-SMART HEPA ERV , ErP2018 eco design DMTH series
2) ECO-SMART Plus ERV , Eco design DCTP series
3) Ductless Eco Clean Wall Mounted ERV
4) Ductles Eco Clean Floor standing ERV
5) Slim design ERV, thinner design to save installation space
6) Convention TH series ERV, cheap and simple
7) Plate heat exchanger: counterflow sensible heat exchanger
8) Cross counterflow sensible heat exchanger
9) Total heat exchanger _enthalpy type
10) Rotary heat exchanger
11) Air handling units
Click to Send Your Inquiry Here Now to Get the Best Price
Ordering and Pricing
- Minimum order quantity: 2 unit
- Volume pricing:
- 2+ unit: US $1200 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mounted fresh air dehumidifier?
The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the mounted fresh air dehumidifier be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Holtop Air Conditioning Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Beijing Holtop Air Conditioning Co., Ltd. range on HVACR Nexus.
