The multi split vacuum tube listed here carries capacity 54000, power source Solar and grid power, documented exactly as the manufacturer publishes it. Made by Huzhou Fangli Technology Co., Ltd. (5 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Multi Split Vacuum Tube
- Model Number: TKF-52GWA*3
- Power Source: Solar and grid power
- Capacity (BTU): 54000
- Heating Capacity: 9500-37500BTU
- Refrigerant: R410a
- Warranty: 2-5years
Technical Specifications
| Cooling/Heating | Cooling/Heating |
|---|---|
| Application | Hotel/Household/Home |
| Capacity (BTU) | 54000 |
| Place Of Origin | Zhejiang, China |
| Brand Name | Fenay |
| Model Number | TKF-52GWA*3 |
| EER | 3.83 |
| COP | 4.2 |
| Product Name | Vaccum tube hybrid solar air conditioner |
| Certificate | CE RoHS |
| Warranty | 2-5years |
| Power Source | Solar and grid power |
| Compressor | Inverter |
| Refrigerant | R410a |
| Heating Capacity | 9500-37500BTU |
| Type | Split Wall Mounted Air Conditioner |
| Function | CoolingHeating |
| Selling Units | Single item |
| Single Package Size | 266X109.5X120.5 cm |
| Single Gross Weight | 65.0 kg |
Product Details
The cooling capacity is over 3.72, much better than the traditional air conditioner. Compared with the traditional air
conditioner, you can save about 30%-50% electricity and reduce the consumption on compressor so as to increase the service life of
the air conditioner, saving your maintenance cost as well.1. The hot water in the collector helps to reduce the power consumption
of the compressor.
2. Solar air conditioning uses an efficient heat exchange system.
3. Capillary and condensing tubes cooperate to achieve power saving effect, high efficiency and energy saving.
4. Easy to install and no different from traditional air conditioner.
5. High-performance brand compressor: Panasonic, safe and nice quality
6. More environmentally friendly R410a makes you healthy and comfortable.

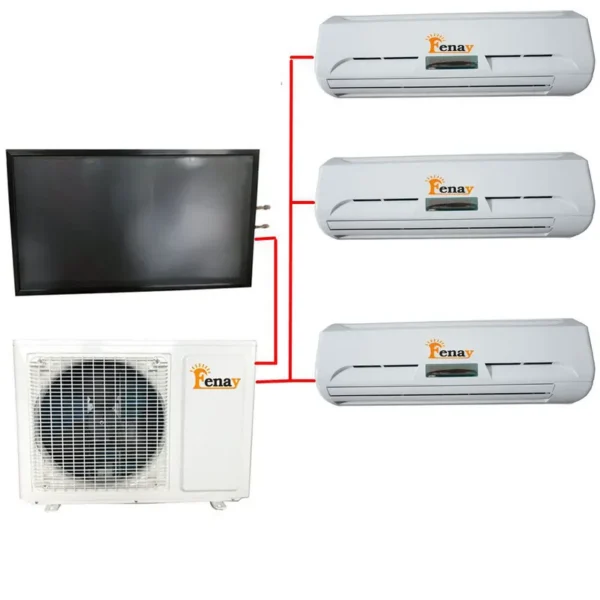

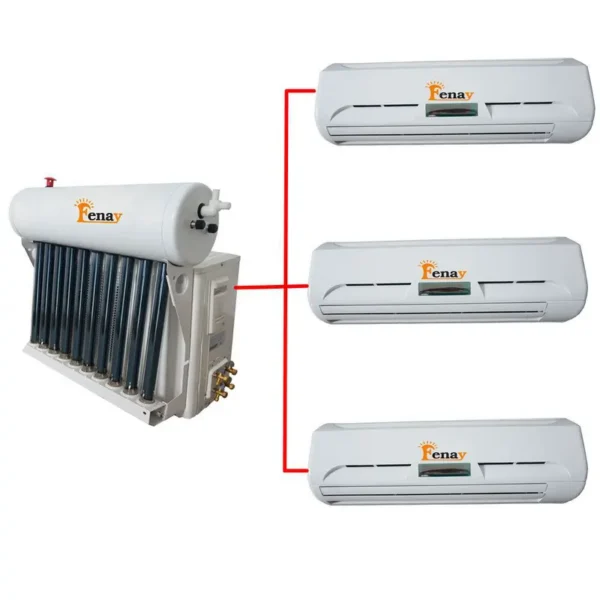

Wall Mounted Type Hybrid Solar AC(One outdoor unit+3 indoor units) | ||||||
Model No. | TKF-52GW*3 | |||||
Power Supply：220-240VAC, 1PH, 50Hz | ||||||
Performance | ||||||
Btu/h | 54000(18000+18000+18000) | |||||
W | 15000(5000+5000+5000) | |||||
Noise | Indoor | dB(A) | ≤44 | |||
Outdoor | dB(A) | ≤54 | ||||
Air Circulation | m³/h | 650 | ||||
Suitable Area | m² | 3*（20~35） | ||||
EER | W/W | 15.5 | ||||
Power Consumption | ||||||
Power Input | Cooling | W | 3200~4250 | |||
Rated Current | Cooling | A | 15.2~18.6 | |||
Vacuum Tube | Diameter*Length*Pcs | 47mm*1200mm*13 | ||||
Dimensions | ||||||
785*285*210*3 | ||||||
Shipping | mm | 910*370*300*3 | ||||
Net | mm | 865*310*710 | ||||
Shipping | mm | 1025*395*790 | ||||
Water Tank | Shipping | mm | 980*400*370 | |||
Vacuum Tube | Shipping | mm | 1270*280*410 | |||
Weight | ||||||
Indoor Unit | Net/Gross | KGS | 91/116 | |||
Outdoor Unit | Net/Gross | KGS | 92/82 | |||
Solar Collector | Net/Gross | KGS | 23/26 | |||
Freon:R410/R32 | ||||||
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Sample needs 7-15days, mass production time needs 15-25 weeks.
Q3. Do you have any MOQ limit for air conditioner order?
Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by Sea shipping. It usually takes around 30-45days, it depending on different country.
Q5. How to proceed an order for solar air conditioner ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on air conditioner product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer warranty for the products?
Yes,we offer 2years for whole unit, 5years for compressor
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–18 set: US $1875 / set
- 19+ set: US $1770 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this multi split vacuum tube?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2-5years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this multi split vacuum tube carry?
It is supplied with CE RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
