Key specification for this only connectable indoor unit: power supply 220-240V~ 50/60Hz, cooling capacity 3.5-17.5Kw/ 12-59Kbtu. Everything below is reproduced from the factory data sheet. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Only Connectable Indoor Unit
- Model Number: Atom C
- Power Supply: 220-240V~ 50/60Hz
- Cooling Capacity: 3.5-17.5Kw/ 12-59Kbtu
- Connected Indoor Unit(Total Capacity): 50%~130% of ODU capacity
- Refrigerant: R-410A
- Warranty: 2 Years
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Split |
| Compressor Brand | GMCC |
| Fan Motors Type | AC |
| Motor Type | DC Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Application | Hospital, Hotel, Home, School, Office |
| Key Selling Points | Capacity Up to 60kBtu/h, Connectable Indoor Units Quantity up to 9, Refrigerant Cooling PCB, Advanced Silent Technology |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Engine, Pump, Motor, Condenser, Compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 80 |
| Brand Name | Midea |
| Model Number | Atom C |
| Dimension(L*W*H) | 100*90*50cm |

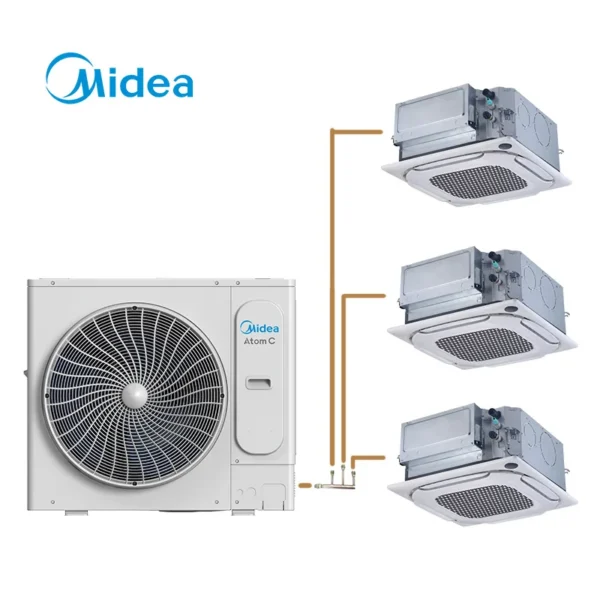

| Product Name | Midea Atom C Series Cooling Only VRF Air Conditioner |
| Function | Cooling Only |
| Cooling Capacity | 3.5-17.5Kw/ 12-59Kbtu |
| Compressor | DC inverter |
| Power Supply | 220-240V~ 50/60Hz |
| Cooling Input | 0.94-5.20Kw |
| Connected Indoor Unit(Total Capacity) | 50%~130% of ODU capacity |
| Connected Indoor Unit(Maximum Quantity) | 3-9 |
| Cooling EER | 3.61-4 |
| Selling Units | Single item |
| Single Package Size | 100X90X50 cm |
| Single Gross Weight | 80.000 kg |
Product Details

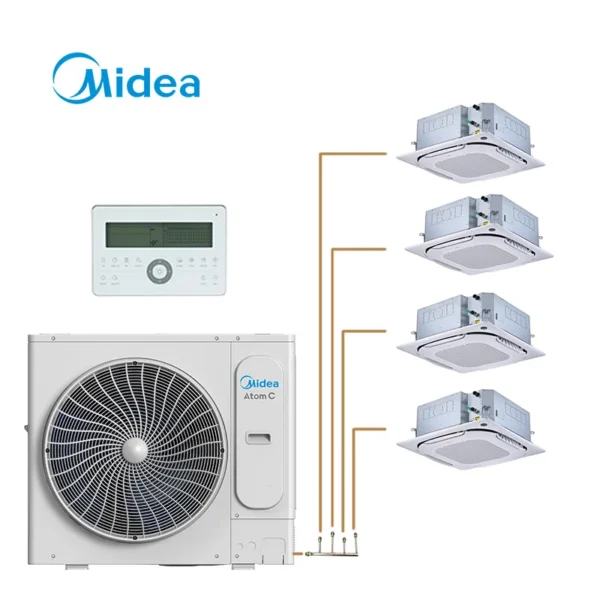

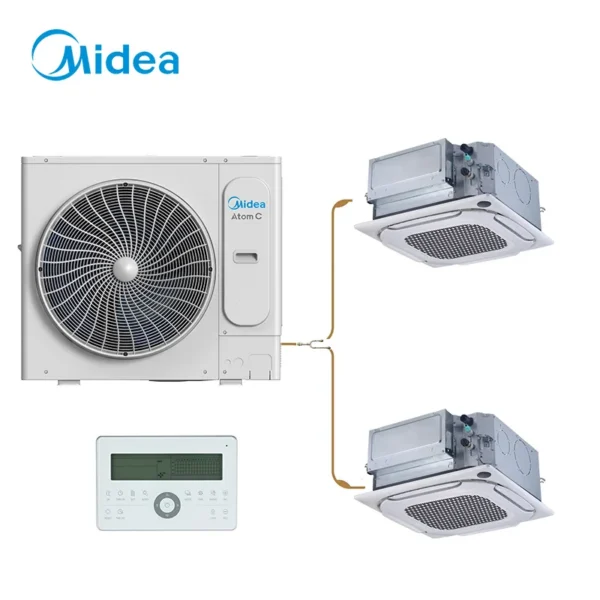

Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
Information needed by Midea Group’s management system before prepare quotation details for you.
Product name | Midea AtomC Series Cooling Only VRF System Air Conditioner | ||||||
Power Supply | 220-240V~ 50/60Hz | ||||||
Cooling1 | Capacity | 3.5KW-17.5KW | 12-60KBtu/h | ||||
Power input | 0.94-5.20KW | ||||||
EER | 3.37-3.72 | ||||||
Connected indoor unit | Total capacity | 50%~130% of ODU capacity | |||||
Maximum quantity | 3-9 | ||||||
Compressors | Type | DC inverter | |||||
Fan | Type | DC | |||||
Quantity | 1 | ||||||
Refrigerant | Type | R410A | |||||
Ambient temp | Cooling (DB) | -15℃ to 55 ℃ | |||||

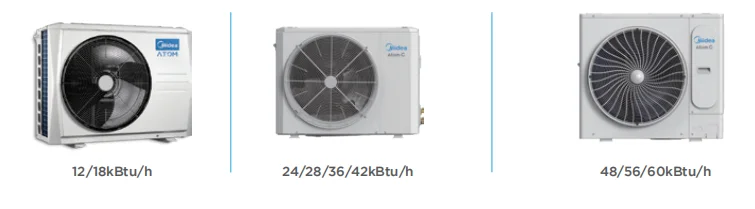

WIDE APPLIACATION RANGE
It can help to freeing up considerable space outside by less number of outdoor units.
indoor units, freeing up considerable space
outside. Use your backyard more wisely
with much more space available created
by less number of outdoor units

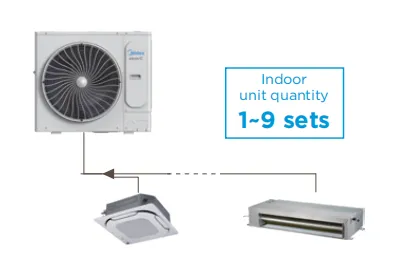

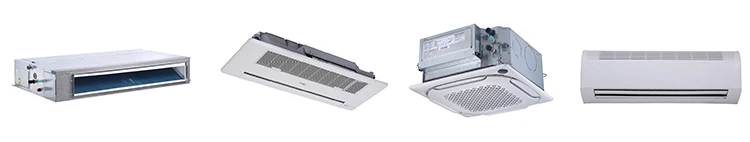

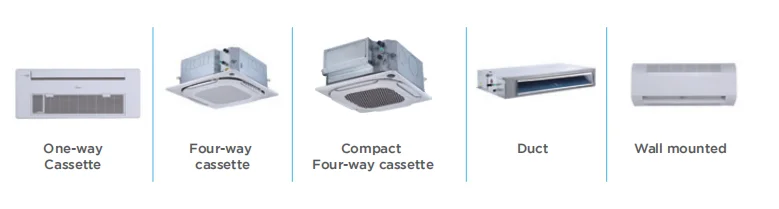

Wall mounted and Duct. The capacity is from 5kBtu/h to 48kBtu/h. Multiple types of indoor units to
meet varied indoor requirements.

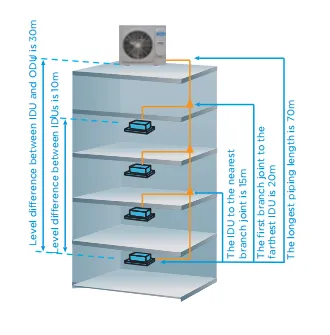

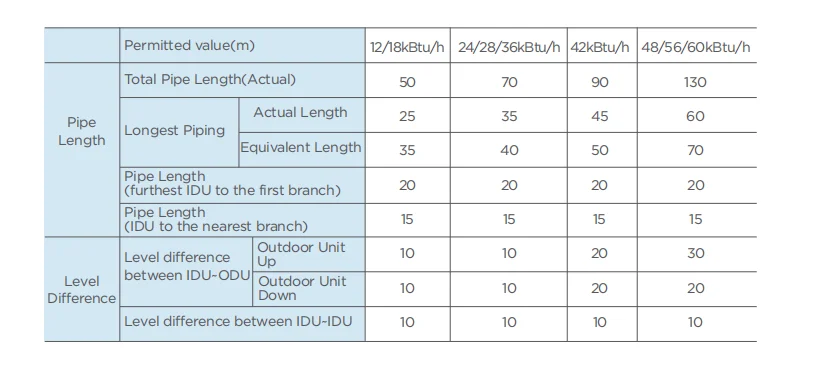

a total piping length possibility of
130m, a maximum height difference
between outdoor and indoor units of
30m. The height difference between
indoor units can be up to 10m. These
generous allowances facilitate an
extensive array of system designs.
provide more freedom and convenience to
match the customer needs.

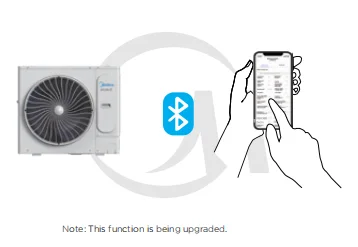

after-sales kit, system settings, operating
parameter queries, trial runs and programme upgrades are all possible without opening the cabinet.

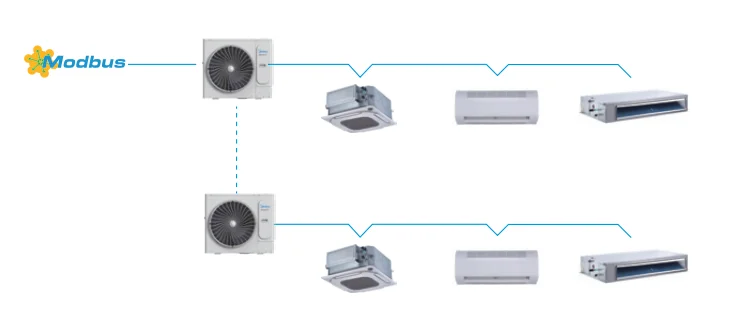

Modbus Function
the functions of obtaining the operation status of the IDU (on/off, with or without fault, online or
offline), the operation status of the ODU(on/off, with or without fault), and the setting of the IDU
(on/off, mode, air flow, and temperature), and so on.
Packing Details:
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $10000 / set
- 20–29 set: US $7000 / set
- 30+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this only connectable indoor unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the only connectable indoor unit be supplied for my local voltage?
The standard configuration is 220-240V~ 50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
