Key specification for this packaged rooftop air conditioner: power supply 3P-AC380V/50Hz/N/PE, 10 kW ~ 420 kW. Everything below is reproduced from the factory data sheet. Made by Ningbo Hicon Industry Co., Ltd. (1 year on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.

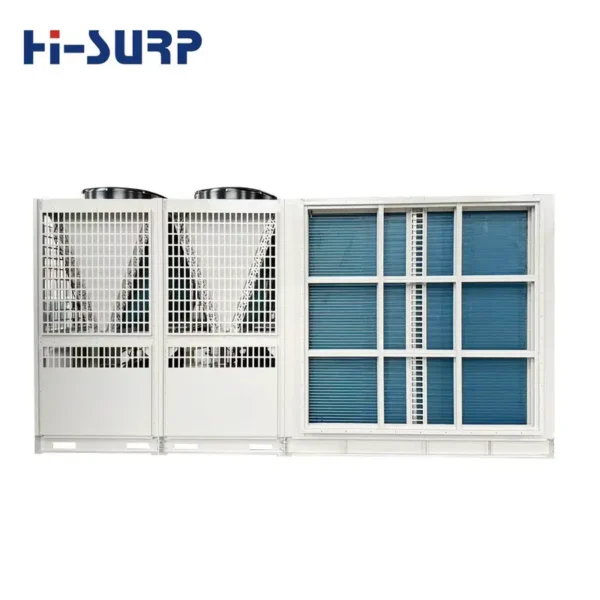

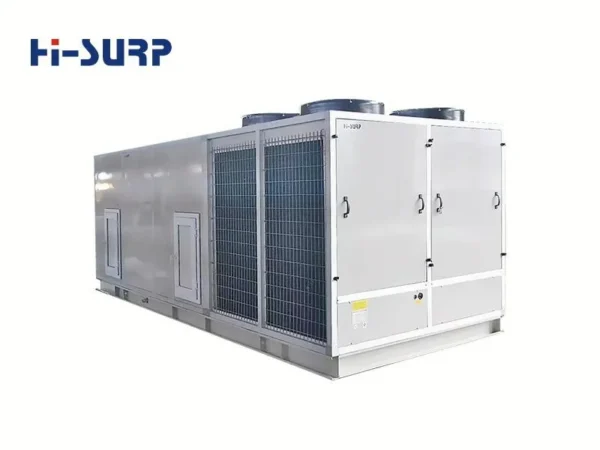

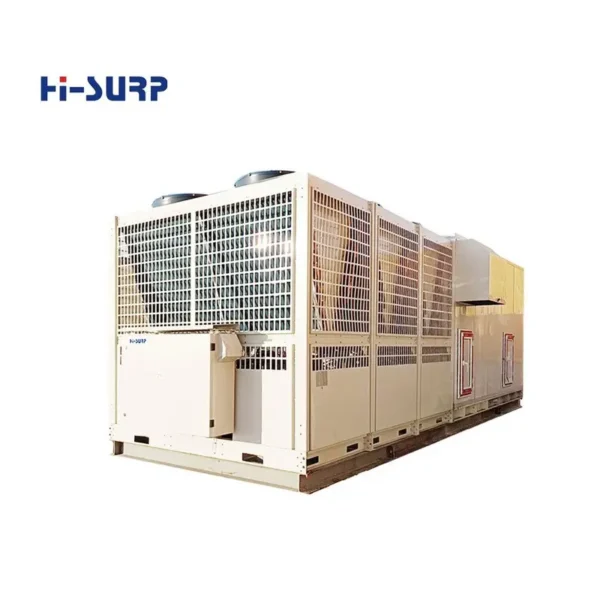

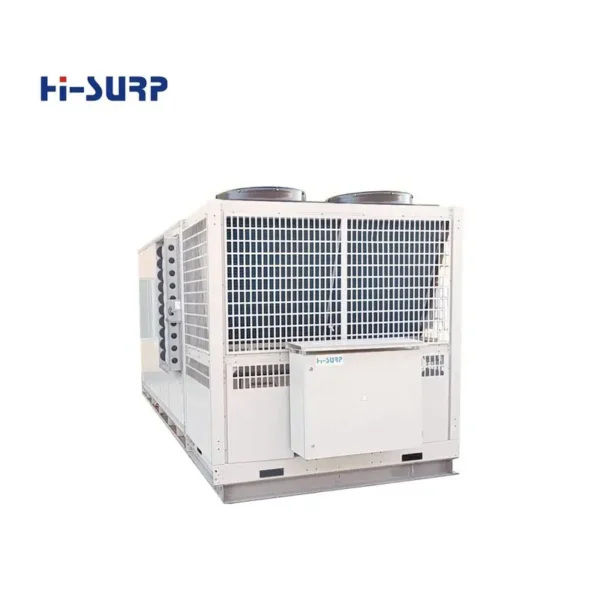

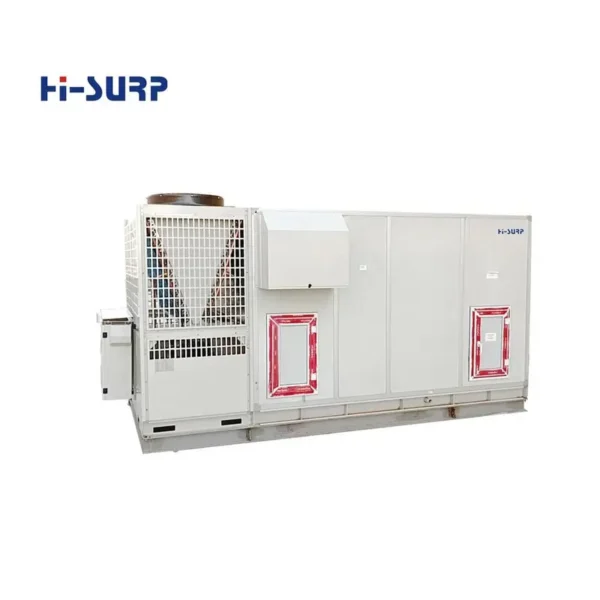

Key Features of This Packaged Rooftop Air Conditioner
- Model Number: HAHU(Z)-10H, HAHU(Z)-420H
- Power Supply: 3P-AC380V/50Hz/N/PE
- Cooling Capacity: 10 kW ~ 420 kW
- Heating Capacity (Heat Pump): 10.5 kW ~ 441.0 kW
- Refrigerant: R-410A, R-22
- Warranty: 1 Year
Technical Specifications
| Type | Rooftop Packaged Unit |
|---|---|
| Refrigerant | R-410A, R-22 |
| Mounting Type | Rooftop |
| Compressor Brand | Copeland, Hitachi, Daikin |
| Fan Motors Type | AC |
| Application | Warehouse, Plant, Mall |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 200 |
| Brand Name | Hi-Surp |
| Model Number | HAHU(Z)-10H, HAHU(Z)-420H |
| Dimension(L*W*H) | 1260mm x 900mm x 1160mm |
| Cooling Capacity | 10 kW ~ 420 kW |
| Heating Capacity (Heat Pump) | 10.5 kW ~ 441.0 kW |
| Circulating Air Volume | 2000 ~72000 m³/h |
| Power Supply | 3P-AC380V/50Hz/N/PE |
| Temperature Control Range And Accuracy | 18℃~30C℃±1℃ |
| Primary Filter | Plate G3/G4 |
| Intermediate Filter (Optional) | Plate FB5 |
| Evaporator | Hydrophilic louver type aluminum fins |
| Diameter Of Drain Pipe | DN25 |
| Blower | Low noise centrifugal fan |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this packaged rooftop air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the packaged rooftop air conditioner be supplied for my local voltage?
The standard configuration is 3P-AC380V/50Hz/N/PE. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Hicon Industry Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ningbo Hicon Industry Co., Ltd. range on HVACR Nexus.
