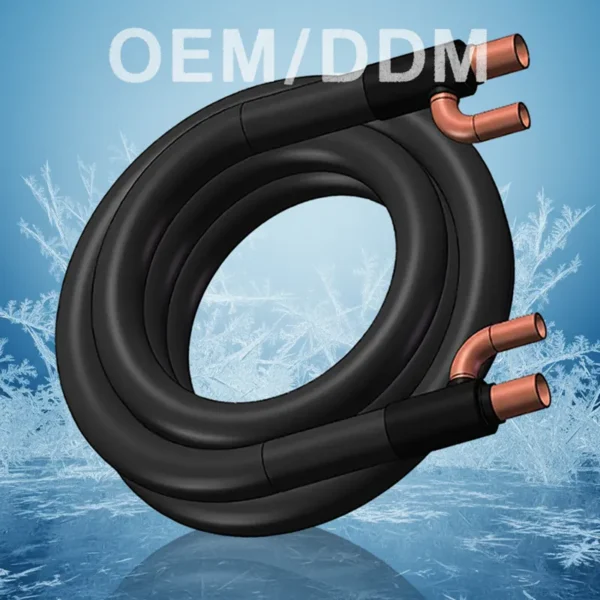

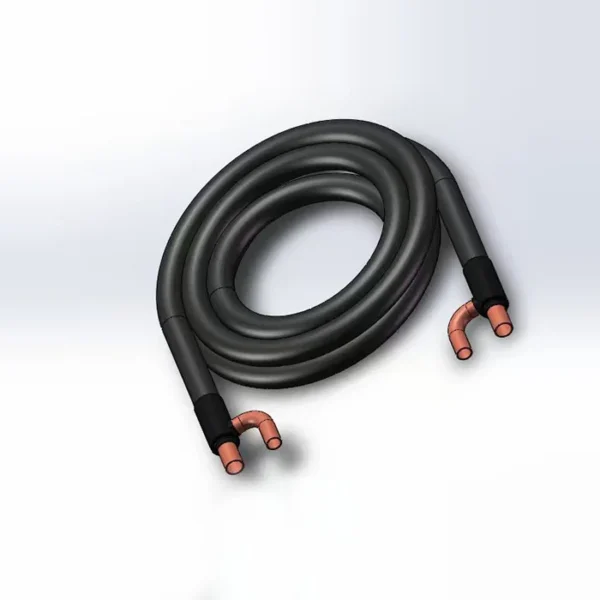

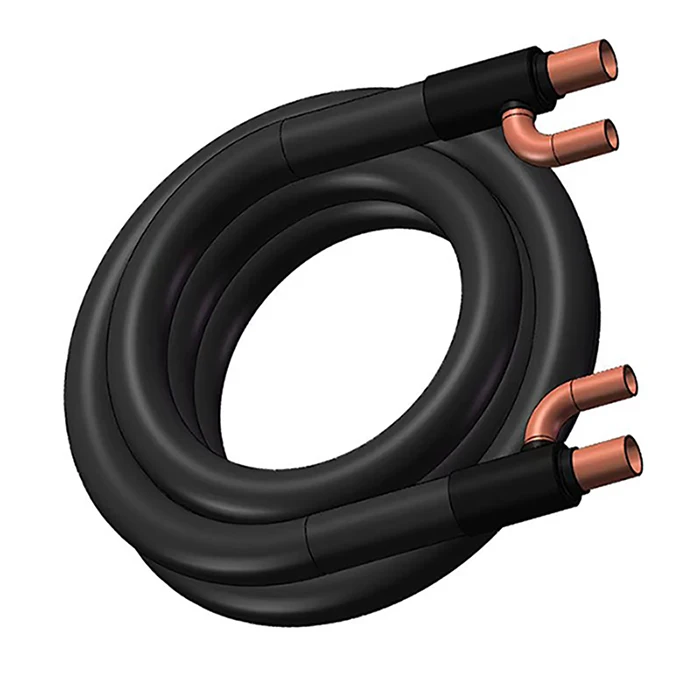

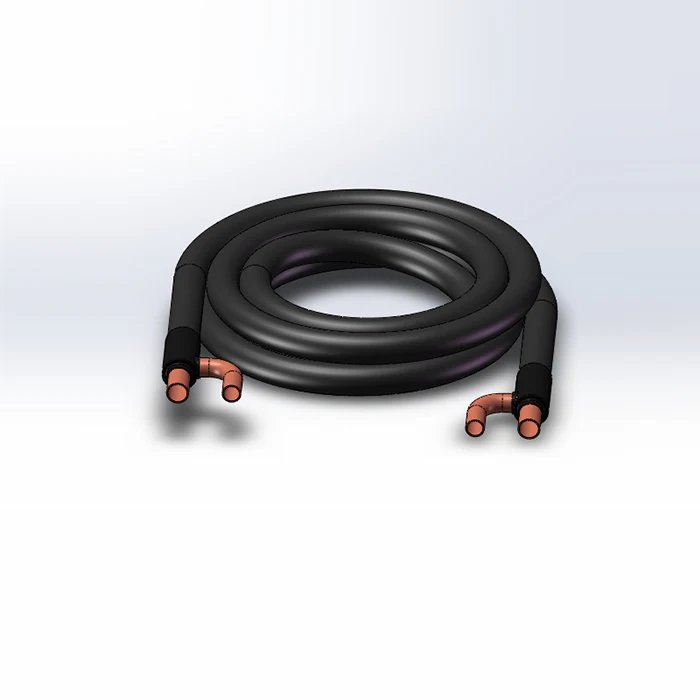

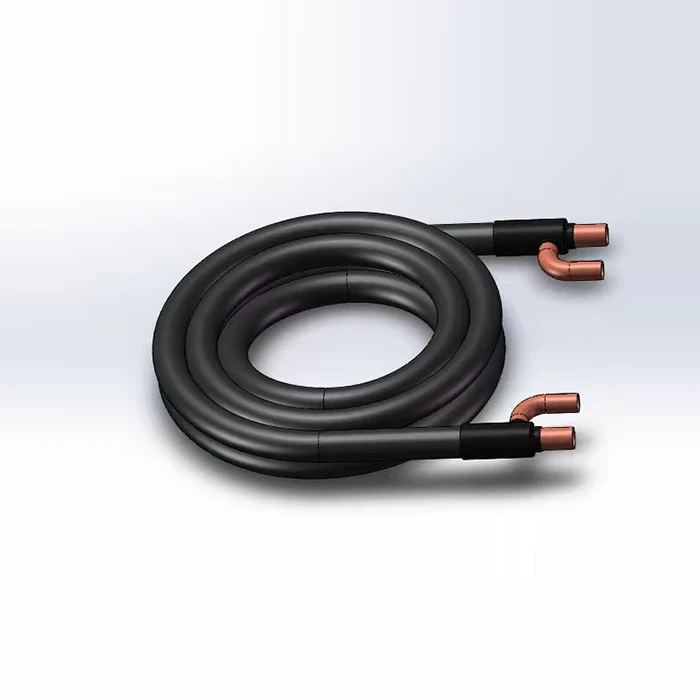

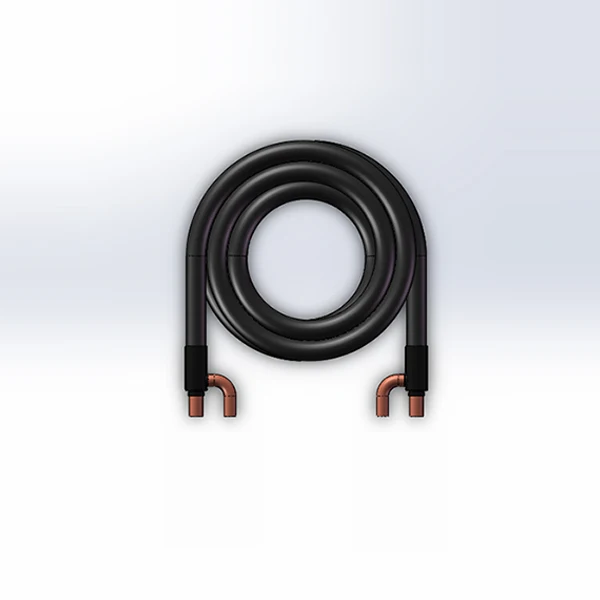

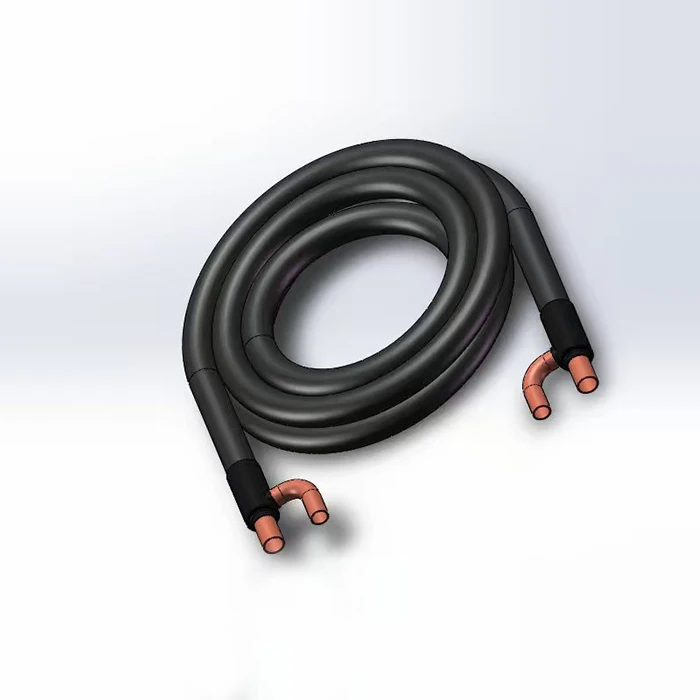

Packless double-wound-helix water-source condenser — material Copper and Steel, refrigerant connection in/out 9.52. The complete factory specification follows. Made by Xinchang Shengyi Mechincal And Electronic Co., Ltd. (1 year on the platform, typical reply ≤13h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Packless Double-Wound-Helix Water-Source Condenser
- Nom.Capacity (RT): 2.0
- Material: Copper and Steel
- REFRIGERANT CONNECTION IN/OUT(OD) (Mm): 9.52
- Refrigerant: R410a
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Heat Exchanger Type | coaxial heat exchangers |
|---|---|
| Fluid Compatibility | Water and Freon |
| Material | Copper and Steel |
| Maximum Operating Temperature | 150℃ |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Competitive Price |
| Working Temperature Range | -60-150℃ |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 5 |
| Brand Name | Shinecool |
| Maximum Pressure Rating | 45Bar |
| Dimension(L*W*H) | 378X57X328mm |
| Product Name | Ultra-Slim Condenser & WSHP Coils |
| Model | SYCO-0200GT-W1 |
| Nom.Capacity (RT) | 2.0 |
| REFRIGERANT CONNECTION IN/OUT(OD) (Mm) | 9.52 |
| WATER CONNECTION IN/OUT(OD) (Mm) | 15.88 |
| Refrigerant | R410a |
| Selling Units | Single item |
Product Details

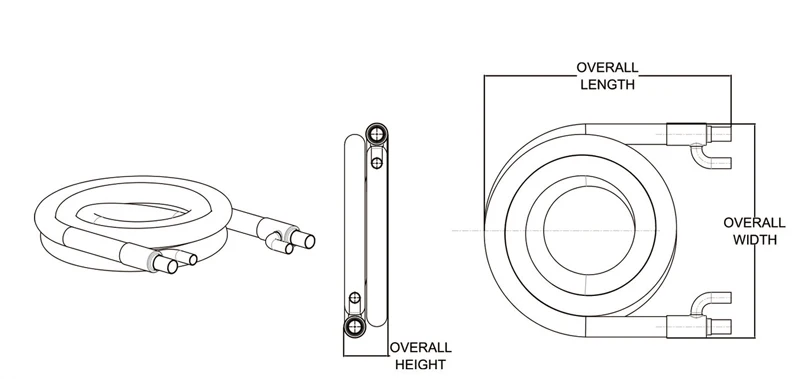

| P/N Model# | Nom.Capacity (RT) | REFRIGERANTCONNECTION IN/OUT(OD)(mm) | WATERCONNECTION IN/OUT(OD)(mm) | OVERALL DIMENSIONS(mm) | ||
| LENCTH | HEIGHT | WIDTH | ||||
| SYCO-0075GT-W1 | 0.75 | 9.52 | 12.7 | 267 | 51 | 205 |
| SYCO-0100GT-W1 | 1.0 | 9.52 | 12.7 | 295 | 51 | 240 |
| SYCO-0150GT-W1 | 1.5 | 9.52 | 15.88 | 353 | 57 | 298 |
| SYCO-0200GT-W1 | 2.0 | 9.52 | 15.88 | 378 | 57 | 328 |
| SYCO-0250GT-W1 | 2.5 | 12.7 | 19.05 | 418 | 64 | 330 |
| SYCO-0300GT-W1 | 3.0 | 15.88 | 22.23 | 397 | 70 | 341 |
| SYCO-0350GT-W1 | 3.5 | 15.88 | 22.23 | 438 | 70 | 386 |
| SYCO-0400GT-W1 | 4.0 | 19.05 | 22.23 | 476 | 90 | 432 |
| SYCO-0500GT-W1 | 5.0 | 19.05 | 28.58 | 500 | 90 | 434 |
| SYCO-0600GT-W1 | 6.0 | 19.05 | 28.58 | 518 | 90 | 464 |
| SYCO-0650GT-W1 | 6.5 | 19.05 | 28.58 | 527 | 90 | 487 |
| SYCO-0750GT-W1 | 7.5 | 19.05 | 28.58 | 572 | 98 | 532 |
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP,but we need sample charge,the sample charge would be refunded when customer place certain order amount.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Q8:Could you design the products as customer’s provide the parameters?
A8:our engineering department could design as customer’s requirement by Solidworks software.before make the samples,we could send 3D design for imitating installation
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–999 piece: US $80 / piece
- 1000–1999 piece: US $63 / piece
- 2000+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this packless double-wound-helix water-source condenser?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xinchang Shengyi Mechincal And Electronic Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Xinchang Shengyi Mechincal And Electronic Co., Ltd. range on HVACR Nexus.
