Permanent Magnet Generator, 50kw, 5kw

Permanent magnet generator — model number PMG Series. The complete factory specification follows. Made by Qingdao Greef New Energy Equipment Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Permanent Magnet Generator

• Model Number: PMG Series
• Rated Power: 50w-5Mw
• Output Voltage: 12-1140vac
• Generator Material: 100% Copper wire+Nd-Fe-B
• Rated Rotor Speed: 20-3000RPM
• Warranty: 3 Years

Technical Specifications

Product Details

Product Introduction

Permanent Magnet Generators offer high efficiency energy conversion, particularly at partial load, and require no separate field excitation system. Our permanent magnet generators are lighter, more efficient, and require less assembly labor than competing designs.
Permanent Magnet Generators are used in a large number of applications such as Wind Turbines, Hydro Turbines, motors and others.

Product Parameters

Rated power	0.5–5000	kW
Rated rotate speed	20–3000	rpm
Rated voltage	48–1140	Vac
Frequency	60/50	Hz
Number of Poles	24
Generator type	3phase AC Synchronous generator
Magnet type	NdFeB
Winding Method	Y
Magnet temperature level	Max.120℃
Winding temperature level	Max.180℃
Effienciency	>95%
Insulate Grade	H
Insulating resistance	100Mohm Min(500Vdc)
Classification of degrees	IP54
Generatror shell material	Cast Iron
Winding material	100% Copper
Shaft material	Steel
Iron Core	Cold rolled silicon steel sheet
Bearing brand	SKF
Cooling Method	Fan Cooling
Weight (N.W /G.W )	132kg /152kg
Packing Size	870*470*570mm
Installation	Horizontal

RATED POWER	RATED SPEED	RATED VOLTAGE	FREQUENCY
0.5KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
1KW	20rpm~600rpm	12V~220Vac	10Hz~60Hz
2KW	20rpm~1000rpm	12V~400Vac	10Hz~60Hz
3KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
5KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
10KW	20rpm~1500rpm	120V~690Vac	10Hz~60Hz
15KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
25KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
30KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
50KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
80KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
100KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
150KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
200KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
250KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
300KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
500KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
700KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
800KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
1MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
2MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
3MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
4MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz
5MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz

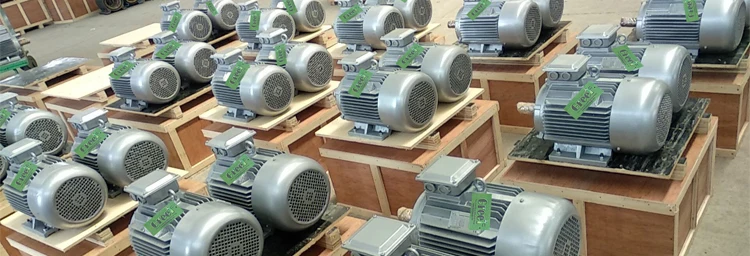

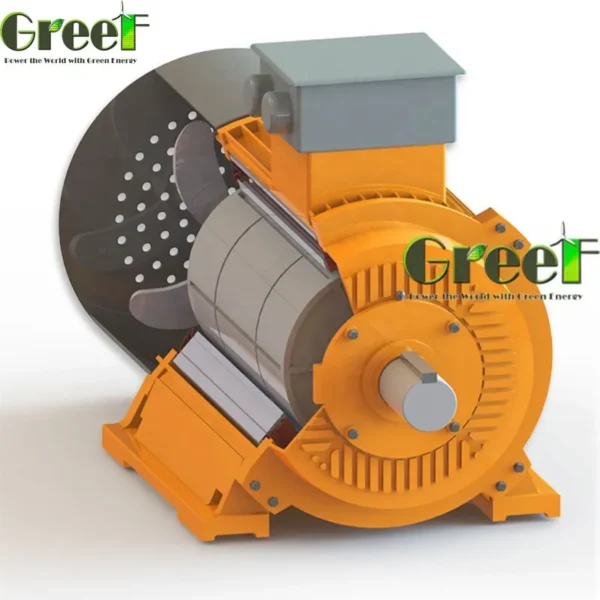

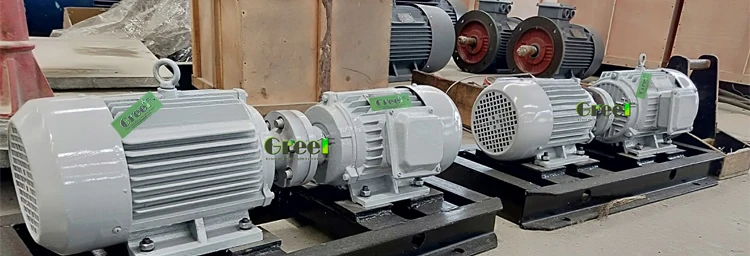

Product Show

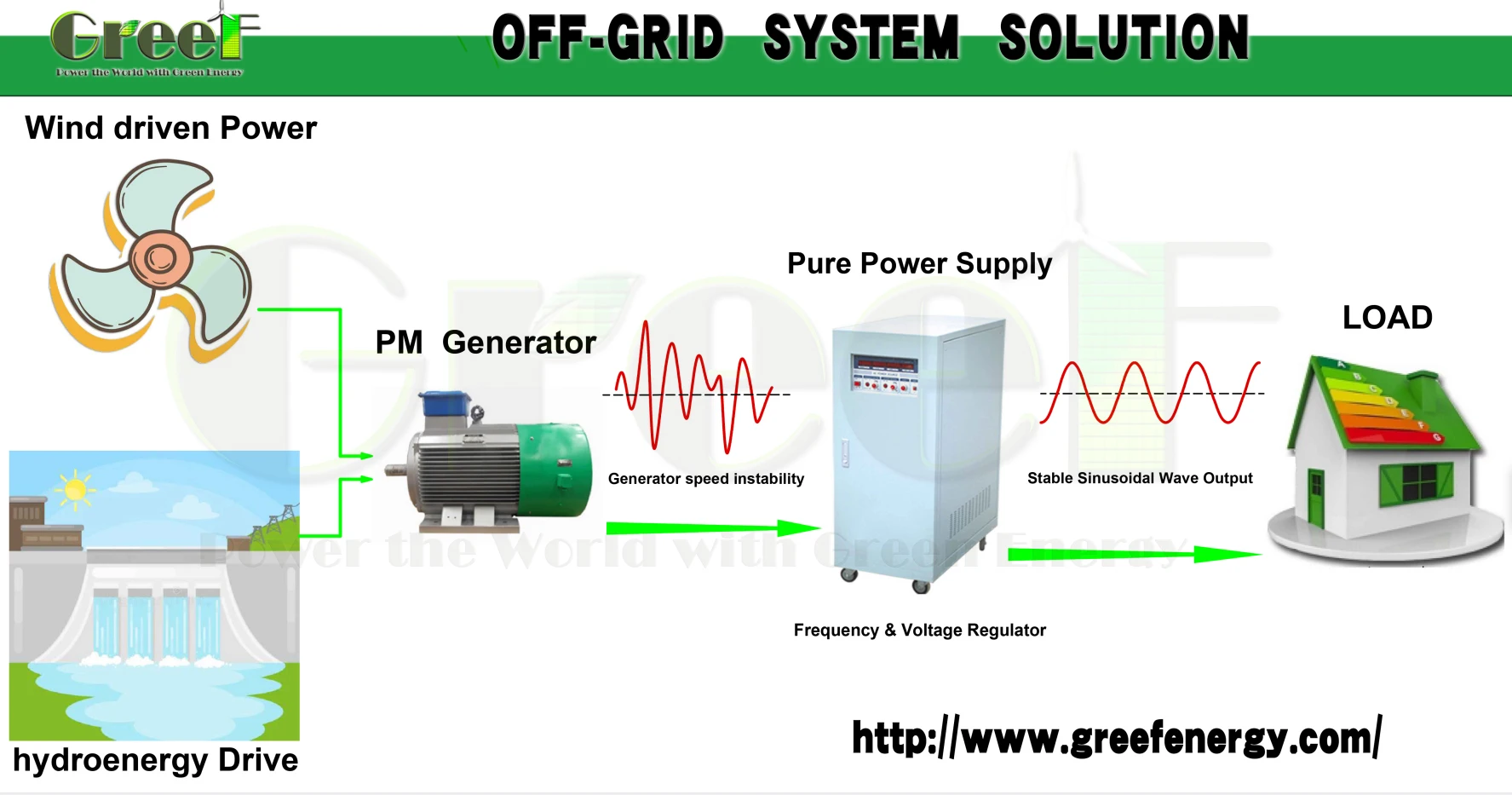

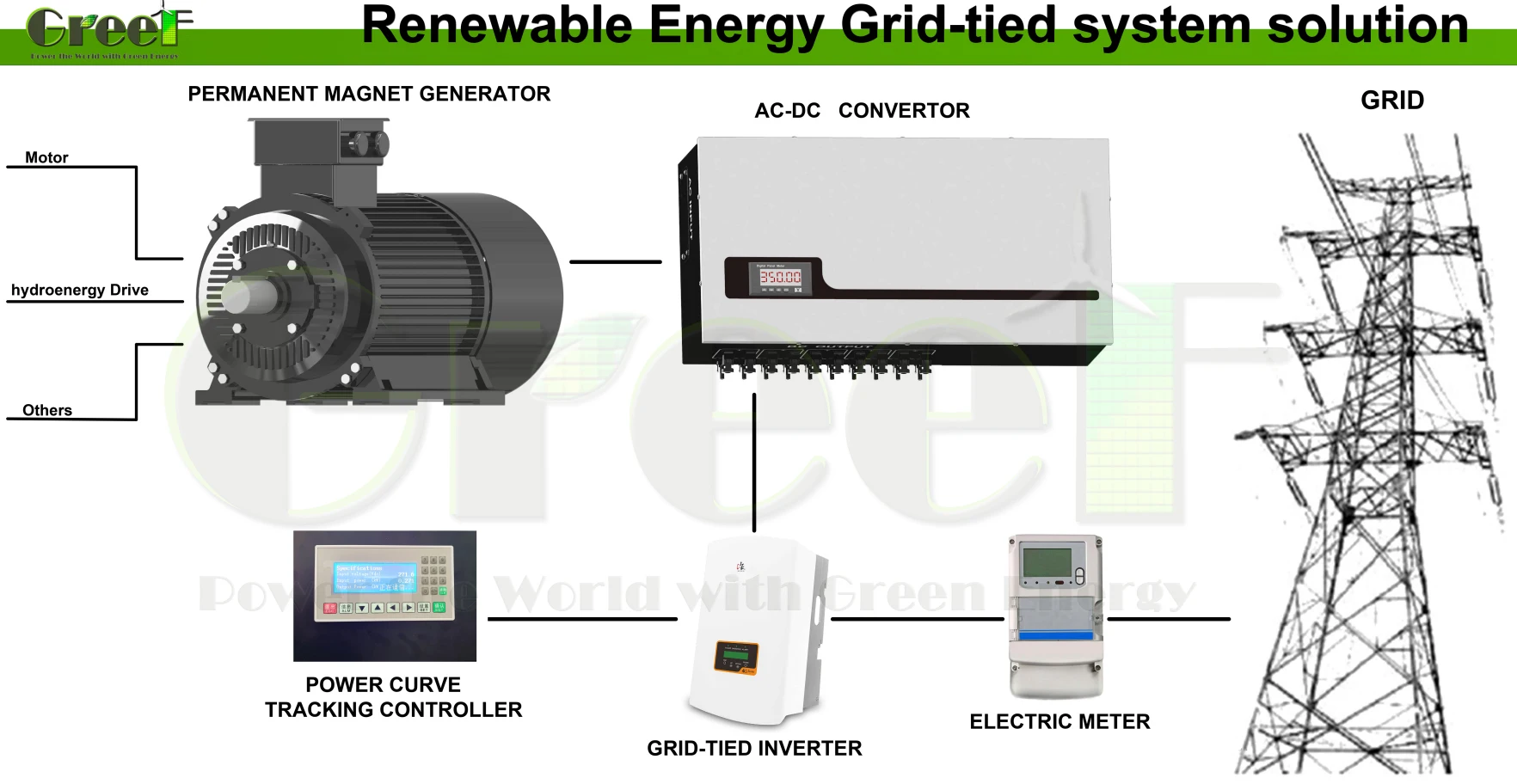

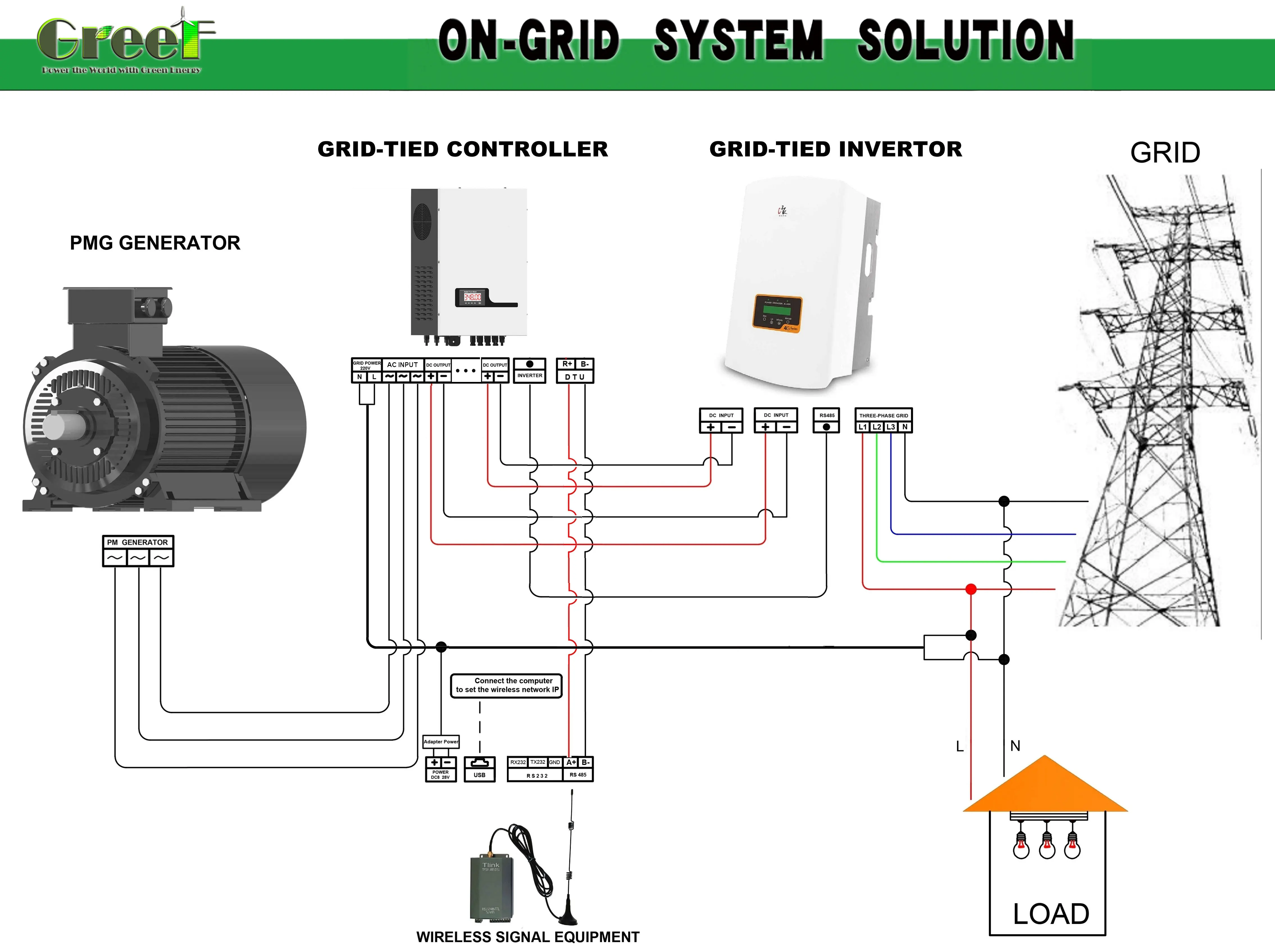

System Solution

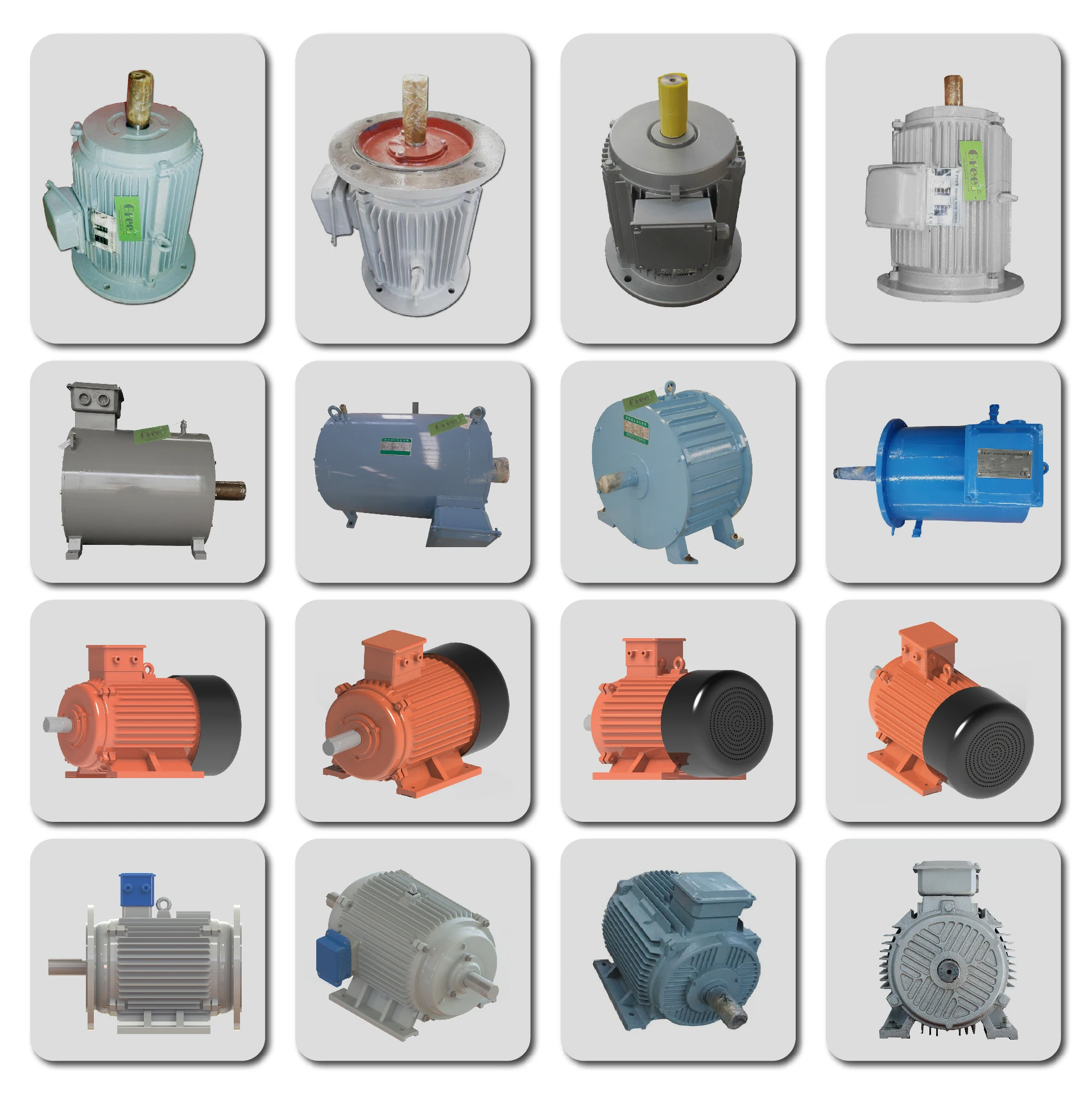

Alternative Energy Generators
GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.

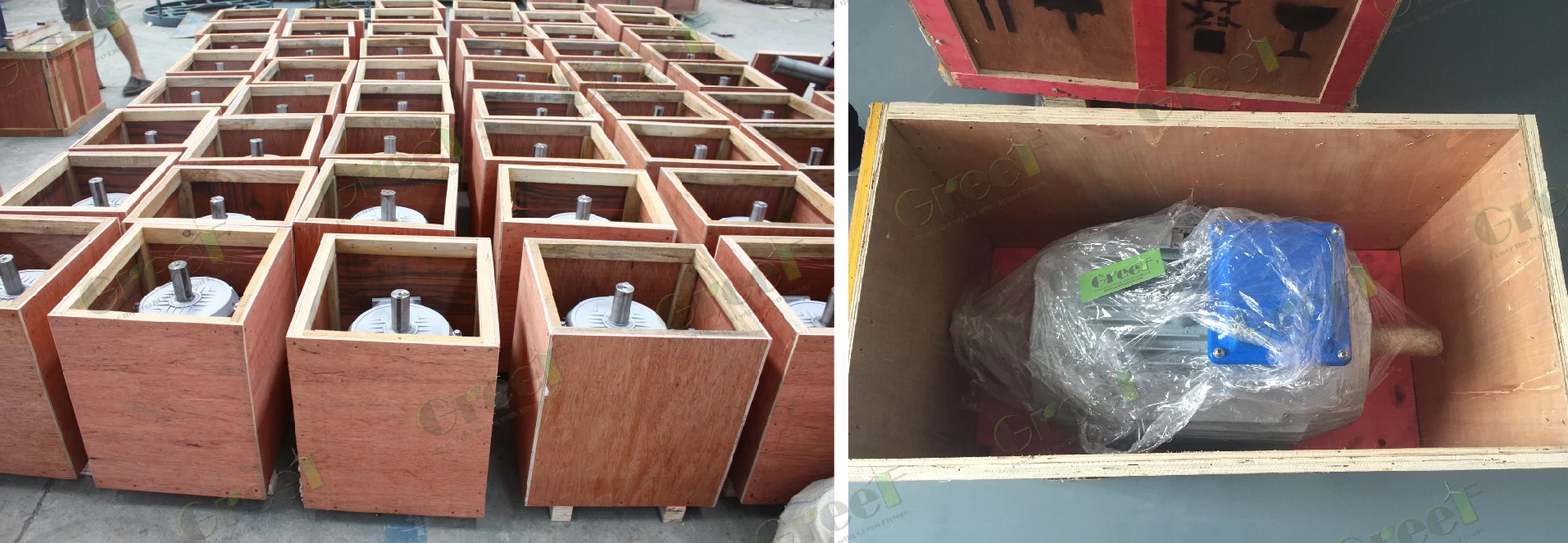

Product packaging

1. Greef generator use inner foam protection, outer Plywooden case.

2. Package size and weight, please contact our sales.

3. Shipping by sea with FCL / LCL to your nearest port

    Or Shipping by air to your nearest airport

    Or Shipping by DHL/FedEx/UPS/TNT to your door

If you have any requests in package and shipping , please contact us directly.

Why Choose Us

Permanent Magnet Generators are 3 years warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.

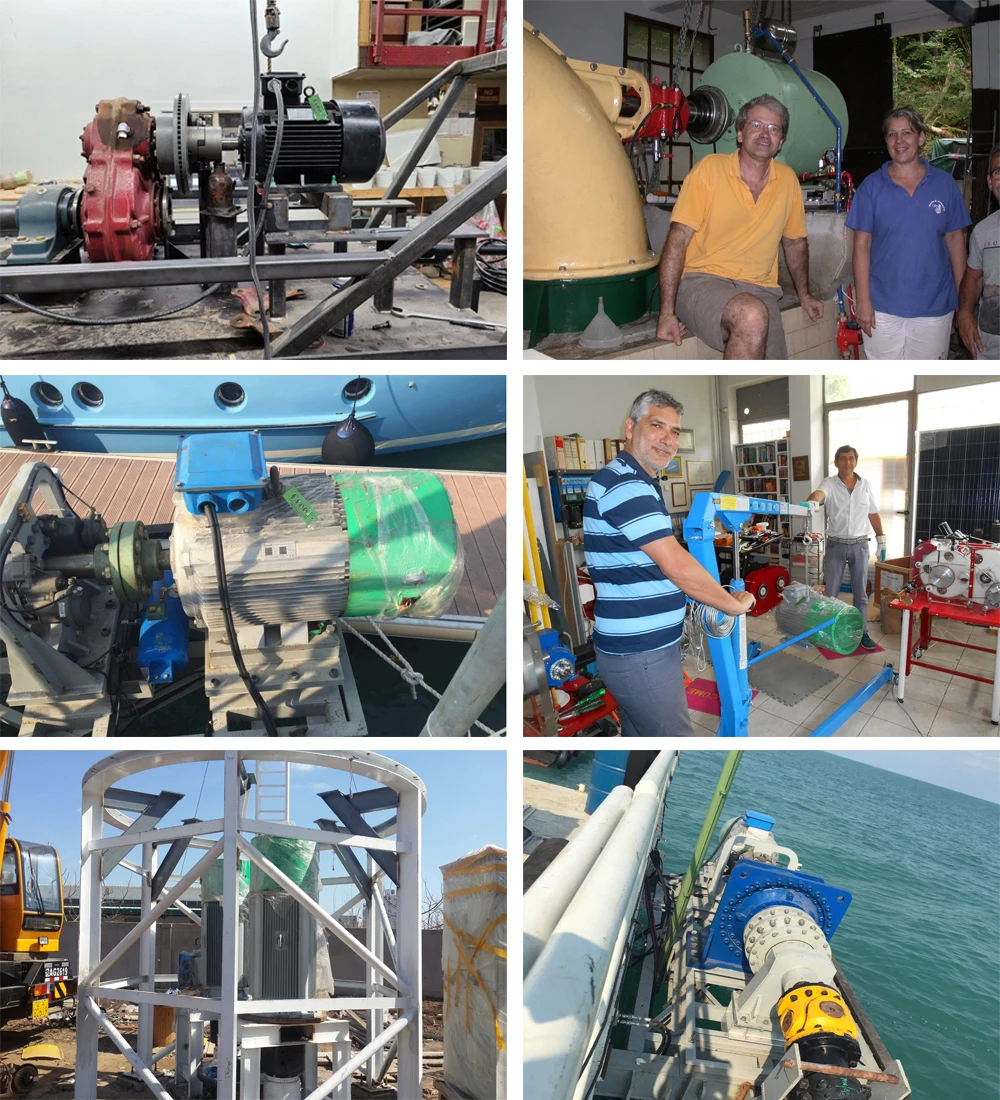

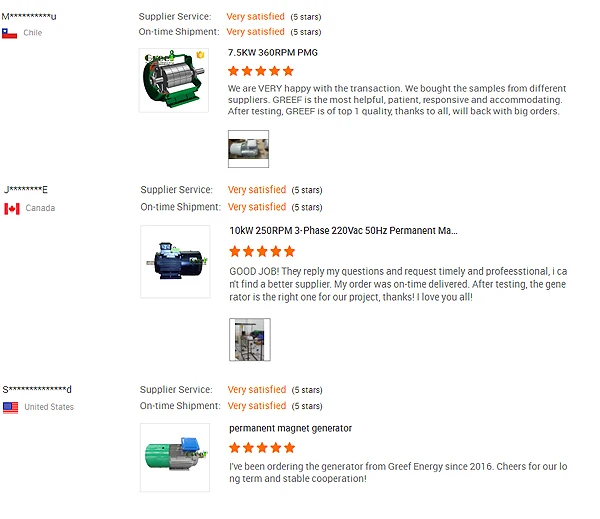

Buyer Feedback

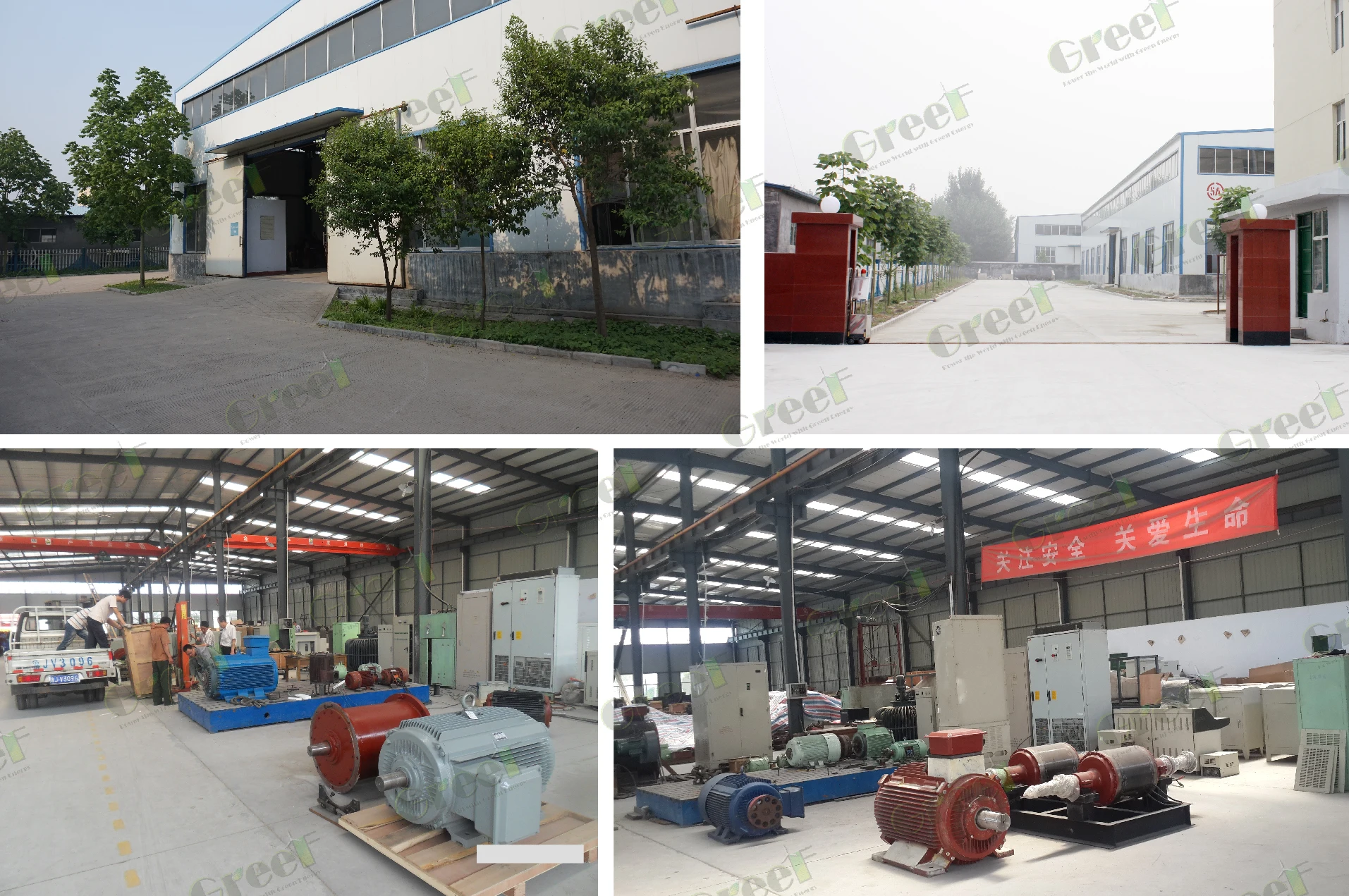

Company Information

We are global supplier which focus on Permanent Magnet generator, wind turbine ， wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this permanent magnet generator?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the permanent magnet generator be supplied for my local voltage?

The standard configuration is 12-1140vac. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingdao Greef New Energy Equipment Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Greef New Energy Equipment Co., Ltd. range on HVACR Nexus.
