Permanent Magnet Motor, 500W, 5KW

Key specification for this permanent magnet motor: model number PMG Series. Everything below is reproduced from the factory data sheet. Made by Qingdao Greef New Energy Equipment Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Permanent Magnet Motor

• Model Number: PMG Series
• Generator Material: Aluminium body+copper wire+Nd-Fe-B
• Rated Rotor Speed: 80-180RPM
• Warranty: 3 Years
• Place Of Origin: Shandong, China
• Generator Type: Axial Flux Permanent Magnet

Technical Specifications

Product Details

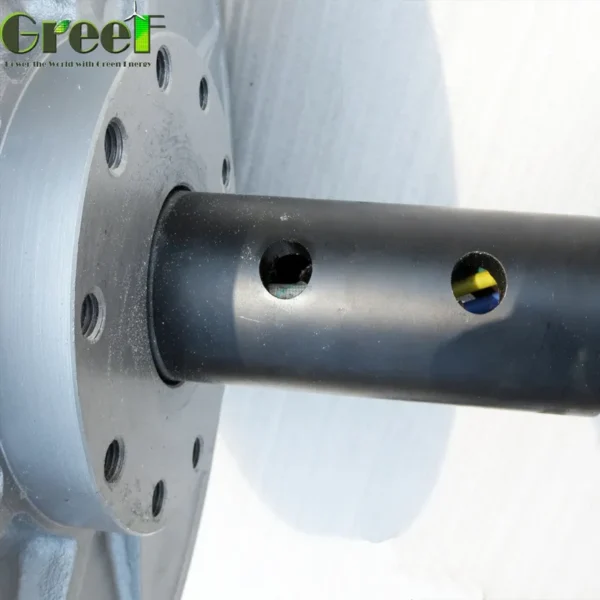

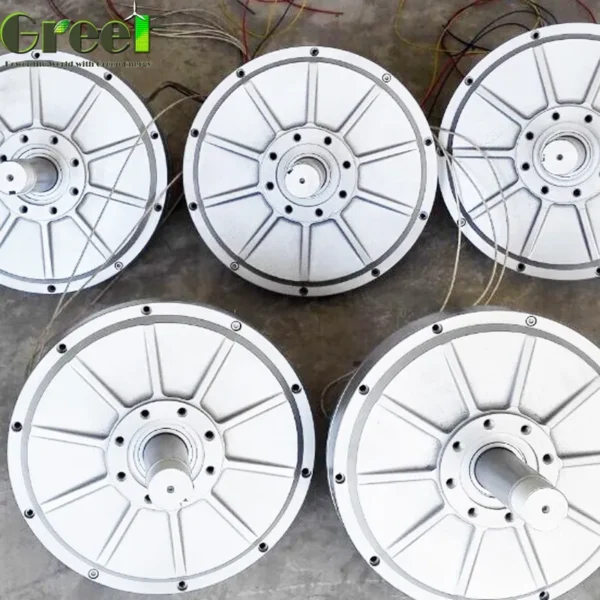

Coeless Permanent Magnet Generator

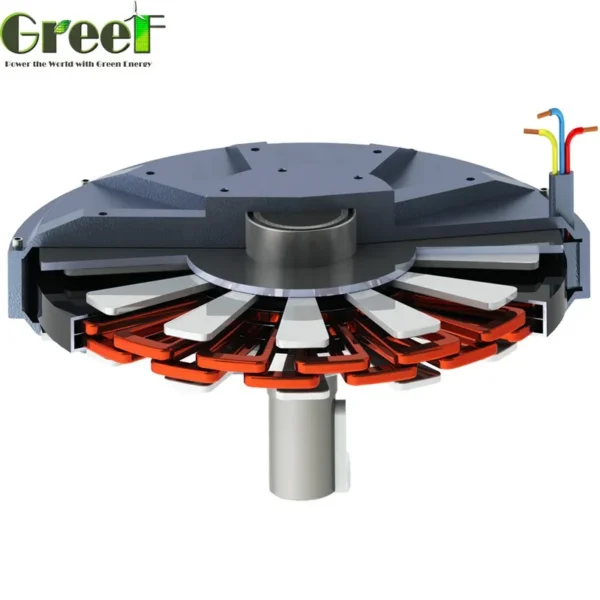

This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.

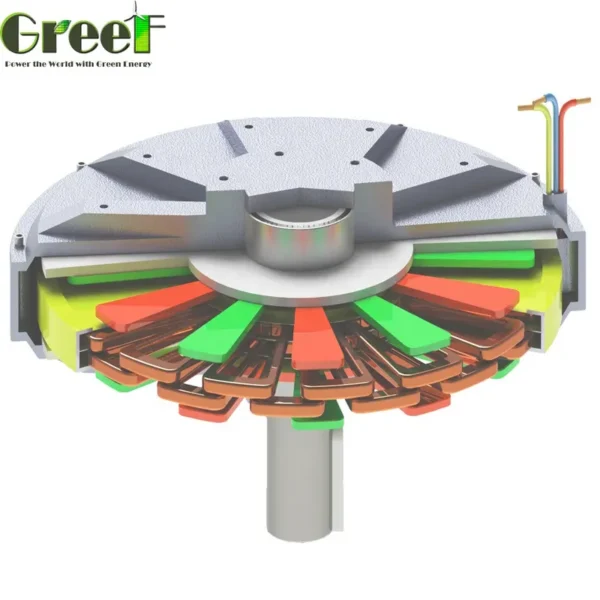

1	Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.3N.M

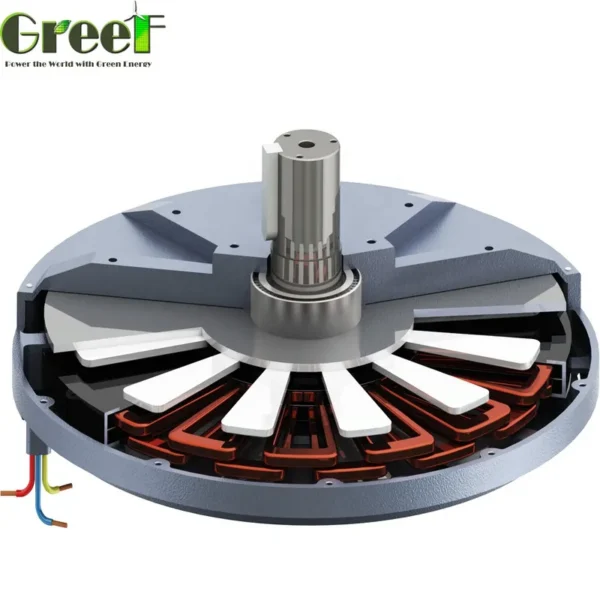

2	Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3	Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4	Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5	Gearless, direct drive, low RPM generator.
6	High standard, quality components for use in harsh and extreme environments for wind turbines
7	High efficiency and Low mechanical resistance energy loss

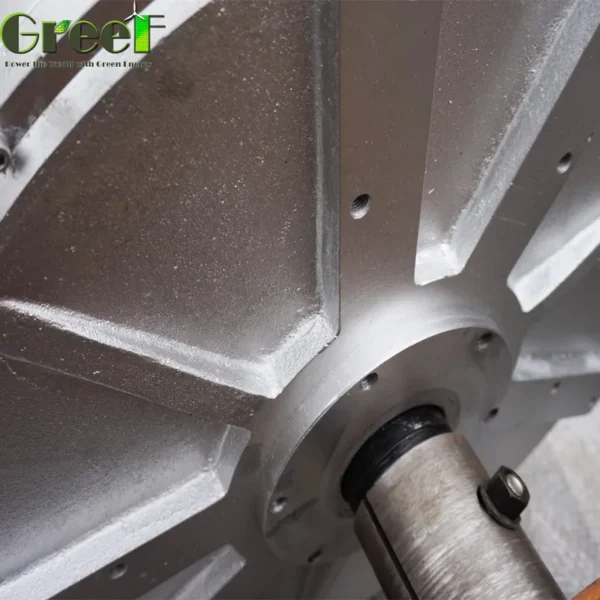

8	Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.

Product Description

Model	GDG-0.5KW-200	GDG-1KW-180	GDG-1KW-200	GDG-2KW-120	GDG-2KW-180
Rated Power	0.5KW	1KW	1KW	2KW	2KW
Rated Rotate Speed	200 RPM	180RPM	200RPM	120RPM	180RPM
Rated Voltage	56Vac	56Vac	56Vac	115Vac	115Vac
Rated Current	9A	12A	17.9A	10A	17.4A
Efficiency	>85%
Wending Method	Y
Insulating Resistance	100Mohm Min(500V DC)
Leakage Level	<5 ma
Start Torque	<0.1N/M	<0.3 N/M		<0.3 N/M	<0.5 N/M	<0.3 N/M
Phase Type	3 Phase
Structure	Out rotor
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator Shell Diameter	320	380		380	550	450
Generator Shell Length	232	241	241	330	258
Weight	20	32	32	75	51
Shaft drameter	45	50	50	78	59
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	Deep groove ball bearing

Model	GDG-3KW-100	GDG-3KW-180	GDG-5KW-100	GDG-5KW-150	GDG-10KW-100
Rated Power	3KW	3KW	5KW	6KW	10KW
Rated Rotate Speed	100RPM	180RPM	100RPM	150RPM	100RPM
Rated Voltage	380VAC	380VAC	380VAC	380VAC	400VAC
Rated Current	4.6A	4.7A	7.6A	15.2A	14.5A
Efficiency	>85%					>85%	>88%	>88%	>88%
Wending Method	Y					Y	Y	Y	Y
Insulating Resistance	100Mohm Min(500V DC)					100Mohm Min(500V DC)	100Mohm Min(500V DC)	100Mohm Min(500V DC)	100Mohm Min(501V DC)
Leakage Level	<5 ma					<5 ma	<5 ma	<5 ma	<5 ma
Start Torque	<1 N/M	<0.5 N/M		<0.5 N/M	<1 N/M		<1N/M
Phase Type	3 Phase					3 Phase	3 Phase	3 Phase	3 Phase
Structure	Out rotor					Out rotor	Out rotor	Out rotor	Out rotor
Stator	Coreless wire coil					Coreless wire coil	Coreless wire coil	Coreless wire coil	Coreless wire coil
Rotor	Rare Earth Permanent Magnet					Rare Earth Permanent Magnet	Rare Earth Permanent Magnet	Rare Earth Permanent Magnet	Rare Earth Permanent Magnet
Generator Shell Diameter	620	550	700	620	770
Generator Shell Length	410	330	400	410	590
Weight	110	65	125	110	245
Shaft drameter	80	78	98	80	85
Generator shell material	Aluminum alloy					Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
Shaft material	Carbon steel					Carbon steel	Carbon steel	Carbon steel	Carbon steel
Bearing	Deep groove ball bearing					Deep groove ball bearing	Deep groove ball bearing	Deep groove ball bearing	Deep groove ball bearing

System Solution

We can provide the complete generator system including Controller and Inverter:

Packaging & Shipping

1. The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.

Why Choose Us

Our magnetic generator is free 3 years warranty, All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this permanent magnet motor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
