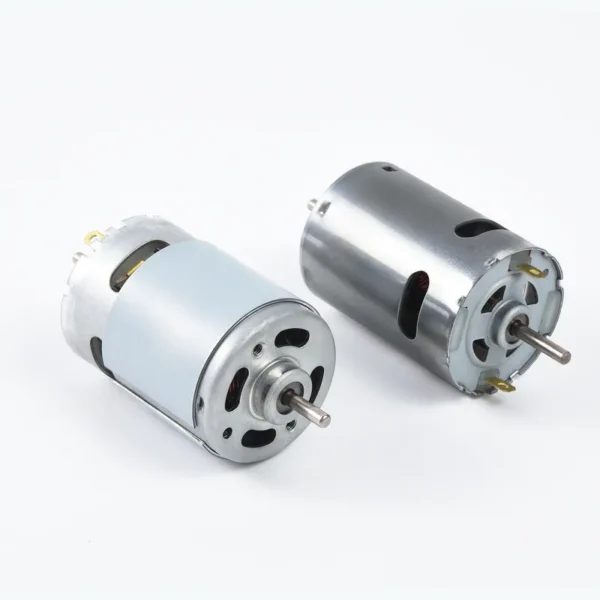

Permanent magnet motor — rated voltage 0-36V Custom, power 0-500W Custom. The complete factory specification follows. Made by Yuyao Hongyang Micromotor Co., Ltd. (2 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Permanent Magnet Motor
- Model Number: RS540 RS545
- Rated Power: 90W
- Power: 0-500W Custom
- Rated Voltage: 0-36V Custom
- Speed Rpm: 8000 RPM
- Speed(RPM): 2000-30000RPM
Technical Specifications
| Commutation | Brush |
|---|---|
| Rated Power | 90W |
| Speed Rpm | 8000 RPM |
| Speed(RPM) | 2000-30000RPM |
| IP Rating | IP66 |
| Efficiency | IE 1 |
| Type | Brush Motor |
| Construction | Permanent Magnet |
| Frame | 42 mm(1.65in) |
| Motor Mounting Type | Thread Fixing |
| Protect Feature | Totally Enclosed |
| Usage | Car, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Power Tools |
| Warranty | Other |
| Continuous Current(A) | 0.1A upto 2A Custom |
| Model Number | RS540 RS545 |
| Torque | 0-0.4Nm(0-0in) |
| Place Of Origin | Zhejiang, China |
| Brand Name | HongYang |
| Power | 0-500W Custom |
| Certification | Reach Rohs EMC VDE ISO9001 |
| Rated Voltage | 0-36V Custom |
| Length | 50mm(Excluding the Shaft) |
| Diameter | 35.8mm(Add Magnetic Shield Ring:38.5mm Max) |
| Shaft Type | Round,D-cut,Knurling,Thread, Ribbing |
| Shaft Size | Diamater:3.175mm Length:Customizable |
| Bearing | Oil Bearing or Ball Bearing |
| Keywords | High Torque Low Noise Long Life Small Electric heat resistance |
| Optional Accessories | Varistor,Capacitor,Inductor |
| Selling Units | Single item |
| Single Package Size | 5X4X4 cm |
| Single Gross Weight | 0.2 kg |
Ordering and Pricing
- Minimum order quantity: 499 piece
- Volume pricing:
- 499–499 piece: US $2.12 / piece
- 500–4999 piece: US $1.61 / piece
- 5000–9999 piece: US $1.51 / piece
- 10000+ piece: US $1.41 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this permanent magnet motor?
The standard minimum order quantity is 499 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Other warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this permanent magnet motor carry?
It is supplied with Reach Rohs EMC VDE ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the permanent magnet motor be supplied for my local voltage?
The standard configuration is 0-36V Custom. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yuyao Hongyang Micromotor Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yuyao Hongyang Micromotor Co., Ltd. range on HVACR Nexus.
