Piston compressor — voltage 380/440V, certification GB. The complete factory specification follows. Made by THOMSON REFRIGERATION TECHNOLOGY(DALIAN) CO., LTD. (3 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Piston Compressor
- Voltage: 380/440V
- Ice Storage Capacity: Other
- Warranty: 1 Year
- Certification: GB
- Place Of Origin: Liaoning, China
- Application: Commercial
Technical Specifications
| Ice Shape | Other |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380/440V |
| Compressor Brand | Other, Reftech |
| Key Selling Points | Easy To Operate |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Motor, Compressor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Liaoning, China |
| Brand Name | Reftech |
| Dimension(L*W*H) | ad |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Compressor | 6HP |
| Showroom Location | Viet Nam |
| Certification | GB |
| Marketing Type | Other |
| Selling Units | Single item |
| Single Package Size | 5000X5000X5000 cm |
| Single Gross Weight | 68.000 kg |
Product Details
Refrigeration Compressor is the heart of any refrigeration plant such as ice making, freezing, cold storage, etc. And consequently it is of vital importance for the plant management to select the most suitable compressor to meet the requirement
For ice making at present, single stage high speed multi-cylinder type compressor is widely used, The further details shall be provided on request.

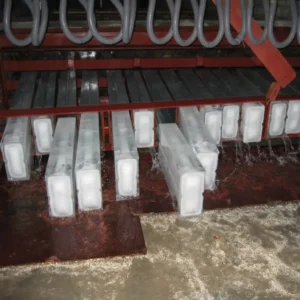

Generally, refrigeration capacity required for producing 1-Ton/Day of ice is 6,000 to 6,500 kcal/h.
The series of compressors which are designed to the
condensing temperatures below 40℃ and evaperator temperatures of +5℃-30℃ for single-stage and -25 ℃ to -45℃ for tow-stage can be applied to equipment for refrigeration, freezing and air conditioning applications.

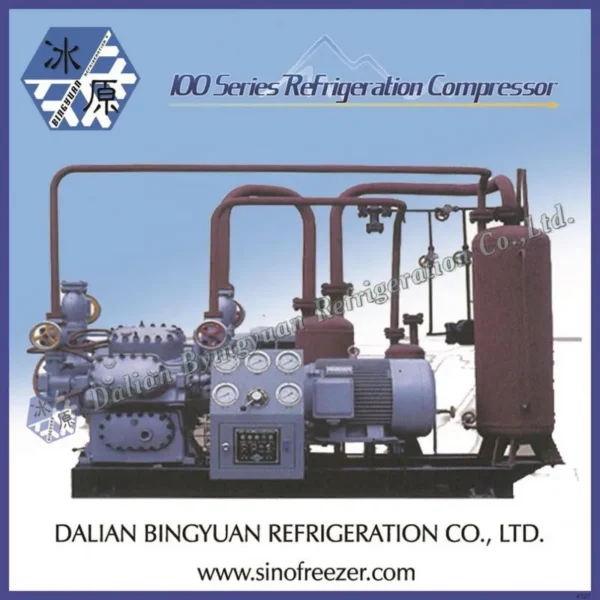

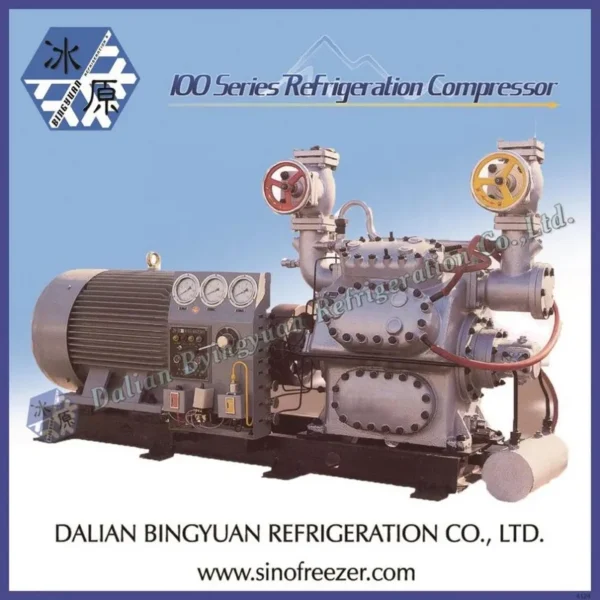

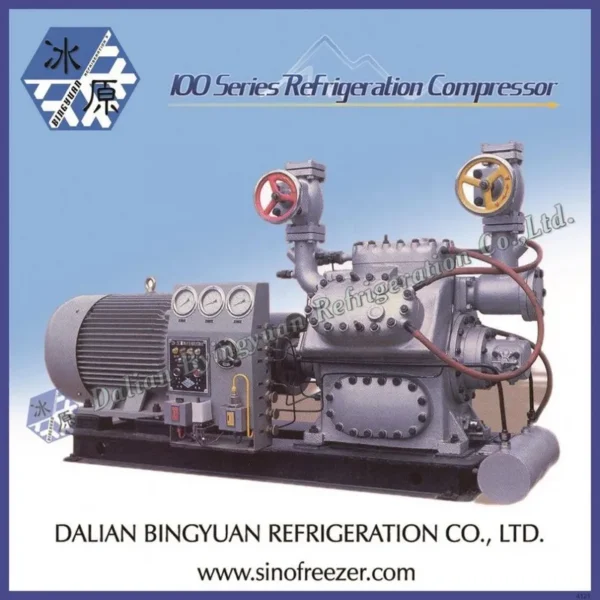

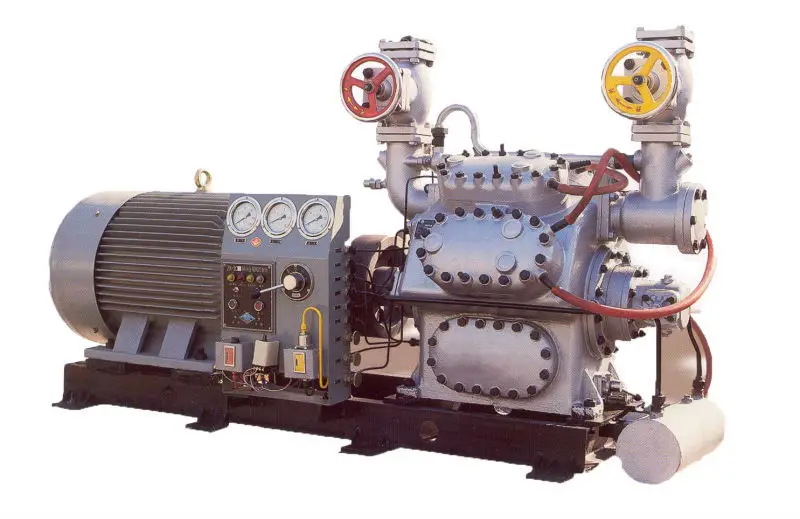

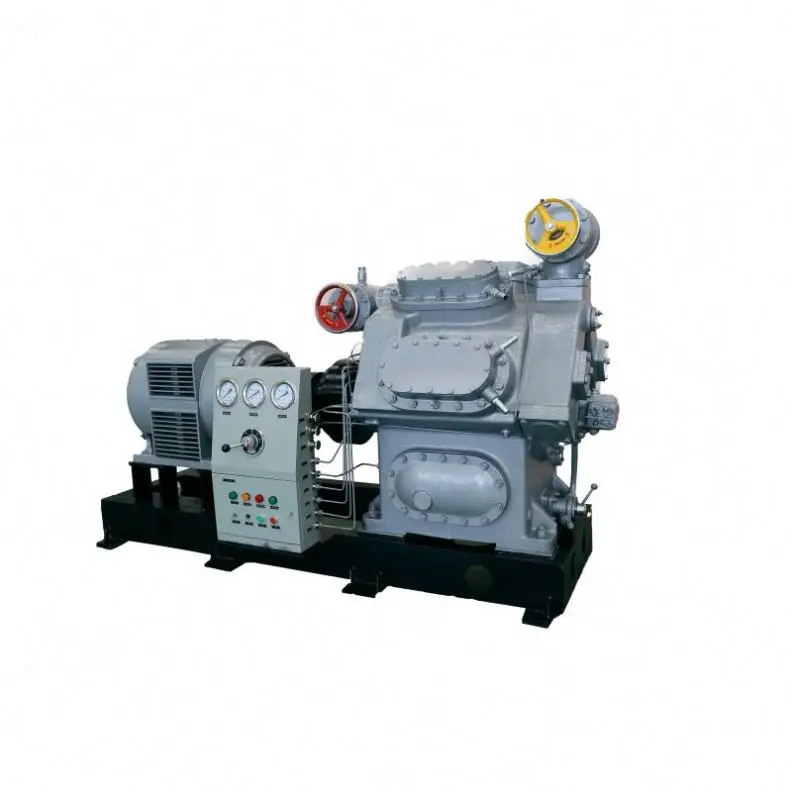

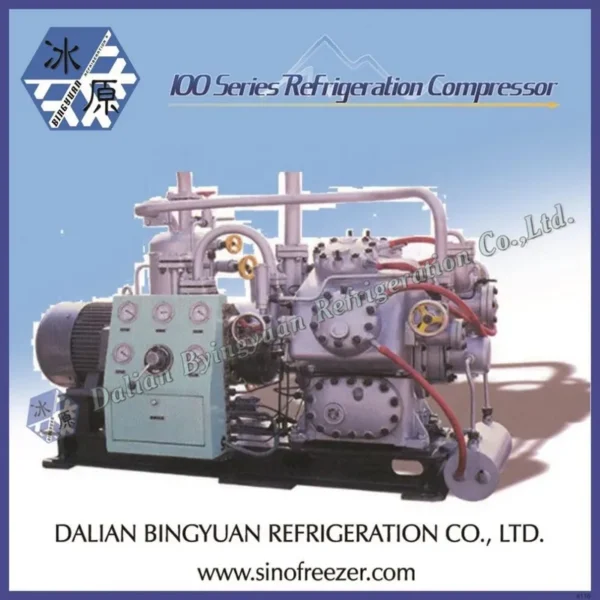

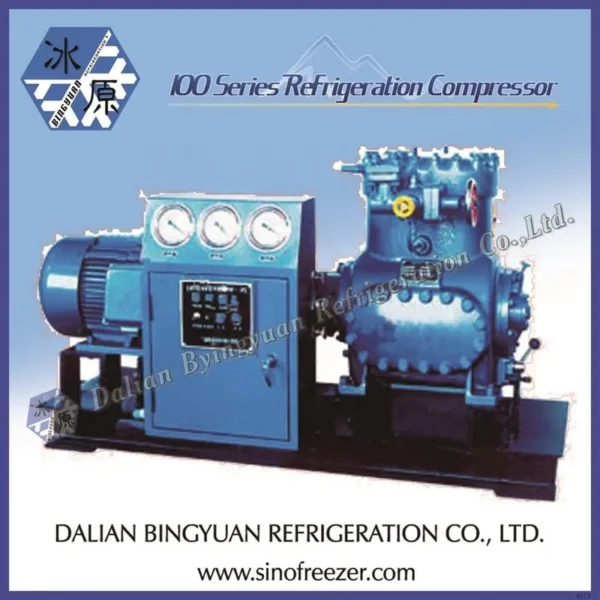

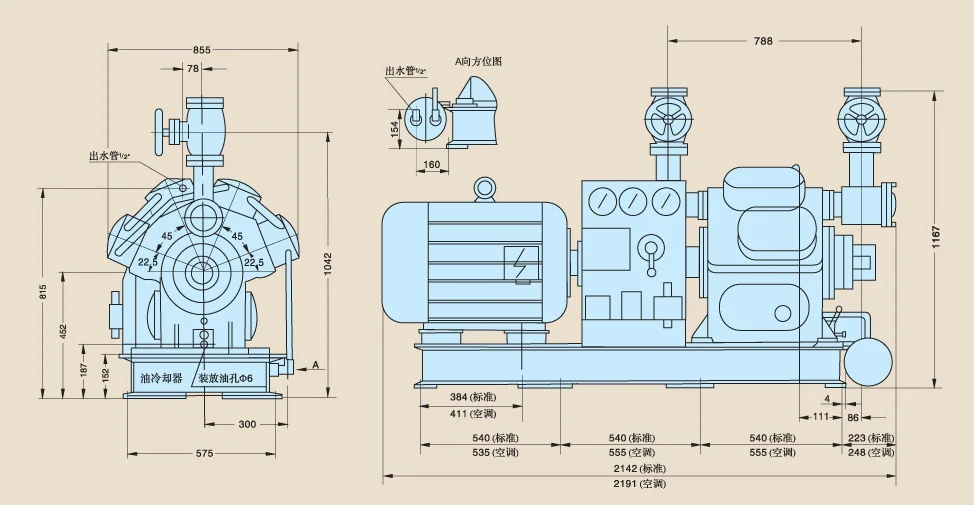

This series of compressors which are available in single-stage and internally compound stage types and with R717,R12 R22 are counter flow reciprocating compressors of high speed and multicylinder,These compressors Featrue capacity controls which can effect no-load starting, oil charge and drain valves being able to errect charging oil during run if needed, And they are directly coupling,control panel (auto-natic protection) which are mounted on a common base. The control panel has high pressure, intermediate pressure and oil pressure relays which ensure running reliability of the machine.
| Refrigerant Item | Single-stage | Two-stage | ||
| R717 R22 | ||||
| R717 R22 | R12 | L.P. | H.P. | |
| Max. discharge pressure MPaG | ≤1.5 | ≤1.15 | ≤0.7 | ≤1.5 |
| Max.discharge temperature℃ | ≤150 | ≤130 | ≤120 | ≤150 |
| Max.Paessune difference MPaG | ≤1.4 | ≤12 | ≤0.8 | ≤1.4 |
| Item | Unit | 2AZ10 | 4AV10 | 6AW10 | 8AS10 | 4ASJ10 | 8ASJ10 | |||
| Unit | Refrigerating capacity | Standard cond. | KW | 26.7 (23000) | 54 (46500) | 81.4 (70000) | 108 (93000) | tk=+35 ℃ l7.5 | tk=+35 ℃ 37.2 | |
| Air conditioning cond. | (Kcal/h) | 54 (46000) | 116 (100000) | 174.4 (150000) | 232.6 (200000) | t0=-35℃ (15000) | t0=-35℃(32000) | |||
| shaft power | Standard cond. | kw | 8.12 | 16 | 23.8 | 31.6 | 10.1 | 20.4 | ||
| Air conditioning cond. | 12 | 24 | 36 | 48 | ||||||
| Total weight | Standard cond. | kg | 575 | 1066 | 1330 | 1520 | 1300 | 1700 | ||
| Air conditioning | 603 | 1100 | 1480 | 1600 | ||||||
Compr essor | Type | Vertical | V | W | W | W | W | |||
| Cylinder bore | mm | 100 | 100 | 100 | 100 | 100 | 100 | |||
| Piston stroke | mm | 70 | 70 | 70 | 70 | 70 | 70 | |||
| Number of cylinders | purc hase | 2 | 4 | 6 | 8 | high stagel low stage3 | high stagel low stage3 | |||
| Revolution | r/min | 960 | 960 | 960 | 960 | 960 | 960 | |||
| Theoretical displacement | m3/h | 63.3 | 126.6 | 190 | 253.3 | high stagel low stage3 | high stagel low stage3 | |||
| Capacity regulating range | 0,1/2,1 | 0,1/3, 2/3,1 | 0,1/4,1/2, 3/4,1 | 0,1/3,2/3,1 | 0,1/3,2/3,1 | |||||
| mm | 50 | 50 | 65 | 80 | ||||||
| Discharge pipe dia. | mm | 40 | 50 | 65 | 80 | |||||
| Oil charge of crankcase | kg | 8.5 | 12 | 15 | 15 | 8 | 15 | |||
| Diameter of cooling water inlet/outlet pipe | in | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |||
| Cooling water consumption | kg | 300 | 500 | 750 | 1000 | 500 | 1000 | |||
| Compressor weigth | kg | 238 | 553 | 654 | 713 | 560 | 778 | |||
| Motor | Type | Standard cond. | Y160L-6 | Y200L2-6 | Y250M-6 | Y280S-6 | Y180L-6 | Y225M-6 | ||
| Airconditioning cond. | Y180L-6 | Y225M-6 | Y280S-6 | Y280M-6 | ||||||
| Power | Standard cond. | kw | 13 | 22 | 37 | 45 | 15 | 30 | ||
| Air conditioning cond. | 15 | 30 | 45 | 55 | ||||||
| Voltage | Standard cond. | 380 | ||||||||
| Air conditioning cond | V | |||||||||
| Revolution | Standard cond. | r/min | 960 Syuchro revolution | |||||||
| Air conditioning cond. | ||||||||||
Electric control | Starter | Standard cond. | Type | XQ01-22 | XQ01℃K) | XQ01-55 | 4ASJ10-17/D | XQOA-AO | ||
| Air conditioning cond. | Type | XQ01-30 | XQ01-55 | XQ01-55 | ||||||
| Control panel | Model | DAK2-15 with starter | ZK-3C2 | ZK-3C3 | ZK-3C4 | 4ASJ10-17/N | ZK-4C4 | |||
| No. | Part | Unit | Quantity per set | |||||
| 2AZ10 | 4AZ10 | 6AW10 | 8AS10 | 4ASJ10 | 8ASJ10 | |||
| 1 | Main bearing | pcs | 2 | 2 | 2 | 2 | 2 | 2 |
| 2 | Crankshaft assembly | set | 1 | |||||
| 3 | set | 1 | ||||||
| 4 | set | 1 | ||||||
| 5 | set | 1 | 1 | |||||
| 1 | ||||||||
| 6 | Connecting-rod assembly | set | 2 | 4 | 6 | 8 | 6 | |
| 7 | Piston connecting-rod assembly | set | 4 | 2 | ||||
| 8 | Large end metal | set | 2 | 4 | 6 | 8 | 4 | 8 |
| 9 | Small end bushing | pcs | 2 | 4 | 6 | 8 | ||
| 10 | Needle outer bushing | pcs | 4 | 2 | ||||
| 11 | Shaft seal assembly | set | 1 | |||||
| 1 | 1 | 1 | 1 | 1 | ||||
| 12 | Fixed ring | pcs | 1 | 1 | 1 | 1 | 1 | 1 |
| 13 | Movable ring | pcs | 1 | 1 | 1 | 1 | 1 | 1 |
14
15 | Oil pump assenbly | set | 1 | |||||
| set | 1 | 1 | 1 | 1 | ||||
| 1 | 1 | |||||||
| 16 | Piston assembly | set | 2 | 4 | 6 | 8 | 6 | |
| 17 | Pistonring | pcs | 4 | 8 | 12 | 16 | 8 | 16 |
| 18 | Oil ring | pcs | 2 | 4 | 6 | 8 | 4 | 8 |
| 19 | Piston pin | pcs | 2 | 4 | 6 | 8 | 4 | 8 |
| 20 | Vah/e cylinder-liner assembly | set | 2 | |||||
| 21 | set | 4 | 6 | 8 | ||||
| 22 | set | 3 | 6 | |||||
| 23 | set | 1 | 2 | |||||
| 24 | Discharge valve plate | pcs | 2 | 4 | 6 | 8 | 4 | 8 |
| 25 | Suction valve plate | pcs | 2 | 4 | 6 | 8 | 4 | 8 |
| 26 | Valve spring | pcs | 24 | 48 | 72 | 96 | 30 | 60 |
| 27 | Suction valve spring | pcs | 18 | 36 | ||||
| 28 | Needles 3×30 | pcs | 156 | 78 | ||||
