The planetary gear motor listed here carries type Gear Motor, speed rpm 19-3632RPM, documented exactly as the manufacturer publishes it. Made by Shenzhen Mingyang Electric Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Planetary Gear Motor
- Model Number: 42GP-4250
- Rated Power: 360W
- Speed Rpm: 19-3632RPM
- Speed(RPM): 19-3632rpm
- Warranty: 3 months ~ 1 year
- Place Of Origin: Guangdong, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 360W |
| Speed Rpm | 19-3632RPM |
| Speed(RPM) | 19-3632rpm |
| IP Rating | IP55 |
| Efficiency | IE 2 |
| Type | Gear Motor |
| Construction | Permanent Magnet |
| Frame | 42 mm |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Drip-proof |

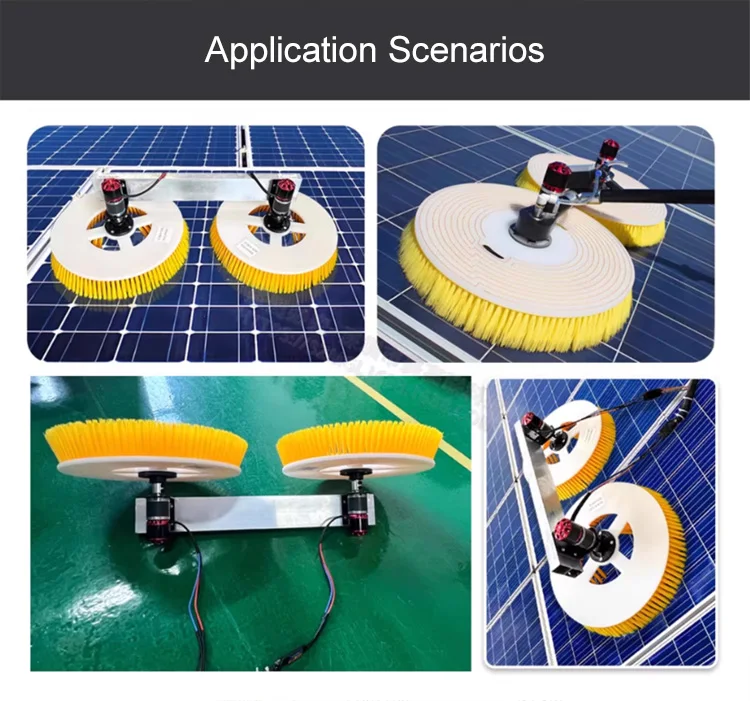

| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 25A |
| Model Number | 42GP-4250 |
| Torque | 10.4-455kgf.cm |
| Place Of Origin | Guangdong, China |
| Brand Name | MYDJ |
| Selling Units | Single item |
| Single Package Size | 18X10X12 cm |
| Single Gross Weight | 1.5 kg |
Product Details

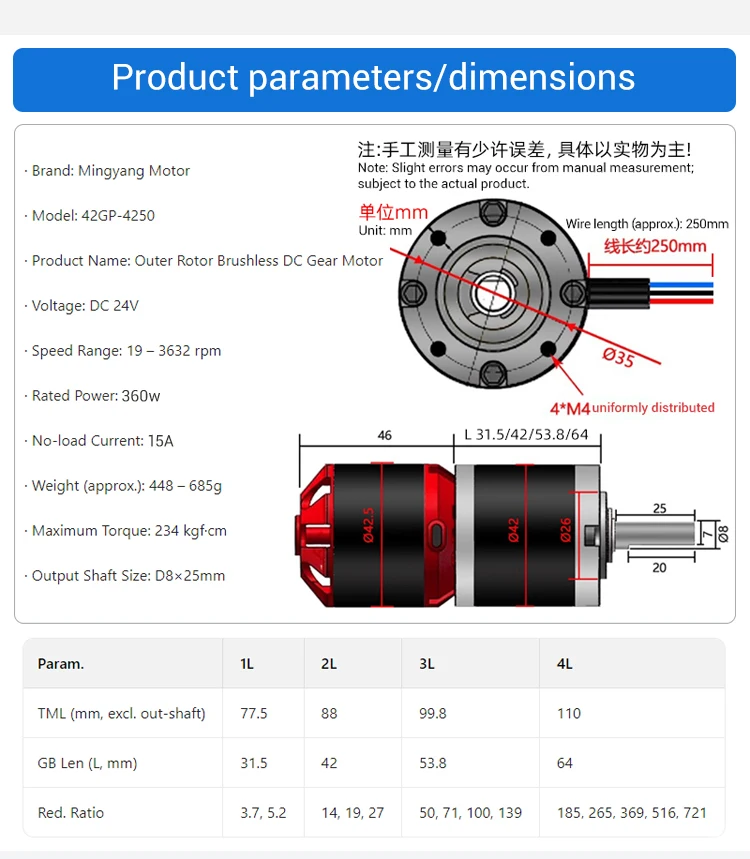

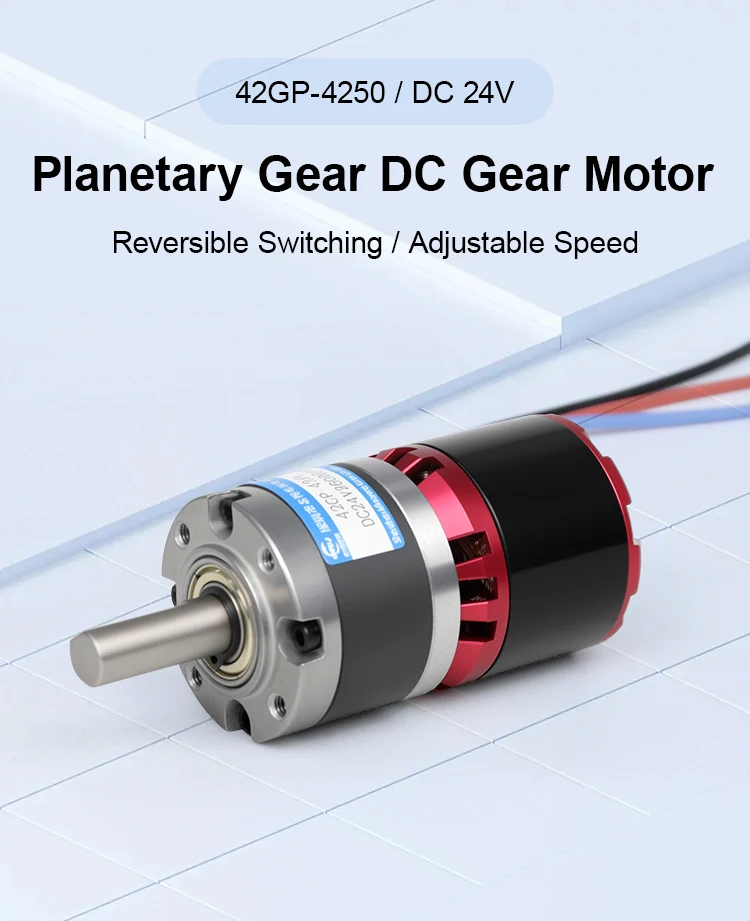

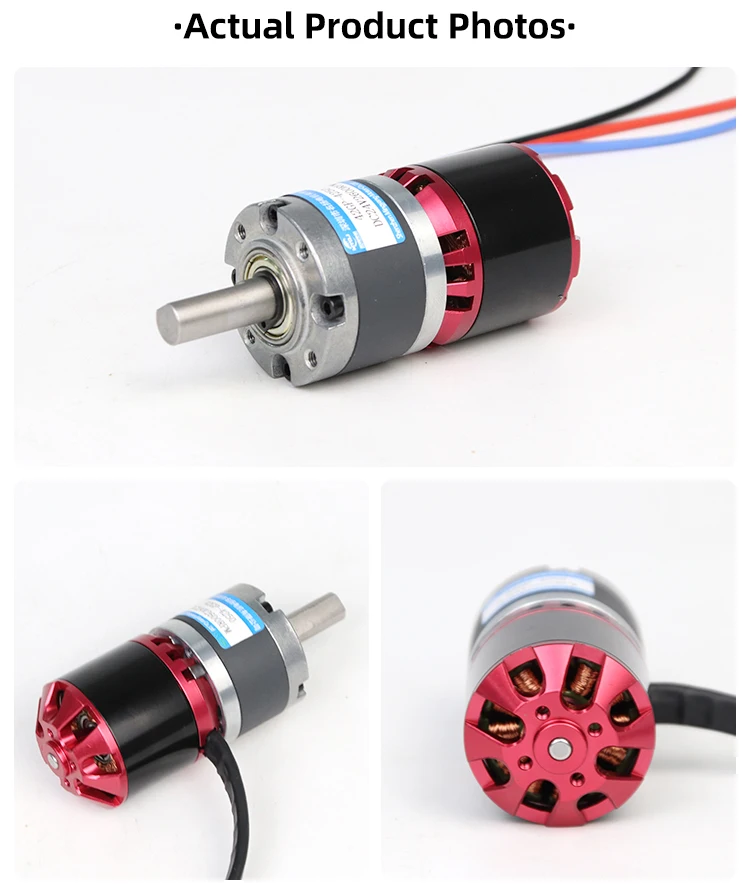

| 42GP-4250-24V-560KV Brushless Outer Rotor DC Planetary Gear Reduction Motor Motor Speed Before Reduction13440RPM | |||||||||||||||
| Mechanical Parameters | Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 50 | 71 | 100 | 139 | 185 | 265 | 369 | 516 | 721 |
| Length of reducer (L) mm | 31.5 | 42.0 | 53.8 | 64 | |||||||||||
| Total length of motor mm (excluding output shaft) | 77.5 | 88.0 | 99.8 | 110 | |||||||||||
| Weight ≈g | 448 | 527 | 606 | 685 | |||||||||||
| The following parameters are data of the product tested with a DC 24V power supply | |||||||||||||||
| No-load | Rotational speed RPM | 3632 | 2317 | 960 | 707 | 498 | 269 | 189 | 134 | 97 | 73 | 51 | 36 | 26 | 19 |
| Current A | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Rated | Rotational speed RPM | 2906 | 1854 | 768 | 566 | 398 | 215 | 151 | 107 | 78 | 58 | 41 | 29 | 21 | 15 |
| Power W | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Torque Kgf.cm | 1.7 | 4 | 7.8 | 10.4 | 15.6 | 36.4 | 58.5 | 91 | 117 | 156 | 176 | 195 | 215 | 234 | |
| Current A | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Locked-rotor | Torque Kgf.cm | 10.4 | 15.6 | 32.5 | 45.5 | 58.5 | 91 | 130 | 208 | 247 | 286 | 338 | 390 | 442 | 455 |
| Current A | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
| Power W | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | |

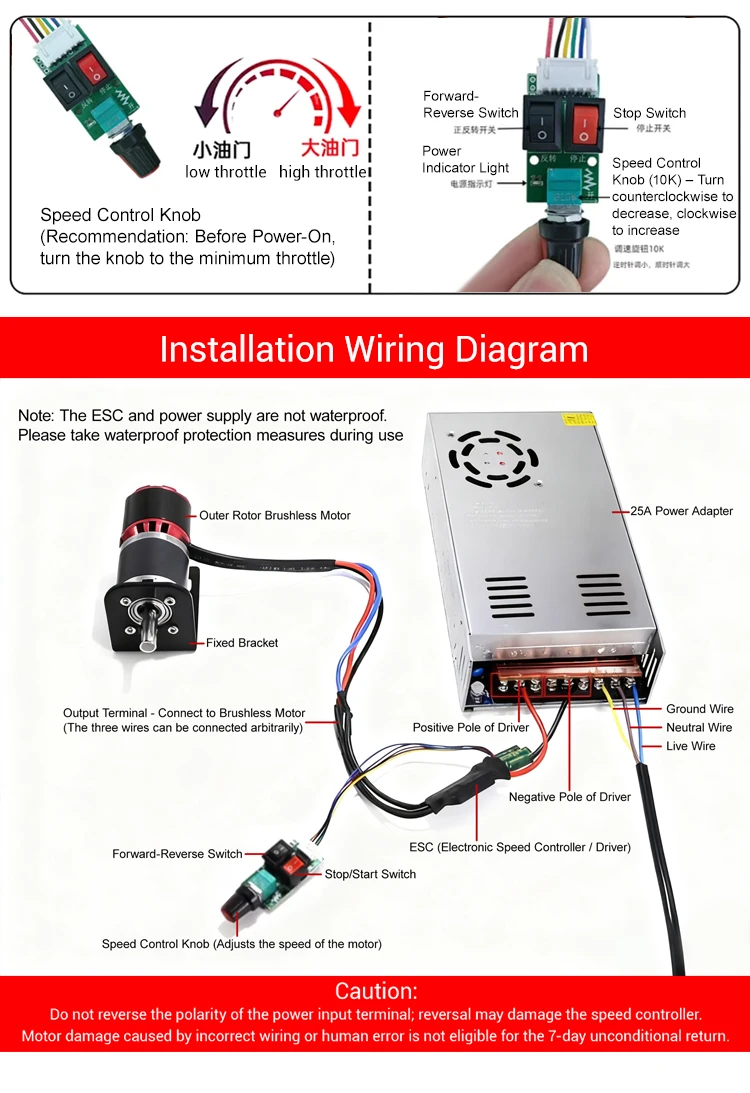

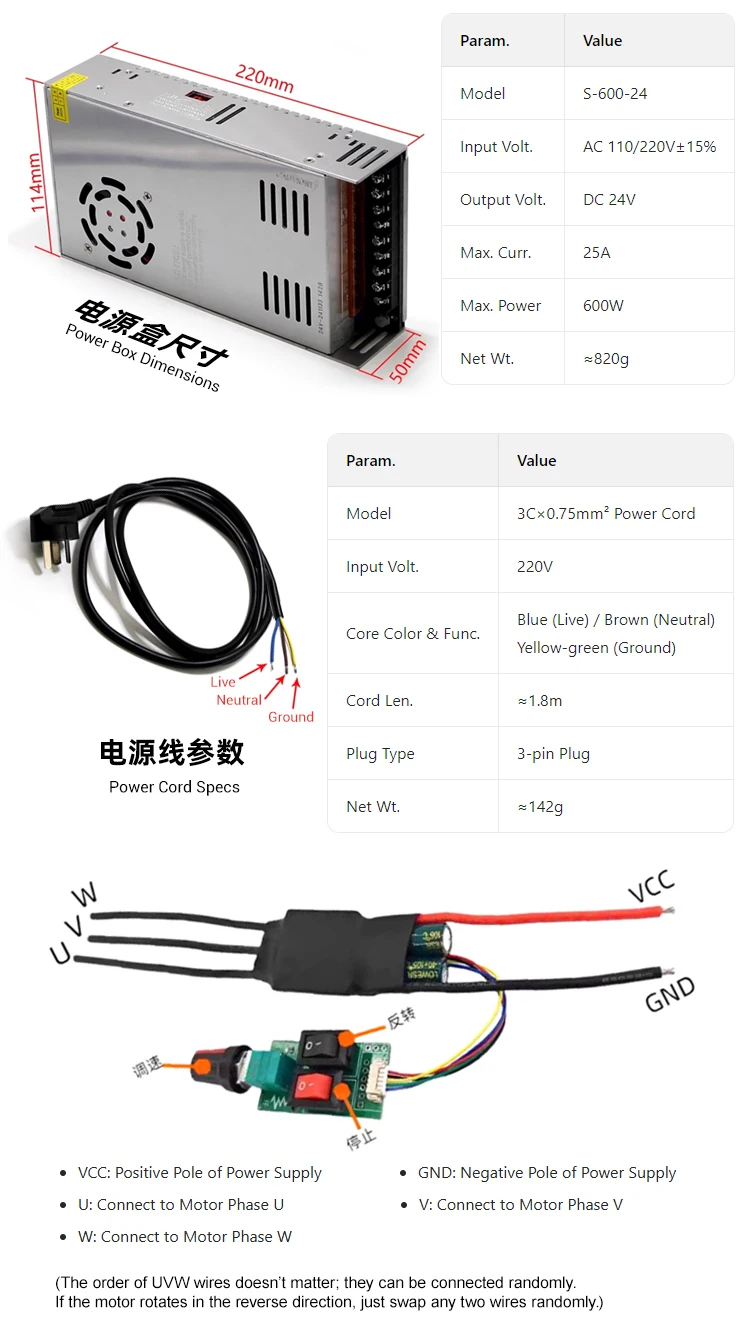

| Notes The motor is not allowed to be used beyond the maximum load (stall condition). Please select a power supply appropriately according to the input voltage of the product (DC: Direct Current 12V / 24V). When the load torque equals the rated torque, the load speed equals the rated speed; if the actual load exceeds the rated load, the actual output speed will decrease accordingly. It is recommended to refer to the rated torque parameter when selecting the model. Operating at or beyond the maximum load torque may cause internal damage to the motor. Reducing the motor speed will result in a decrease in output torque. The motor will produce a noise of approximately 50 dB during operation, with slight variations depending on rotational speed and load. Key Term Explanations DC Planetary Gear Reduction Motor: A motor that combines a DC motor with a planetary gear system to reduce speed and increase torque. Reduction Ratio: The ratio of the motor's input speed to the output speed after gear reduction, directly affecting torque and speed. Kgf.cm (Kilogram-force Centimeter): A unit of torque, representing the torque generated by a 1-kilogram force acting at a distance of 1 centimeter from the axis of rotation. Stall Condition: A state where the motor's rotor stops rotating (due to excessive load) while current is still flowing, which may cause overheating and damage. | |||||||||||||||
Shipping time:
DHL: 3-5 working days ; UPS: 5-7 working days;
TNT: 5-7 working days; FedEx: 7-9 working days;
EMS: 12-15 working days; China Post: Depends on ship to which country; Sea: Depends on ship to which country

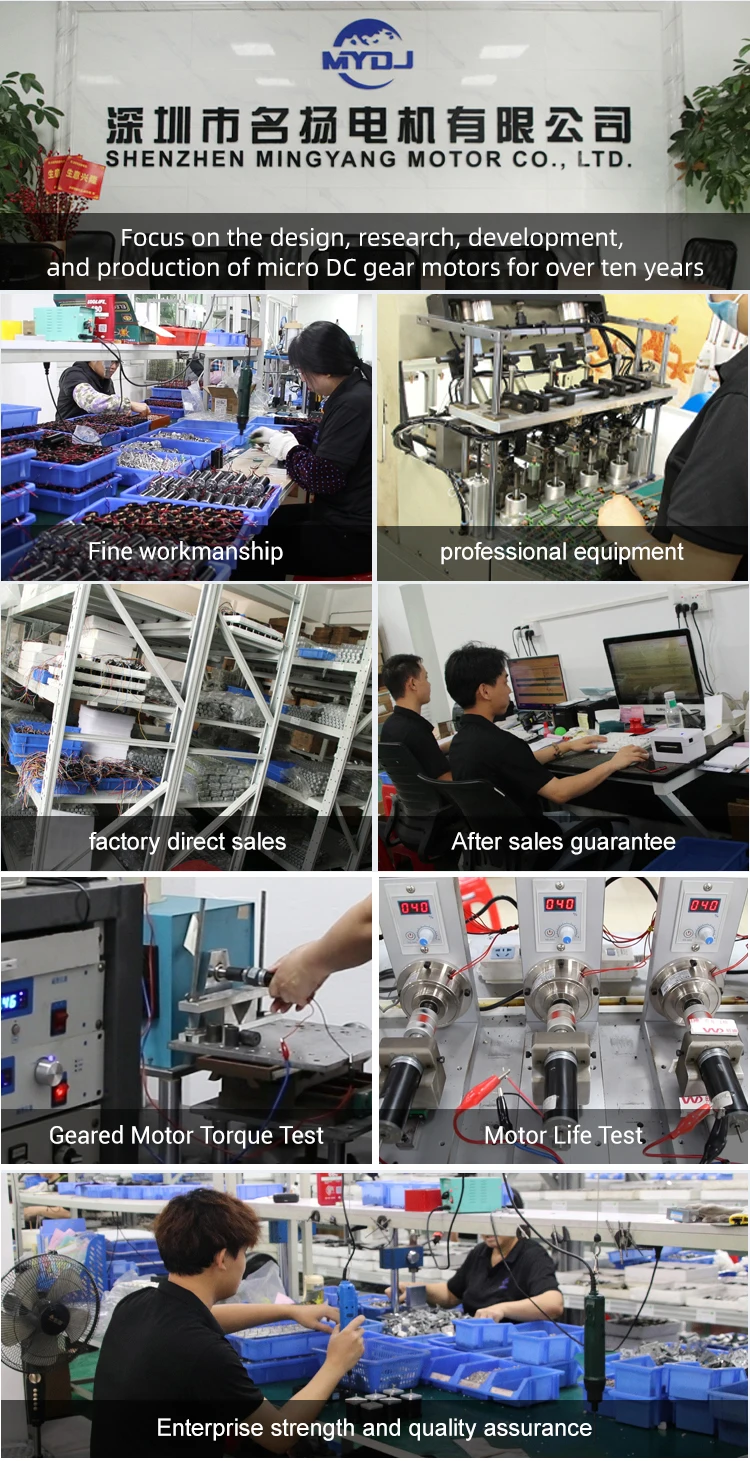

Shenzhen Mingyang Electric Co., Ltd. has earned the trust and praise of a wide range of customers with its excellent product quality, reasonable prices, and good service. To meet the needs of our customers and provide better and more convenient services, we continuously absorb contemporary high-tech achievements, expand and improve our product series, and consistently increase the technological content of our products, striving to lead the industry. In this regard, we hope to gain more support and cooperation from our existing suppliers and are willing to work with other professional manufacturers to jointly develop and innovate. With first-class technology, products, quality, and service, we are committed to solving various problems for our customers, establishing good cooperative relationships, and discussing the bright prospects of collaborative development.
| Q: How to order? |

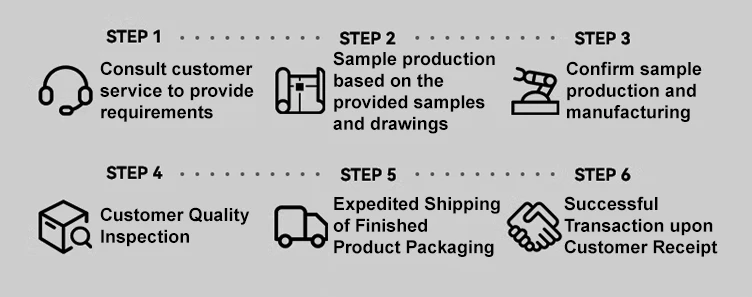

| A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation |
| Q: How about Sample order? |
| A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order. |
| Q: Which shipping way is available? |
| A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way. |
| Q: How long is the deliver[Producing] and shipping? |
| A: Deliver time depends on the quantity you order. usually it takes 15-25 working days. |
| Q: My package has missing products. What can I do? |
| A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences. |
| Q: How to confirm the payment? |
| A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping. |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–999 piece: US $37.67 / piece
- 1000–4999 piece: US $36.96 / piece
- 5000+ piece: US $35.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this planetary gear motor?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Mingyang Electric Motor Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Mingyang Electric Motor Co., Ltd. range on HVACR Nexus.
