The plate heat exchanger listed here carries 220V, material SS304/SS316, documented exactly as the manufacturer publishes it. Made by Zhejiang Forwon Plate Heat Exchanger Co., Ltd. (8 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plate Heat Exchanger
- Voltage: 220V
- Material: SS304/SS316
- Warranty: 2 Years
- After Warranty Service: Video technical support
- Warranty Of Core Components: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Voltage | 220V |
| Core Components | Pump |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Working Temperature Range | -196-200 |
| Place Of Origin | Zhejiang, China |
| Brand Name | Forwon |
| Liquid Flow Rate | 62m3/h(2189.51ft3/h) |
| Maximum Pressure Rating | 6.75 Mpa(979psi) |

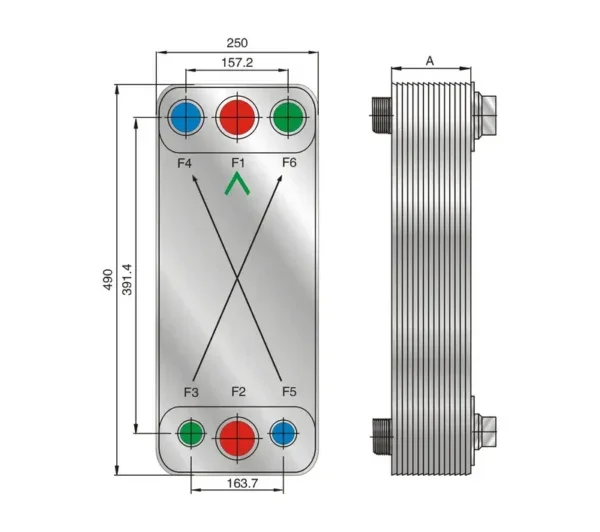

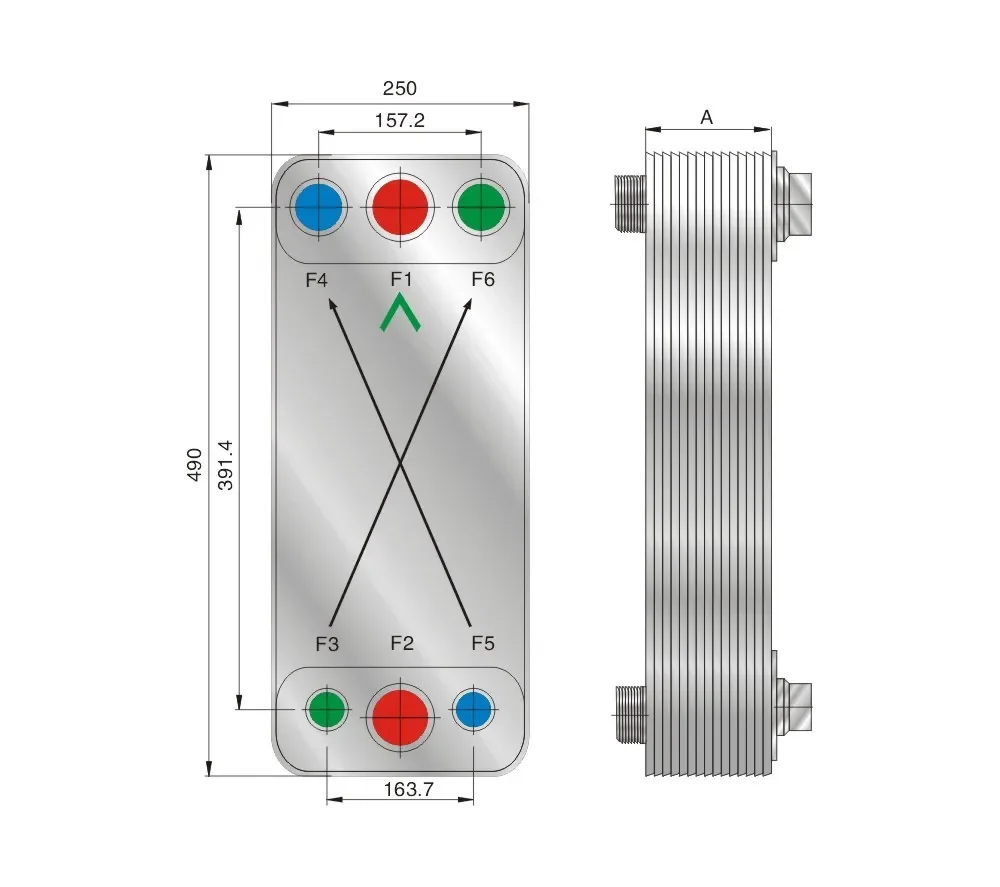

| Dimension(L*W*H) | 490*250 |

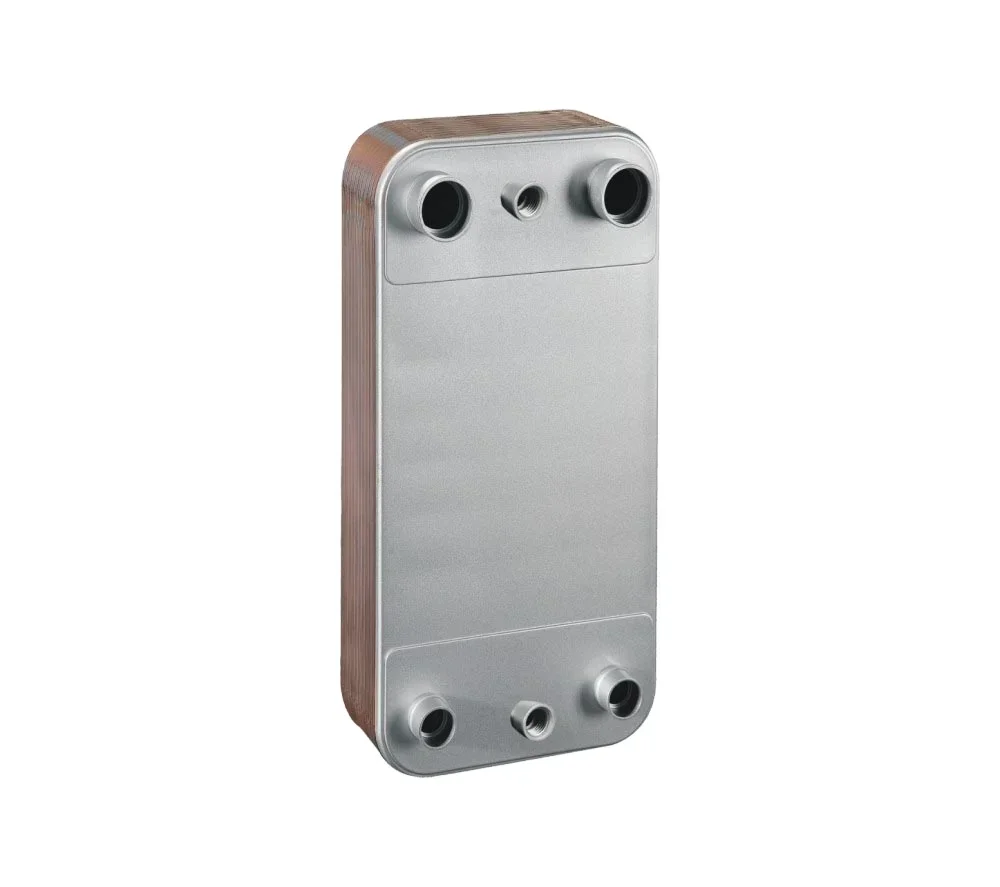

| Product Name | Copper brazed plate heat exchanger |
| Material | SS304/SS316 |
| Application | HVAC |
| After Warranty Service | Video technical support |
| After-Sales Service Provided | Free spare parts |
| Applicable Industries | Energy & Mining, Food & Beverage Shops |
| Showroom Location | None |
| Marketing Type | Ordinary Product |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| Weight | 27 |

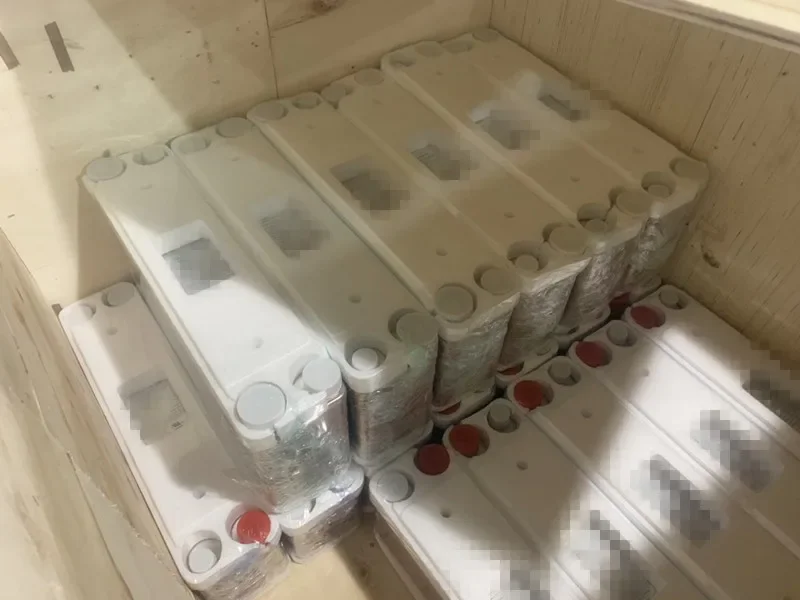

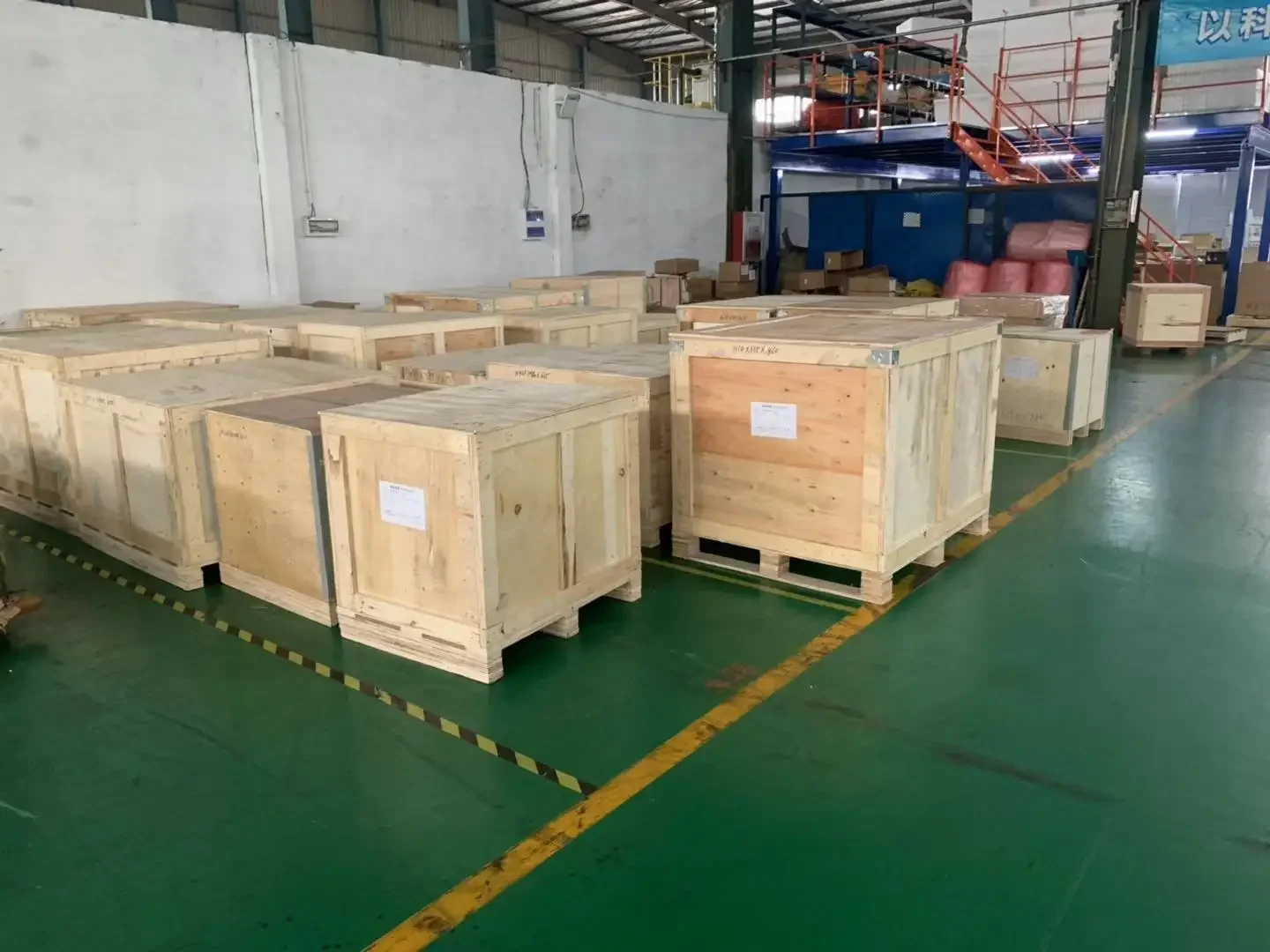

| Packaging Details | Wooden box |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 20000 pieces per Month |

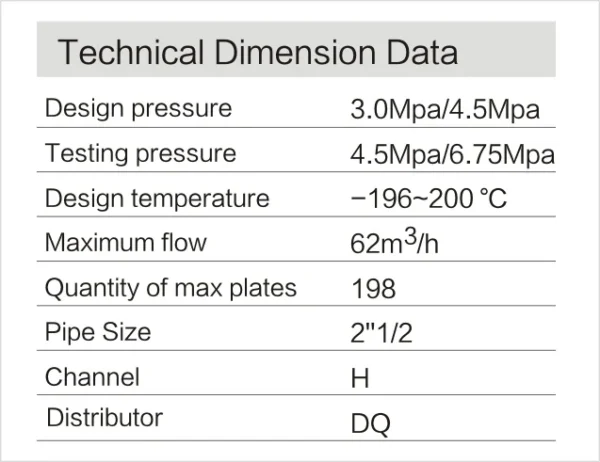

Product Details

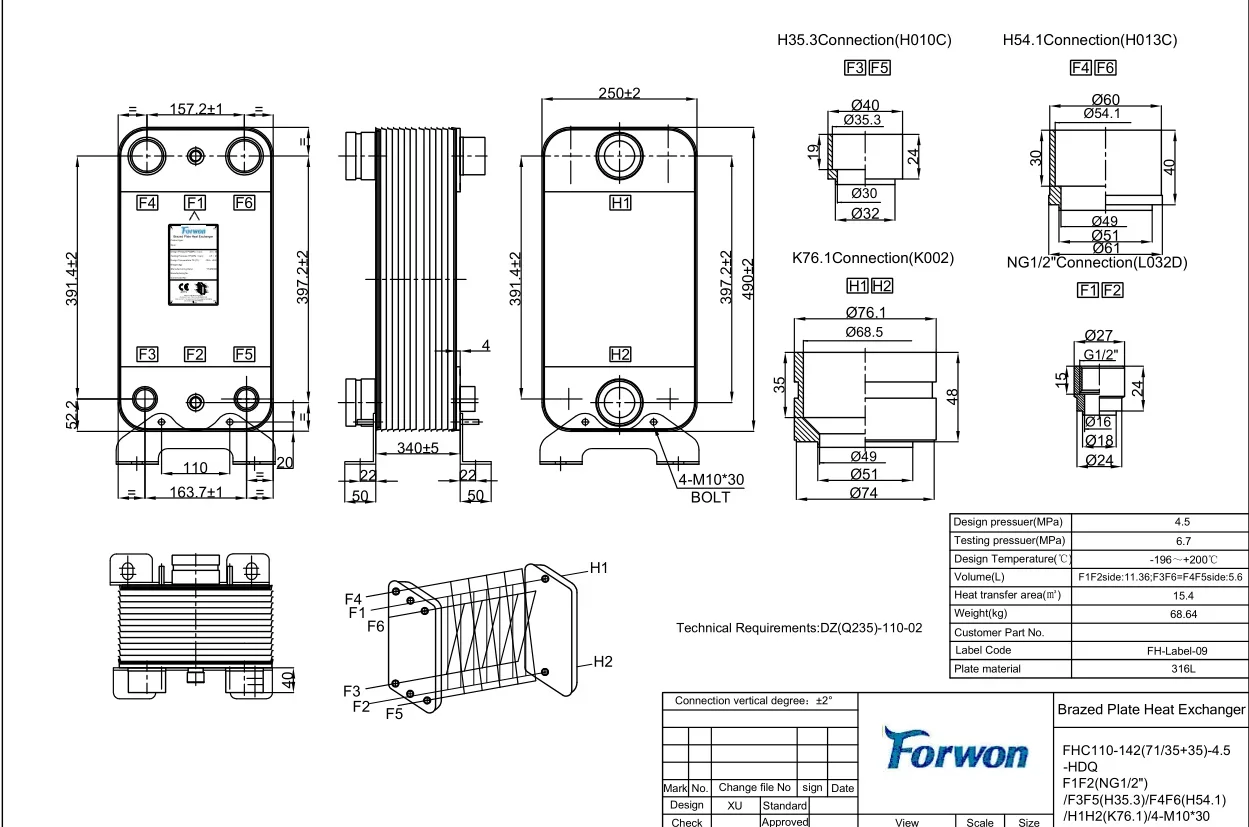

Model | FHC110 |
Design Working pressure | 3.0 Mpa/ 4.5 Mpa |
Testing Working pressure | 4.5 Mpa/ 6.75 Mpa |
Design Temperature | -196 —+ 200 ℃ |
Max flow rate | 62 m3/h |
Max No. of plates | 214 |

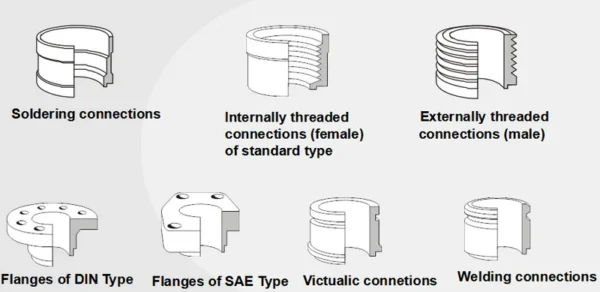

Max connection size | 2 1/2 inch |
Channel | HDQ |
Heat transfer area (m2) | (N-2)*.011 N means NO. of plates |
Weight(KG) | 6.5+0.42*N N means NO. of plates |
A size ( MM) | 11+2.3*N N means NO. of plates |
A: We are factory.
Q: How long is your delivery time?
A: Generally it takes 7-10 workdays to finish products(when the order quatities is smaller than 200 pcs) ,and it is 10 days by DHL
or Fedex if the goods are ready for samples. or it is 15-20 days by sea according to the different countries. .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charges, after you confirm the drawings.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9999 piece: US $1100 / piece
- 10000+ piece: US $260 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plate heat exchanger?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the plate heat exchanger be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Forwon Plate Heat Exchanger Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Forwon Plate Heat Exchanger Co., Ltd. range on HVACR Nexus.
