Plate Heat Exchanger, VT20, GEA, SS304, SS316L

Plate heat exchanger — material Stainless Steel, Aluminum Alloy, type HEAT EXCHANGER PLATE. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Plate Heat Exchanger

• Material: Stainless Steel, Aluminum Alloy
• Warranty: 1 Year
• Place Of Origin: Shandong, China
• Type: HEAT EXCHANGER PLATE
• Weight (Kg): 1
• Single Gross Weight: 0.0 kg

Technical Specifications

Product Details

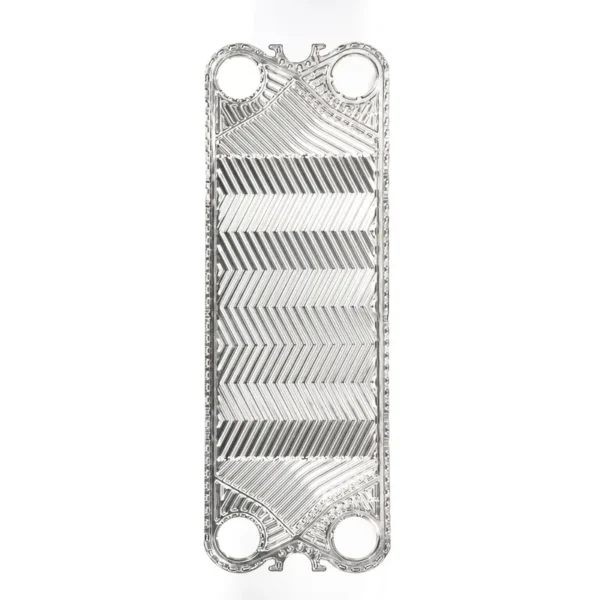

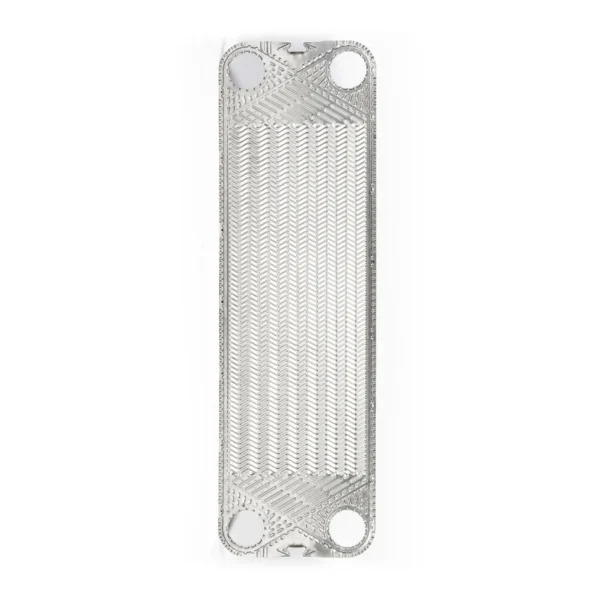

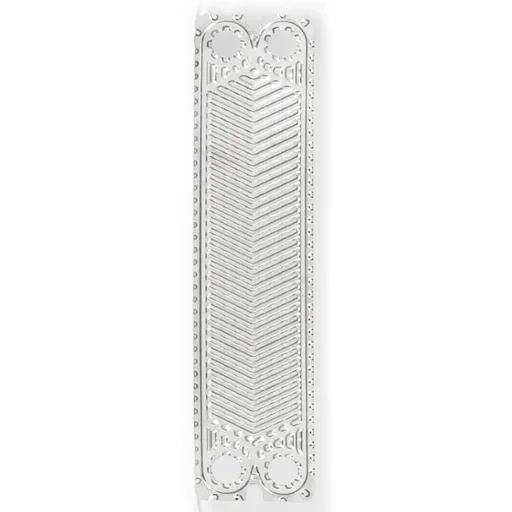

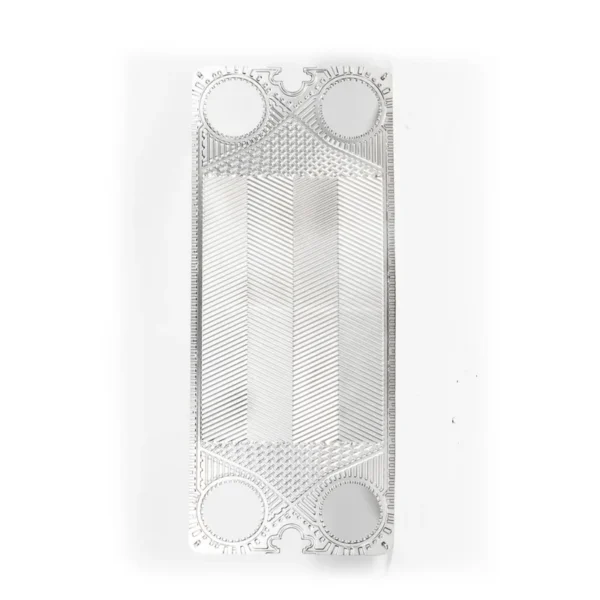

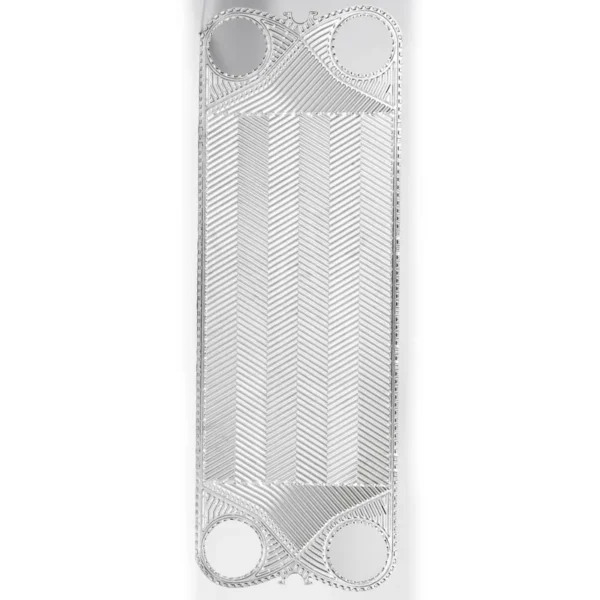

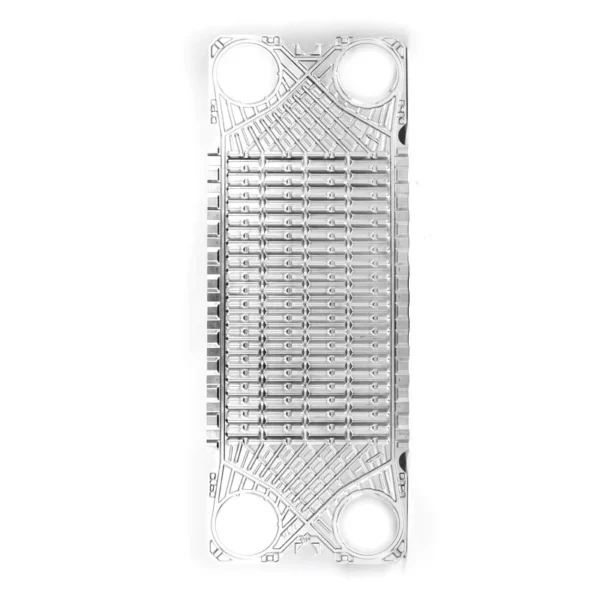

Product Name	Plate For Gasketed Plate Heat Exchanger
Plates material	SS304, SS316L, Titanium, Ti-Pd, Hastelloy-C276/G30, Nickel, 254SMO, SS904L.
Plates thickness	0.4mm – 1.0mm
Gaskets material	NBR, EPDM, HNBR, HT-NBR, HEPDM, VITON/FKM, FDA sanitary
Hanging method	Glued, Hang on, Clip on, Snap in, Paraclip, Sonderlock.

Other Materials may be available on request.

We can supply more than 400s heat exchanger plate models that single plate heat transfer area is from 0.03mm-5mm. Professional plate heat exchanger manufacturer We can not only provide you with PHE, but also we can design the appropriate plan for heating exchange according to your need.
We have 15- year experience of designing in this field and solve various problems for you.
We have a wealth of HVAC, refrigeration, metal steel,marine engineering, paper, power,hemical, marine engineering, food and beverage experience.

BRAND	MODEL
AL	M3 M6 M6MX-R M6MX-L M10B M10M M10BW M15B M15M M15BLip MK15BW MX25B MX25M M30 M30M MA30M P16 P22 P26 P31-P P31-D P32 P36 H10 A10 A10B-R A10B-L AM10 A15 A15B A20 A20B AK20 AM20B AM20M AM20S AX30 AX30BW Clip6 Clip8 Clip10 JWP26 JWP36 JFEC50 JFEC150A JFEC150B JFEC350 JFEC500
APV Series	A055 A085 H12 H17C H17G J060 J092 J107 J185 Sr1 Sr2 Sr3 Sr6 Sr14 Sr95 M60 M92 M107 U2 T4 N25 N35-C N35-G Q030D Q030E Q055 Q080 K34 K55 K71G R5-R R5-L N50 P105 P190 E201 RS3
GEA Series	VT04P VT10F VT20-C VT20-G VT20P VT40-C VT40-G VT40P/M VT40P VT80-C VT80-G VT80M VT80P VT805 VT130F VT130K VT405 VT1306 VT2508 NT10 NT50T NT50X NT50M NT100T NT100M NT100X NT150S NT150L NT250S NT250L NT350S FA184 FE184 LWC100T N40 VT2508
Tranter Series	GXP018 GXP026 GXP042 GXP051 GXD012 GXD026 GXD042 GXD051 GXD060 GXD085 GXD145 GCD030 GCD054 GCP016 GCP026 GCP051 GFP050 GFP100 GLD013 S3/GFP030 S8/GFP080 GL13 GX12 GX13 GC26 GX26 GC30 GC42 GX42 GX51 GC51 GC54 GC60 GX60 GX100 GX180
Vicarb Series	V4 V8 VU8 V10 V13C V13G V20C V20G V28C V28G V45C V45G V60C V60G V60A V60B V85G V100A V100B V110A V130 V170 V280
Sondex Series	S4A S7A S8 S8A S14A S15 S19A S20 S20A S21 S21A S22 S27A S30 S35 S37 S37B S38 S39 S41 S41A S42 S43B S47B S50 S62 S64 S65B S65C S65G S81 S100B S121 S188 SFD13
Thermowave Series	TL90SS TL90PP TL150SS TL150PP TL200PP TL200SS TL250SS TL250PP TL500SS TL500PP TL650SS TL650PP TL850PP TL850SS
Hisaka Series	LX00A LX10A LX20 LX20A LX30A LX40 LX40A LX50A UX01 UX10 UX10A UX20 UX20A UX30 UX30A UX40 UX40A UX80 UX90 RX10A RX11A RX30A RX70 SX40(41) SX40A EX11 EX15
Funke Series	FP04,FP08,FP10,FP14,FP20,FP16,FP22,FP205,FP31,FP40,FP50,FP41,FP60,FP80
Botai Series	FM10MC, FM10MD, FM6MC, M15MC, FMX25MA, FMX25B, FBR08,FBR06 ,FBB1.2 ,FBB09, FBB05,FBB08,FBB06, FBB04, FBB06X,FBB045,FBB03,FBR005,FBR007, FM30MC

Models We Have

In the past ten years, we've been committed to the production and sales of high-end plates and gaskets. With a wide range of models, our products have gradually become perfect replacements for international brand plate heat exchangers.
We use more than 400 kinds of precision molds, large presses, and vulcanizers to ensure plate accuracy, high heat transfer efficiency, and temperature resistance, sealing and high quality of gaskets.
The process quality standards that we adopt are the same as those of international brands, especially in the use of special
materials for plates and gaskets.

Plate Material	Suitable Media
Stainless Steel(304/316)	Pure Water, River Water, Edible Oil, Mineral Oil
Ti, Ti-Pd	Seawater, Brine, Salt Substance
20Cr,18Ni,6Mo(254MO)	Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution
Ni	High Temperature, High Density Caustic Soda
Hastelloy(C276,D205,B2G)	Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid

About Us

Qingdao Ruipute Heat Exchange Equipment Manufacturing Co., Ltd. is one of the largest manufacturers of plate heat exchangers,plates, and gaskets in China. We are capable of providing products that can replace all brands and models.
We're a new type of energy-saving enterprise specializing in the research, development, design, production, manufacturing,
installation, debugging, and technical services of high-efficiency and energy-saving heat exchangers. With strong technological and financial capabilities, the company has a group of engineering and technical personnel who have been engaged in the design,development, and production of heat exchangers for many years. In 2016, the company organized a team of specialists to tackle research and development challenges, achieving the first domestically automated stable welding of shell-and-tube heat exchangers and laser welding of semi-welded and double-wall plate heat exchangers, breaking the technological monopoly abroad. Through extensive practical application testing under different clients and working conditions, the quality has fully reached the level of leading international brands, achieving significant social and market benefits.

Qingdao Ruipute has rich technical application experience and industry-leading manufacturing process capabilities in the
manufacture and application of special plate heat exchangers such as titanium, titanium-palladium, Hastelloy, and nickel plates.
The titanium plate heat exchanger produced by Qingdao Reupt is used domestically in the non-purified brine salt production process and has successfully operated, reaching the quality level of titanium plate detachable plate heat exchangers, with no leakage after disassembly and cleaning 69 times.

The main international business of Qingdao Ruipute primarily focuses on exporting plate heat exchangers, plates, and gaskets to high-end clients in Europe and America, as well as providing OEM processing. In the domestic market, the company mainly offers alternative products for imported plate heat exchangers and accessories to high-end clients, receiving widespread acclaim for its quality and technical service levels from domestic and foreign customers.

Exhibition Show

Ordering and Pricing

• Minimum order quantity: 5 piece
• Volume pricing:
  • 5+ piece: US $8.99 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this plate heat exchanger?

The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
