This plug fan is published with the manufacturer’s full specification — 48 V, 24 V, air flow 219m³/H ~ 12800m³/H. Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plug Fan
- Power: 10-2500W
- Voltage: 48 V, 24 V
- Air Flow: 219m³/H ~ 12800m³/H
- Material: Aluminum, Plastic
- Blade Material: Plastic
- Impeller Material: Aluminium Alloy/ Plastic/ Galvanized Steel Plate
Technical Specifications
| Mounting | Any |
|---|---|
| Voltage | 48 V, 24 V |
| Motor Type | centrifugal fans EC motor backward curved |
| Speed | 219m³/H ~ 12800m³/H(7733.91ft3/h~452027.73ft3/h) |
| Material | Aluminum, Plastic |
| Blade Material | Plastic |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Jiangsu, China |
| Brand Name | FANOVA |
| Model Number | DC EC Backward Centrifugal Fans(centrifugal fans EC motor backward curved), 133mm 175mm 190mm 220mm 225mm 250mm 280mm 310mm 355mm 400mm 450mm 500mm 560mm |
| Fan Type | EC DC Backward Centrifugal Fans |
| Impeller Material | Aluminium Alloy/ Plastic/ Galvanized Steel Plate |
| Protection Type | IP44~IP55 |
| Rated Current | 0.15A~3.15A |
| Rated Speed | 3200rpm~1300rpm |
| Power | 10-2500W |
| Noise Level | 58.9dB(a)~91dB(a) |
| Air Flow | 219m³/H ~ 12800m³/H |
| MOQ | 1 PCS |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

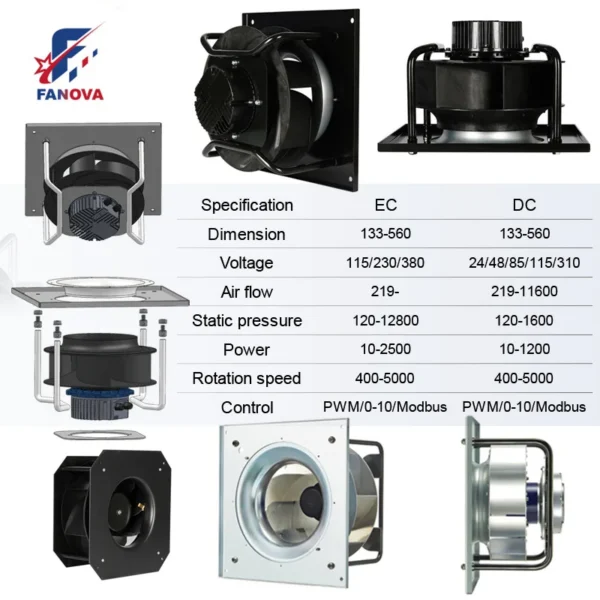

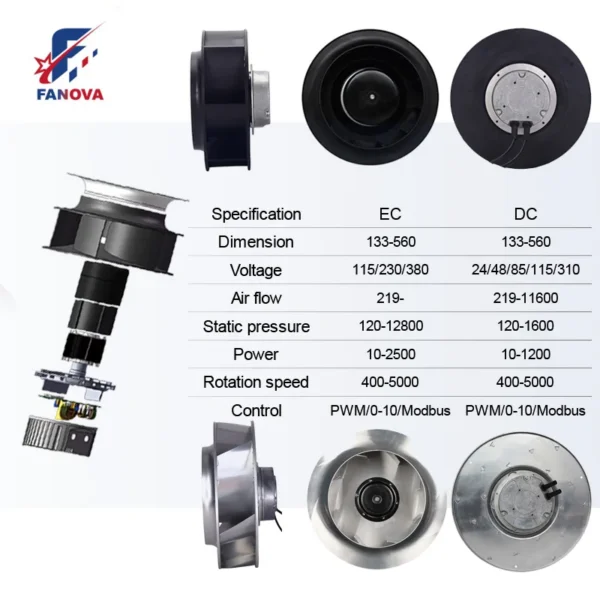

Backward centrifugal fan | ||||
Medium and low pressure fan with compact centrifugal design, speed regulation by PWM or MODBUS, can realize remote monitoring and detection, which will be more efficient, more powerful, more quiet | ||||
Specification | EC | DC | ||
Dimension | 133-560 | 133-560 | ||
Voltage | 115/230/380 | 24/48/85/115/310 | ||
Air flow | 219- | 219-11600 | ||
Static pressure | 120-12800 | 120-1600 | ||
Power | 10-2500 | 10-1200 | ||
Rotation speed | 400-5000 | 400-5000 | ||
Control | PWM/0-10/Modbus | PWM/0-10/Modbus | ||
1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
Applications
HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
Product packaging
Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.
