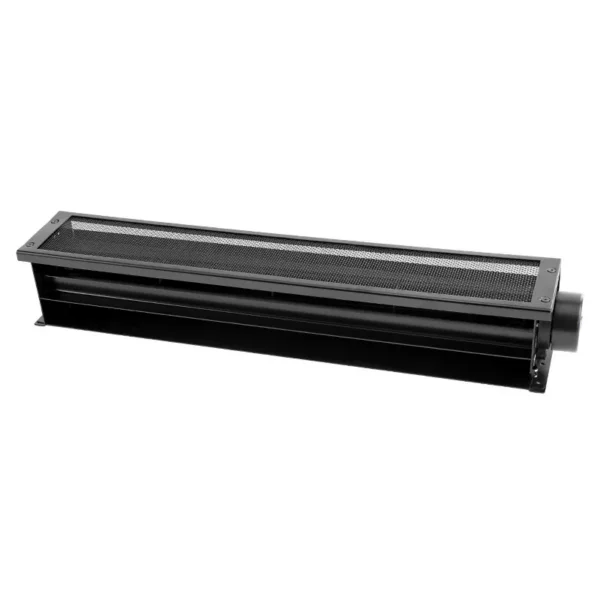

Air Curtain, 40mm, Aluminum, Tangential

This air curtain is published with the manufacturer’s full specification — 10V 12V 24V, air flow (DC 30-2000) (EC 30-5000). Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Air Curtain

• Power: (DC 10-500) (EC 10-500)
• Voltage: 10V 12V 24V
• Air Flow: (DC 30-2000) (EC 30-5000)
• Blade Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Impeller Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy

Technical Specifications

Product Details

Products Description

Model	Size (mm)					Voltage	Rated	Speed	Pressure	Maximun	Noise
										Frequency		Current			Air Flow
		A	B	C	V	A	r.p.m	Pa	m³/h	dB
FC-40090DC	149	108	98	12	0.12	2600	15	30	30
								24	0.08	2600	15	30	30
FC-40150DC	210	170	160	12	0.16	2600	20	65	33
								24	0.1	2600	20	65	33
FC-40190DC	249	208	198	12	0.2	2600	25	92	34
								24	0.17	2600	25	92	34
FC-40250DC	300	260	250	12	0.25	2600	27	116	35
								24	0.21	2600	27	116	35
FC-40290DC	352	310	300	12	0.31	2600	29	138	36
								24	0.25	2600	29	138	36
FC-40350DC	417	358	348	12	0.38	2600	32	162	37
								24	0.26	2600	32	162	37
FC-40420DC	472	430	420	12	0.46	2600	34	195	38
								24	0.31	2600	34	195	38
PE40340DC	386	350	340	12	0.6	2600	20	130	38
PE40340DC	386	350	340	24	0.3	2600	20	130	38
PB-40350DC12V	387	358	348	12	0.5	2400	21	150	34
PB-40350DC24V	387	358	348	24	0.4	2200	20	144	34
PB-40090DC	149	108	98	12	0.12	2600	15	30	30
								24	0.08	2600	15	30	30
PB-40150DC	210	170	160	12	0.16	2600	20	65	33
								24	0.1	2600	20	65	33
PB-40190DC	249	208	198	12	0.2	2600	25	92	34
								24	0.17	2600	25	92	34
PB-40250DC	300	260	250	12	0.25	2600	27	116	35
								24	0.21	2600	27	116	35
PB-40290DC	352	310	300	12	0.31	2600	29	138	36
								24	0.25	2600	29	138	36
PB-40350DC	417	358	348	12	0.38	2600	32	162	37
								24	0.26	2600	32	162	37
PB-40420DC	472	430	420	12	0.46	2600	34	195	38
								24	0.31	2600	34	195	38
LE40340DC	386	350	340	24	0.3	2600	20	130	38
LE40700DC	750	710	700	24	0.3	2200	19	195	35
LB40530DC	580	540	530	24	0.24	2200	19	150	34
LB40610DC	670	620	610	24	0.29	2200	19	170	35
LB40650DC	700.5	660	650	24	0.29	2200	19	180	35
LB40700DC	750	1710	700	24	0.35	2200	19	195	35
LB40800DC	850	810	800	24	0.39	2000	18	220	36
LB40854DC	904	864	854	24	0.42	2000	18	235	36
LB40920DC	973	930	920	24	0.23	2000	18	253	37
LB401055DC	1108	1065	1055	24	0.27	2000	18	290	38
FC-30350DC	406	362	352	12	0.2	2600	16	100	34
								24	0.14	2600	16	100	34
FC-30420DC	474	430	420	12	0.2	2600	17	120	34
								24	0.15	2600	17	120	34
FC33180DC12V	217.5	190	180	12	0.24	3400	30	65	38
FC33180DC24V	217.5	190	180	24	0.2	3800	32	72	39
FC-30150DC	196	170	160	24	0.07	3200	20	72	35
FC30530DC	583.5	540	530	24	0.12	2400	18	85	32
								12	0.28	2400	18	85	32
FC30610DC	663.5	620	610	24	0.16	2400	18	100	33
								12	0.32	2400	18	100	33
FC30650DC	703.5	660	650	24	0.17	2400	17	105	34
								12	0.32	2400	17	105	34
FC30718DC	771.5	728	718	24	0.18	2400	17	115	35
								12	0.35	2400	17	115	35
FC30800DC	853.5	810	800	24	0.19	2400	17	130	36
								12	0.39	2400	17	130	36
FC30854DC	907.5	864	854	24	0.22	2400	17	140	36
								12	0.42	2400	17	140	36
FC30920DC	973.5	930	920	24	0.24	2400	17	150	37
								12	0.45	2400	17	150	37
FC30986DC	1039.5	996	986	24	0.27	2400	17	160	37
								12	0.5	2400	17	160	37
FC301082DC	1135.5	1092	1082	24	0.31	2400	17	175	38
								12	0.6	2400	17	175	38

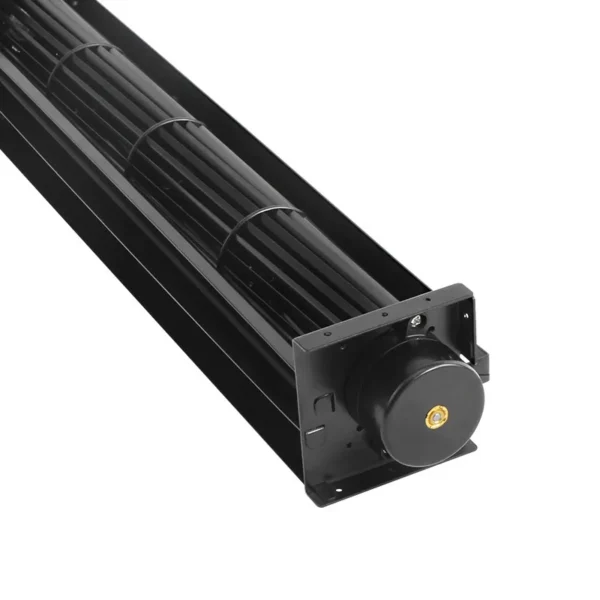

Cross flow fan
Special flat structure design, the air direction is more concentrated in a columnar shape, the wind direction can be changed, high air volume, low static pressure, low noise, especially suitable for special narrow scenes

Specification	EC	DC
Dimension	30-150	30-150
Voltage	115/230	24/48/85/115/310
Air flow	30-5000	30-2000
Static pressure	5-500	5-300
Power	10-500	10-500
Rotation speed	400-2900	400-2900
Control	PWM/0-10/Modbus	PWM/0-10/Modbus

Voltage Output	Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance	10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance	50,000 Hours(L10)
Leakage Current	≤3.5mA (Max. )
Direction of Air Flow	Straight forward from air outlet
Motor	External rotor EC motor
Technical features	Motor current limitation
		Soft starting Protection
		Under/Over voltage detection
		Thermal overload protection for electronics/motor
		Line undervoltage detection
		Locked-rotor Protection
		Reverse Polarity Protection
Operating Temperature	-25ºC (Min. )	60ºC (Max. )
		Heat sink of IC	115ºC (Max. )
		Other electronic parts	85ºC (Max. )
		Ball bering	80ºC (Max. )
		Lead Wire	120ºC (Max. )
Storage Temperature	-40ºC to 75ºC
Operating Humidity	5% to 90% RH
Storage Humidity	5% to 95% RH
Electronics housing material	Die-cast aluminum
Operation Mode	S1
Motor bearing	Ball bearing
Valid For Approval/Standard	CE,RoHS,ErP2015

1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.

2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.

3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.

5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

Product Drawing / Aerodynamic Performance Charts / Connection Diagram

Contact us for detailed specifications

Applications

HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.

Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.

Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.

Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.

Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.

Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.

Product packaging

Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.

Related Products

Company Profile

Fanova (Suzhou) Motor Technology Co., LTD is a specialized research, design, and production enterprise focusing on AC fans, DC motors, centrifugal fans, axial fans, and cross-flow fans. Established in 2003, the company has evolved into a prominent player in the motor and fan industry, providing customers with high-quality products and outstanding services. It has established a strong influence in the market and earned a reputation for its commitment to innovation, reliability, and customer satisfaction. As a professional EC fan manufacturer, we possess advanced production equipment and a skilled technical team dedicated to providing comprehensive solutions to our customers. Our products are widely used in various industries, including industrial, commercial, and residential sectors, covering applications such as purification equipment, HVAC equipment, ventilation equipment, transportation facilities, medical facilities, household appliances, and machinery. We aim to provide customers with efficient and energy-saving solutions for airflow power needs. The company boasts a professional R&D team, dedicated to driving continuous innovation and technological breakthroughs in product development. Our R&D efforts focus on exploring new plastic materials, enhancing motor and fan designs, improving manufacturing processes to stay at the forefront of industry trends. Our products have passed multiple international certifications, including CE, UL, ROHS, providing customers with reliable assurance and meeting the diverse needs of different application areas.

FAQ

Q1:What kind of payments do you support? A1: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment Q2.Will you provide samples? A2: Yes, samples can be delivered within 10days on request. Q3:How can I place the order? A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure and usually quote you within 24 hours after we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods. Q4:About transportation A4: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5:After-sales service A5: We will provide professional after-sales service, patiently answer customers' various problems to ensure the normal operation of products .

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $13.44 / piece
  • 50–99 piece: US $9.66 / piece
  • 100+ piece: US $9.04 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air curtain?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this air curtain carry?

It is supplied with EAC, TUV, GOST, ISO9001, ROHS, CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the air curtain be supplied for my local voltage?

The standard configuration is 10V 12V 24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Suzhou Fanova Motor Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Fanova Motor Co., Ltd. range on HVACR Nexus.
