Plunge Barrel Ice Chiller, 1hp, 220 V, 3 kW(4.02hp)

The plunge barrel ice chiller listed here carries 220 V, 3 kW(4.02hp), documented exactly as the manufacturer publishes it. Made by Fantastic Energy Saving Equipment Factory (7 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Plunge Barrel Ice Chiller

• Power: 3 kW(4.02hp)
• Voltage: 220 V
• Refrigerant: R32/R410a
• Warranty: 1 Year
• Place Of Origin: China
• Type: Air Source Heat Pump

Technical Specifications

Product Details

Product Description

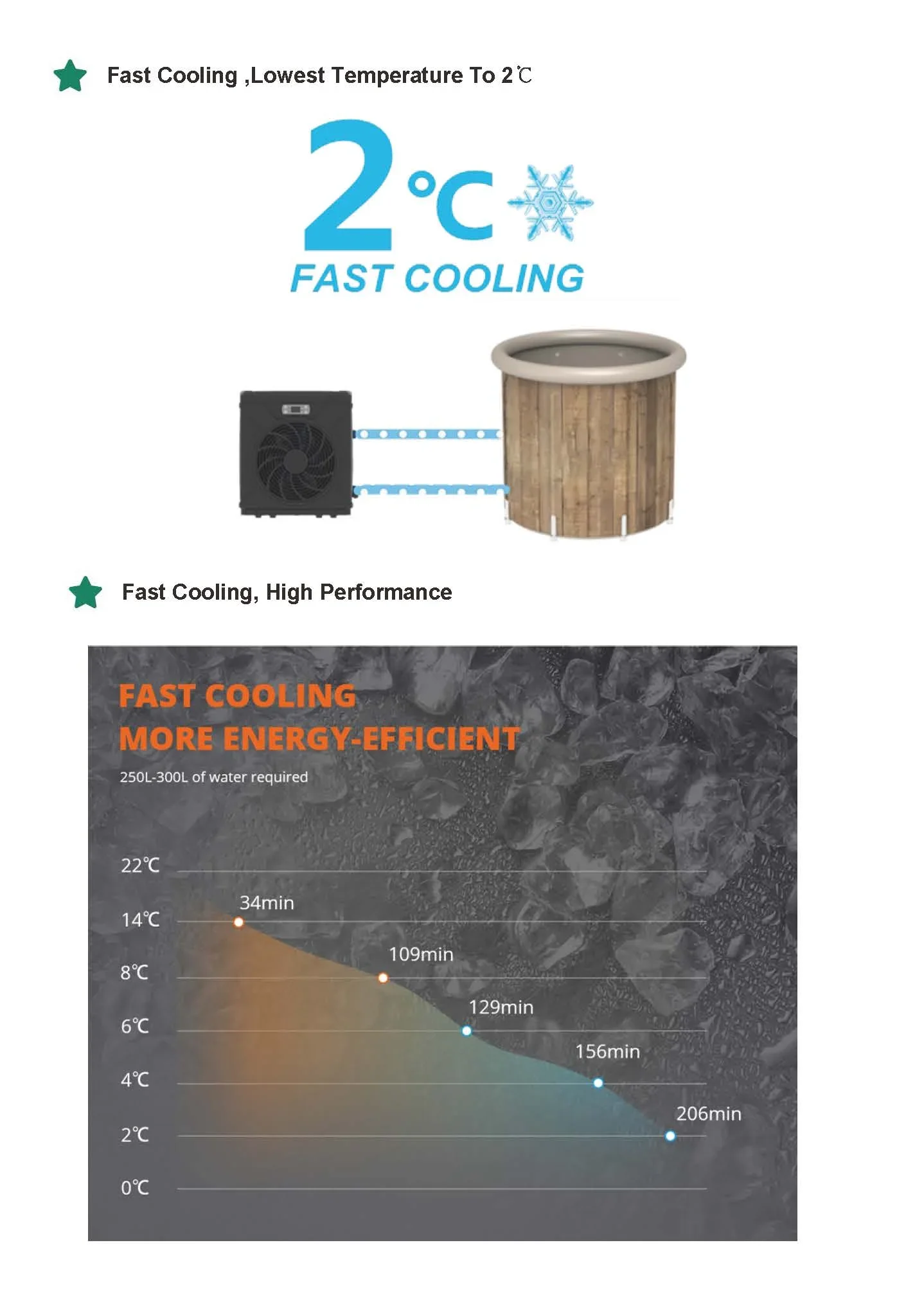

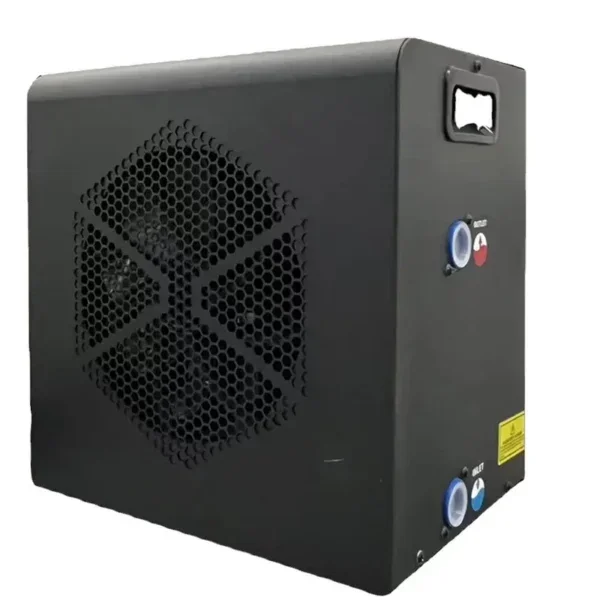

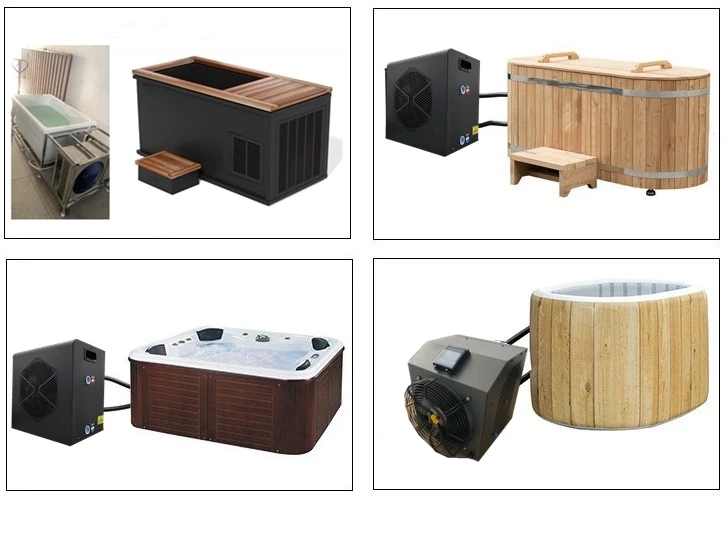

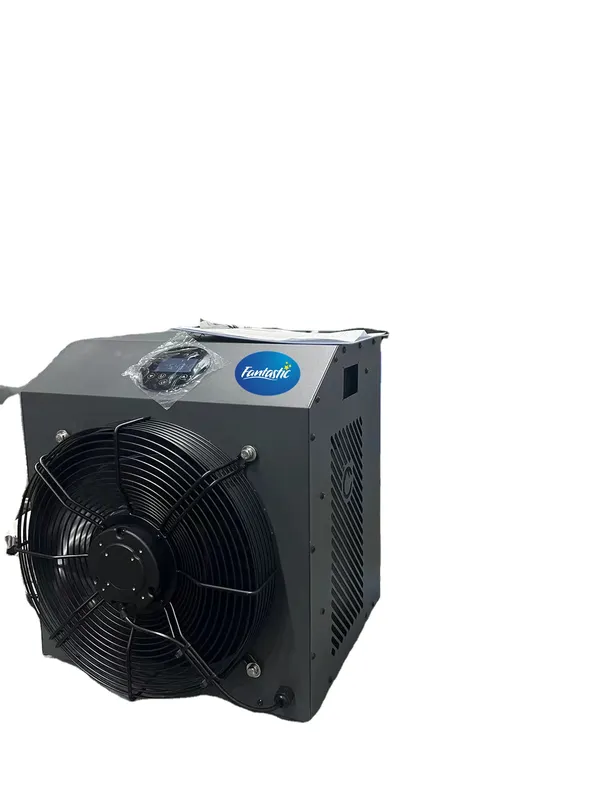

Ice bath Chiller (Built in water pump and ozone generator)
Model No.	FPMC3S
Power	110-127V/1ph 60Hz or 220-240V//1PH /50HZ (60HZ)
Performance condition: Air temperature : 27°C, Water temerature: 5°C
Cooling capacity	kW	3.17
Power consumption	kW	1.07
EER	W/W	2.96
Performance condition: Air temperature : 27 °C, Water temerature: 28°C
Heating capacity	kW	2.18
Power consumption	kW	1.35
Compressor	Rotary type with R32 refrigerant,GMCC
Max . current	A	7.5
CO2 EQUIVALENT	tonnes	0.31
SYSTEM MAX.PRESSURE	MPa	4.2

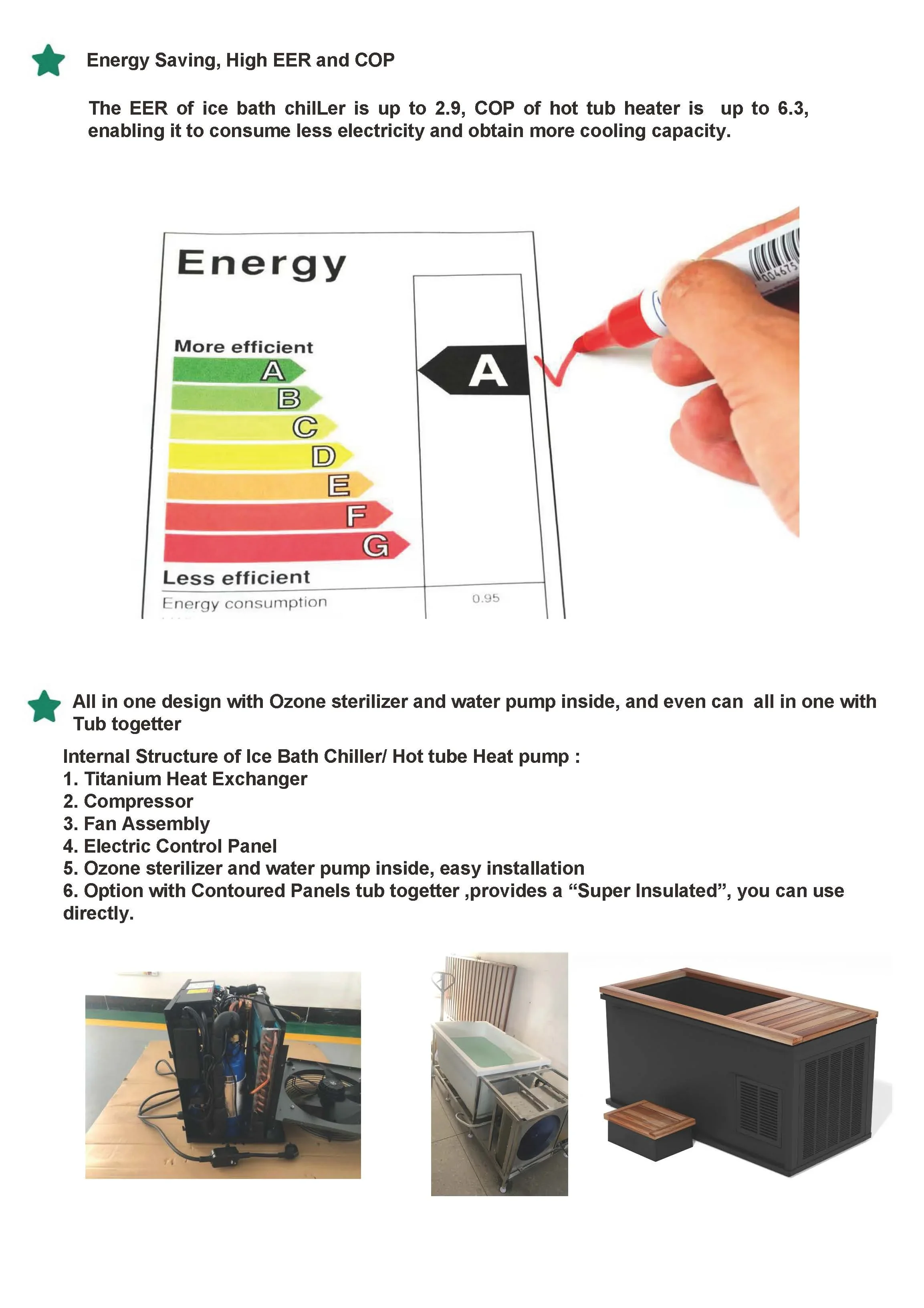

Water side heat exchanger	Spiral round titanium tube in PVC shell
Water connection	mm	32
Noise level(1m)	dB(A)	45
OPERATING AIR TEMP.	-7~43°C

Hot tub heat pump heater
Model No.		FPMH3S	FPMH4S	FPMH5S
Voltage	220-240V/1PH/50HZ/60HZ
Performance condition: Air temperature : 27°C, Inlet / Outlet water temerature: 26°C / 28°C, Humidity 80%.
Heating capacity	kW	3.2	4.14	5.23
Power consumption	kW	0.56	0.73	0.83
C.O.P	W/W	5.71	5.67	6.3
Performance condition: Air temperature : 15°C, Inlet / Outlet water temerature: 26°C / 28°C, Humidity 70%.
Heating capacity	kW	2.32	2.82	3.72
Power consumption	kW	0.53	0.65	0.87
C.O.P	W/W	4.37	4.34	4.27
Compressor	Rotary type with R32 refrigerant,GMCC
Rated current	A	3.1	3.2	5.1
Advised pool volume(covered)	m³	5~15	8~18	10~22
Water side heat exchanger	Spiral round titanium tube in PVC shell
Water connection	mm	32 or 38
Noise level(1m)	dB(A)	42	43	44

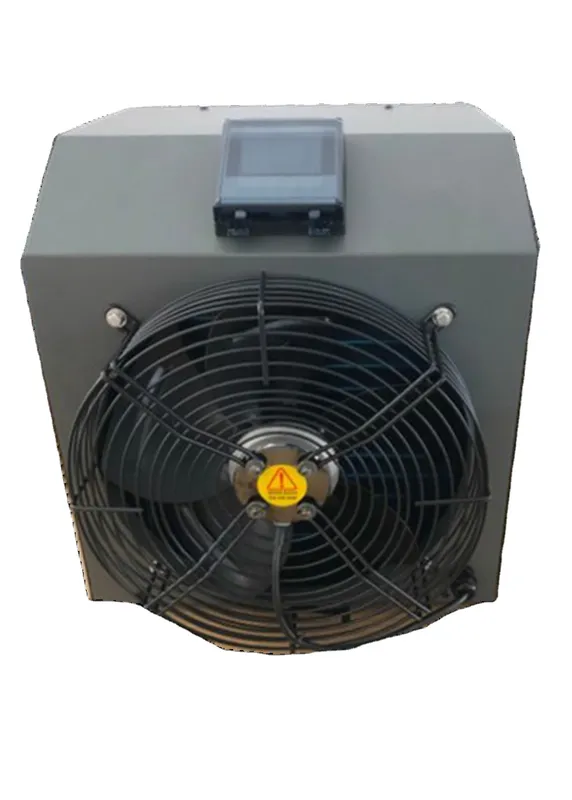

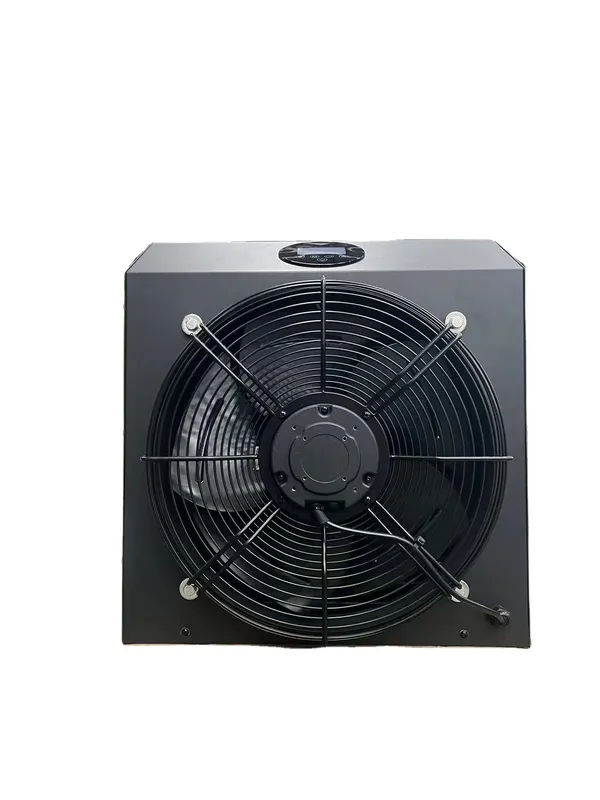

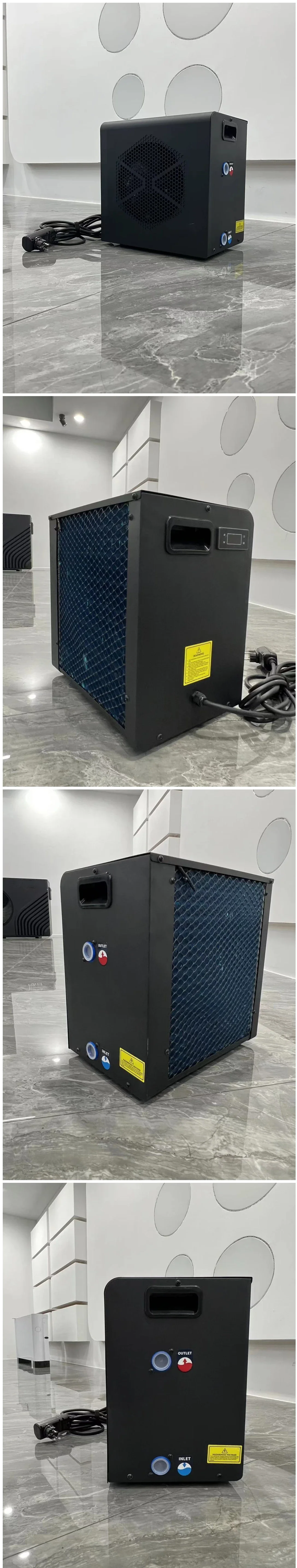

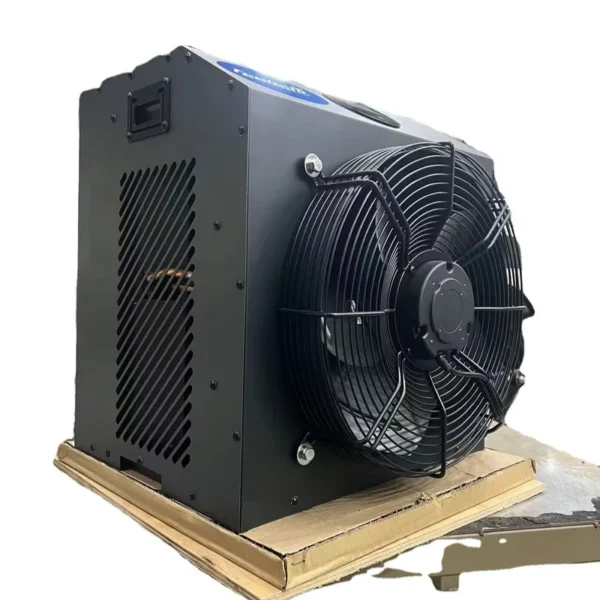

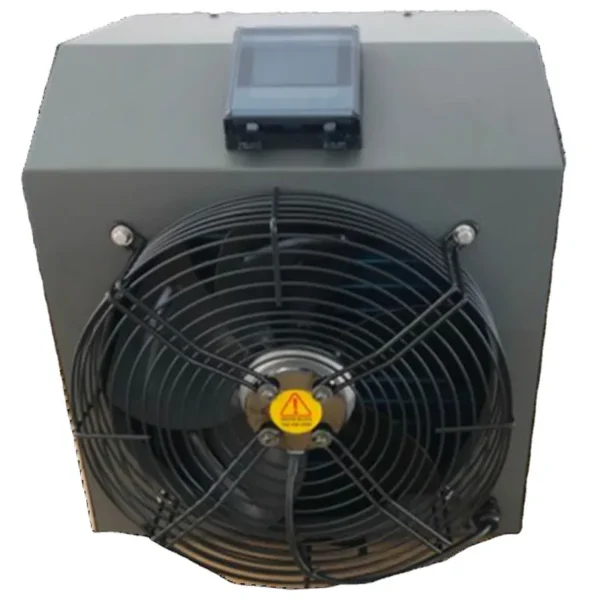

Product Photos

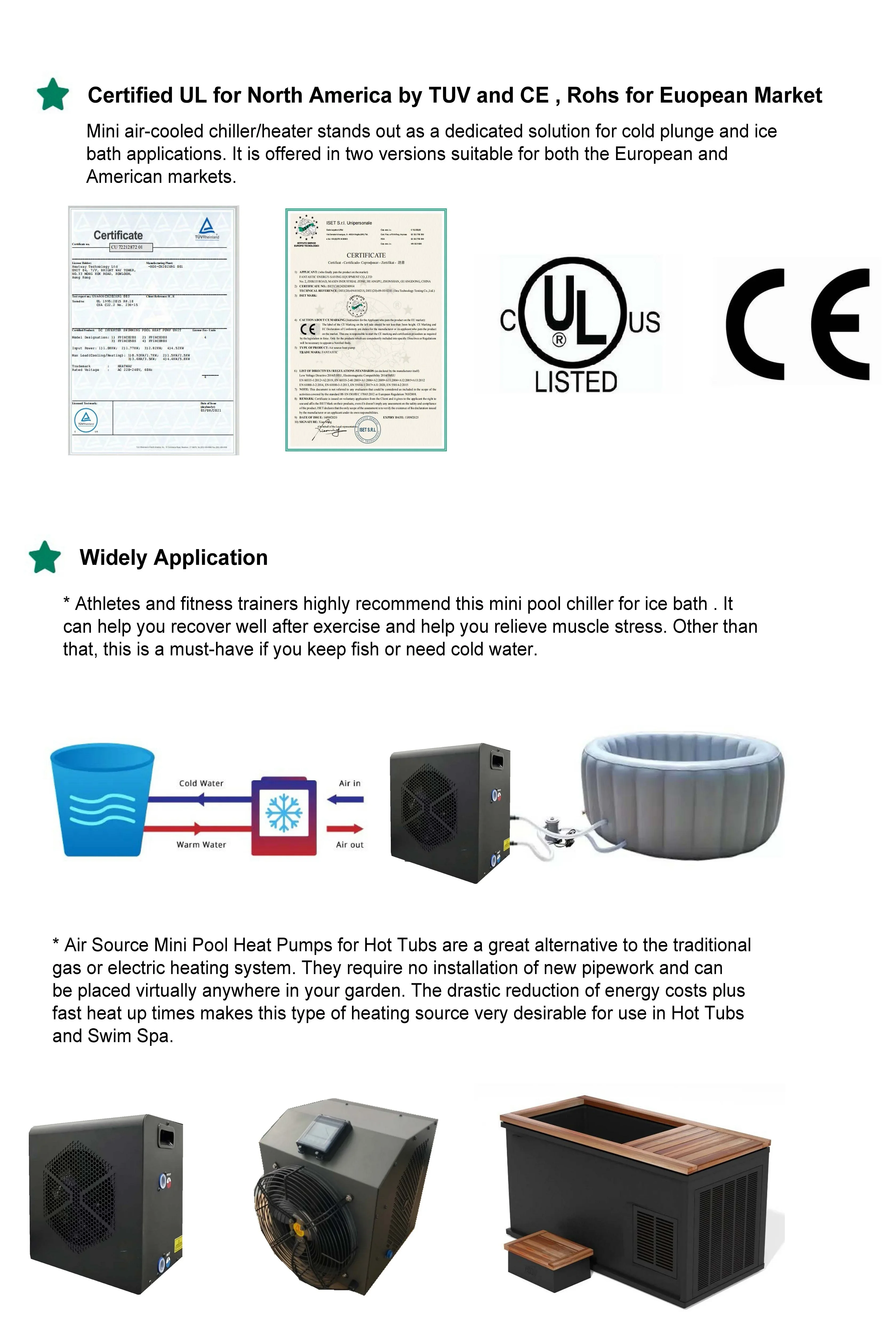

Certifications

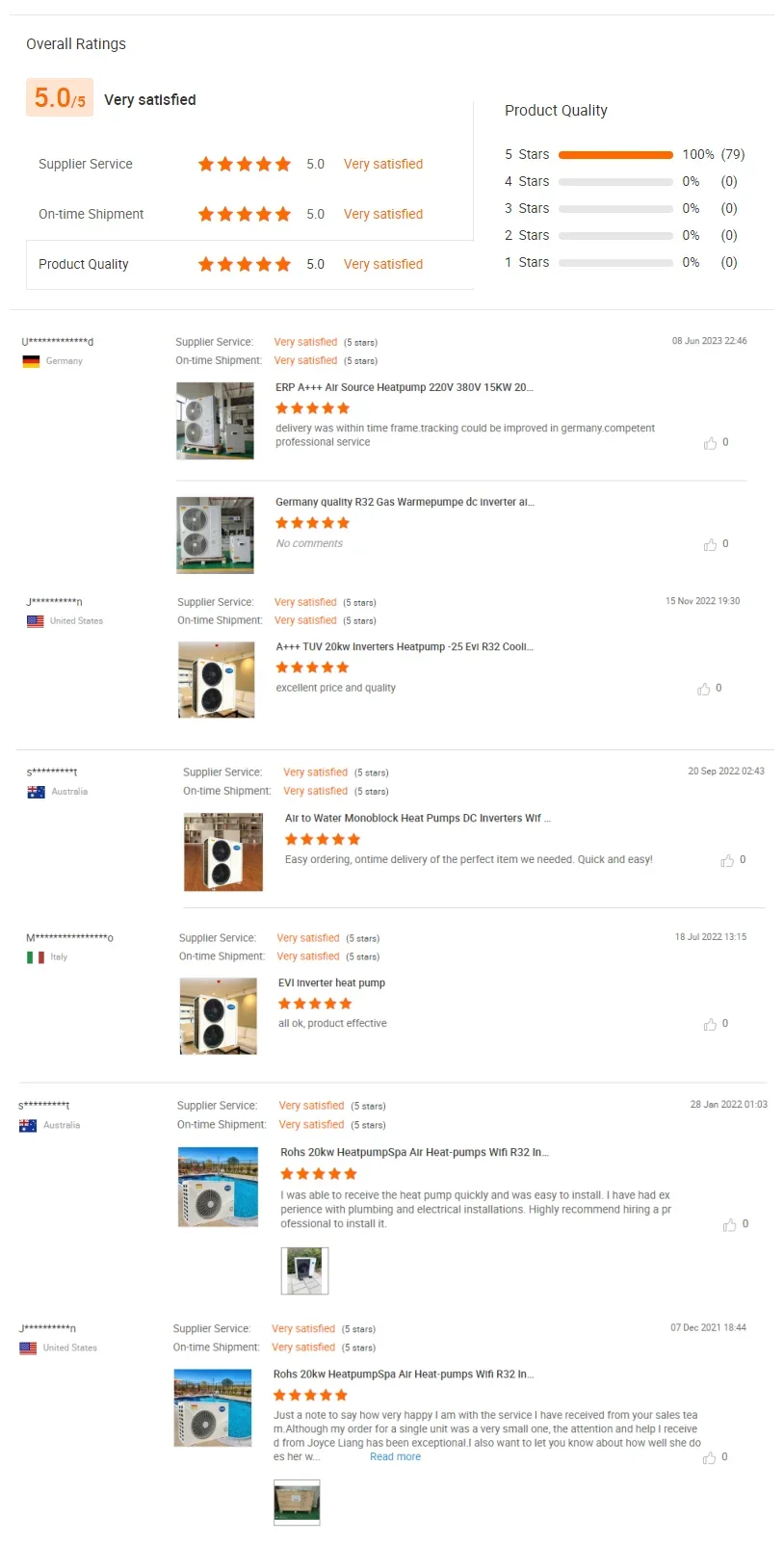

Customers Feedback

Company Profile

Established in 2002, FANTASTIC is one of the largest manufacturers of house heating/cooling heat pumps and swimming pool heat pumps and hot water heat pumps and other kinds of heat pump products in China.

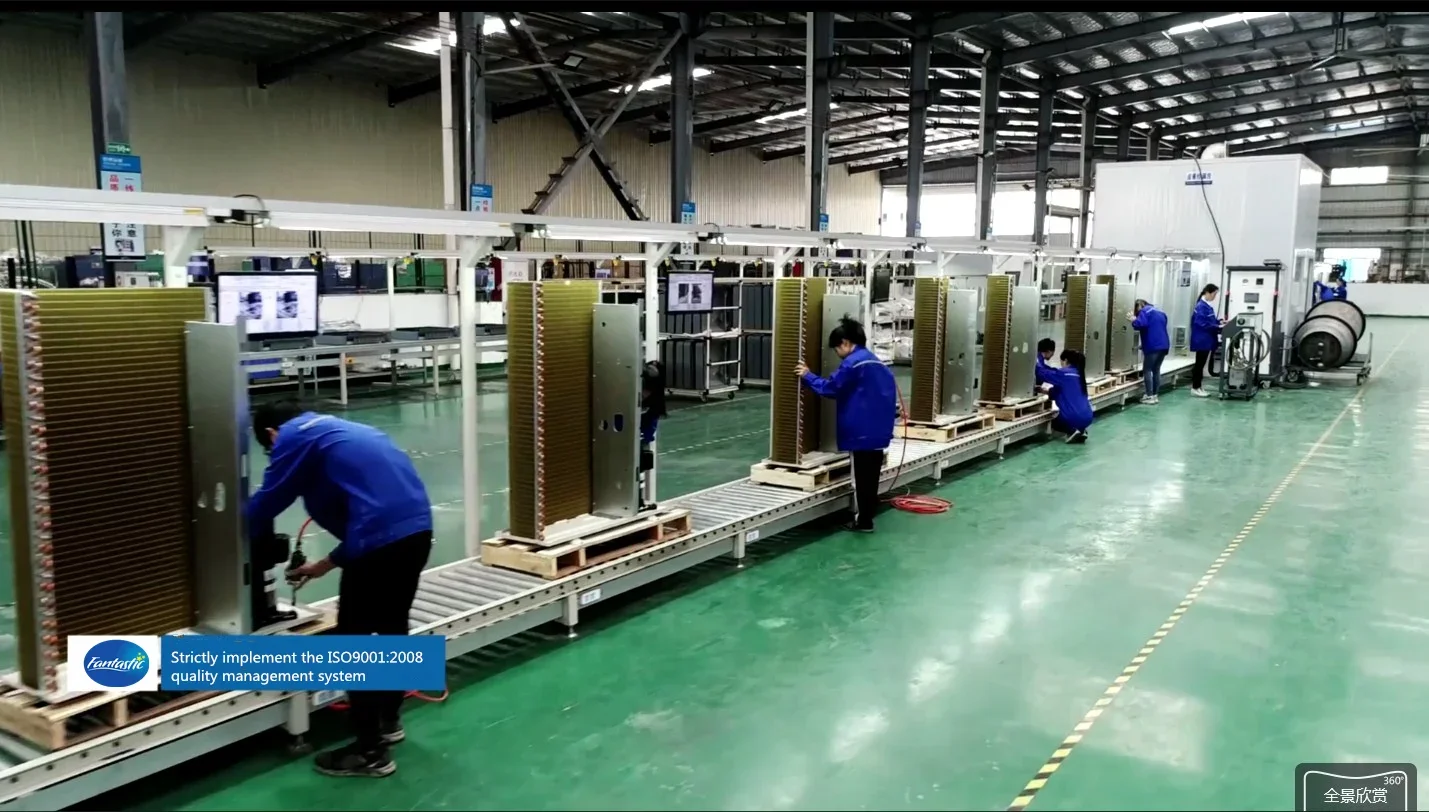

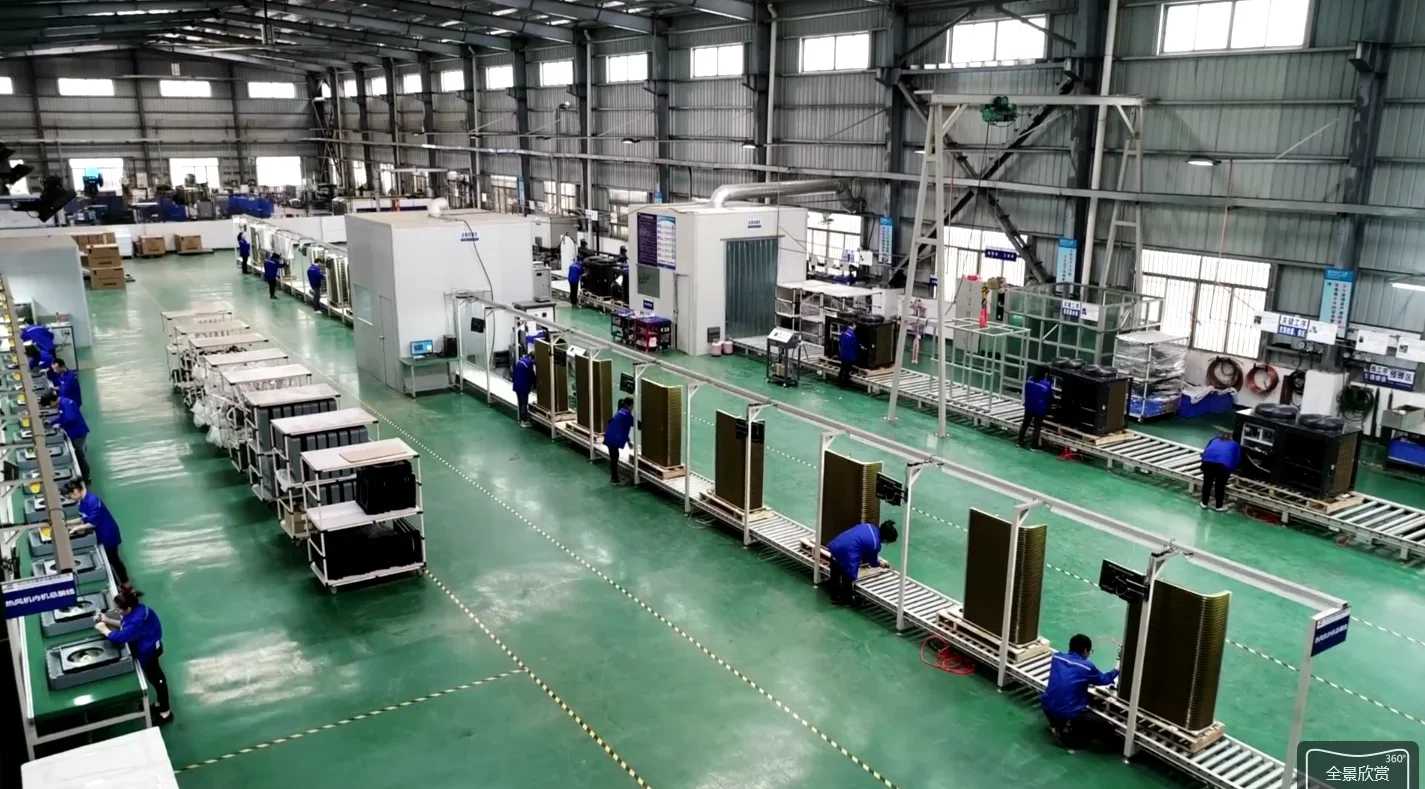

With more than 500 professional staffs and 15 production lines focusing on heat pump manufacturing and technologies, 80% of staffs are more than 10 years experience. with 232,000 sqm workshop plant, 1 million set of annual production output .

FANTASTIC owns many unique technologies and patents, and products are certified CE, ROHS, BAFA, ,A+++ for Europe ,UV UL for North America ,, SAA, WATERMARK, STANDARD MARK, C-TICK ,SAA for Australia, ISO9001 and so on by TUV.

Technical testing

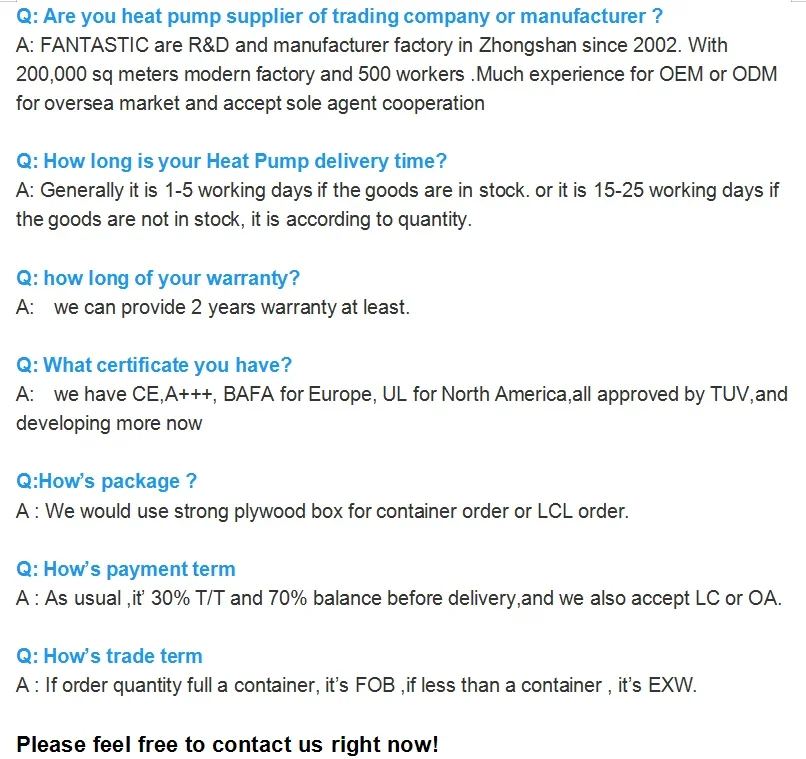

FAQ

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–199 piece: US $600 / piece
  • 200+ piece: US $550 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this plunge barrel ice chiller?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the plunge barrel ice chiller be supplied for my local voltage?

The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Fantastic Energy Saving Equipment Factory, based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company. Browse the full Fantastic Energy Saving Equipment Factory range on HVACR Nexus.
