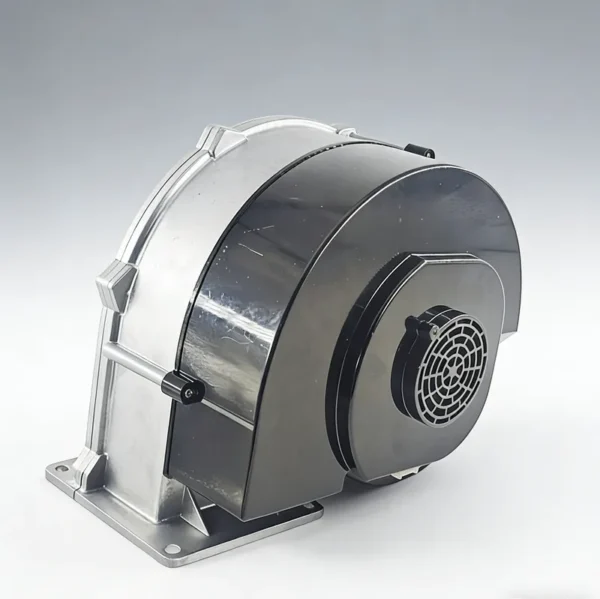

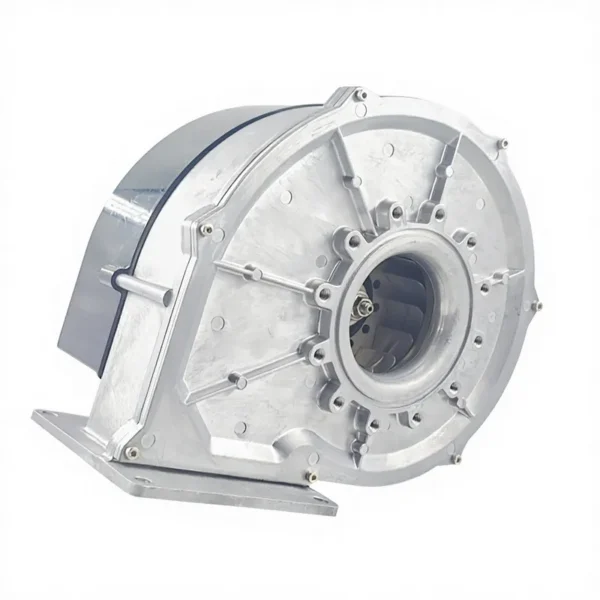

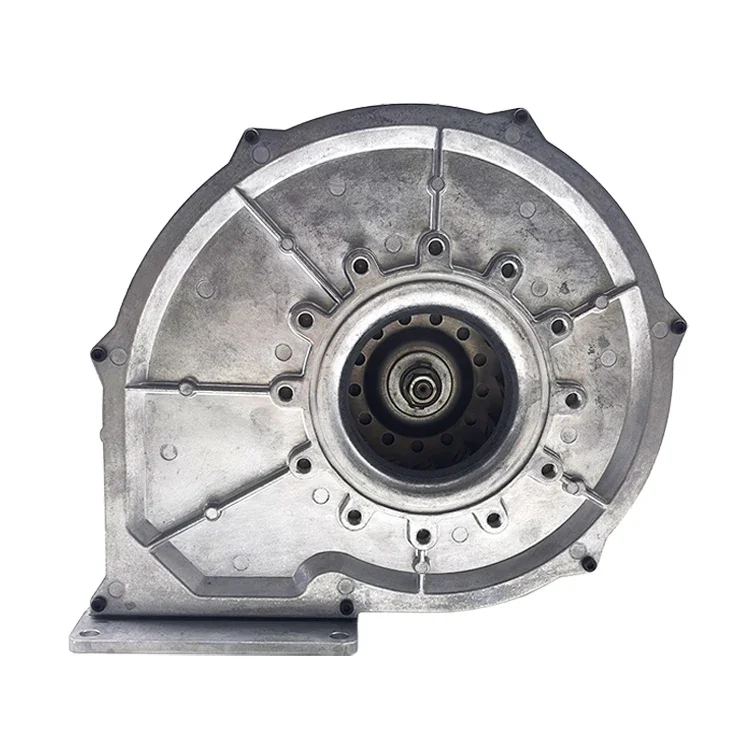

This powered electric brushless blower is published with the manufacturer’s full specification — 230V, power source Electric. Made by Ningbo Newthink Motor Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

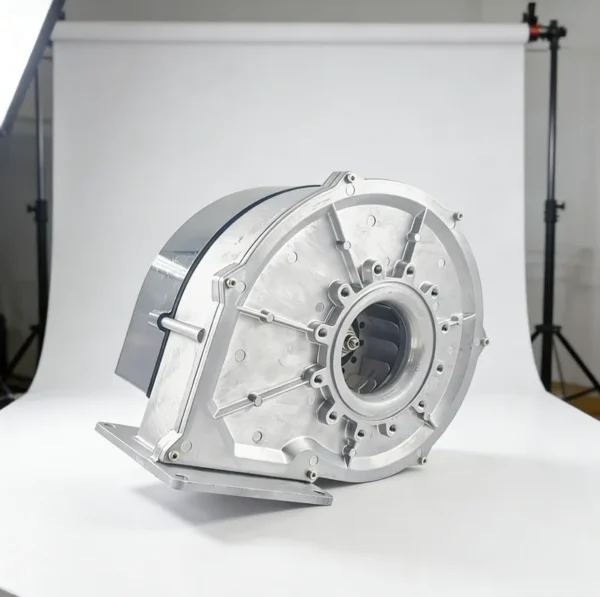

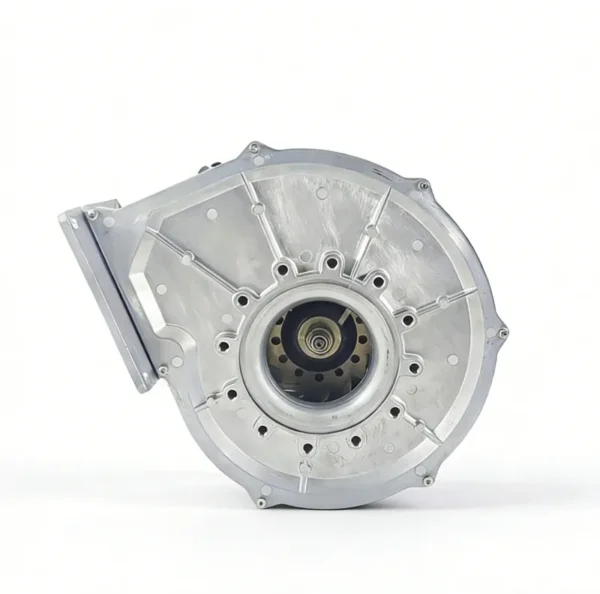

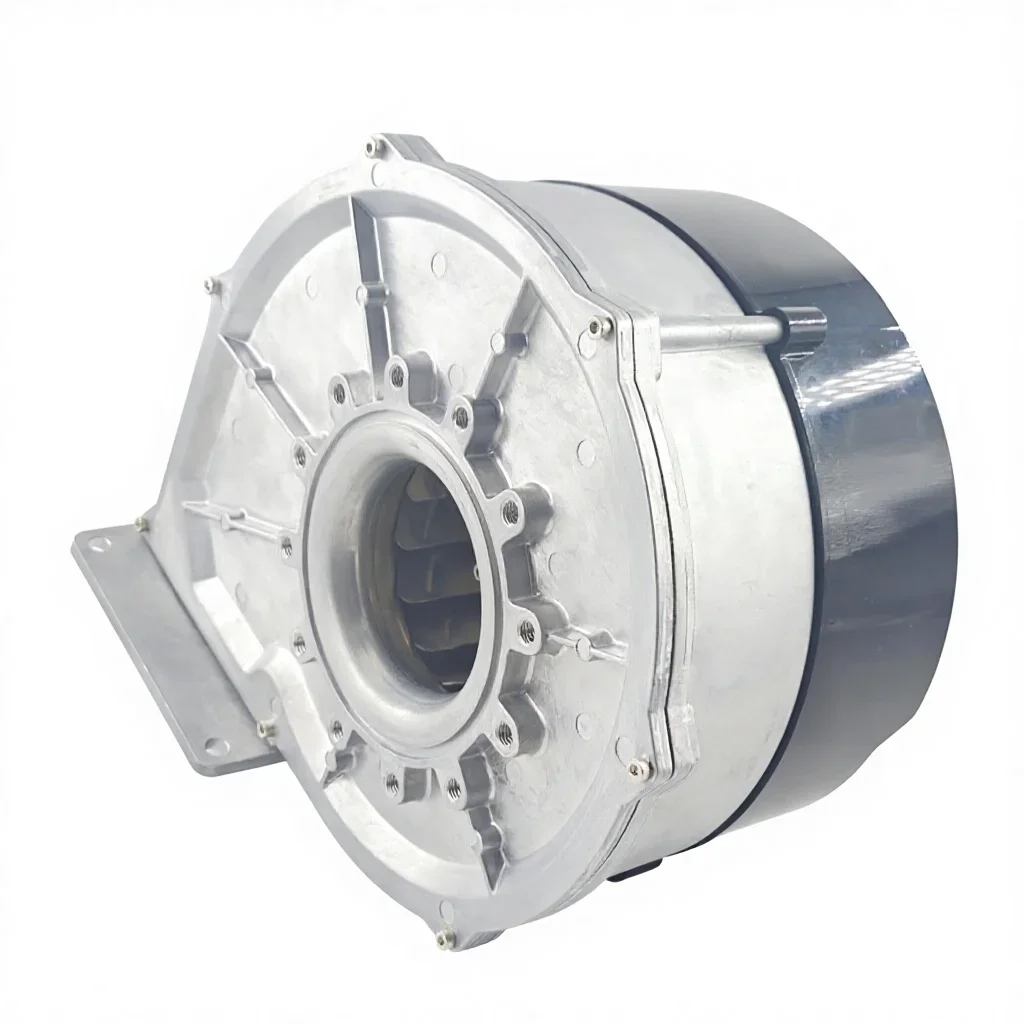

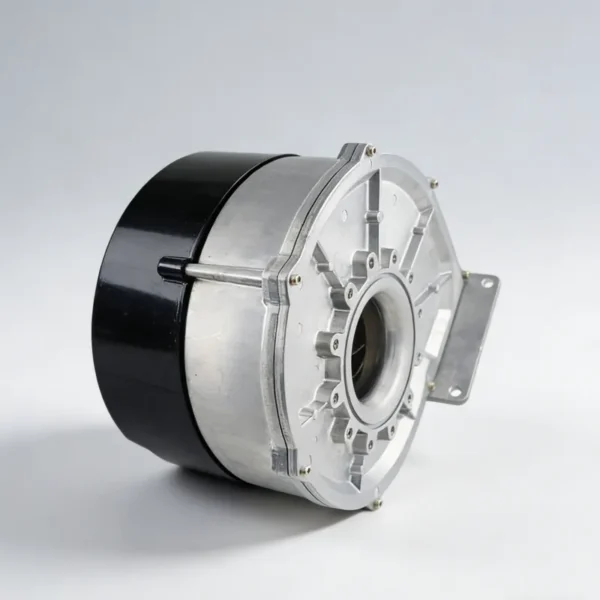

Key Features of This Powered Electric Brushless Blower
- Model Number: NXK101
- Power Source: Electric
- Rated Voltage: 230V
- Material: Aluminum
- Blade Material: Aluminum
- Speed: 8100r/min
Technical Specifications
| Application | Gas Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 230V |
| Electric Current Type | AC |
| Motor Type | AC Motor |
| Speed | 8100r/min |
| Material | Aluminum |
| Blade Material | Aluminum |
| Pressure | High Pressure |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | NEWTHINK |
| Model Number | NXK101 |
| Selling Units | Single item |
| Single Package Size | 55X35X30 cm |
| Single Gross Weight | 5.0 kg |
Product Details
Gas Blower For 15KW-70KW Boiler
Item | Specifications |
Model | NXK101-1100 |
Motor type | 1 Phase DC Brushless Motor |
Input Power | 230 volt |
Current@Voltage | 5.2 @ 230V |
Frequency | 50/60Hz |
Max. Sealed Vacuum Pressure | 5 kPa |
Max. Air Flow | 1000 m3/h |
Speed control Way | 0-10VDC/PWM |
Duty Cycle Range | 5%～95% |
Speed Range (max, min) | 800-8400 |
Insulation Level | F |
Certification | CCC, CE |
Founded in 2011, It is a manufacturer which specialize in researching and developing brushless motors and blower. The application of products mainly cover vacuum cleaner equipment, home appliance, medical machine, garden instruments, sewing machine and automatic industrial devices etc.

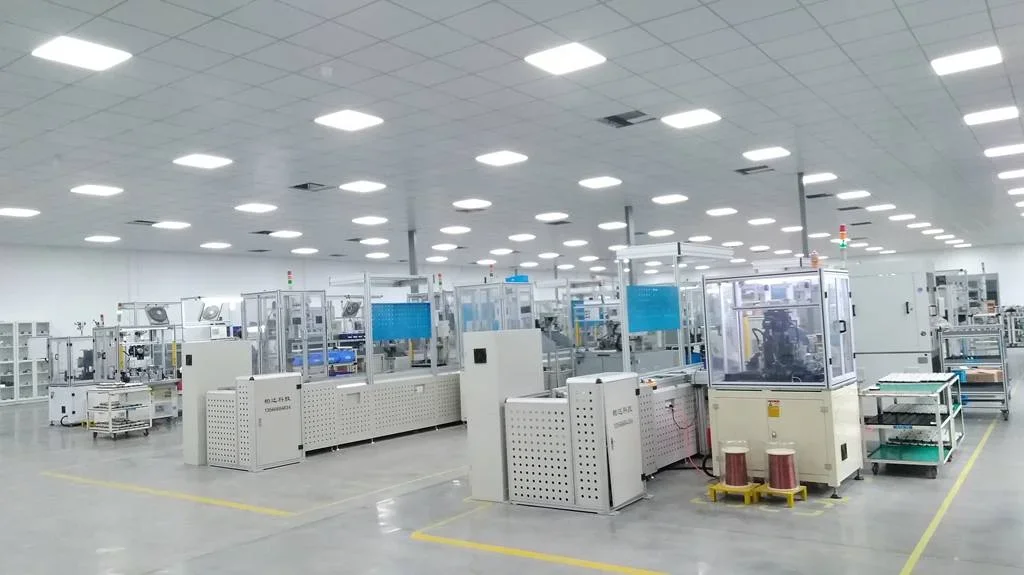

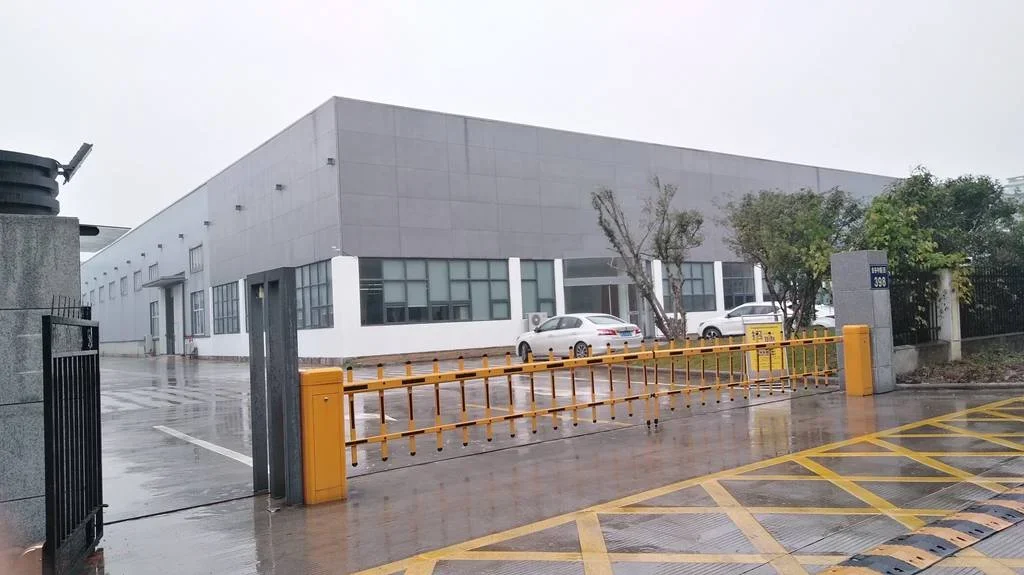

Newthink locates in Ningbo city and covers an area of over 5000㎡. Annual output reach to 600,000~800,000 pcs. The production strictly according to ISO9001:2015, and passed CE, RoHS, UL, ETL and etc. The number of patents is more than 30. Nowadays, our motors have been sold in more than 20 countries and regions including the US, Asia, and Europe.
Obeying to the creed ”Devoted to technology innovation, define china creation”, Newthink has provided solutions for the overall application of professional, all-inclusive, energy saving and environment friendly brushless motor in wide areas. After many years of engineering practice, products has satisfied the demand of many clients in both overall solutions and key requirement specifications as well as in after sale service. Cooperating with their customers to their best extend and creating extraordinary value to solve application difficulties, Newthink has become the best partner of innumerable client.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $320 / piece
- 100+ piece: US $300 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this powered electric brushless blower?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the powered electric brushless blower be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
