The pressure water controller listed here carries material Plastic, model number PS-WE10, documented exactly as the manufacturer publishes it. Made by Wenzhou Bingo Imp. & Exp. Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Pressure Water Controller
- Model Number: PS-WE10
- Max. Voltage: 220 V
- Material: Plastic
- Place Of Origin: Shanghai, China
- Application: Pressure Control
- Single Package Size: 30X30X20 cm
Technical Specifications
| Max. Working Pressure | 10Bar |
|---|---|
| Media | Water |
| Max. Voltage | 220 V |
| Material | Plastic |
| IP Level | IP53 |
| Accuracy Class | ±0.1% FS |
| Contact Arrangement | SPDT |
| Connection Thread | G1 |
| Max. Current | 10A |
| Application | Pressure Control |
| Whether The Smart | Yes |
| Place Of Origin | Shanghai, China |
| Model Number | PS-WE10 |
| Brand Name | Bingo |
| Selling Units | Single item |
| Single Package Size | 30X30X20 cm |
| Single Gross Weight | 2.5 kg |
Product Details

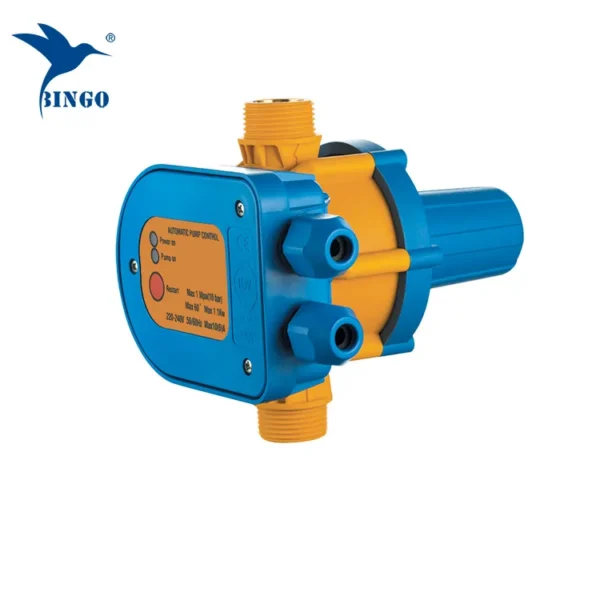

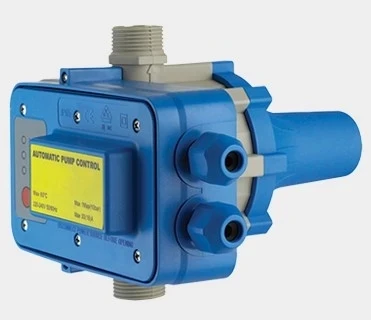

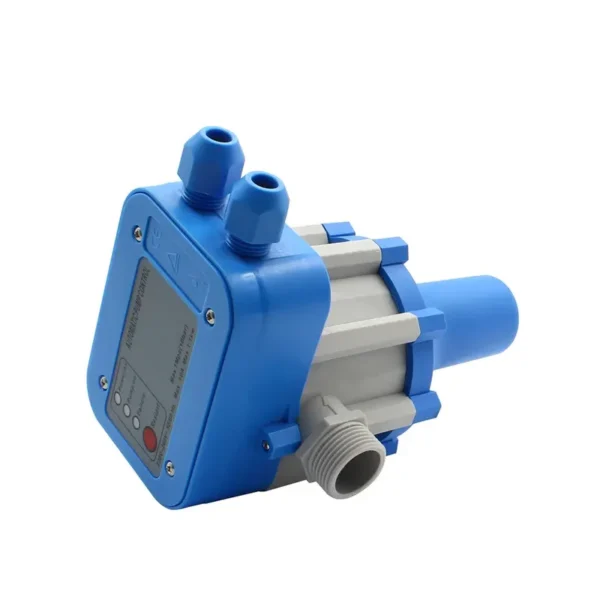

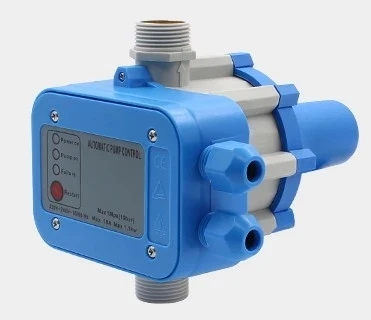

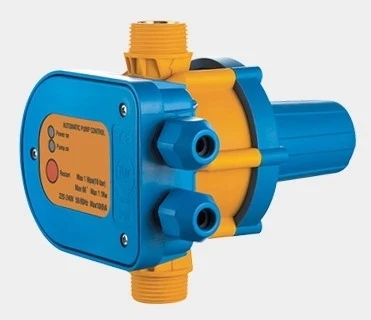

Water Pump Pressure Switch
1). Electric switch used in water systems.
2). It starts the electric pump automatically after a pressure decrease(taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump(taps closed).
3). Starting pressure is adjustable during installation, adjustment range: 1.0bar-3.5bar.
4). Joint screw: G1"male.
5). Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.
6). Stop the water pump in the case of water shortage.
7). Automatic reset after a stop caused by dry running, standard time-interval 60min/1 test.
8). Customized setting.

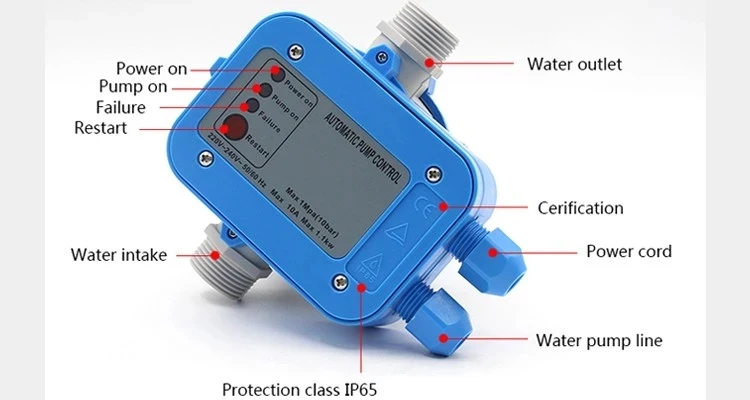

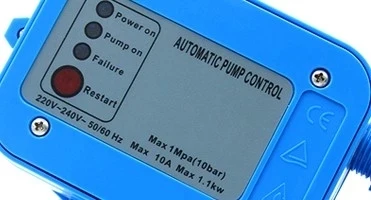

Panel.

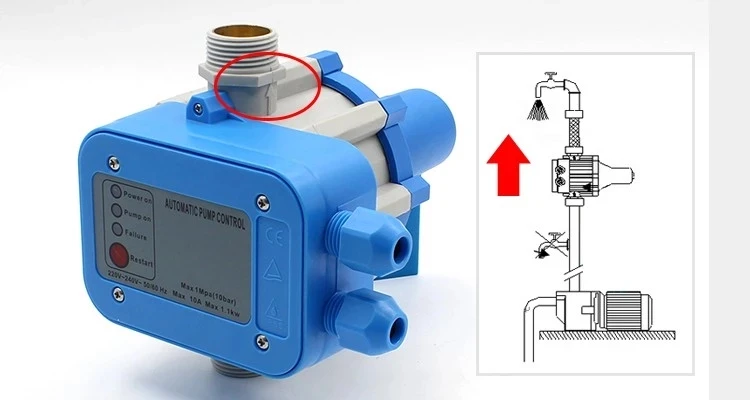

Installation interface.
Brand new engineering plastics.
Wire connection port.
Model | PS-WE10 |
Medium | water |
Starting pressure | 1.0bar, 1.2bar, 1.5bar or 2.2bar |
Max.pressure | 10bar |
Power | 1.1KW(220V-240V),0.75KW(110V-120V) |
Electric rating | 10A; 110V-120V or 220V-240V, 50/60Hz |
temperature | Max.60℃ |
Connection | G1" |
Protection grade | IP65 |
Size | 228mm*169mm*167mm |

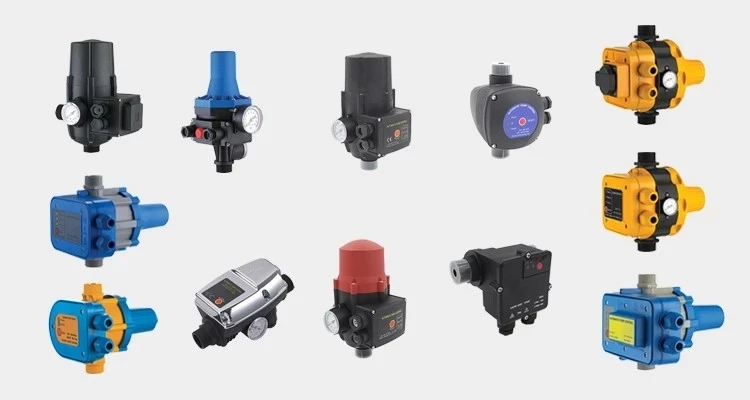

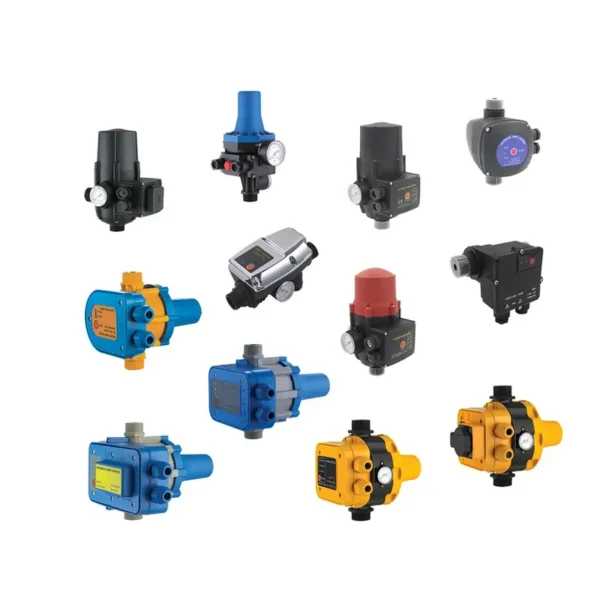

PS-WE10
PS-WE13
PS-WE14
PS-WE15
PS-WE16
PS-WE20
PS-WE21
PS-WE22
PS-WE23
PS-WE24
PS-WE30
PS-WE40
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $9.5 / piece
- 100–999 piece: US $9 / piece
- 1000–9999 piece: US $8 / piece
- 10000+ piece: US $7.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this pressure water controller?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the pressure water controller be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
