Proof axial flow ventilator — certification CCS,ABS,DNVGL, BV. The complete factory specification follows. Made by Jingjiang Trust Trading Co., Ltd. (15 years on the platform, typical reply ≤9h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Proof Axial Flow Ventilator
- Certification: CCS,ABS,DNVGL, BV
- Place Of Origin: Jiangsu, China
- Part: ventilator fan
- Brand Name: OEM
- After-Sales Service Provided: Engineers available to service machinery overseas
- Use: marine
Technical Specifications
| Part | ventilator fan |
|---|---|
| Place Of Origin | Jiangsu, China |
| Brand Name | OEM |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Use | marine |
| Certification | CCS,ABS,DNVGL, BV |
| Selling Units | Single item |
Product Details

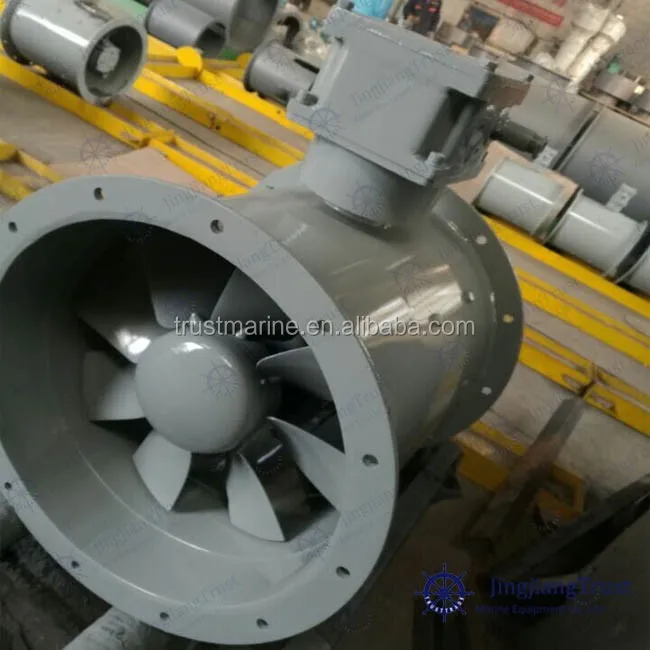

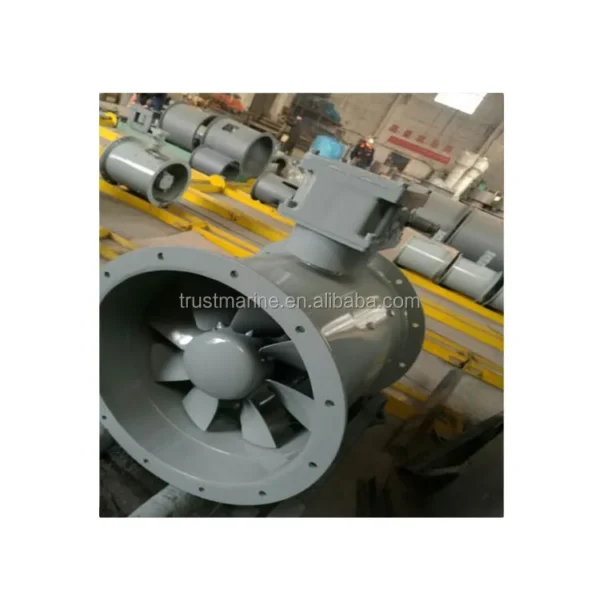

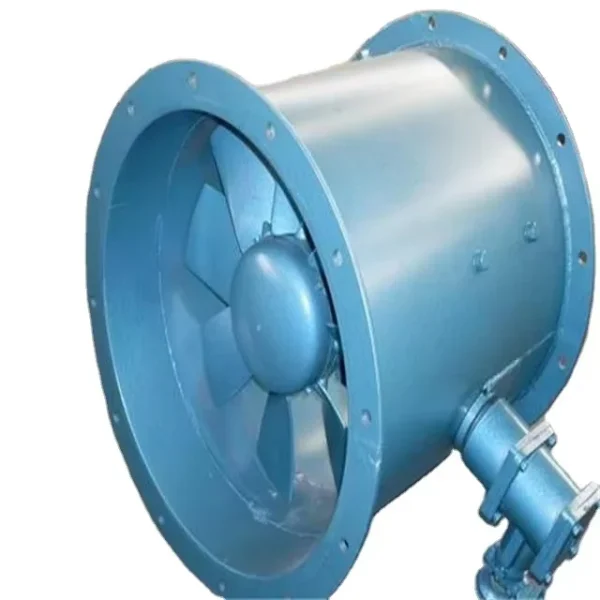

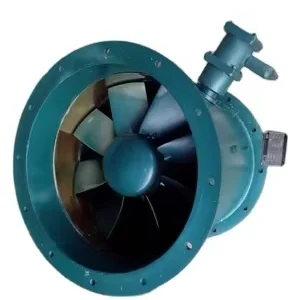

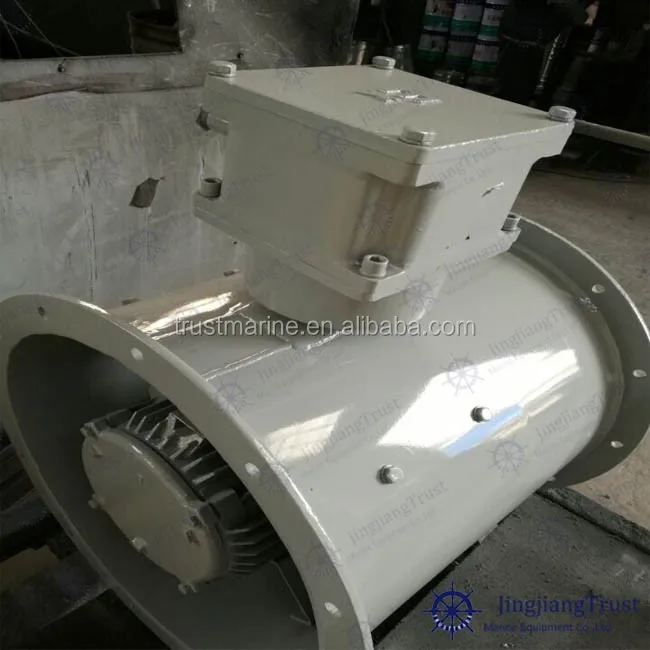

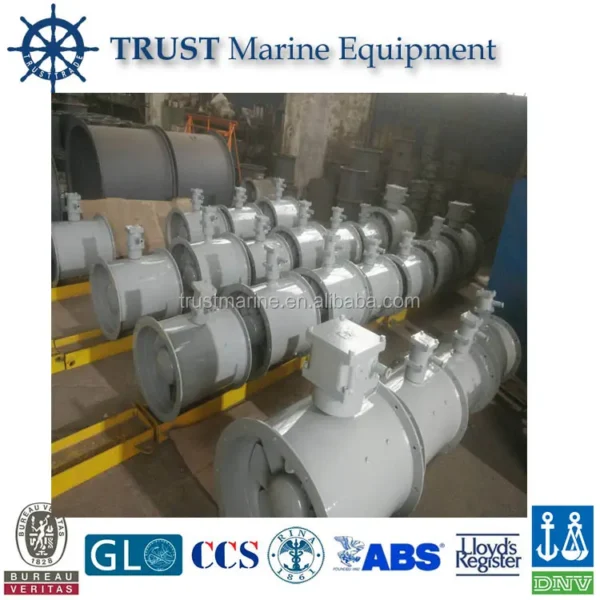

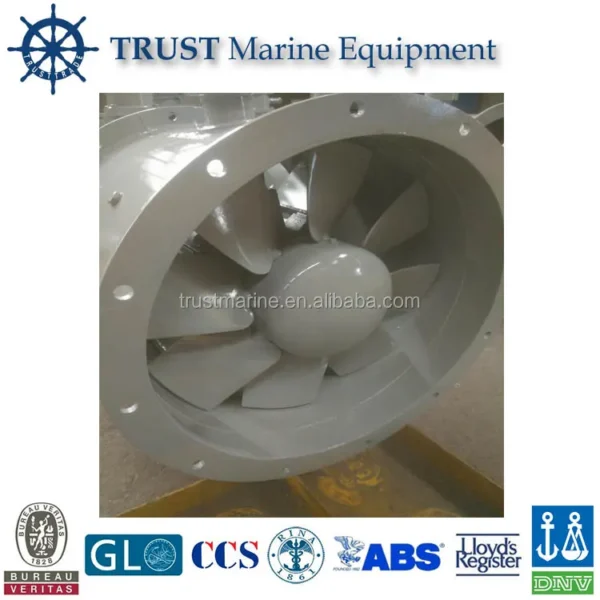

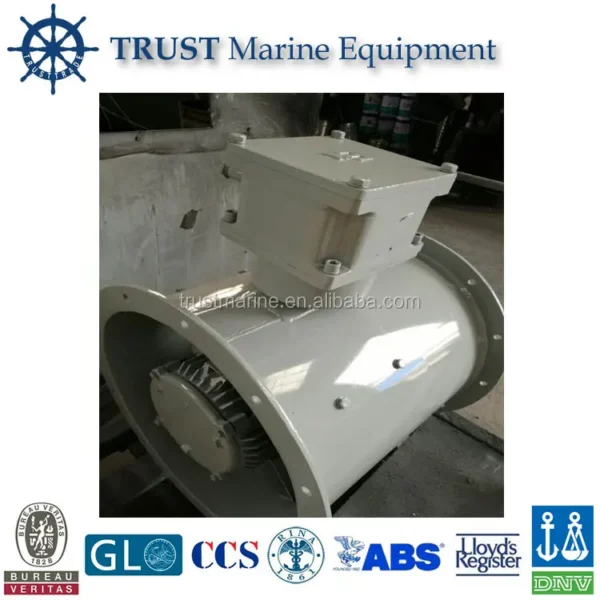

CBZ series Marine Explosion Proof Axial Flow Fan
CBZ series Marine Explosion Proof Axial Flow Fans can be delivered for gas mixtures or vapour containing combustibles and explosives, for ordinary air, for sea air containing salt fog, for air containing oil fog and other corrupt air supply or extraction. The explosion-proof symbol of explosion-proof fans is EdIIBT4 .
These explosion-proof fan series are best suited to pumping out gas mixtures or vapour containing combustibles and explosives in oil cabins holds, pump-rooms, battery cabins, cabins, hangars,paint houses, etc. They can also be used for ventilation of other compartments of shipping and corresponding place of land's.
This series fans have been examined and proved up to standard by Explosion-proof Inspection Authority of the PRC and have got the certificate of classification society
For places where there are explosive gas mixtures of grade II B/C and group T3/T4/T5
Ambient temperatures: -25°C~+50°C
Relative humidity of the air: ≤95%
Cyclical vacillation: 22.5°~45° (Vacillation cycle 5~10S)
Sustained horizontal tilting: 15°
Sustained vertical tilting:10°
Vibration: existent
Shock: existent
| Type of the fan | Outline Dimensions | ||||||||||
| D1 | D2 | D3 | D4 | H1 | H2 | H3 | L | n×d | |||
| CBZ-30A | φ300 | φ345 | φ375 | φ600 | 200 | 405 | 640 | 400 | 8 | φ12 | |
| CBZ-30B | |||||||||||
| CBZ-35A | φ350 | φ395 | φ425 | φ700 | 220 | 425 | 660 | 450 | 8 | φ12 | |
| CBZ-35B | |||||||||||
| CBZ-40A | φ400 | φ445 | φ475 | φ800 | 250 | 485 | 730 | 500 | 12 | φ12 | |
| CBZ-40B | |||||||||||
| CBZ-50A | φ500 | φ560 | φ595 | φ900 | 280 | 515 | 720 | 550 | 12 | φ15 | |
| CBZ-50B | 780 | ||||||||||
| 810 | |||||||||||
| CBZ-50C | 810 | ||||||||||
| 850 | |||||||||||
| CBZ-60 | φ600 | φ660 | φ695 | φ1020 | 300 | 545 | 800 | 550 | 12 | φ15 | |
| CBZ-70A | φ700 | φ760 | φ795 | φ1200 | 320 | 585 | 830 | 700 | 16 | φ15 | |
| 860 | |||||||||||
| CBZ-70B | φ700 | φ760 | φ795 | φ1200 | 320 | 585 | 830 | 700 | 16 | φ15 | |
| CBZ-75 | φ750 | φ820 | φ860 | φ1280 | 350 | 625 | 880 | 700 | 16 | φ19 | |
| 960 | |||||||||||
| CBZ-80A | φ800 | φ870 | φ910 | φ1356 | 680 | 665 | 985 | 780 | 16 | φ19 | |
| 1060 | |||||||||||
| CBZ-80B | 945 | ||||||||||
| 985 | |||||||||||
| CBZ-90A | φ900 | φ970 | φ1010 | φ1500 | 400 | 705 | 1010 | 850 | 16 | φ19 | |
| 1085 | |||||||||||
| CBZ-90B | 1085 | ||||||||||
| 1125 | |||||||||||
| CBZ-90C | 1125 | ||||||||||
| 1160 | |||||||||||
| CBZ-100A | φ1000 | φ1070 | φ1110 | φ1800 | 480 | 805 | 1180 | 900 | 20 | φ19 | |
| 1235 | |||||||||||
| CBZ-100B | 1180 | ||||||||||
| 1235 | |||||||||||
| CBZ-100C | 1140 | ||||||||||
| 1180 | |||||||||||
| CBZ-100D | 1140 | ||||||||||
| 1180 | |||||||||||
| CBZ-110A | φ1100 | φ1170 | φ1210 | φ2000 | 500 | 845 | 1265 | 1000 | 20 | φ19 | |
| 1320 | |||||||||||
| CBZ-110B | 1170 | ||||||||||
| 1210 | |||||||||||
| CBZ-110C | 1245 | ||||||||||
| 1320 | |||||||||||
| CBZ-120A | φ1200 | φ1280 | φ1330 | φ2150 | 620 | 985 | 1435 | 1000 | 20 | φ24 | |
| 1460 | |||||||||||
| CBZ-120B | 1490 | ||||||||||
| 1545 | |||||||||||
| CBZ-140A | φ1400 | φ1480 | φ1530 | φ2450 | 750 | 1125 | 1460 | 1000 | 20 | φ24 | |
| 1525 | |||||||||||
| CBZ-140B | 1460 | ||||||||||
| 1525 | |||||||||||

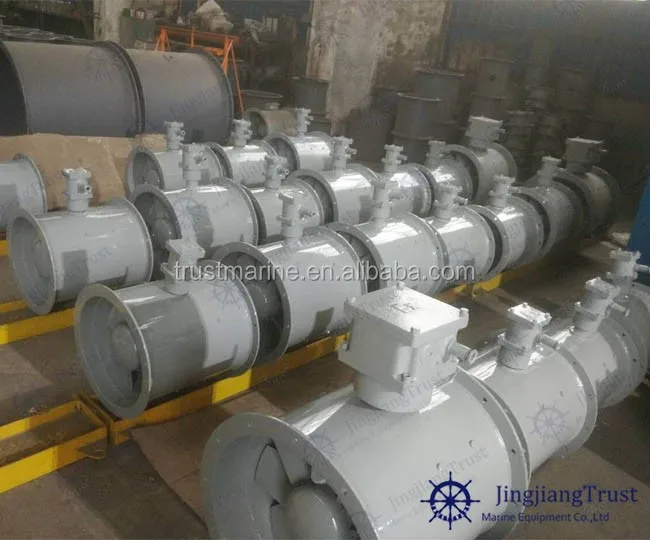

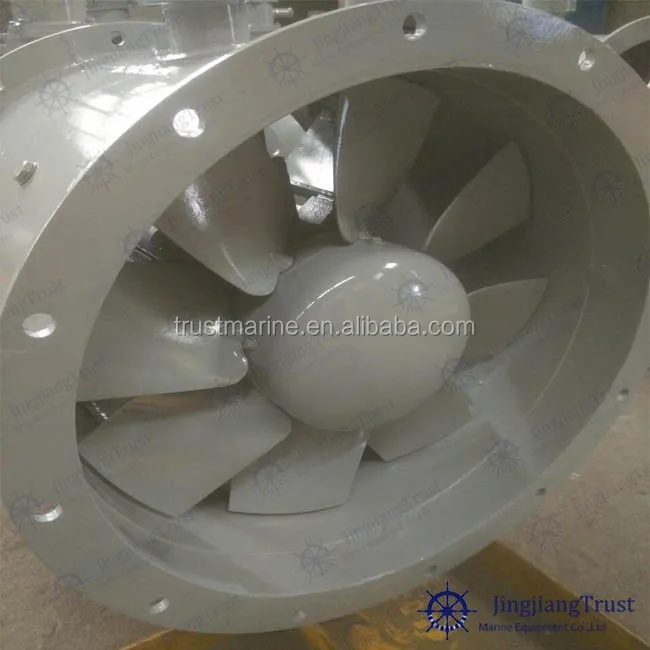

explosion proof fan | explosion proof fan | explosion proof fan | explosi
pICTURESon proof fan | explosion proof fan
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $200 / piece
- 10+ piece: US $150 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this proof axial flow ventilator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this proof axial flow ventilator carry?
It is supplied with CCS,ABS,DNVGL, BV documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
