Pwm controller — 24V, max.air flow 140.7(126.63 MIN)CFM. The complete factory specification follows. Made by Shenzhen Yucheng Industrial Co., Ltd. (3 years on the platform, typical reply ≤9h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Pwm Controller
- Model Number: DBPL0938B4UP
- Power Source: Electric
- Voltage: 24V
- Max.Air Flow: 140.7(126.63 MIN)CFM
- Material: PBT
- Blade Material: Plastic
Technical Specifications
| Voltage | 24V |
|---|---|
| Speed | 10000rpm |
| Type | dc cooling fan |
| Material | PBT |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | TWO BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | AVC |
| Model Number | DBPL0938B4UP |
| Color | Black |

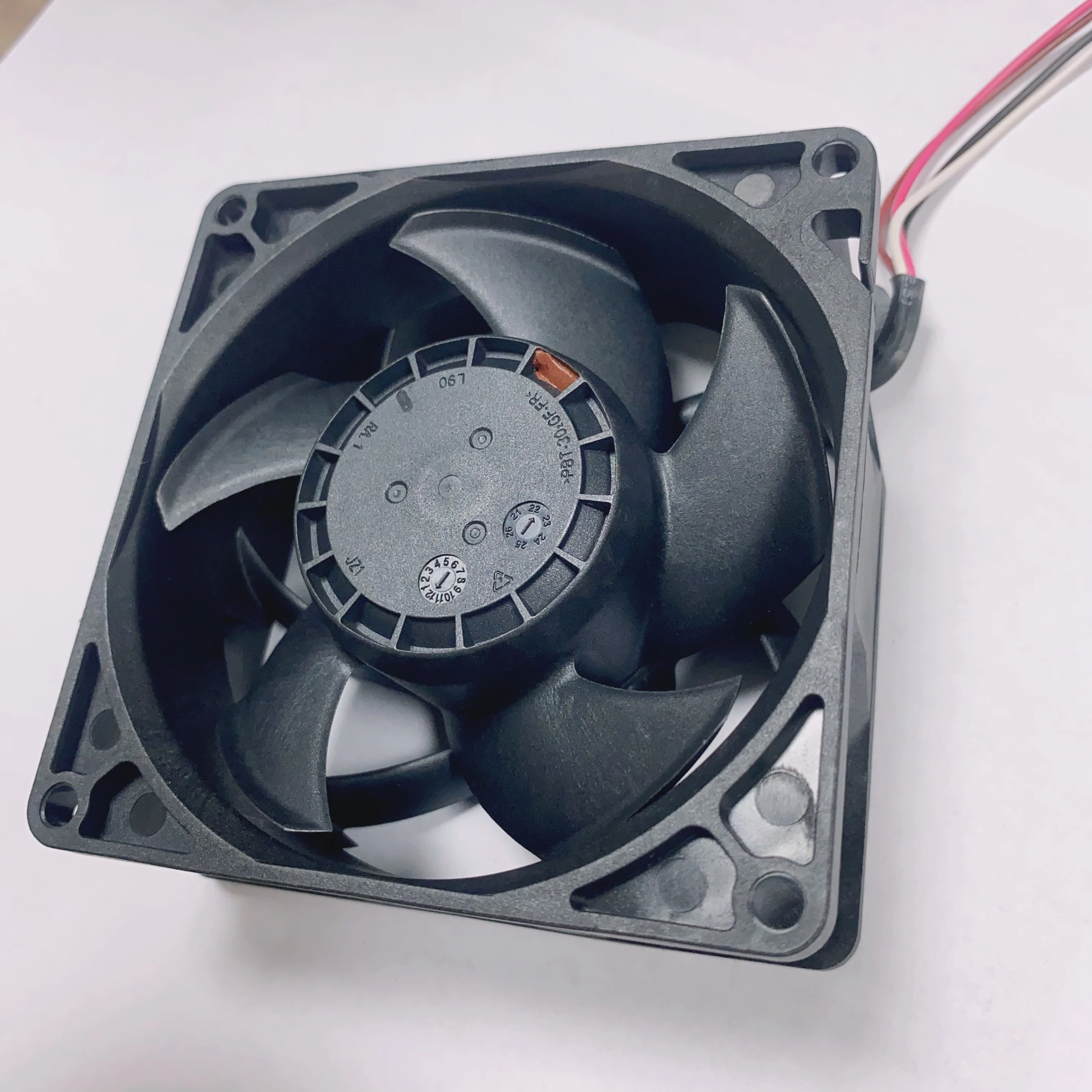

| Product Name | 24V DC AVC axial fan |
| Application | Server/EV car/PC/Mining/consumer/industry/communication equipment |
| Brand | AVC |
| Size | 92x92x38mm |
| Max Air Pressure | 51.5 mm-H2O,505.2 Inch-H2O |
| Max.Air Flow | 140.7(126.63 MIN)CFM |
| Impeller | 5 blades |
| Acoustical Noise | 62 dBA |
| Selling Units | Single item |
| Single Package Size | 15X15X10 cm |
| Single Gross Weight | 1.500 kg |
Product Details
1) Note on item price:
Please confirm the details of the product with us! Product prices shown on Alibaba are single price for reference only.
(2) Description of commodity parameters:
Due to the cooling fan products with the same appearance / size of the product in the product parameters of the performance of large differences, we can customize the cooling fan according to your performance needs, including component wire length, terminals, etc..
Product parameters:
Voltage type: direct current (DC)
Rated voltage: 24V
Load voltage: 18.0~26.0 V
Rated current: 1 A (maximum current 1.2 A)
Rated Power: 24 W (Maximum 28.80 W)
Fan speed: 10000 ± 10% & -200 R.P.M
Speed control type: PMW pulse width modulation control
Signal output: FG speed feedback
Maximum airflow: 3.98 (3.58 MIN) m³/Min (140.7 (126.63 MIN) CFM)
Maximum air pressure: 51.5 (47.72 MIN) mmH2O (505.2(409.3 MIN)inchH2O)
Acoustic noise level: 62.0 (65.0 Max) dB(A)
Product

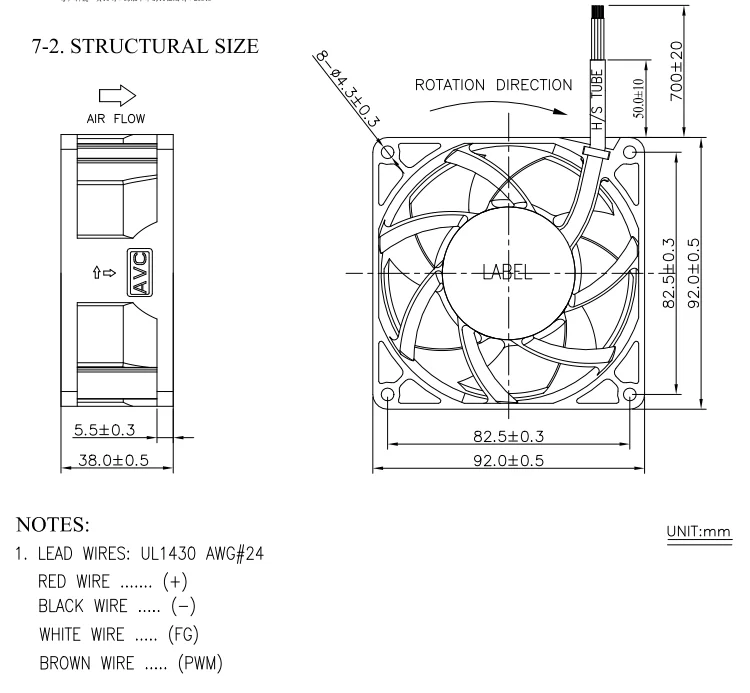

Dimension Drawing:

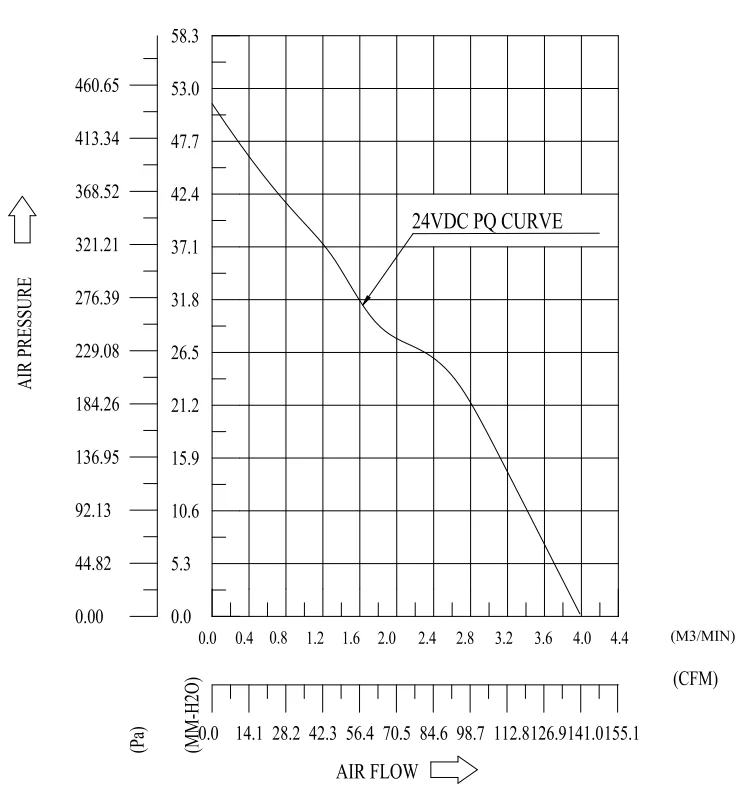

PQ Curve:
Shenzhen Yucheng Industrial Co.,Ltd.
As a professional agent of Cooling fans in China, we have obtained the qualification certificate of officially authorized agent issued by AVC(Asia Vital Components Ltd) and ADDA Corporation. And also supply excellent fan products of other brands. From 10mm mini fan to several meters diameter large fan, our product range covers the needs of a wide variety of industries!
AVC Standard Packaging(avc fans + shipping QC report)
AVC Brand Standard Packing Cartons
1. who are we?
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
4. why should you buy from us not from other suppliers?
5. what services can we provide?
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–999 piece: US $19.9 / piece
- 1000–4999 piece: US $18 / piece
- 5000+ piece: US $17.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this pwm controller?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the pwm controller be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
