The quadcopter drone brushless motor listed here carries material Metal, type MOTORS, documented exactly as the manufacturer publishes it. Made by Shenzhen Hobbywing Technology Co., Ltd. (4 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Quadcopter Drone Brushless Motor
- Model Number: XRotor x9
- Material: Metal
- Place Of Origin: Guangdong, China
- Type: MOTORS
- Stator Size: 96*16mm
- Single Package Size: 47X38X36 cm
Technical Specifications
| Type | MOTORS |
|---|---|
| Material | Metal |
| Age Range | 14 Years & up |
| Use | Vehicles & Remote Control Toys |
| Place Of Origin | Guangdong, China |
| Model Number | XRotor x9 |
| Maximum Thrust | 22kg/Axis |
| Rated Thrust | 7-11kg |
| Total Weight | 1524g |
| Propeller | 34*11 |
| Tube Diameter | D40mm |
| Battery Plate/Hook | 12-14S(LiPo) |
| Stator Size | 96*16mm |
| KV Rating | 110rpm/V |
| Waterproof Rating | IPX6 |
| Operating Temperature | -20~55℃ |
| Selling Units | Single item |
| Single Package Size | 47X38X36 cm |
| Single Gross Weight | 2.000 kg |
Product Details
Specification
Product Model | Hobbywing X9 | |
Maximum Thrust | 22.5kg/Axis (46V, Sea Level) | |
Recommended Takeoff Weight | 7-9.5kg/Axis (46V, Sea Level) | |
Recommended LiPo Battery | 12-14S（LiPo） | |
Combo Weight | 1524g | |
Operating Temperature | -20℃~55℃ | |
Motor | ||
Stator Size | 96*16mm | |
KV Rating | 110rpm/V | |
Powertrain arm tube outer dimeter | φ40 | |
Bearing | Imported Waterproof Bearing | |
ESC | ||
Recommended LiPo Battery | 12-14S LiPo | |
PWM Input Signal Level | 3.3V/5V(Compatible) | |
Throttle Signal Frequency | 50-500Hz | |
Operating Pulse Width | 1100-1940us(Fixed or cannot be Programmed) | |
Max. Input Voltage | 52.2V(Standard )， 61V(14S- Version) | |
Max. Input Current (Cont.) | 120A(w/ Good Heat Dissipation) | |
Max. Peak Current (10s) | 150A(w/ Good Heat Dissipation) | |
Mounting Holes for Nozzle | φ28.4mm-2*M3 | |
Propeller | ||
Diameter×Pitch | 3411/36190 | |
Products Description

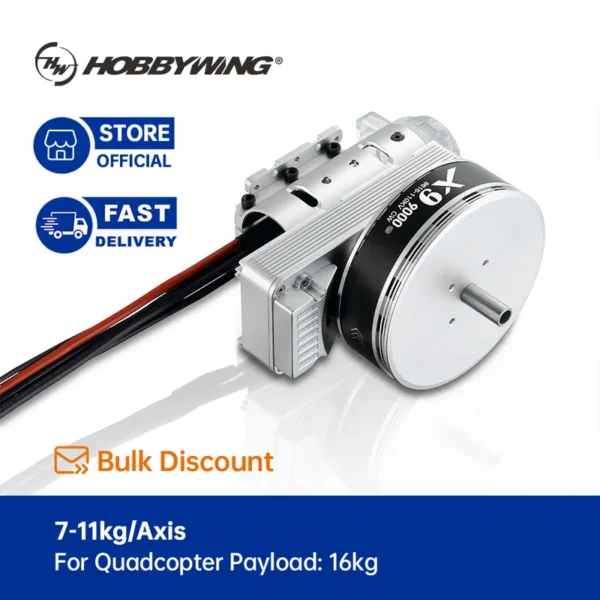

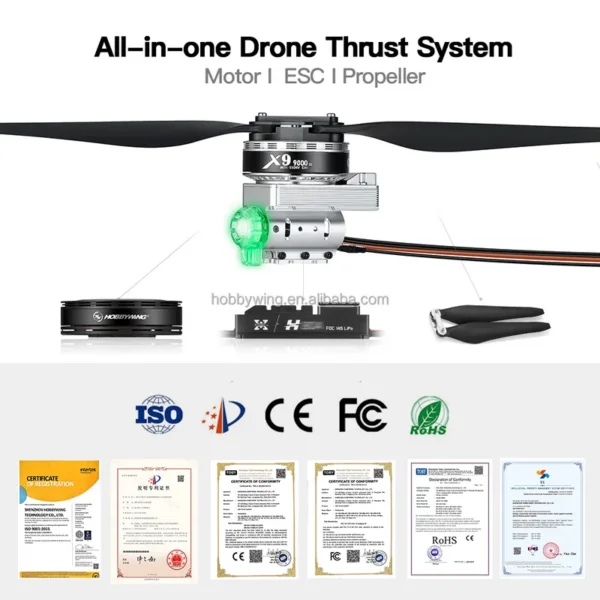

Tube-on-one Structural Design

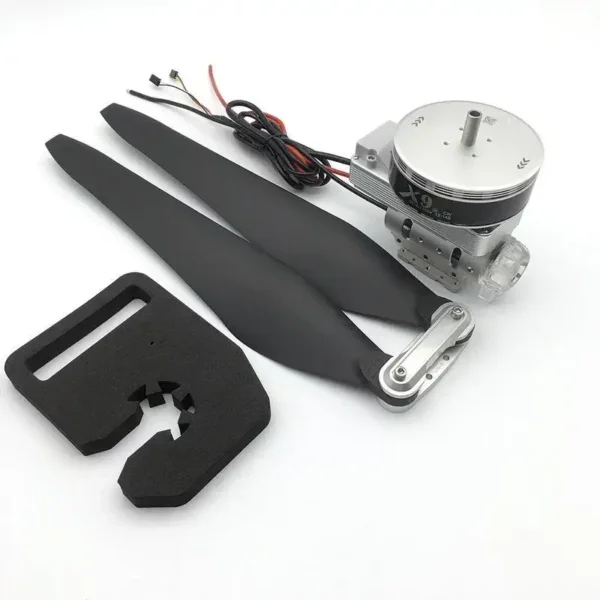

The X9 is three-dimensional and designed with an integrated motor and ESC as one. The installation of the light weight structure is convenient and can be matched with the circular carbon fiber tube (40mm). It can be used with 34.7 propellers or 3411 propellers or 36190 propellers.
High Performance Power System
The power system is smoother and improves the compatibility of the flight controller (can be used with more excellent flight controllers). The overall stability and reliability of the aircraft has increased with an improved flight effect. LED light color adjustment function remove the lampshade and uses the DIP switch to adjust the LED light color. Smarter, more compatible & the perfect powertrain.
Using FOC ESC (optimization algorithm based on field-oriented control)
Easy airworthiness 16kg load four-axis plant protection rotor aircraft or larger type.
23kg
Maximum Tension
7-10kg/axis
Heavy Load
All-weather Application
The X9 is equipped with an overall waterproofing protection of IPX7 rating.it guarantees excellent waterproofng and dustproofing protection. The X9 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.
Excellent Design for Heat Dissipation
Collision Avoidance Structure LED lights
The X9 motor seat-tail and anti-impact design absorbs impact, and protects both the motor and ESC from damaging caused by a malfunction crash.
Accessibility Interface
installation usinga variety of plant protection models for auxiliary applications to simplify the structure
Propellers Are Available with A Variety of Options
34.7 carbon fber propeller, 3411 carbon propeller,36190 carbon propeller
Multiple Protection Functions
The X9 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection, Current protection and Stall protection. lt is able to output an operating status data to the flight controller in real time including; input throttle amount, response throttle volume motor speed, bus voltage, bus
current, phase current, capacitor temperature and MOSFET temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. t improves the overall system reliability.
current, phase current, capacitor temperature and MOSFET temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. t improves the overall system reliability.
Note: Using the Hobbwwing Datalink data acquisition memory (Note: need to be purchased separately) can simultaneously collect the real-time data of the 8-channel power system, and pass it to the flight controller through the bus to form a closed-loop control system.
Company Profile
R&D Center in Shenzhen
Our Headoffice and R&D center in Shenzhen, Guangdong. Transportation is very convenient, it's close to HK, Shenzhen port and airport.

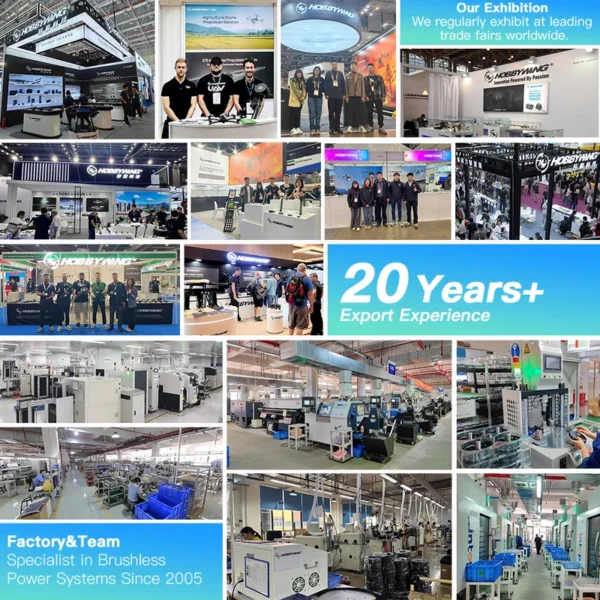

Manufacturing Base in Huizhou
Hobbywing has more than 1,000 employees and 160+ production equipment.
Production Strength
Raw Material Processing
Our brushless products from research and development to raw material processing, manufacturing is completed alone. Provide advanced technology at the same time, ensure quality, reduce costs, so as to provide customers with the best price, high quality products, and one-stop service.
Automated Production Equipment
Hobbywing has more than 20 years of R&D and production experience, production technology continues to mature, the introduction of a number of automatic production equipment, greatly improve efficiency, to ensure the quality of products. Stable production capacity, delivery on time, supply all over the world.
Test Equipment
We have rigorous quality inspection procedures to simulate real scenarios to ensure that products work well
Warehouse
Certifications
FACTORY CERTIFICATES
ISO9001
Intellectual Property Management System
Invention Patent
Utility Models
PRODUCT CERTIFICATES
ICES
Telec
CE
RoHS
FCC
FAQ
1. Why choose you?
This is Hobbywing direct store. Must offer you Best Price and Reliable Service.
We have 20 years experience of Permanent magnet brushless DC motor and ESC in manufacturing and R&D.
3. Can you offer Customized service?
Yes, we do both OEM and ODM.
5. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
6. What about the lead time for mass production?
It depends on the order quantity. If 2000pcs, it takes about 10-15days.
7. What’s your payment terms?
We have 20 years experience of Permanent magnet brushless DC motor and ESC in manufacturing and R&D.
2. Can I have a sample order?
Yes, we accept sample order to test and check quality.
Yes, we accept sample order to test and check quality.
3. Can you offer Customized service?
Yes, we do both OEM and ODM.
4. How to get the price?
ODM: Pls tell us your interested model and demand quantity, we will offer good price.
OEM: Pls tell us the details: size, quantity, printing/package etc request, we will calculate good price for you.
ODM: Pls tell us your interested model and demand quantity, we will offer good price.
OEM: Pls tell us the details: size, quantity, printing/package etc request, we will calculate good price for you.
5. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
6. What about the lead time for mass production?
It depends on the order quantity. If 2000pcs, it takes about 10-15days.
7. What’s your payment terms?
We accept T/T, Western Union, Paypal and MoneyGram, those depend on specific cases.
Ordering and Pricing
- Minimum order quantity: 10 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this quadcopter drone brushless motor?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
