External rotor motors — type Brushless DC Motor, 1000rpm 2000rpm 3000rpm. The complete factory specification follows. Made by Changzhou Smart Automation Motor Manufacturing Co., Ltd. (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These External Rotor Motors
- Model Number: B6020S Series
- Speed(RPM): 1000rpm 2000rpm 3000rpm
- Warranty: 3Years
- Certification: CE RoHS TIV UKCA ISO9001
- Place Of Origin: Jiangsu, China
- Protect Feature: Drip-proof
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 1000rpm 2000rpm 3000rpm |
| Efficiency | IE 1 |
| Type | Brushless DC Motor |
| Construction | Permanent Magnet |
| Protect Feature | Drip-proof |
| Usage | Fan, Home Appliance, Cosmetic Instrument, Smart Home, Machine Robotics Medical |
| Warranty | 3Years |
| Continuous Current(A) | customed |
| Model Number | B6020S Series |
| Torque | 50mNm 100mNm to 200mNm customizable |
| Place Of Origin | Jiangsu, China |
| Brand Name | Smart Automation |
| Certification | CE RoHS TIV UKCA ISO9001 |
| Selling Units | Single item |
| Single Package Size | 8X8X15 cm |
| Single Gross Weight | 5.0 kg |
Product Details

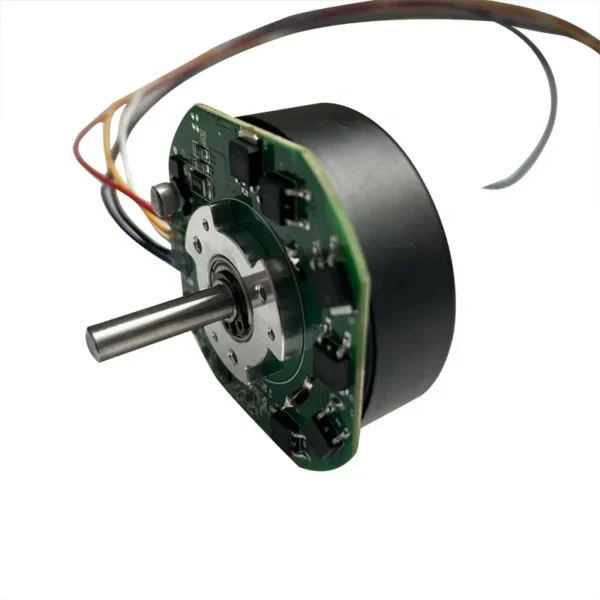

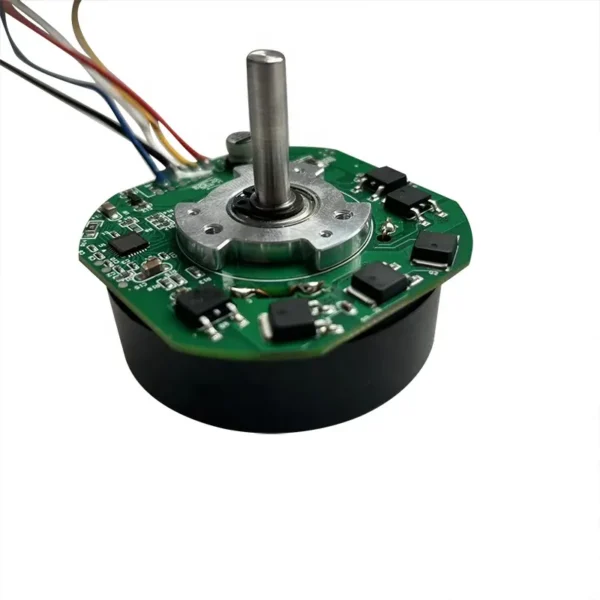

B6020S Outer Rotor BLDC Brushless Dc Motor
Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.
| Model | Voltage(V) | No load | Rated load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P.(W) | Torque (mNm) | Current (A) | |
| 8-26 | 3975 | 0.19 | 168 | 2948 | 2.83 | 51.87 | 644 | 4.3 | ||
| B6020S-S02 | 8-26 | 24 | 2606 | 0.11 | 158.1 | 1940 | 1.75 | 31.13 | 618 | 3.5 |
| B6020S-S03 | 8-26 | 12 | 1659 | 0.13 | 88.3 | 1334 | 1.42 | 12.33 | 450 | 3.5 |
| B6020S-S04 | 8-26 | 24 | 2223 | 0.10 | 130 | 1725 | 1.34 | 23.49 | 580 | 3.5 |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–999 piece: US $35 / piece
- 1000+ piece: US $13 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motors?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this external rotor motors carry?
It is supplied with CE RoHS TIV UKCA ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Smart Automation Motor Manufacturing Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Changzhou Smart Automation Motor Manufacturing Co., Ltd. range on HVACR Nexus.
