This quality cooling water chiller is published with the manufacturer’s full specification — 220V, 12798W. Made by Foshan Yini Technology Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Quality Cooling Water Chiller
- Model Number: FP-136
- Power Supply: 220V
- Rated Heating Capacity: 12798W
- Rated Cooling Capacity: 8179W
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Wall / Window Mount |
| Compressor Brand | No |
| Fan Motors Type | AC |
| Key Selling Points | Energy Saving |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |

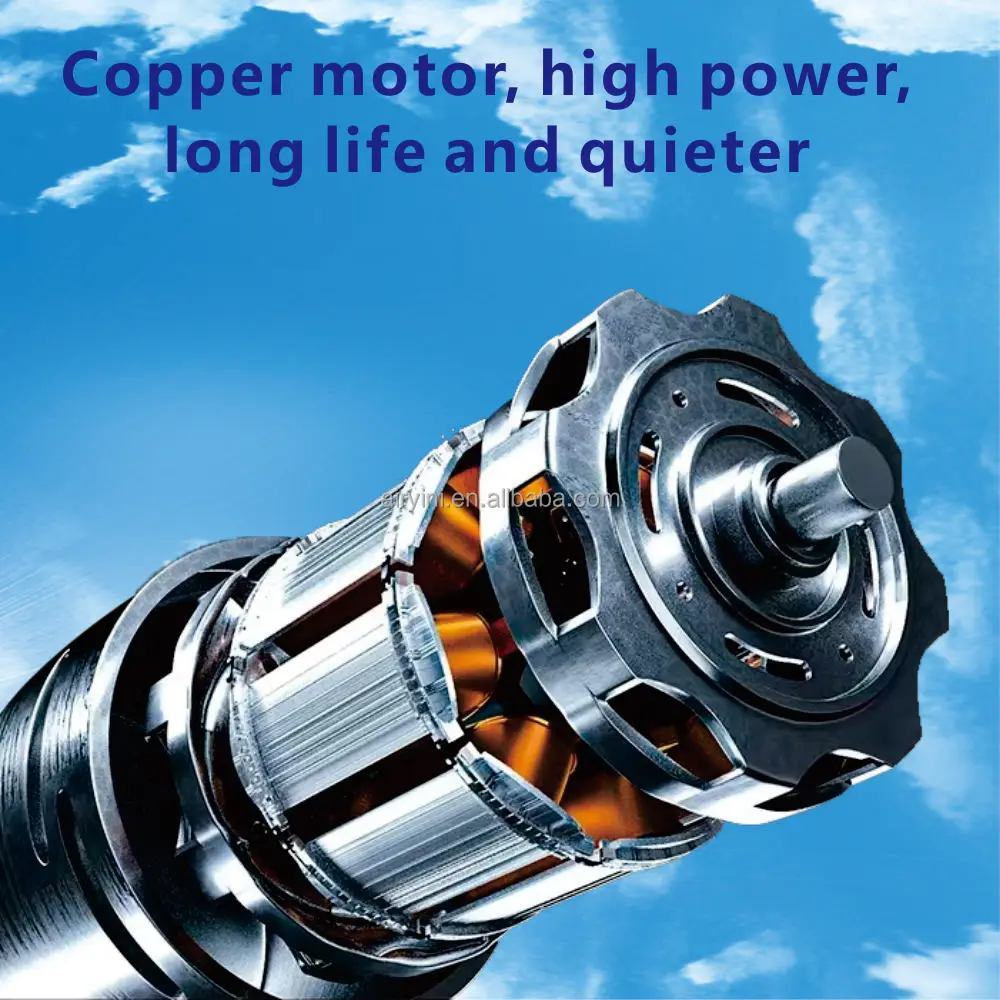

| Core Components | Motor, Bearing, PLC |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 26.7 |
| Brand Name | AIRYINI |
| Model Number | FP-136 |
| Dimension(L*W*H) | 136cm*44cm*20cm |
| OEM/ODM | Available |
| Function | House Heating Cooling |
| Rated Heating Capacity | 12798W |
| Rated Cooling Capacity | 8179W |
| Power Supply | 220V |
| Controller | Wifi Smart Control |
| Installation | Horizantol Concealed Mounted |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | 141X49X25 cm |
| Single Gross Weight | 31.0 kg |

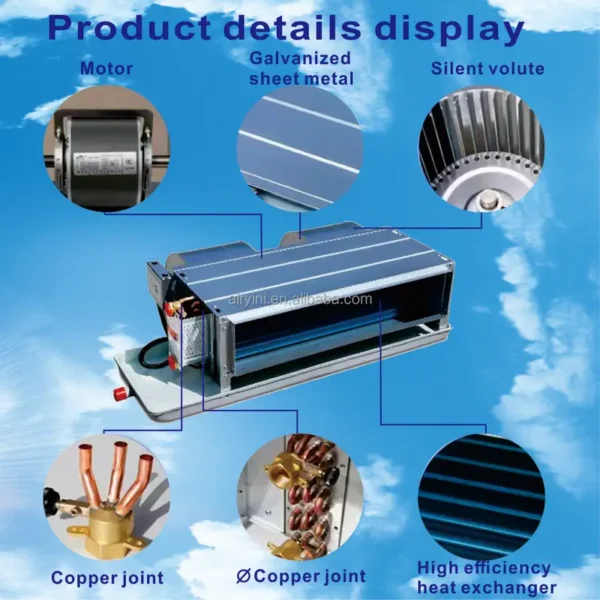

Product Details

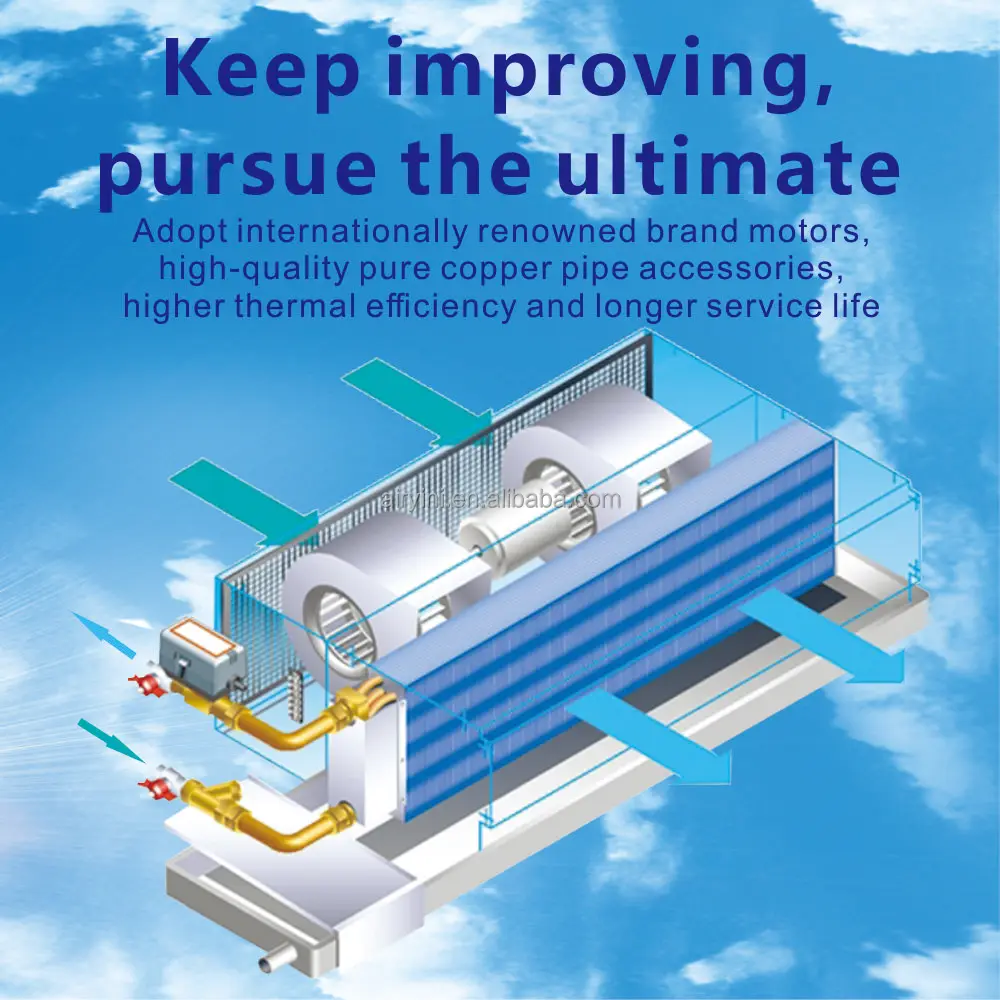

Compared with the traditional heating radiators, AIRYINI Ultra-thin Water Fan Coils can save more than30% energy consumption. The advanced control makes well-proportioned temperature distribution andpeople feel more comfortable. When combined with heat pump units, the fan coil units can meet differentheating or cooling requirements. the unitsstand out of the terminal markets.
| Model | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP –204 | FP –238 | |
| Rated air volume(m³/h) | H | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| M | 260 | 390 | 510 | 640 | 770 | 1020 | 1280 | 1530 | 1790 | |
| L | 170 | 260 | 340 | 430 | 510 | 680 | 850 | 1020 | 1190 | |
| Rated cooling capacity(W) | H | 2545 | 3767 | 4355 | 5322 | 6844 | 8179 | 10260 | 11550 | 13400 |
| Rated heating capacity(W) | H | 3690 | 5534 | 7380 | 8154 | 10039 | 12798 | 15812 | 18973 | 21677 |
| Input power(W) | H | 47 | 53 | 75 | 89 | 108 | 156 | 174 | 208 | 258 |
| Noise(dB(A)) | H | 40 | 42 | 44 | 46 | 47 | 48 | 50 | 52 | 54 |
| Power supply | 220V/50Hz~60Hz | |||||||||
| Fan quantity | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | |
| Motor quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Water volume(kg/h) | 438 | 648 | 745 | 917 | 1177 | 1407 | 1764 | 1986 | 2304 | |
| Water pressure loss(kpa) | ≤15 | ≤30 | ≤30 | ≤30 | ≤40 | ≤40 | ≤40 | ≤40 | ≤50 | |
| Inlet and outlet pipes | G3/4" | |||||||||
| Condensate pipe | G3/4" | |||||||||
| Dimension(cm) | 76x44x20 | 86x44x20 | 96x44x20 | 106x44x20 | 116x44x20 | 136x44x20 | 166x44x20 | 186x44x20 | 206x44x20 | |
| Weight(kg) | 12.4 | 14.8 | 16.1 | 18.3 | 20.8 | 26.7 | 31.9 | 34.7 | 38.1 | |
| 1. Cooling: Inlet and outlet water temperature 7℃/12℃, inlet air dry bulb temperature 27℃, wet bulb temperature 19.5℃, 2. Heating: Inlet and outlet water temperature 60℃/50℃, inlet air dry bulb temperature 21℃. | ||||||||||
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $220 / piece
- 100–499 piece: US $215 / piece
- 500+ piece: US $210 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this quality cooling water chiller?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the quality cooling water chiller be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Yini Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Yini Technology Co., Ltd. range on HVACR Nexus.
