This inverter water chiller is published with the manufacturer’s full specification — 220 V, 380 V, 110 V, 68KW. Made by Foshan Yini Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Inverter Water Chiller
- Model Number: YINI-200S-LS
- Power: 20KW
- Input Power: 20KW
- Power Supply: 220V/380V
- Voltage: 220 V, 380 V, 110 V
- Cooling Capacity: 68KW
Technical Specifications
| Voltage | 220 V, 380 V, 110 V |
|---|---|
| Power | 20KW |
| Compressor Brand | Copeland, Sanyo, Emerson |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Energy Saving |
| Core Components | Motor, Pump, PLC |
| Model Number | YINI-200S-LS |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 700 |
| Brand Name | AIRYINI |
| Dimension(L*W*H) | 180cm*90cm*195cm |
| Working Temperature Range | 0~53℃ |
| OEM/ODM | Available |
| Type | Air Cooled Water Chiller |
| Function | Cool water |
| Cooling Capacity | 68KW |
| Input Power | 20KW |
| Power Supply | 220V/380V |
| Min Cool Water Temperature | 5 degrees |
| Controller | Wifi Smart Control |
| Compressor Type | Scroll compressor |
| Expansion Valve | Electronic expansion valve |
| Selling Units | Single item |
| Single Package Size | 190X100X210 cm |
| Single Gross Weight | 750.0 kg |
Product Details

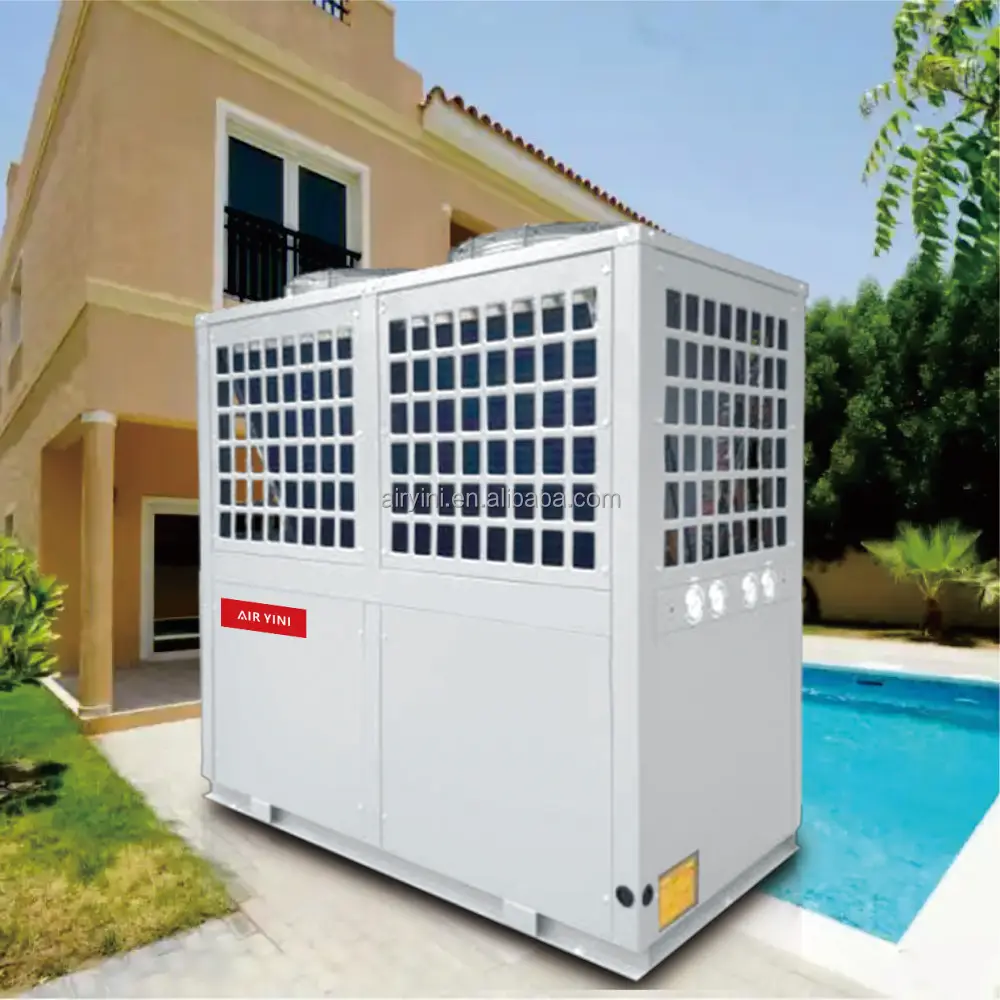

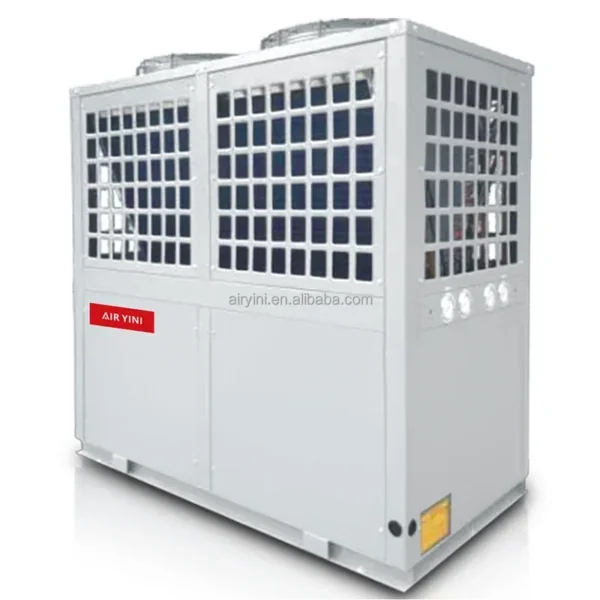

AIRYINI Air Cooled Water Chiller is specially designed for the need of sanitary chilled water in tropical regions of the gulf areas, where the ambient temperature in summer can even go up to as muchas 53°C, causing the rooftop tank water reach unbearable temperatures. The unit works as a chillerin summer, offering the maximum comfort the whole year through. They chill the roof top tank water to a comfortable temperature ideal foruse in bathroom and kitchen, suchas shower, bath, washing, laundry cooking, drinking and cleaning etcIt uses a CFC free, eco-friendly R410A refrigerant which is highly efficient and has no depletion too zone layer.

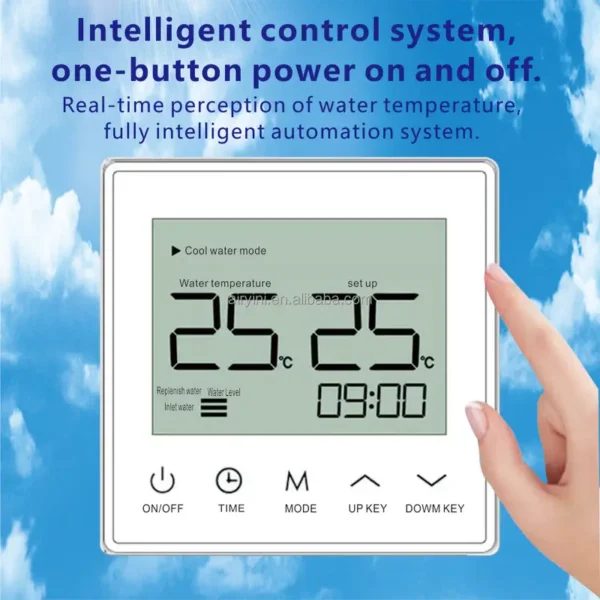

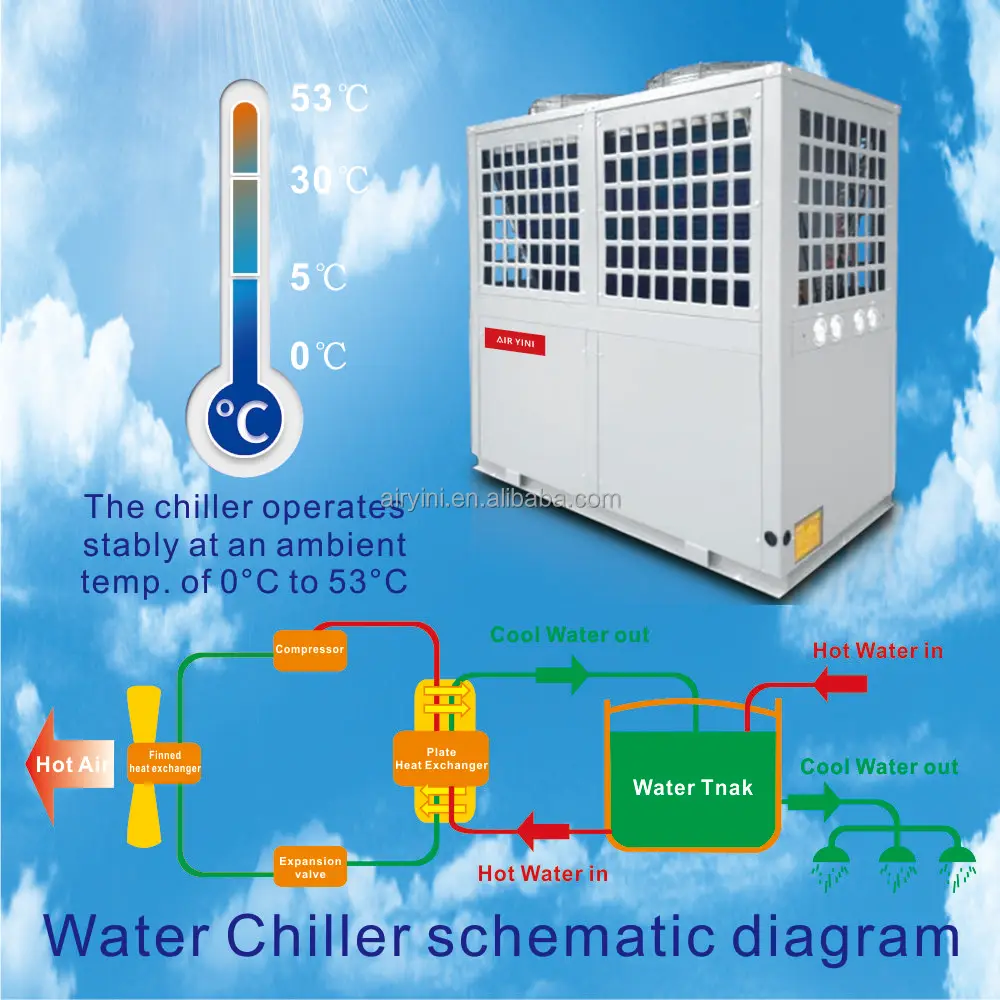

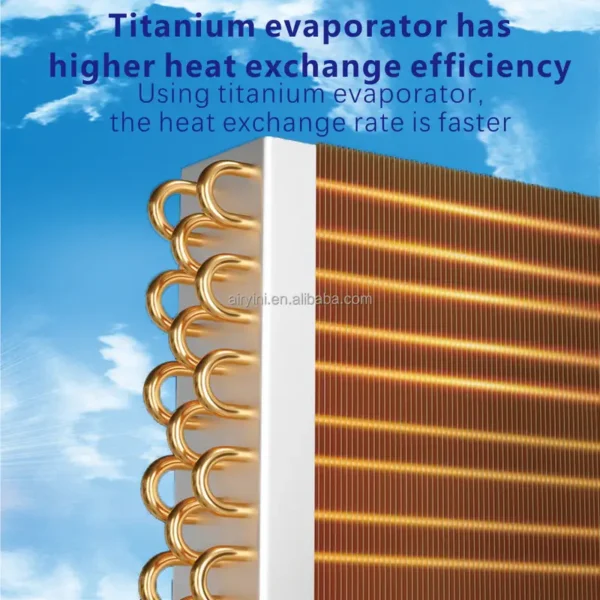

The system consists of a refrigerant circuit and a water circuit. The refrigerant circuit is composed of a compressor, a condenser coil a brazed SUS316 plate heat exchanger and an expansion valve. The refrigerant absorbs heat from the water passing by the plate heat exchanger, by which the water temperature is reduced. The whole system is controlled by an intelligent digital controller with a friendly user interface.

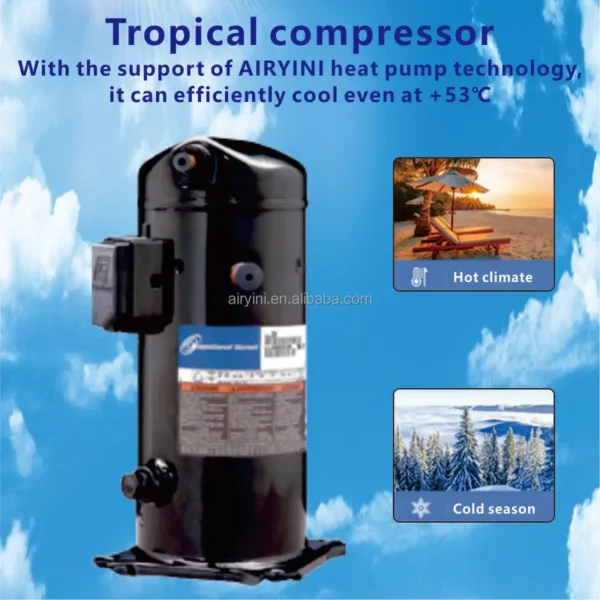

It uses world top brand rotary and scroll compressors, whichis of high efficiency and quiet operation and is tropical for high ambient conditions.
| MODEL | YINI-020-LS | YINI-030-LS | YINI-050S-LS | YINI-100S-LS | YINI-200S-LS | YINI-250S-LS | YINI-400S-LS | YINI-500S-LS | ||
| Power supply | / | 220V/50Hz-60Hz | 380V/3N/50Hz-60Hz | |||||||
| Cooling mode | / | Circulating | ||||||||
| IP code | / | IPX4 | ||||||||
| Cooling capacity | Normal temperature condition (A35W25) | kw | 7.0 | 10.5 | 17 | 34 | 68 | 80 | 136 | 160 |
| Input power | kw | 2.2 | 3.3 | 4.9 | 9.8 | 20 | 25 | 40 | 50 | |

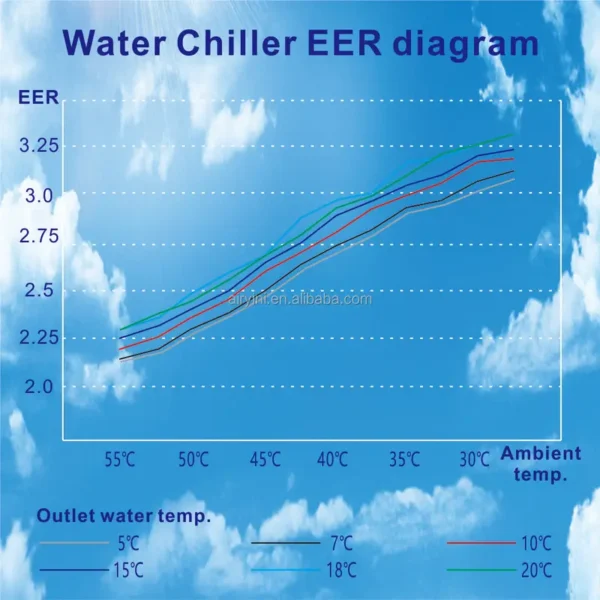

| EER | w/w | 3.2 | 3.2 | 3.5 | 3.5 | 3.4 | 3.2 | 3.4 | 3.2 | |
| Cooling capacity | high temperature condition (A46W25) | kw | 5.9 | 8.9 | 14.4 | 28.8 | 56.5 | 67 | 113 | 133 |
| Input power | kw | 2.6 | 3.9 | 5.8 | 11.6 | 23.6 | 29.5 | 47.2 | 59 | |
| EER | w/w | 2.3 | 2.3 | 2.5 | 2.5 | 2.4 | 2.3 | 2.4 | 2.25 | |
| Max. running current | A | 15 | 17 | 14 | 28 | 45 | 55 | 90 | 110 | |
| Minimum outlet temperature | ℃ | 5 | ||||||||
| Maximum ambient temperature | ℃ | 53 | ||||||||
| Compressor | Brand | / | Scroll | |||||||
| QTY | PCS | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 4 | |
| Refrierantg | / | R407C / R410A / R32 | ||||||||
| Fan motor | PCS | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | |
| Water yield | m³/h | 1.2 | 1.8 | 2.9 | 5.8 | 11.7 | 13.8 | 23.3 | 27.5 | |
| Circulating pipe diameter | / | G3/4" | G3/4" | G1.0" | G1.5" | G2.0" | G2.0" | G3.0" | G3.0" | |
| Air out type | / | Side discharge | Top discharge | |||||||
| Controller | / | Micro processor based digital wire controller with LCD display | ||||||||
| Noise | dB(A) | 56 | 56 | 56 | 58 | 68 | 68 | 68 | 68 | |
| Dimension | cm | 107x44x80 | 107x44x80 | 75x69x107 | 150x69x107 | 180x90x195 | 180x90x195 | 220x115x233 | 220x115x233 | |
| Packing dimension | cm | 111x51x97 | 111x51x97 | 80x74x120 | 160x74x120 | 190x100x210 | 190x100x210 | 230x125x248 | 230x125x248 | |
| Net weight | kg | 100 | 110 | 130 | 350 | 700 | 750 | 1000 | 1050 | |
| Gross weight | kg | 120 | 130 | 150 | 380 | 750 | 800 | 1050 | 1100 | |
| Note: 1.Normal temperature condition: outdoor air temp. 35℃ DB/24℃ WB, inlet water temp. 30℃, outlet water temp.25℃. 2.high temperature condition: outdoor air temp. 46℃ DB/24℃ WB, inlet water temp. 30℃, outlet water temp.25℃. | ||||||||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $4000 / piece
- 10–99 piece: US $3900 / piece
- 100+ piece: US $3800 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inverter water chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the inverter water chiller be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Yini Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Yini Technology Co., Ltd. range on HVACR Nexus.
