Quality Suitable for Fan, FP-68

The quality suitable for fan listed here carries model number FP-68, documented exactly as the manufacturer publishes it. Made by Shandong Volks Air Conditioner Group Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Quality Suitable For Fan

• Model Number: FP-68
• Warranty: 2 Years
• Place Of Origin: Shandong, China
• Application: Office Building
• Single Package Size: 75X40X20 cm
• Single Gross Weight: 40.0 kg

Technical Specifications

Product Details

Product Description

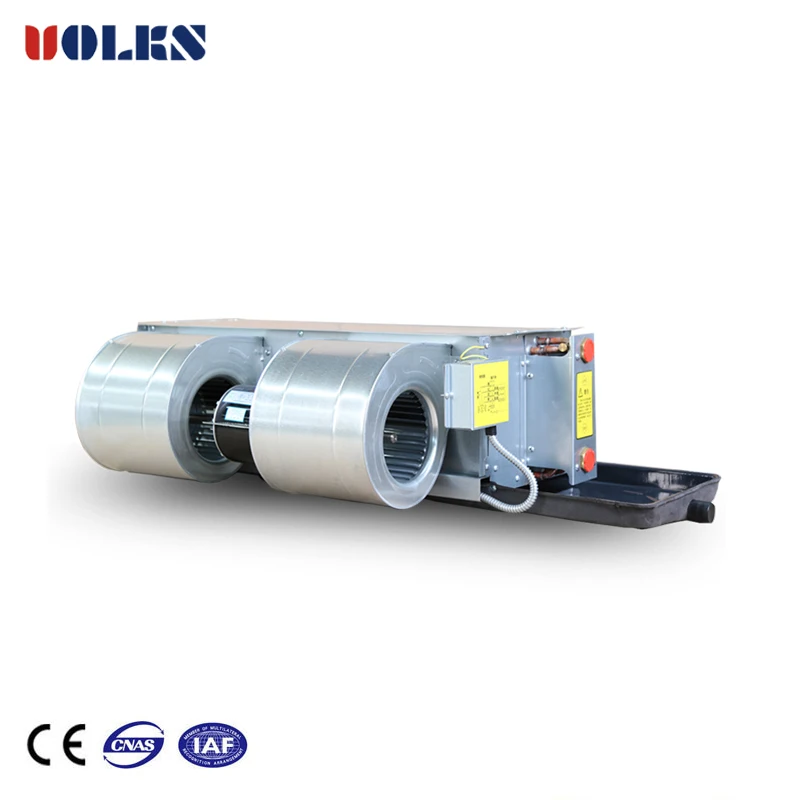

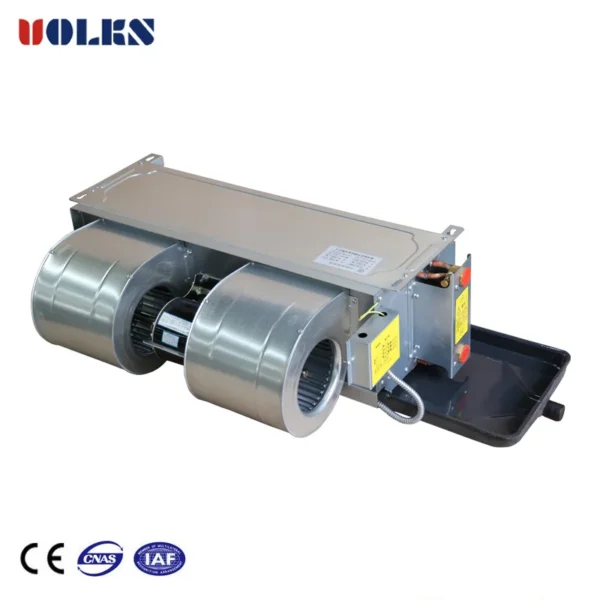

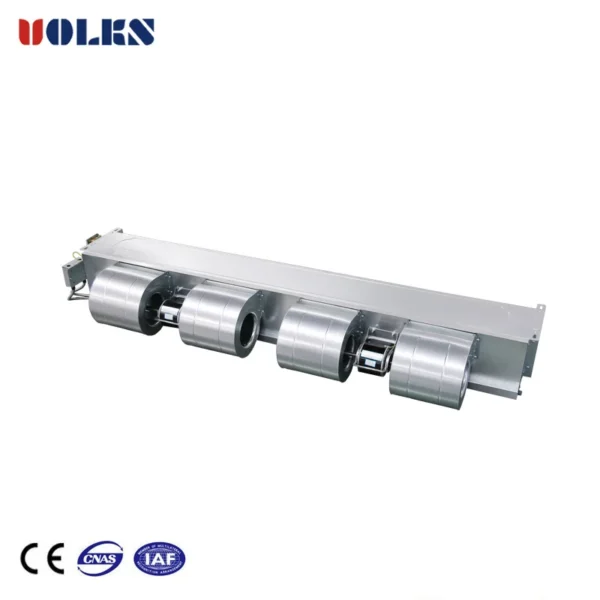

Features of fan coil unit More security, more reliable, and more service life Each fan-coil heat exchanger will be undergone pressure leak detection. The inlet and outlet are of forged brass structure, which is reliable and durable. All materials are well fireproof. The motors are with overheating and power failure protection devices. With free- maintenance Ultra-low noise rolling bearings, the service life can reach up to 35,000 hours. The shaft of the motor is specially treated without rust. The casing is made of high-quality cold-rolled steel plate, sprayed plastic or hot-dip galvanized steel plate, which is mechanically bitten into the shape, which is strong and anti-corrosive.

High performance, high efficiency The coil are equipped with seamless red copper tube string with high-efficiency corrugated aluminum fin structure, which is integrated by mechanical expansion. The combination is tight enough to make sure a higher heat transfer efficiency , a more sufficient heating efficiency , and a dust free surface . Advanced technology with lower noise The fan impeller has no welding points as a whole, and the wheel frame ring is tightly integrated and never deformed. The double-inlet forward-leaning airfoil centrifugal galvanized steel wind wheel has undergone strict dynamic and static balance tests. The air is transmitted in a streamlined manner to reduce vortexes. The generation of swirling air reduces the noise generated during air friction, and the unit runs more smoothly and quietly. Beautiful appearance, easy maintenance The unit is with humanized design for easily maintain and repair. The unit filter can also be cleaned at any time.

Model Name		FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Power Supply		1 phase, 220-240V, 50
Air Flow(M3/H)	H	340	510	680	850	1020	1360	1700	2040
		M	255	383	510	638	765	1020	1275	1530
		L	170	255	340	425	510	680	850	1020
Cooling(W)	H	1800	2700	3600	4500	5400	7200	9000	10800
		M	1440	2160	2880	3600	4320	5760	7200	8640
		L	1170	1755	2340	2925	3510	4680	5850	7020
Heating(W)	H	2700	4050	5400	6750	8100	10800	13500	16200
		M	2160	3240	4320	5400	6480	8640	10800	12960
		L	1755	2633	3510	4388	5265	7020	8775	10530
Power Input(W)	12Pa	37	52	62	76	96	134	152	189
		30Pa	44	59	72	87	108	156	174	212
		50Pa	49	66	84	100	118	174	212	189
Noise dB(A)	12Pa	37	39	41	43	45	46	48	50
		30Pa	40	42	44	46	47	48	50	52
		50Pa	42	44	46	47	49	50	52	54
Fan	Type	Forward multi – wing centrifugal double suction fan
	Qty	1	2	2	2	2	3	4	4
Motor	Type	Permanent capacitive three-speed motor
	Qty	1	1	1	1	1	2	2	2
Heat Exchanger		Copper tube and aluminum fin
Water Flow()	m3/h	0.39	0.55	0.7	0.82	0.91	1.34	1.59	1.8
Pressure Drop	kPa	12	16	20	23	26	28	32	38
Pipe Size		DN20 Internal thread
Drain pipe		3/4’’ External thread
Net Weight
without plemun		14	15	17	19	20	27	32	35
with plemun		17	19	20	22	25	31	37	42

Details Images

Company Profile

Shandong Volks Air Conditioning Group co.,ltd., established in 2011, as a professional central air conditioning manufacturer in China, we are engaged in the research, development, sale and after sale service of modular chiller and heat pump, water/air cooled screw chiller, water source heat pump, packaged rooftop unit, duct split unit, fan coil unit, air handling unit, etc. All kinds of products have passed the inspection of the National Air Conditioning Testing Center; We also established our owner major labs: national standard central air conditioning laboratory, and heat pump dryer laboratory. Our factory is located in Dezhou city, Shandong province, it is more near Beijing with about 75 minutes by high speed train. We have more than 100,000m3 workshop, and total more than 260 employees till now. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained CRAA, ISO9001, ISO14001 and ISO45001 system, AAA credit rating certificates. Selling well in all cities and provinces around China, and also exported to oversea market with many countries. We also welcome OEM and ODM orders.

Certifications

Packing & Delivery

FAQ

Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. Any other good service your company can provide? A3. Yes,we can provide good after-sale and fast delivery

Ordering and Pricing

• Minimum order quantity: 10 unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this quality suitable for fan?

The standard minimum order quantity is 10 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Volks Air Conditioner Group Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shandong Volks Air Conditioner Group Co., Ltd. range on HVACR Nexus.
