The recirculating small glycol chiller listed here carries 220V/50Hz, power source Electric, documented exactly as the manufacturer publishes it. Made by Henan Touch Science Instruments Co., Ltd. (10 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Recirculating Small Glycol Chiller
- Power Source: Electric
- Power(W): 40W
- Voltage: 220V/50Hz
- Material: High Borosilicate Glass
- Rotating Speed: 0~180rpm
- Warranty: 1 Year
Technical Specifications
| Processing | Vacuum Distillation |
|---|---|
| Power Source | Electric |
| Core Components | PLC, Motor, Pressure Vessel, Glassware |
| Voltage | 220V/50Hz |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy to Operate |
| Power(W) | 40W |
| Place Of Origin | Henan, China |
| Brand Name | Touch Science |
| Dimension(L*W*H) | 1010*610*470 mm |
| Application Industries | Chemical Separation,Distillation |
| Material | High Borosilicate Glass |
| Vacuum Degree | 133Pa |
| Evaporating Flask | 2L |
| Rotating Speed | 0~180rpm |
| Receiving Flask | 1L |
| Evaporation Rate(H2O) | ≥1.5L/h |
| Lifting Mode | Water(Oil) bath mannal lifting |
| Sealing | PTFE |
| Item | Lab Recirculating Chiller Rotary Evaporator Unit Rotovap |
| Packaging Details | Lab Recirculating Small Glycol Chiller Rotary Evaporator Water Chiller Unit Rotovap 2L with Chiller Packing Size: 650*420*540 21kg 1 Unit/CTN HS Code: 84194090.90 |
| Port Of Dispatch | Zhengzhou, Beijing, Shanghai |
| Selling Units | Single item |
| Supply Ability | 300 sets per Month Lab Recirculating Chiller Rotary Evaporator Unit Rotovap |
Product Details

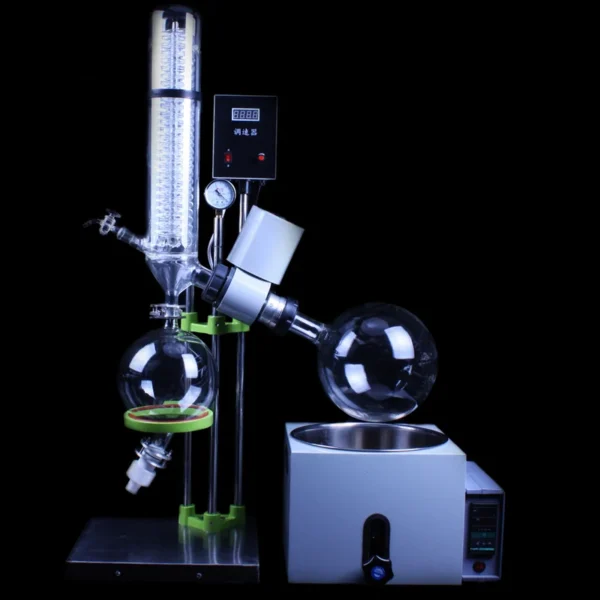

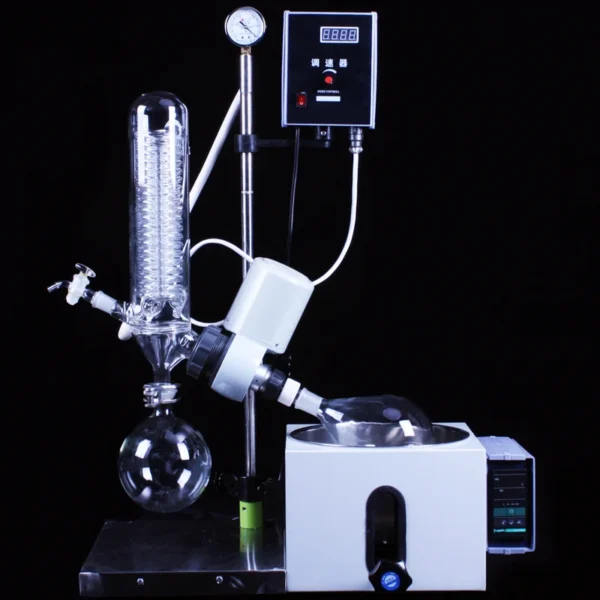

Lab Recirculating Small Glycol Chiller Rotary Evaporator Water Chiller Unit Rotovap 2L with Chiller
Rotary evaporators, also called "rotavaps" in lab slang, are used to remove solvents from reaction or extraction mixtures, the process of reducing the volume of a solvent by distributing it as a thin film across the interior of a vessel at elevated temperature and reduced pressure. This promotes the rapid removal of excess solvent from less volatile samples. They are found in almost every organic laboratory. the primary use of a rotovap is to dry and purify samples for downstream applications.
Applications:
Flavor extraction/food industry
Solvent removal/separation and recycling
Chemical/educational/fuel/environmental
Sample concentration
HPLC and natural product sample prep
Drying down powders (using test tube adapter)
Trapping hazardous waste liquid
Detail Show of Lab Recirculating Chiller Rotary Evaporator Unit Rotovap:

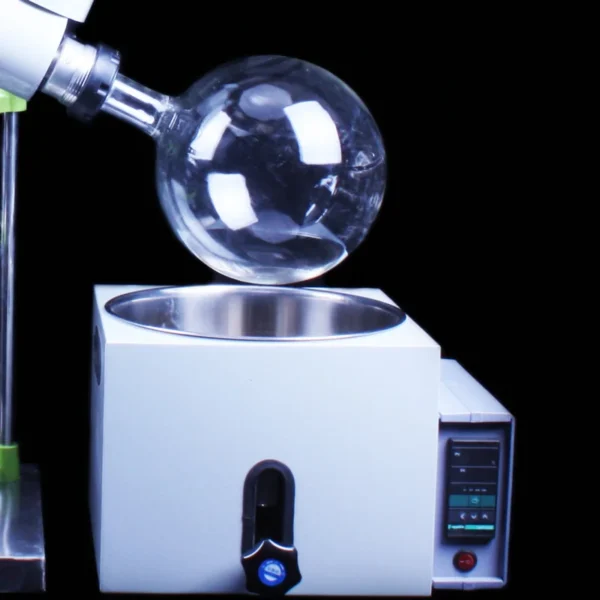

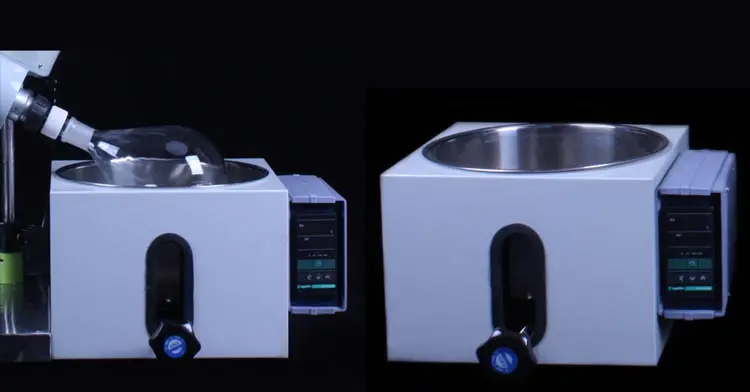

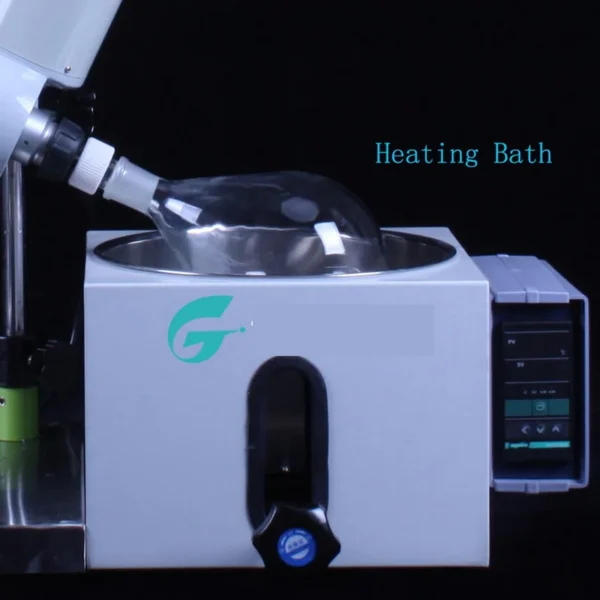

The Heating Bath:
# Optimisation of Intelligent temperature control and heat transfer
# Fully enclosed heating, constant temperature, efficient and durable.
# More homogeneous distribution of temperature achieved in the heating bath and evaporation flask.

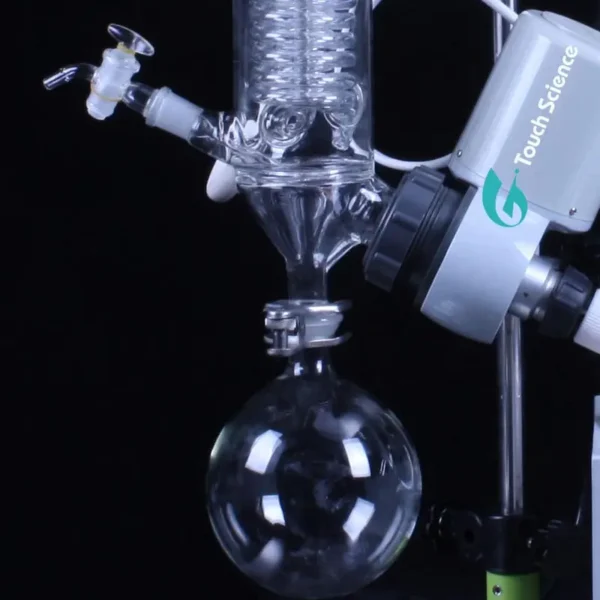

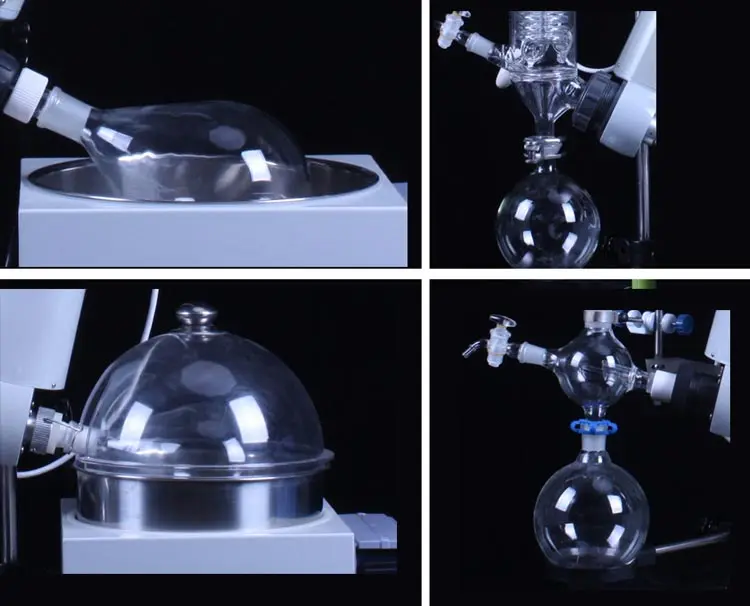

The Flasks:
# PTFE/glass liquid pathway for chemical inertness.
# Anti-pollution, Anti-corrosion, Heat-resistant.
# Easily recover the condensed liquid while maintaining low pressure
# Advantages of rotation: Increase evaporating area;The risk of boiling delay is reduced;No localized overheating; No crust formation
# Heat preservation splash-proof cover is optional. Double reciever cross Bottle is optional.

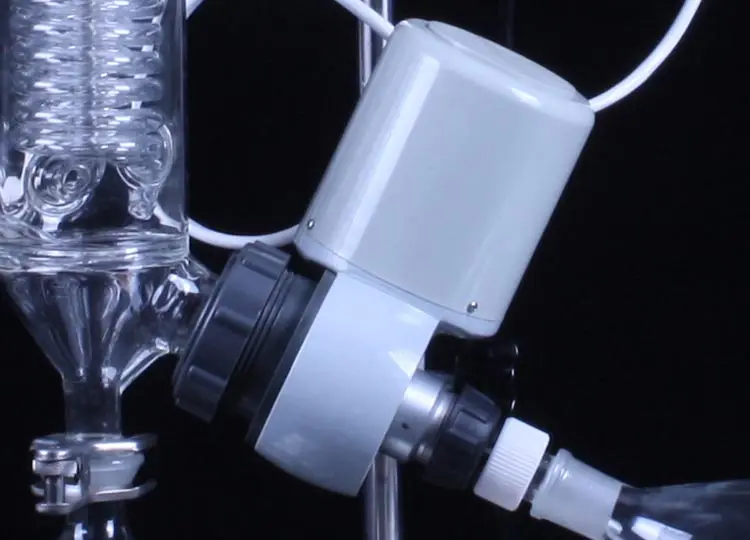

The Rotation:
# Quiet and low vibration. Strong force and steady rotation
# Brushless, sparkless high-torque induction motor for constant rotation.
# Explosion-proof motor optional.

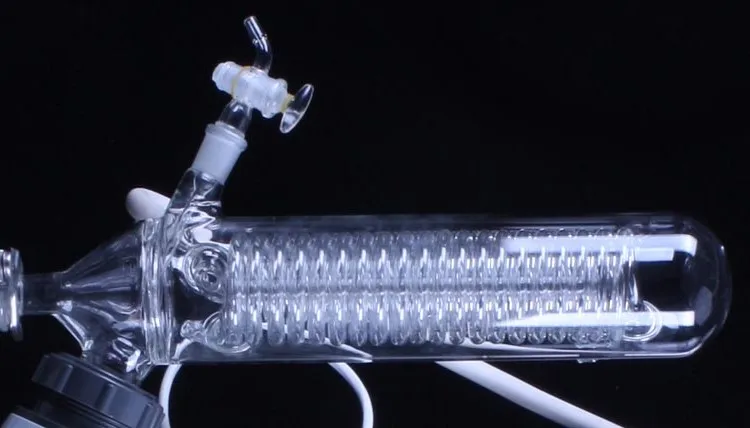

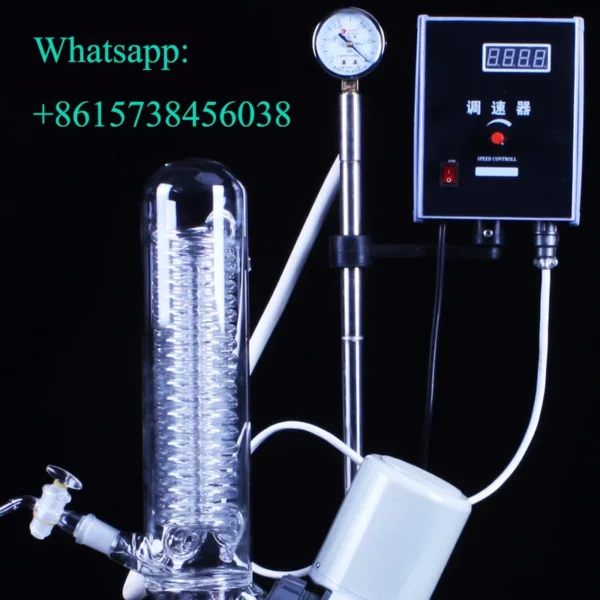

Spiral Condenser:
# The spiral coil increase surface area of the condenser to provide excellent cooling
# Better condensation effect and higher recovery rate
# V type (vertical) condenser can prevent the condensed solution to reflux into sample flask
Parameters of Lab Recirculating Chiller Rotary Evaporator Unit Rotovap:

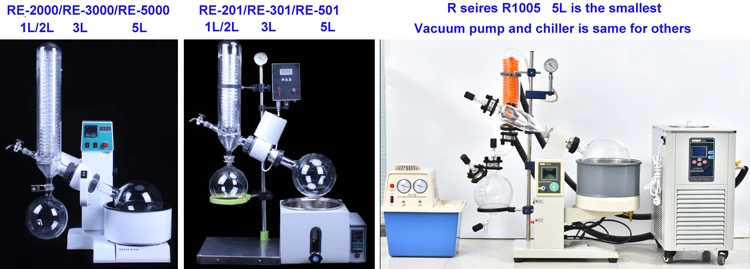

| Model | RE-2000 | RE-3000 | RE-5000 | RE-201 | RE-301 | RE-501 | R1005 |
| Evaporating Flask(L) | 1L , 2L | 3 | 5 | 1L , 2L | 3 | 5 | 5 |
| Receiving Flask(L) | 1 | 2 | 2 | 1 | 2 | 2 | 2 |
| Motor power(W) | 40w | 30 | 40 | 100 | |||
| Rotating Speed | 0~180rpm | 0~120rpm | 20~140rpm | ||||
| Vacuum degree: | <133pa(1.33mbar,1Torr,0.098Mpa) | ||||||
| Water bath power | 1.5KW | 1.5KW | 2kw | 2KW | |||
| Lifting Model | Automatical | hand lifting | Automatical | ||||
| Temp range | RT-99℃ | RT-399℃ | |||||
| Display | Digital (LCD is optional) | Digital display | |||||
| Voltage | 220V/50Hz or 110V/60Hz | ||||||

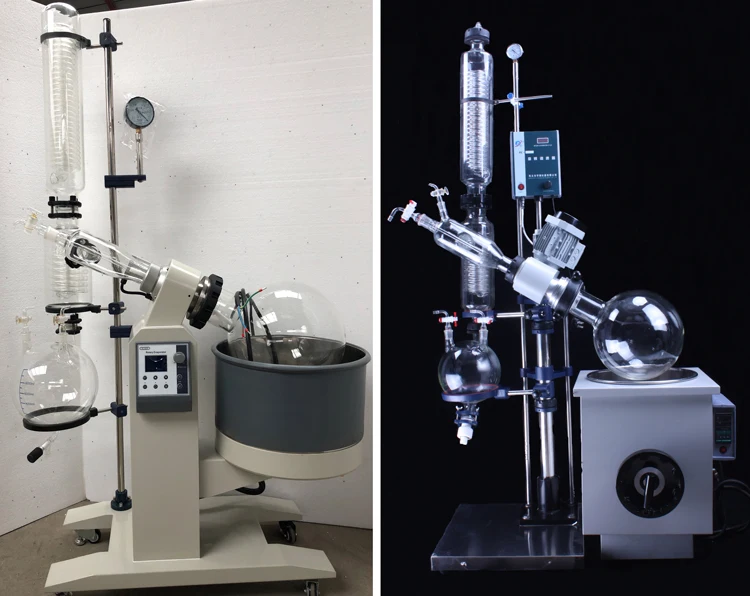

Two Types Big Size can be with 10L, 20L, 50L:
Other Distillation Equipments:

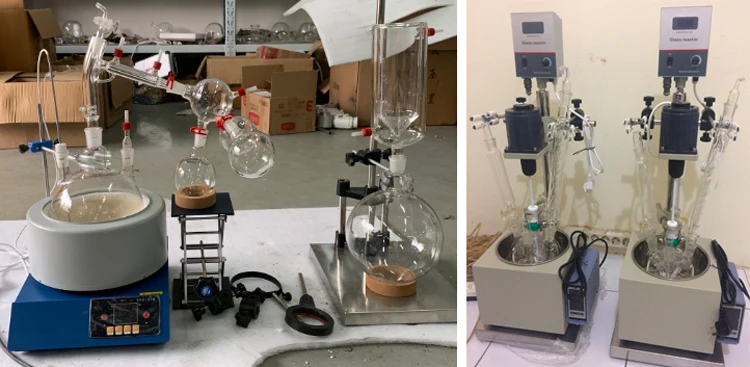

Short path distillation and Single layer glass reactor with heating bath
1. Air plus delivery is our first recommendation, you can offer delivery address and zip code advancely, we can quote you with shipping cost instantly..
2. Express is a good choice when the goods is small or light..Gennerally, we will recommend the air plus delivery or Express according the goods Packing condition.
3. if you can do customs and take delivery at airport, Air to aiport is a cheap way.
4. of course, the sea cost is cheapest, but, only your order is big enough and no hurry, it will be a excellent choice.
5. if you have shipping agent, we are fine with that..anyway, it is negotiable.

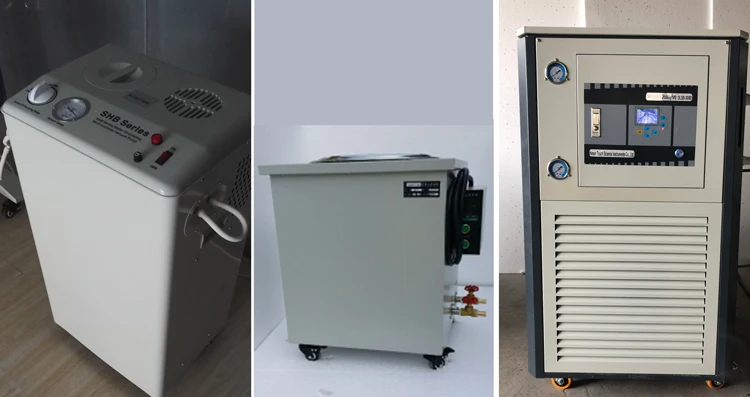

Vacuum Pump Circulation Water Bath Recirculating Chiller

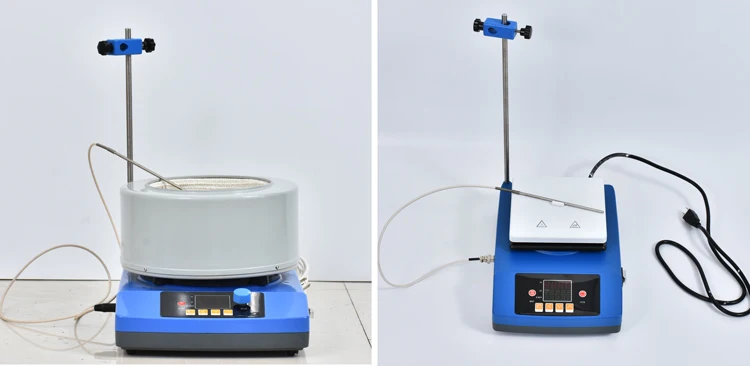

Heating Mantle / Hot Plate with Magnetic Stirrer

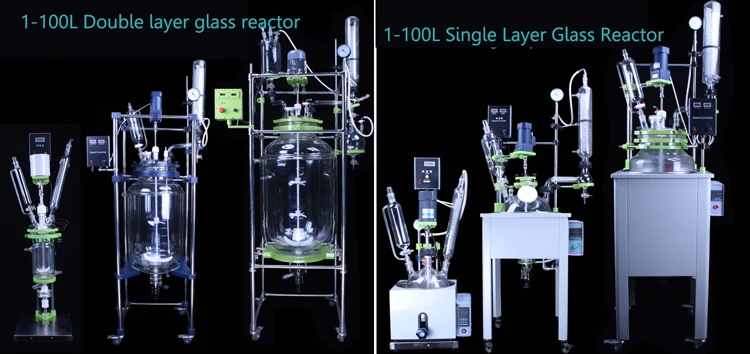

1-100L Jacket or Single Layer Glass Reactor

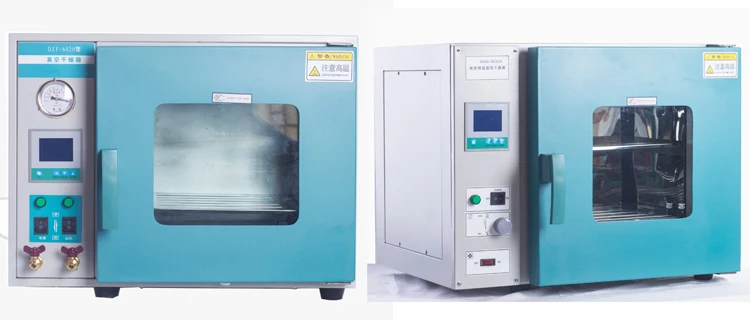

Vacuum Drying Oven Blast Drying Oven
Henan Touch Science Instruments Co.Ltd

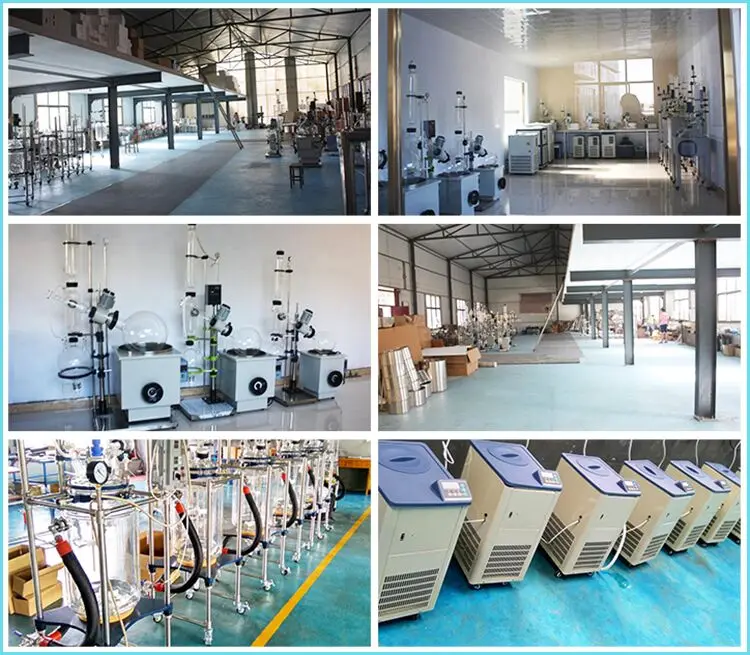

Founded and based in Henan, China, Touch Science is is a professional manufacturer and exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 15 years of manufacturing experience with Lab Recirculating Chiller Rotary Evaporator Unit Rotovap, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europe, Chile, Japan, India, etc.
We attach importance to every customer and every order. 100% customer satisfaction is always our first priority. We provide quantity discounts and will reply to your requests within the same business day. Our goal is to build up business partnerships with friends around the world.
Website Forbid Other Instant Communication Ways Just Click ! !
Or Quietly Follow MyIG: Merlin Yang
Henan Touch Science Instruments Co., Ltd
Add: Room 1005, Block B, Huanqiu Building, 127 Zhengbian Road, Jinshui District, Zhengzhou City, Henan Province, China
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this recirculating small glycol chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the recirculating small glycol chiller be supplied for my local voltage?
The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
