The refrigerator listed here carries type Asynchronous Motor, model number YZ5-13, documented exactly as the manufacturer publishes it. Made by Ningbo Ezone Machinery Co., Ltd. (5 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Refrigerator
- Model Number: YZ5-13
- AC Voltage: 208–230/240 V
- Warranty: 1 year
- Certification: CE
- Place Of Origin: Zhejiang, China
- Protect Feature: Drip-proof
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 208–230/240 V |
| Type | Asynchronous Motor |
| Protect Feature | Drip-proof |
| Efficiency | IE 2 |
| Warranty | 1 year |
| Model Number | YZ5-13 |
| Brand Name | Ezone |
| Place Of Origin | Zhejiang, China |
| Frequency | 50/60Hz |
| Certification | CE |
| Packaging Details | 24Pcs/ctn |
| Port Of Dispatch | ningbo |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 3.0 kg |
| Supply Ability | 100000 pieces per Month |
Product Details

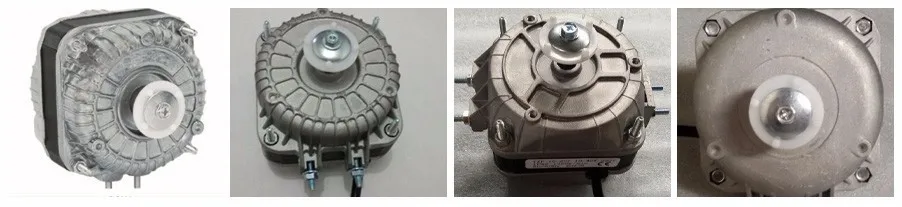

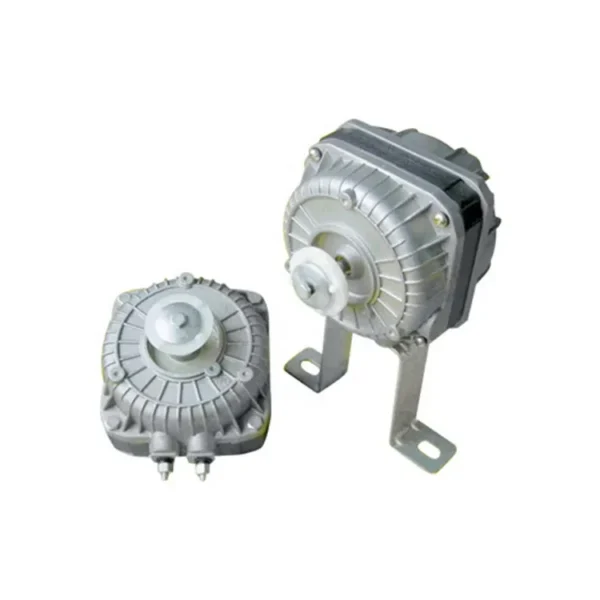

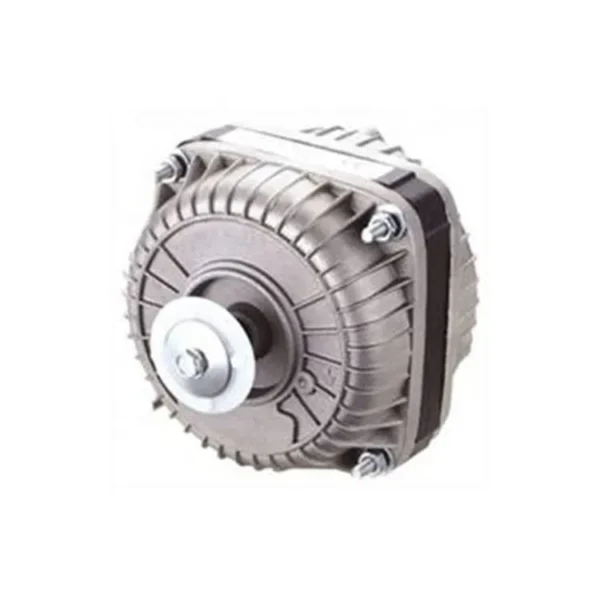

Ezone 5W 10W 16W 25W AC Refrigerator Condenser shaded pole motor
1,PRODUCT OVERVIEW
(1) YZ series motors are shaded pole motors with single-phrase and four-poles, and running at the rated voltage/frequency of 220-240V, 50/60HZ or 110-120V, 60HZ.
(2) Freezer Parts Shaded Pole Motorare widely applied to radiators, evaporators,condensing unit,ice machine and other refridgration equipments.
(3) Their output power is from 5W to 34W, which can be adjusted according to the stack length.
(4) Motors of output power below 10W have impedance protection, and motors of output power above 10W have thermal protectors whose cut-off temperature is 135oC±5oC.

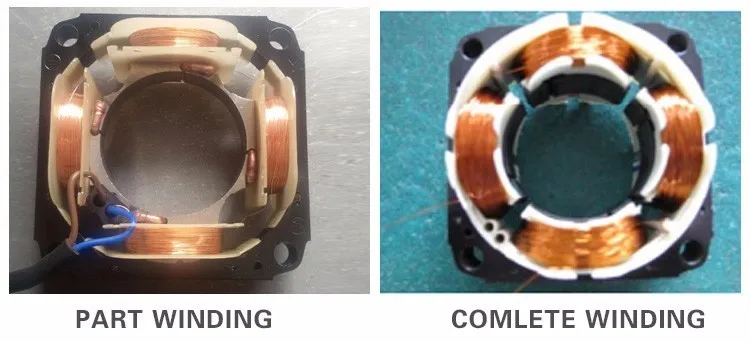

2,COMPARISON OF THE INTERNAL STRUCTURE OF THE COIL

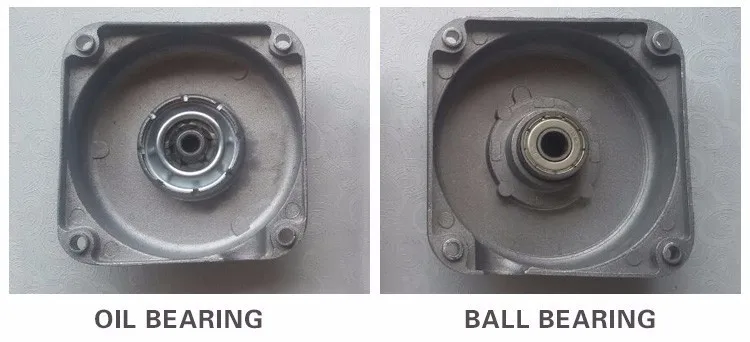

3,COMPARISON OF THE COVER STRUCTURE
4,DIFFERENT COVER CAN BE CHOOSED

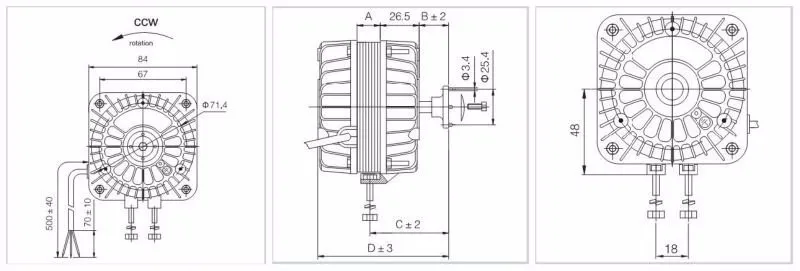

5,SOME DRAWINGS
6,Specification
| Model | Volt | Frequency | Input Power | Out Power | Current | Speed | A | B | C | D | E |
| V | Hz | W | W | A | R.P.M | mm | mm | mm | mm | mm | |
| YJF3 | 220/240 | 50/60 | 20 | 3 | 0.16 | 1300/1550 | 81 | 14 | 46 | 30 | – |
| 110/115 | 50/60 | 20 | 3 | 0.32 | 1300/1550 | – | |||||
| YJF5 | 220/240 | 50/60 | 30 | 5 | 0.2 | 1300/1550 | – | ||||
| 110/115 | 50/60 | 30 | 5 | 0.4 | 1300/1550 | – | |||||
| YJF7- | 220/240 | 50/60 | 38 | 7 | 0.27 | 1300/1550 | 91 | 17 | 49 | 33 | – |
| 110/115 | 50/60 | 38 | 7 | 0.54 | 1300/1550 | – | |||||
| YJF10 | 220/240 | 50/60 | 42 | 10 | 0.3 | 1300/1550 | – | ||||
| 110/115 | 50/60 | 42 | 10 | 0.6 | 1300/1550 | – | |||||
| YJF16 | 220/240 | 50/60 | 58 | 16 | 0.4 | 1300/1550 | 102 | 18 | 50 | 34 | – |
| 110/115 | 50/60 | 58 | 16 | 0.8 | 1300/1550 | – | |||||
| YJF18 | 220/240 | 50/60 | 64 | 18 | 0.43 | 1300/1550 | 20 | ||||
| 110/115 | 50/60 | 64 | 18 | 0.86 | 1300/1550 | ||||||
| YJF20 | 220/240 | 50/60 | 65 | 20 | 0.47 | 1300/1550 | |||||
| 110/115 | 50/60 | 65 | 20 | 0.94 | 1300/1550 | ||||||
| YJF25 | 220/240 | 50/60 | 100 | 25 | 0.7 | 1300/1550 | 112 | 18 | 30 | ||
| 110/115 | 50/60 | 100 | 25 | 1.4 | 1300/1550 | ||||||
| YJF34 | 220/240 | 50/60 | 120 | 34 | 0.9 | 1300/1550 | 117 | 35 | |||
| 110/115 | 50/60 | 120 | 34 | 1.8 | 1300/1550 |
| Packaging Details: | AC Refrigerator Condenser Shade Pole 5W Motor : Standard export packing or as client's required. |
| Delivery Detail: | shaded pole motorshipped in 30days after payment |
All of our Itmes directly export by factory.
We provide OEM service for customer.
Pls directly send inquiry to us.
We can discuss by email,whatsapp and wechat .
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this refrigerator?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this refrigerator carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the refrigerator be supplied for my local voltage?
The standard configuration is 208–230/240 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
