Key specification for this refrigerator: 5V~48V, airflow 2.3~6.0CFM. Everything below is reproduced from the factory data sheet. Made by Shenzhen Ambeyond Technology Co., Ltd. (16 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Refrigerator
- Model Number: AV-F3010HB, AV-F3010MB, AV-F3010LB
- Power Source: Electric
- Voltage: 5V~48V
- Rated Voltage: 5v/12V/24V/48V
- Airflow: 2.3~6.0CFM
- Blade Material: Plastic
Technical Specifications
| Voltage | 5V~48V |
|---|---|
| Type | Duct Axial Fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | AMBEYOND |
| Model Number | AV-F3010HB, AV-F3010MB, AV-F3010LB |
| Color | Black |
| Product Name | 3010 fan |
| Electric Current Type | DC |
| Size | 30x30x10mm |
| Rated Voltage | 5v/12V/24V/48V |
| Speed | 5000~12000RPM |
| Airflow | 2.3~6.0CFM |
| Function | 2PIN, 3PIN, 4PIN with FG, PWM, locked function |
| MOQ | 1pcs 3010 fan |
| Certification | CE,RoHS |
| Selling Units | Single item |
| Single Package Size | 25X17X17 cm |
| Single Gross Weight | 0.011 kg |
Product Details

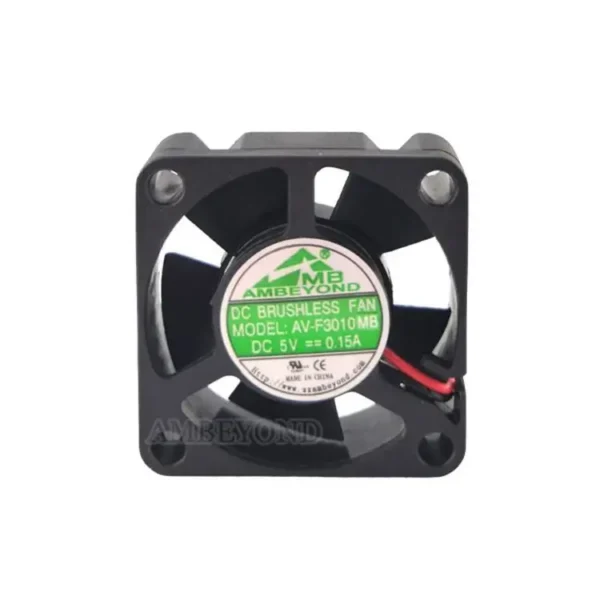

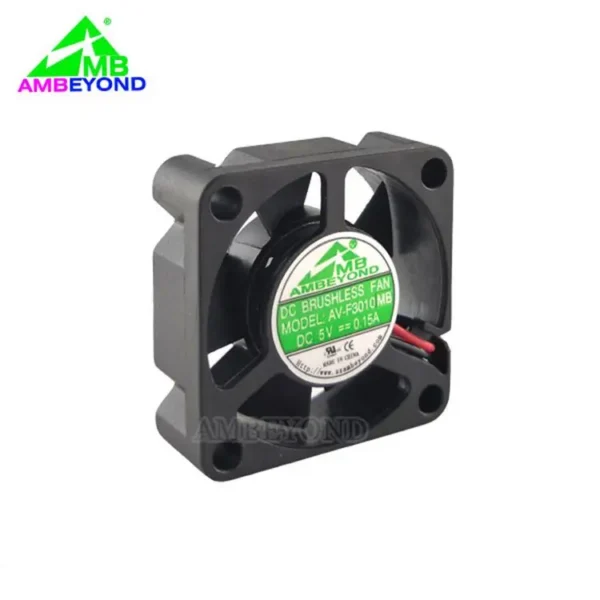

Hot Sale Factory Dc 12v 30mm 3010 Good Quality Brushless 5v Dual BaLL 24v 30x30x10mm Axial Flow Cooling Fan
Normal Performance Specification
1. Category: 3010 fan
2. Frame Size: 30x30x10mm, 30mm, 3cm of 3010 fan
3. Frame Material: PBT Plastic, UL94V-0
4. Blade: 7 Blades, PBT Plastic, UL94V-0
5. Bearing Type: Dual-Ball Bearing/Sleeve Bearing/Hydraulic bearing
6. Lead Wire: 200±10mm, AWG#26 UL1007 (+)Red (-)Black
7. Motor: 4 Poles DC Brushless Motor
8. Motor Protection: Impedance Protected, Reverse Polarity Protected, Thermal Protected (Auto Restart)
9. Weight: 240G of 3010 fan
10. Insulation Standard: Class A of 3010 fan
11. Waterproof Level: IP55, IP65, IP68
12. Insulation Resistance: Above 100MΩ, DC500V 60Hz one minute (Between Lead Wire and Frame)
13. Operating Temperature: -10°C~70°C (35%~85%RH)
14. Storage Temperature: -40°C~70°C (35%~85%RH)
15. Life Expectancy: (Dual Ball Bearing) 50000hrs at 25 degree
Life Expectancy: (Sleeve Bearing) 30000hrs at 25 degree
16. Available Function: FG, RD, PWM, Waterproof, Thermal Control, Auto-Restart
18. Application: 1. Home appliance 2. Kitchen 3. Car industry 4. Telecom 5. Medical Equipment 6. UPS Power 7. LED Lighting 8. Computer Case 9. CPU 10. Safty Equipment 11. Office Electrics 12. SUP Power 13. Communication 14. Printing Equipment…
19. OEM Service: Acceptable of 3010 fan
20. Sample Service: Sample Can Be Free, but are Suggestsd Paying For Freight.
21. Quality Assurance: 24 Months
22. Item Condition: Brand Original New
| Model | Bearing Type | Rated Voltage/VDC | Current /A | Speed /RPM | Airflow /CFM | Noise /dBA | Weight /g |
| AV-F3010HS/HB05 | sleeve/two ball | 5 | 0.20 | 9500 | 4.3 | 28 | 11 |
| AV-F3010MS/MB05 | sleeve/two ball | 5 | 0.16 | 8000 | 3.6 | 23 | 11 |
| AV-F3010LS/LB05 | sleeve/two ball | 5 | 0.14 | 5500 | 2.5 | 20 | 11 |
| AV-F3010HS/HB12 | sleeve/two ball | 12 | 0.12 | 9500 | 4.3 | 28 | 11 |
| AV-F3010MS/MB12 | sleeve/two ball | 12 | 0.09 | 8000 | 3.6 | 23 | 11 |
| AV-F3010LS/LB12 | sleeve/two ball | 12 | 0.06 | 5500 | 2.5 | 20 | 11 |
| AV-F3010HS/HB24 | sleeve/two ball | 24 | 0.09 | 9500 | 4.3 | 28 | 11 |
| AV-F3010MS/MB24 | sleeve/two ball | 24 | 0.07 | 8000 | 3.6 | 23 | 11 |
| AV-F3010LS/LB24 | sleeve/two ball | 24 | 0.05 | 5500 | 2.5 | 20 | 11 |
| AV-F3010HH | two ball | 5/12/24 | 0.18~0.30 | 12000 | 6.0 | 35 | 11 |
High Performance Specification
Hot Sale Factory Dc 12v 30mm 3010 Good Quality Brushless 5v Dual BaLL 24v 30x30x10mm Axial Flow Cooling Fan
Internal structure:
Application:
Shenzhen Ambeyond Technology Co., Ltd was established in 1998.
We are professional in designing and developing kind of moulds for AC Cooling Fans, Brushless DC Cooling Fans, EC cooling fans, Plastic Injection Molding and Finished Electronic products assembly for an integrated enterprise.
The main product line of AMBEYOND has AC Fan(6-25cm), DC Fan(2-25cm), EC Fan(2-25cm) and all kinds of Radiator, Plastic Parts, Electronic Wire, Hardware Acessories, etc.
Customers are able to customize all kinds of non-stand Cooling Fan with specific functions, such as temperature cintrol, constant temperature, manual setting, automatic protection, etc.
The company's operation principle: quality oriented,customer first, strive for excellence,share success.
Packing and shipment
Brand strength: AMB brand, has cooperated with more than 500 foreign customers, a stable cooling fan supplier of Korean LG.
Honor: Won the title of Shenzhen Innovation Enterprise etc. Ingenuity quality: 16 years of cooling fan production experience, the pursuit of gradual rise in stability,
Technology R&D: Equipped with a dedicated R&D department to meet various customization needs of customers
Intimate service: the staff responds in a timely manner and can communicate anytime, anywhere
1. Are you a factory?
Factory wholesale 20~220mm AC/DC/EC cooling fan, blower fan
Send your Inquiry Details in
the below message box and Click
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–499 piece: US $2.5 / piece
- 500–999 piece: US $2 / piece
- 1000–9999 piece: US $1.59 / piece
- 10000+ piece: US $0.99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this refrigerator?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this refrigerator carry?
It is supplied with CE,RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the refrigerator be supplied for my local voltage?
The standard configuration is 5V~48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Ambeyond Technology Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Ambeyond Technology Co., Ltd. range on HVACR Nexus.
