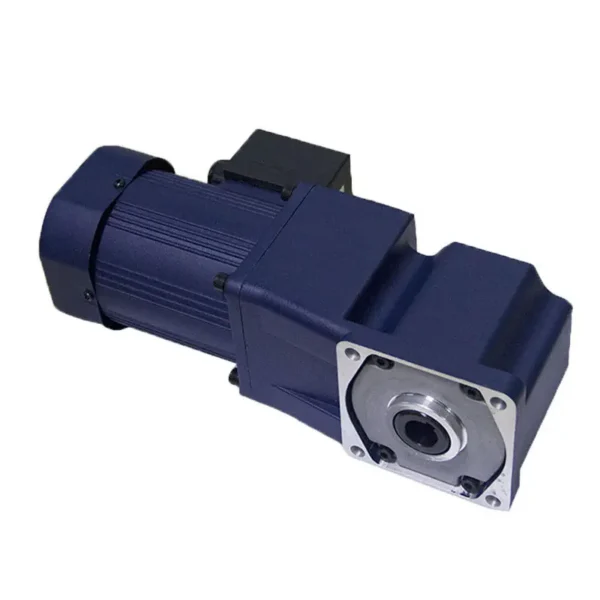

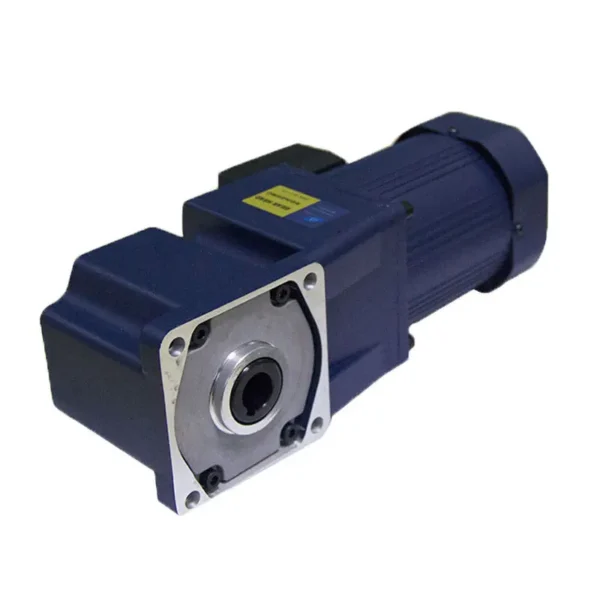

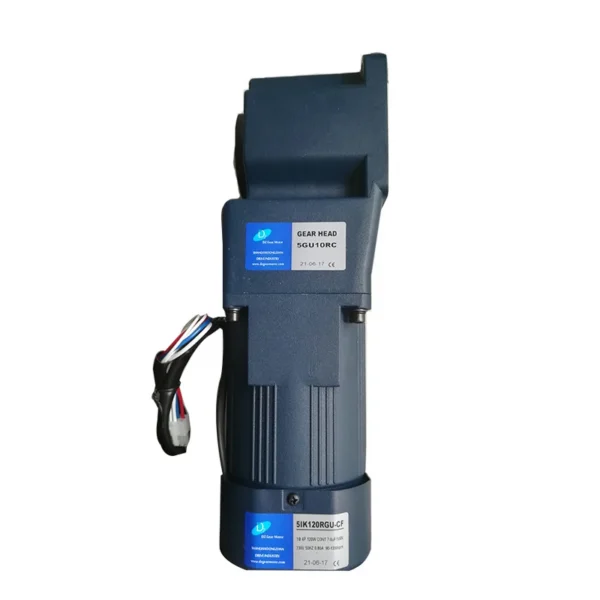

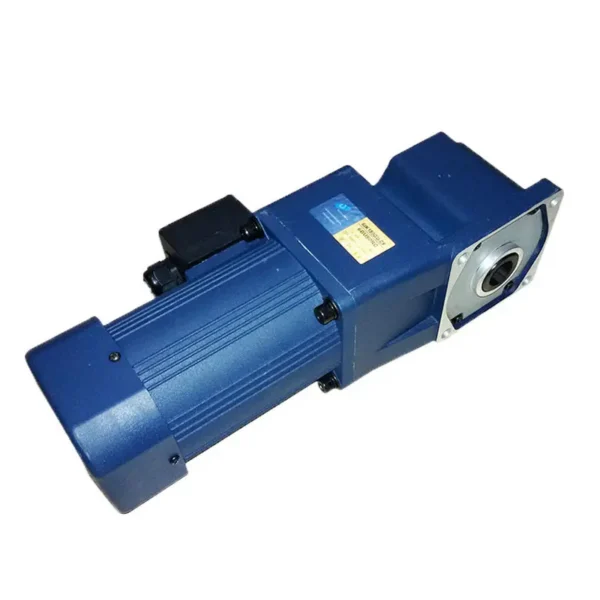

Key specification for this right angle gear motor: voltage 110/220V, type Right Angle Gear Motor. Everything below is reproduced from the factory data sheet. Made by Shanghai Dongzhan Drive Industry Co., Ltd. (11 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Right Angle Gear Motor
- Model Number: 4IK25GN-AT+4GN30RC
- Rated Power: 25W
- AC Voltage: 110V / 220 V
- Voltage: 110/220V
- Rated Speed: 1350 RPM
- Output Speed: 500r/min-10r/min
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 110V / 220 V |
| Rated Power | 25W |
| Rated Speed | 1350 RPM |
| Type | Right Angle Gear Motor |
| Motor Mounting Type | Panel Mount |
| Protect Feature | Waterproof |
| Efficiency | IE 2 |
| Warranty | 3 months ~ 1 year |
| Model Number | 4IK25GN-AT+4GN30RC |
| Brand Name | DONG ZHAN |
| Place Of Origin | Shanghai, China |
| Frequency | 50/60Hz |
| Product Name | Right Angle AC Gear Motor |
| Output Shaft | Spiral bevel hollow shaft |
| Gearhead Dimension | 80mm*80mm |
| Voltage | 110/220V |
| Output Speed | 500r/min-10r/min |
| Torque | 0.36N.m-8N.m |
| Reduction Ration | 3:1-180:1 |
| Insulation Class | Clss B(130℃) |
| Using Temprature | -10℃~+40℃(No freeze) |
| Selling Units | Single item |
| Single Package Size | 48X31.5X36 cm |
| Single Gross Weight | 5.0 kg |
Product Details
| Type | Gear Motor |
| Dimension | 60mm,70mm,80mm,90mm,104mm |
| Power | 6W,15W,25W,40W,60W,90W, |
| Voltage | Single Phase 110V/220V |
| Gear ratio | 3, 3.6, 5, 6, 7.5, 9, 12.5 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 150, 180,200 ~750 |
| Shaft Type | Parallel shaft |
| Using humidity | ≤85%(Place without dew) |
| Using temperature | -10℃~+40℃(No freeze) |
| Insulation class | Class B (130℃) |
| Temperature rise | The temperature rise should be lower than 80℃ measured |
| Insulation voltage | In the circumstance of normal temperature and humidity, |
| Insulation resistance | In the circumastance of normal temperature and humidity, |
| Bearing Type | Ball Bearing(Mark KB for Type GU square case) |
| Gear type(Gearbox) | GN:General Helical Gear; GU:Reinforced Helical Gear |
| Shape of Motor Shaft | A:Flat type; A1:Milling Keyway; GN:General Helical Gear; |
Who we are ?
DZ Gear motor,a factory and started gear motor life and business since 2004 and will continuously concentrated in gear solution.
What we can do ?
Product range:
AC GEAR MOTOR:6W-3700W;
DC GEAR MOTOR:6W-250W;
WORM GEARBOX:NMRVO30-NMRV150;
Planetary gearbox:60mm-220mm(housing diameter)
Shanghai Dongzhan Drive Industry Co., Ltd. is a professional manufacturer of gear motor and started business since 1999. Thanks to excellent performance and good sales service, goods has be sold to Europe, America, Africa, Southeast Asia etc, they are be well-accepted by local market. Main products include Micro AC gear motor, Small-size AC gear motor, DC gear motor, Planetary gearbox, Worm gearbox and Worm gear Motor, they are be widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.
A. What’s your warranty?
Dongzhan: One-year.
B. How to handle if meet quality complaints within warranty?
Dongzhan: We afford replaced goods for free in your next shipment.
C. How to handle if exceed warranty?
Dongzhan: We can afford repair service and clients need pay the accessory cost if replacement.
D. Can you give more discounts if more quantity and how many?
Dongzhan: We can afford discounts and rate based on updated quantity.
E. Can you make OEM/ODM order?
Dongzhan: Yes, we have rich experience on OEM/ODM order and like sign NON-DISCLOSURE AGREEMENT before sample making;
F. Delivery
Dongzhan: Sample can be afforded within 5-7days and volume order can be finished within 15-20days;
G. Which of payments you support?
Dongzhan: T/T, L/C,PAYPAL, WESTERN UNION, CREDIT CARD, CASH;
H. Which of transportations you support?
Dongzhan: Sea, Air cargo, Train, DHL/FEDEX/UPS/TNT;
I. What you can do if we still have worry on your product?
Dongzhan: We can afford sample for testing, if approval then negotiate cooperation later.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $65.93 / piece
- 10–49 piece: US $61.54 / piece
- 50–99 piece: US $57.7 / piece
- 100+ piece: US $54.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this right angle gear motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the right angle gear motor be supplied for my local voltage?
The standard configuration is 110V / 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
