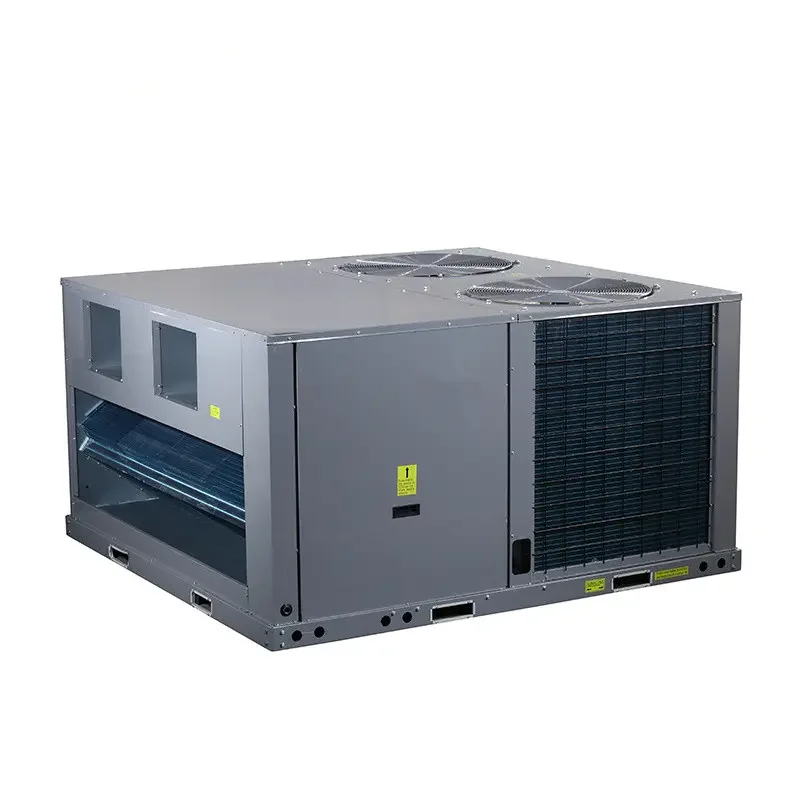

The rooftop packaged unit listed here carries 380v/60hz/3ph, cooling capacity of heat pump system 17-98kw, documented exactly as the manufacturer publishes it. Made by Henan Shangfeng Hvac Engineering Co., Ltd. (4 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Rooftop Packaged Unit
- Voltage: 380v/60hz/3ph
- Cooling Capacity Of Heat Pump System: 17-98kw
- Heating Capacity Of Heat Pump System: 26-111.5kw
- Warranty: 3 Year
- Place Of Origin: Guangdong, China
- Type: Rooftop Packaged Unit
Technical Specifications
| Type | Rooftop Packaged Unit |
|---|---|
| Mounting Type | Rooftop |
| Compressor Brand | Hitachi |
| Fan Motors Type | DC |
| Key Selling Points | R410A |
| Warranty | 3 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Not Available |
| Core Components | Motor, Pump, Engine |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 390 |
| Brand Name | GCHV |
| Dimension(L*W*H) | 2250 x 1290 x 1980 |
| Product Name | Rooftop Packaged Unit Air Conditioner |
| Voltage | 380v/60hz/3ph |
| Cooling And Heating | Cooling only/ Cooling heating |
| Ambient Temperature | 10-52 ℃ |
| Packaging Details | Standard export packing |
| Port | qingdao, tianjin, shanghai, guangzhou, any port of China |
| Cooling Capacity Of Heat Pump System | 17-98kw |
| Heating Capacity Of Heat Pump System | 26-111.5kw |
| Ambient Temp.Operation Range(Cooling) | 10~46℃ |
| Ambient Temp.Operation Range(Heating) | -9~24℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Nominal Ton | 3 | ||||||
Model | MRC-36HWN1-RM | ||||||
Power Supply | V-Ph-Hz | 380-400V,3Ph,50Hz | |||||
Cooling | Cooling Capacity(1) | Btu/h | 36,000 | ||||
kW | 10.55 | ||||||
Power input(2) | kW | 9.9 | |||||
Heating Capacity | Btu/h | 37,500 | |||||
kW | 10.99 | ||||||
Power Input | kW | 3.00 | |||||
Max.input consumption | kW | 13.5 | |||||
Max Power Input | A | 25.6 | |||||
Performance | Indoor side air flow | CFM | 1,500 | ||||
ESP | Pa | 50 | |||||
EER1 | Btu/h/W | 11.8 | |||||
COP | Btu/h/W | 12.5 | |||||
Indoor fan | Type | Centrifugal | |||||
Drive type | Direct | ||||||
Compressor | Type | Scroll | |||||
Quantity | 1 | ||||||
Brand | Copeland | ||||||
Max. power input | kw | 4.25 | |||||
Max. current | A | 6.4 | |||||
Outdoor Fan | Type | Axial | |||||
Drive type | Direct | ||||||
Wired controller | no | ||||||
sound pressure level | dB(A) | 64.9 | |||||
Ambient temperature | 21°C – 43°C | ||||||
Weight | Net/Gross | Kg | 139/142 | ||||
Dimension | Net (W×H×D) | mm | 1,116×830×744 | ||||
Packing (W×H×D) | mm | 1,152×855×765 | |||||

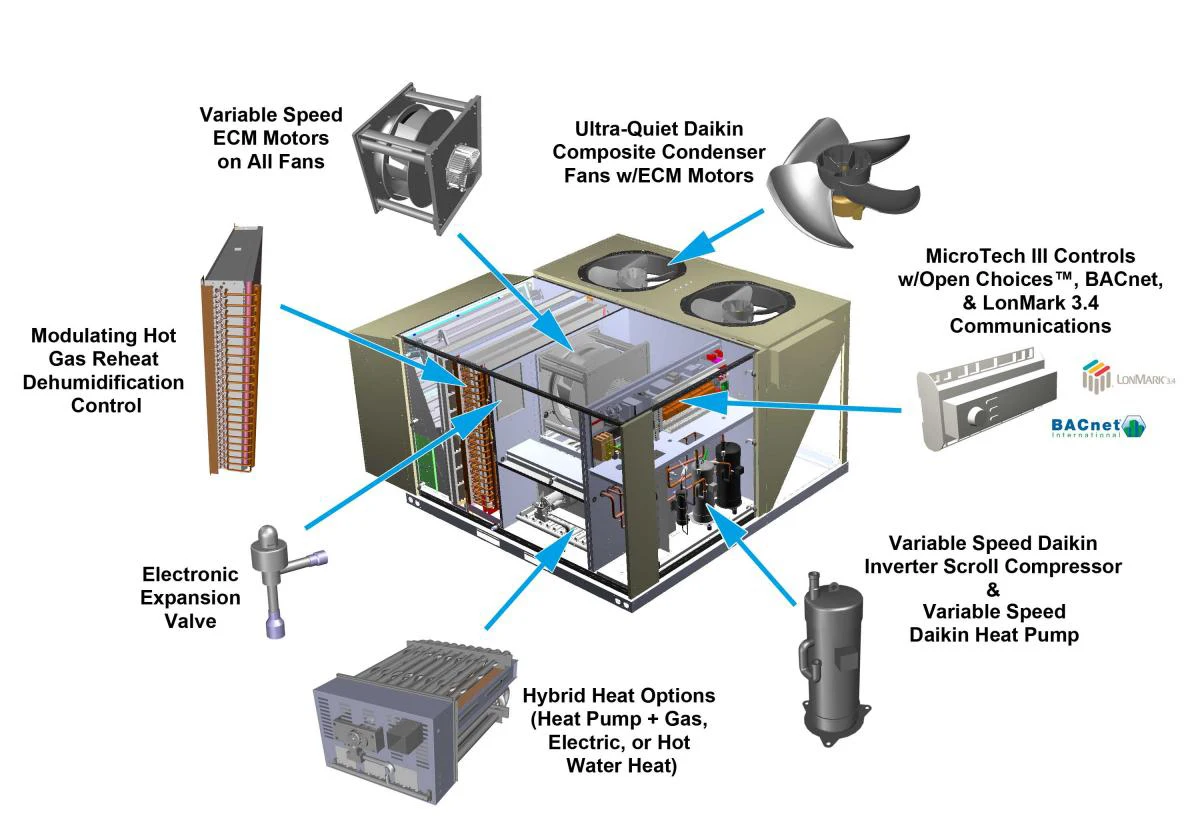

–Durable construction
Pre-painted exterior cabinet panels pass 500 hours Salt Spray Test for durability.
Weather-resistant construction with capped steams and sloped top panels.
G90 galvanized heavy gauge plate conforming to ASTM-A-653.

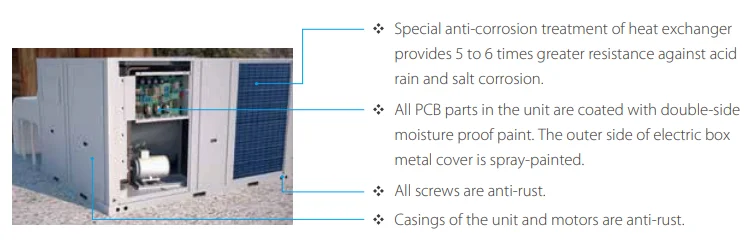

–Customized anti-corrosion treatment
The rooftop package air conditioners with special anti-corrosion treatment are suitable for seaside areas or the areas exposed to
acidic substances.
Famous brand compressor: Copeland, LG, Danfoss, etc.. More reliable.
No complex internal suction and discharge valves for quieter operation and higher reliability.
Compact, light-weight, and fewer moving parts design.
–Multi-protection design
Multiply measures to ensure units operate normally and reliably.
System current protection, High/low pressure protection, Temperature sensor protection, etc.
Three-phase protector can be customized.
* Support small batch production and OEM.
* We have a professional design team to help you design drawings.
Our factory is located in Taizhou City, Jiangsu Province. The company is committed to terminal and integrated solutions for heat pump heating, air energy and hot water, central air conditioning, modular units, fan panels, etc. The company covers an area of 250 mu, with a building area of 68000 square meters, and has six modern electrical flow production lines. Each line produces 50 sets per shift, with a cumulative daily output of 150-200 sets.
The enterprise has passed the certification of IS09001 IS014001 GB/T28001 three systems, and has the comprehensive of – 25 ℃ ultra-low temperature national heat pump. At the same time, it is OEM for domestic and international first-tier brands.
Can you make samples?
We can make samples for you, but they are not free. You should bear the freight. However, if you order large goods later, we will refund you part of the cost of the sample higher than the price of the large goods.
Can you design for free ?
We have special designers who can help you design drawings for free, as long as you tell us your needs.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–5 set: US $799 / set
- 6+ set: US $789 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rooftop packaged unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the rooftop packaged unit be supplied for my local voltage?
The standard configuration is 380v/60hz/3ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
