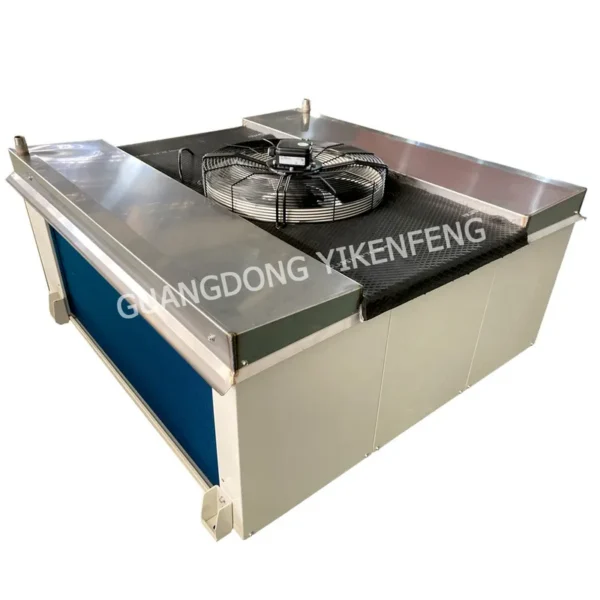

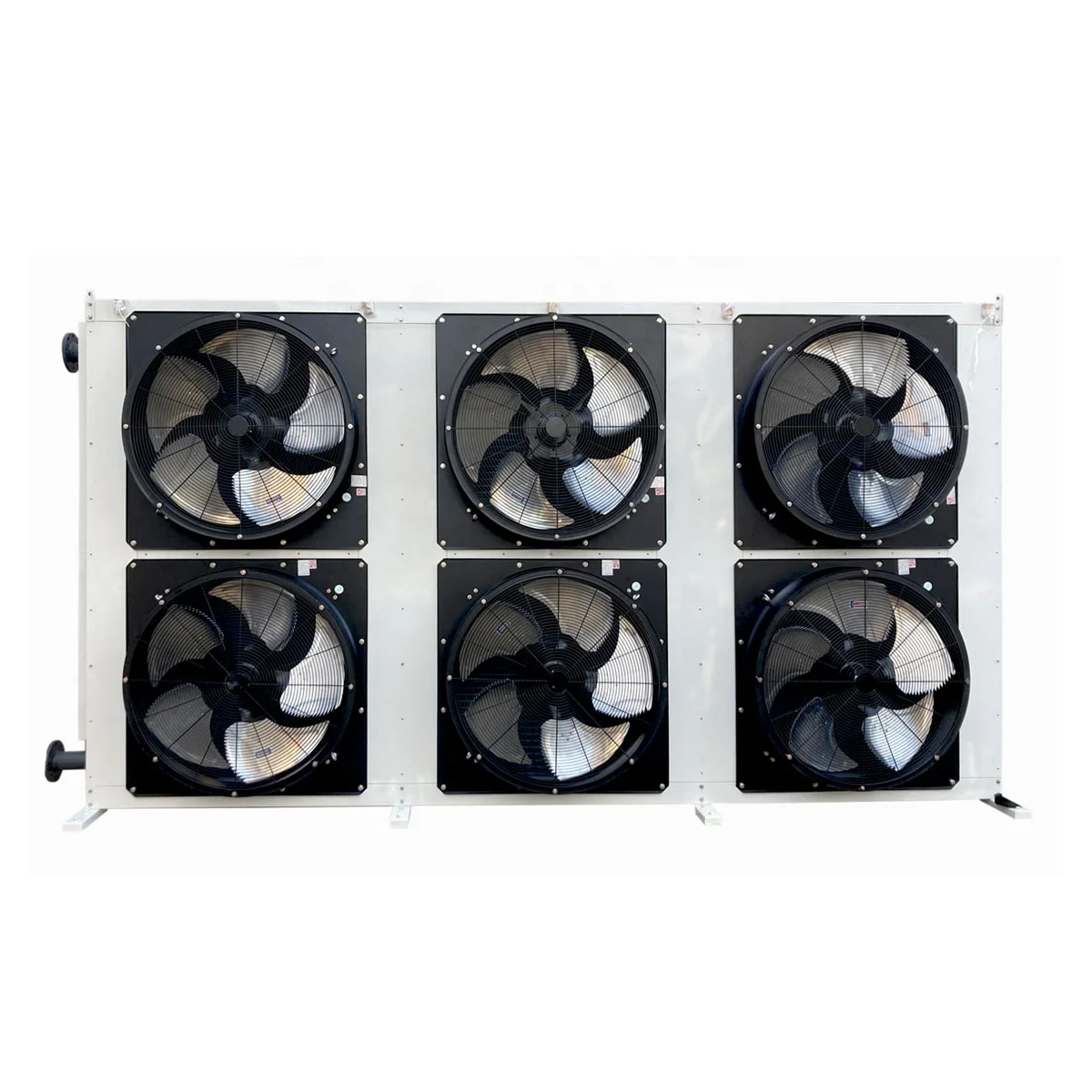

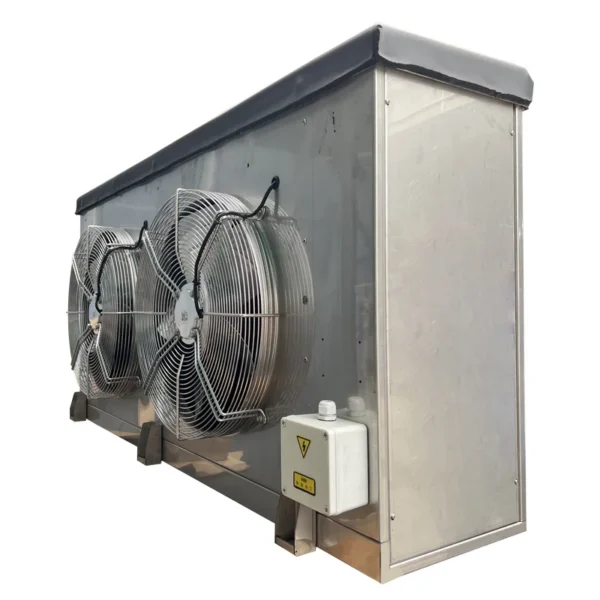

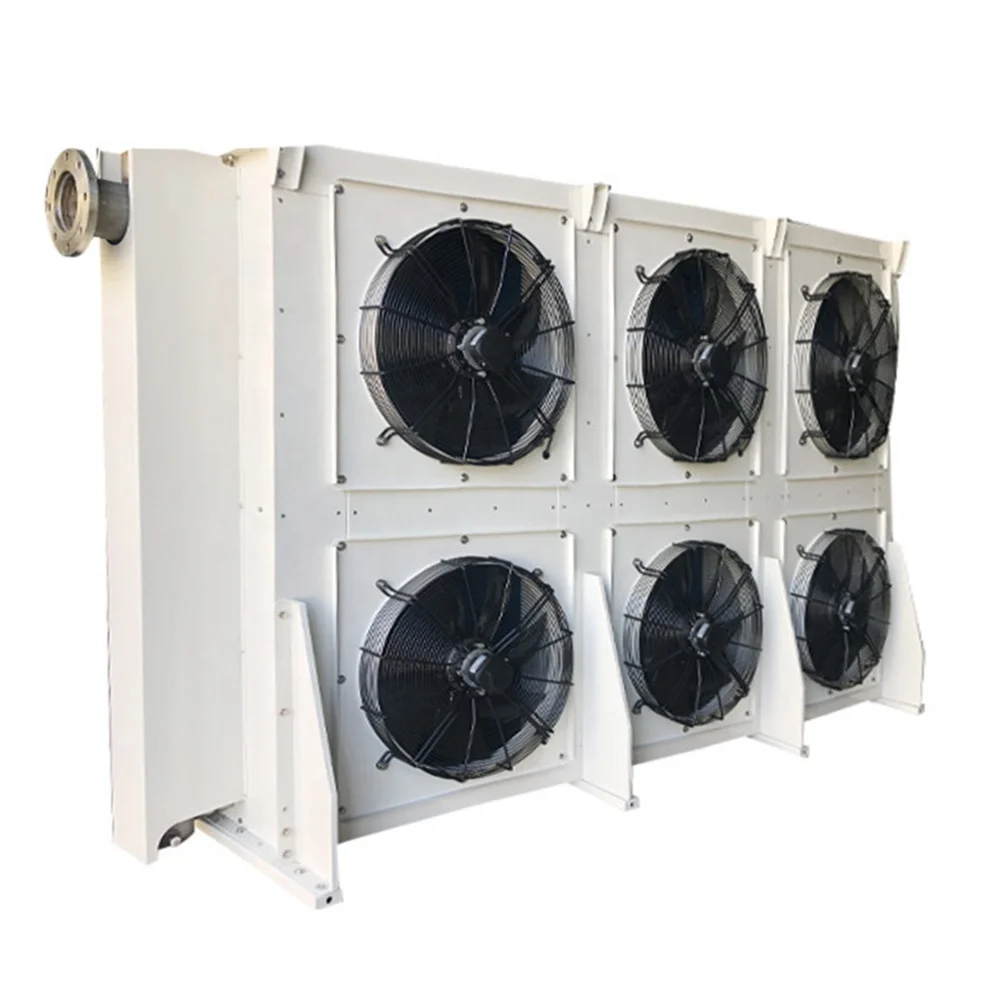

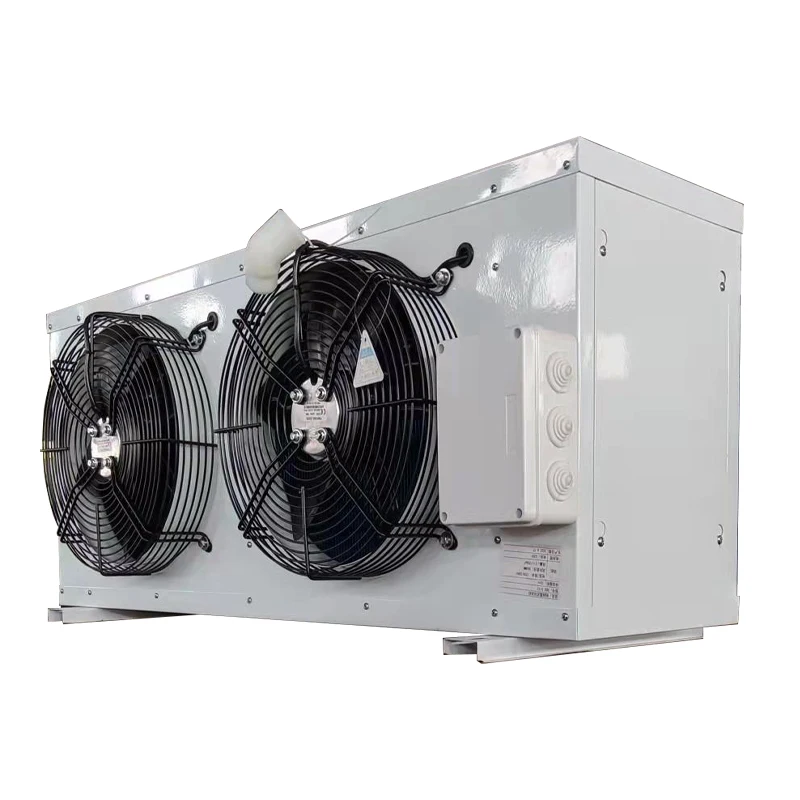

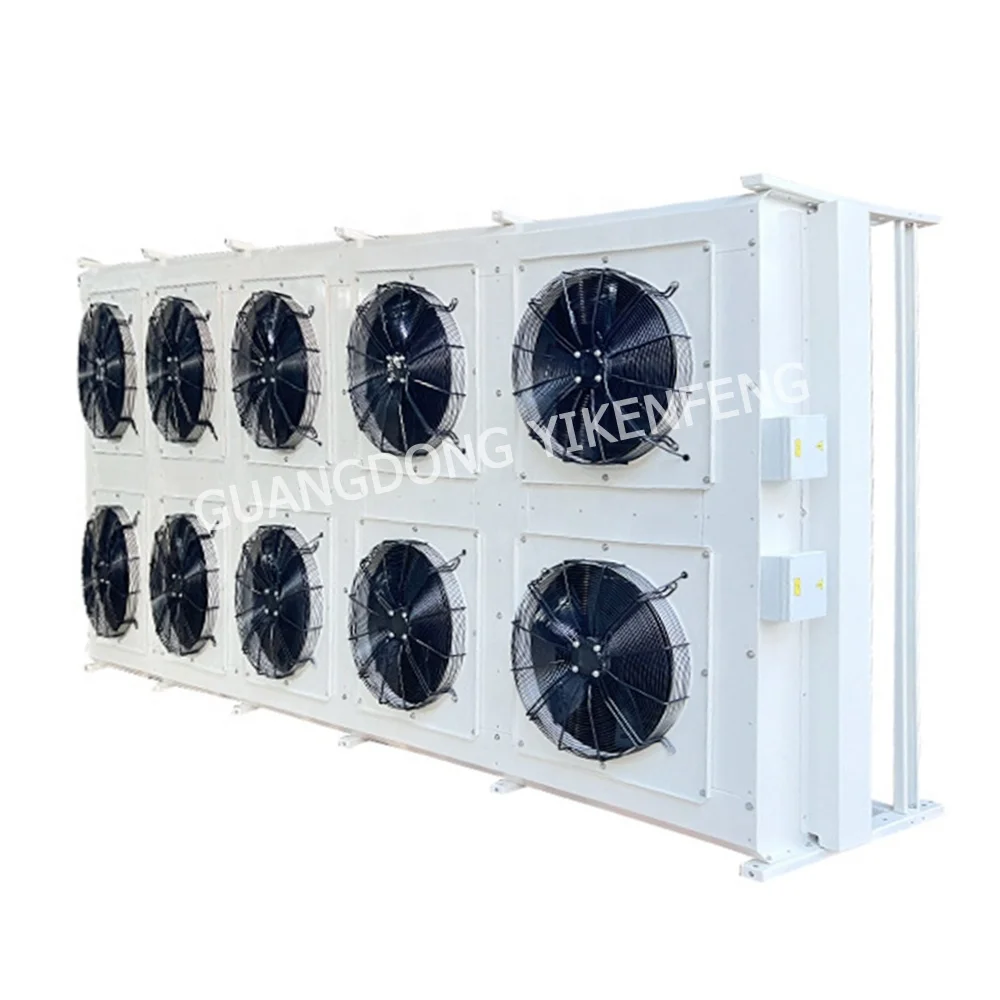

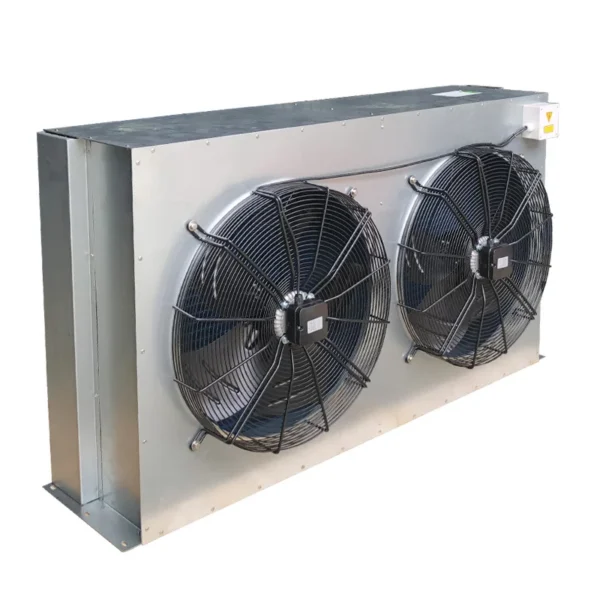

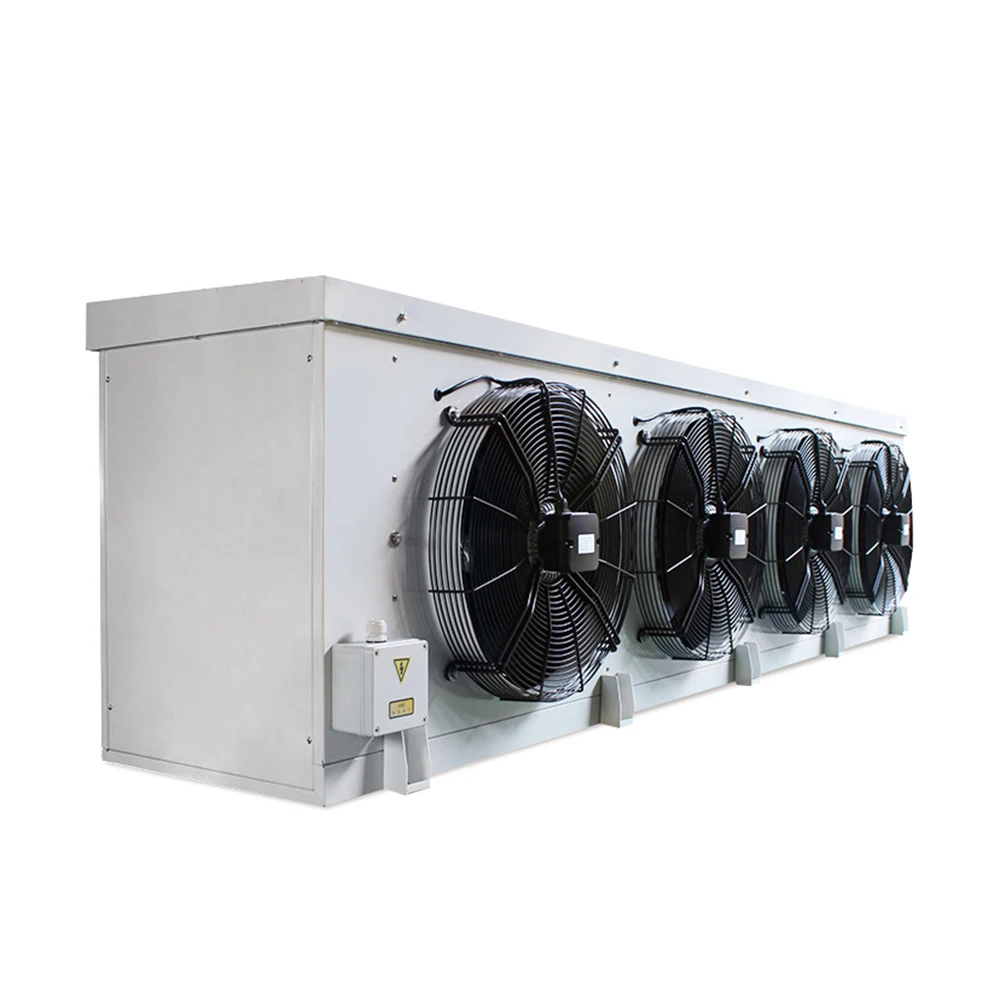

Room Storage Air Cooler, Ceiling, 220

The room storage air cooler listed here carries voltage 220/380V, heat exchanger type fin tube heat exchanger, documented exactly as the manufacturer publishes it. Made by Foshan Yikenfeng Electromechanical Equipment Co., Ltd. (2 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Room Storage Air Cooler

• Voltage: 220/380V
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Heat Exchanger Type: fin tube heat exchanger
• Single Package Size: 50X50X50 cm
• Single Gross Weight: 50.0 kg

Technical Specifications

Product Details

Product Description

Evaporative Air Cooler

** Coils : Copper tube aluminium fin high efficiency heat exchanger
** Fans: EC motor, Axial fan, available fan brands includes Weiguang, Kemao, ZIEHL-ABEGG, etc.
— accept designated fan brand
** Deforest way: Electric defrost/ water defrost
** Working conditions:
High temp — 10/0℃, relative humidity 75%
Midium temp — 0/-8℃, relative humidity 85%
Low temp — -18/-25℃, relative humidity 95%

TO START OEM PROJECTS, PLS CONTACT FOR MODEL SELECTION AND GET PRICE.

Available Material for Tubes : Copper tubes, Stainless steel tubes

Available Material for Fins: Aluminium fins (clear coating, blue hydrophilic coating, epoxy coating…) / Stainless steel fins (304SS, 316SS) / Copper fins

Available Material for frames: Galvanized palte, SS 304

Available brands for fans: Weiguang, Kemao, ZIEHL-ABEGG, etc.

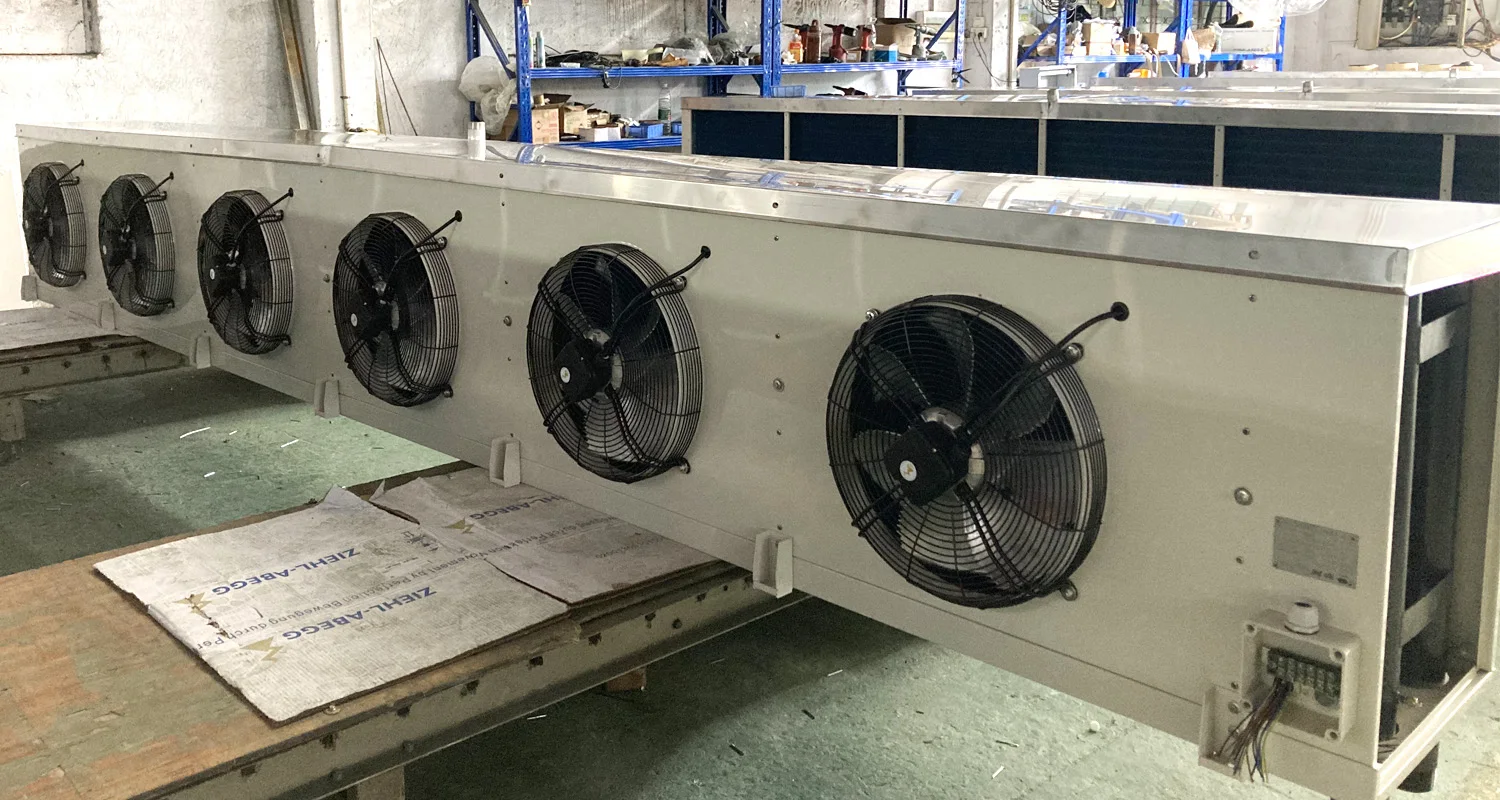

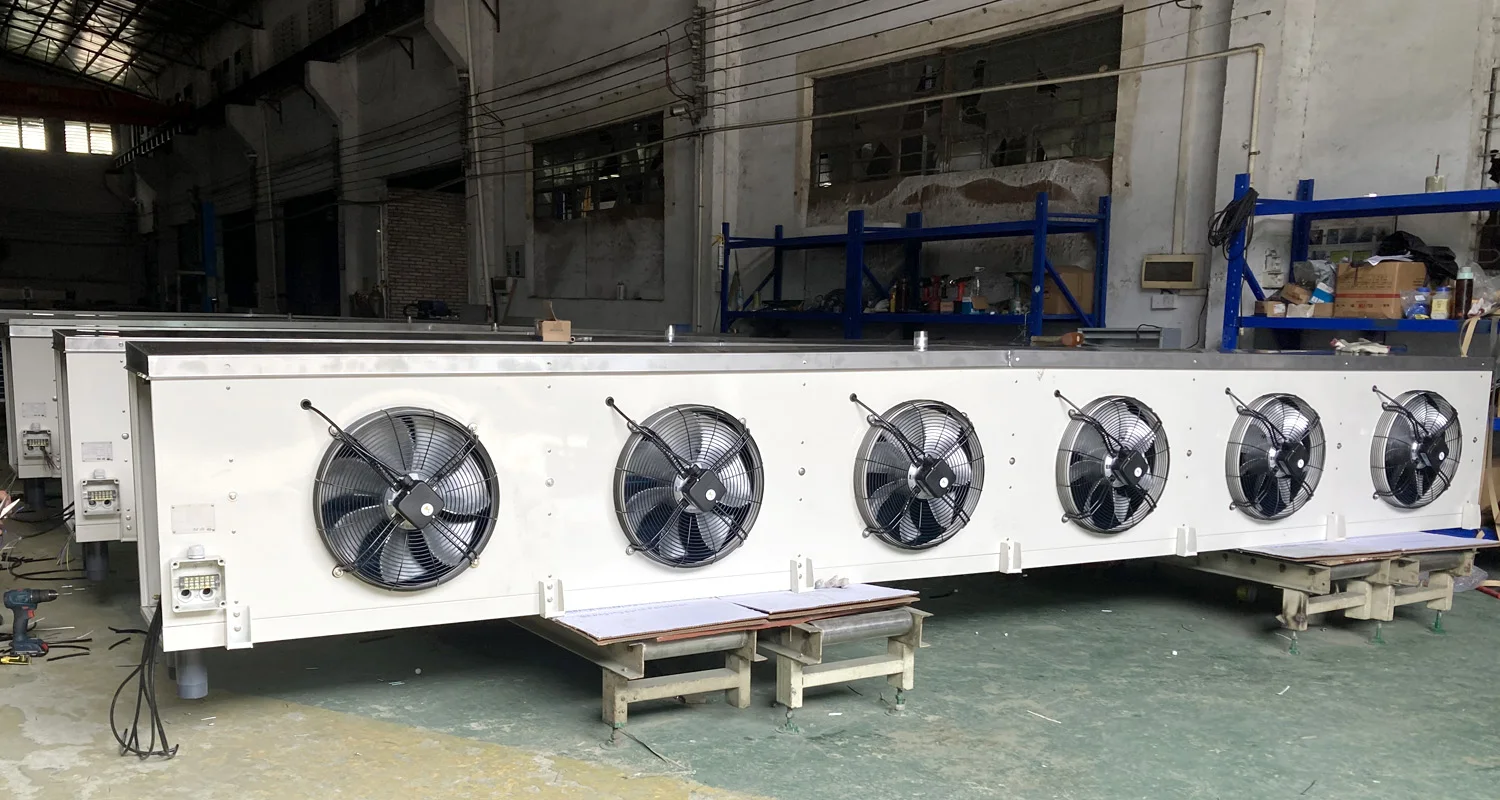

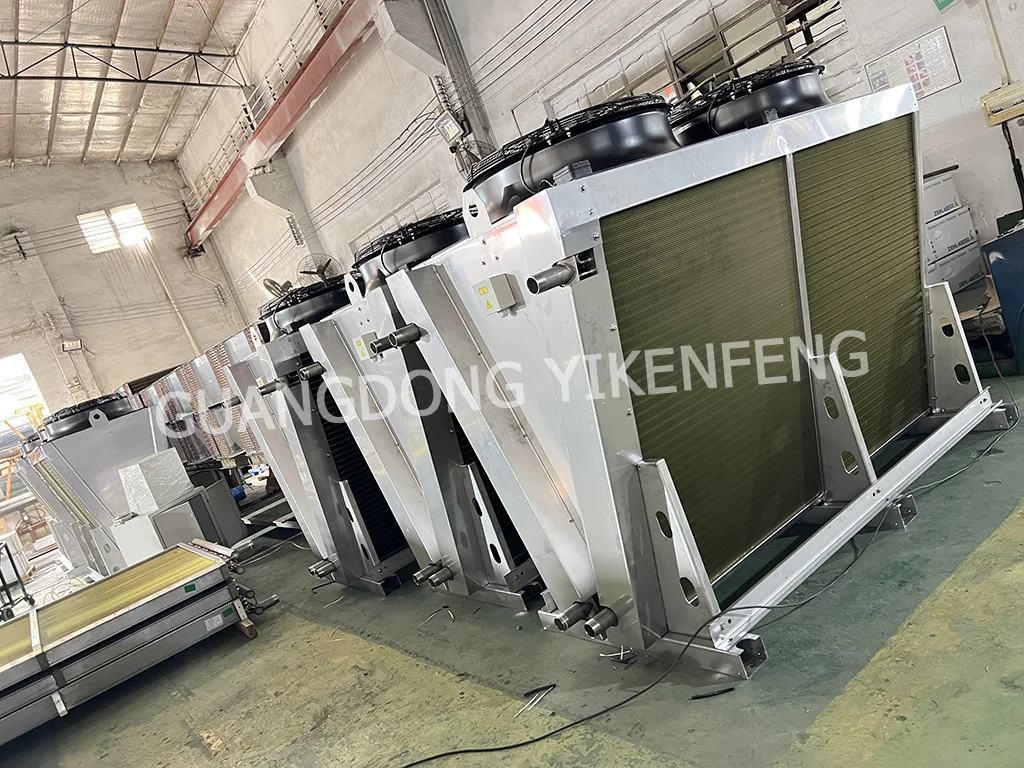

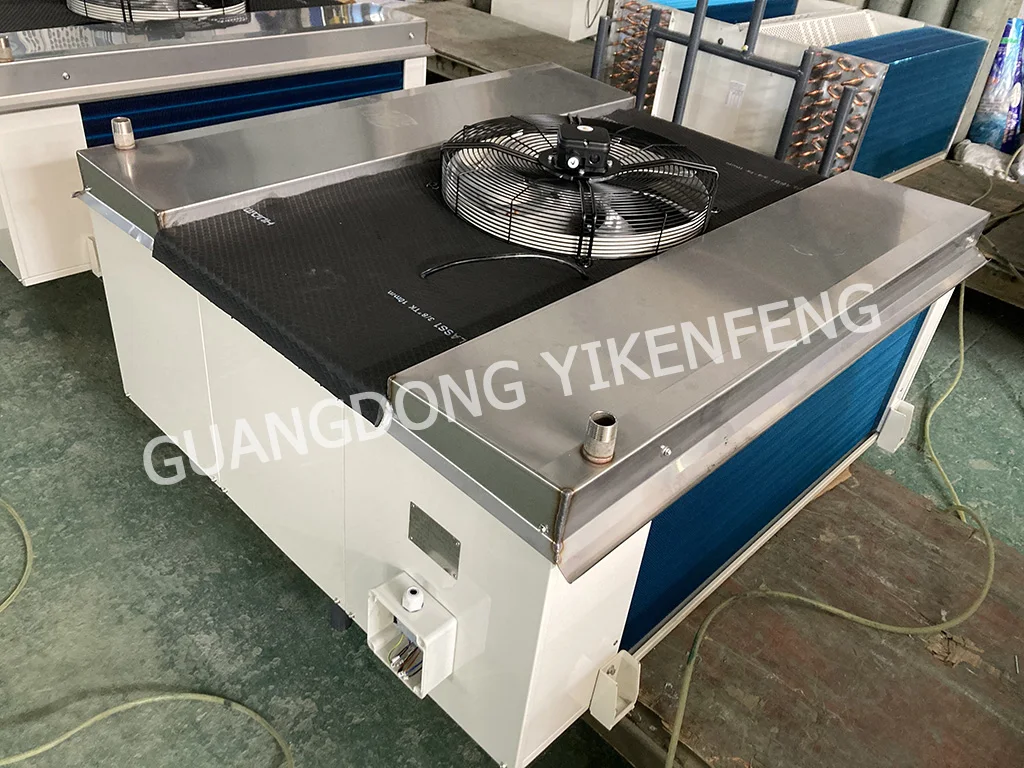

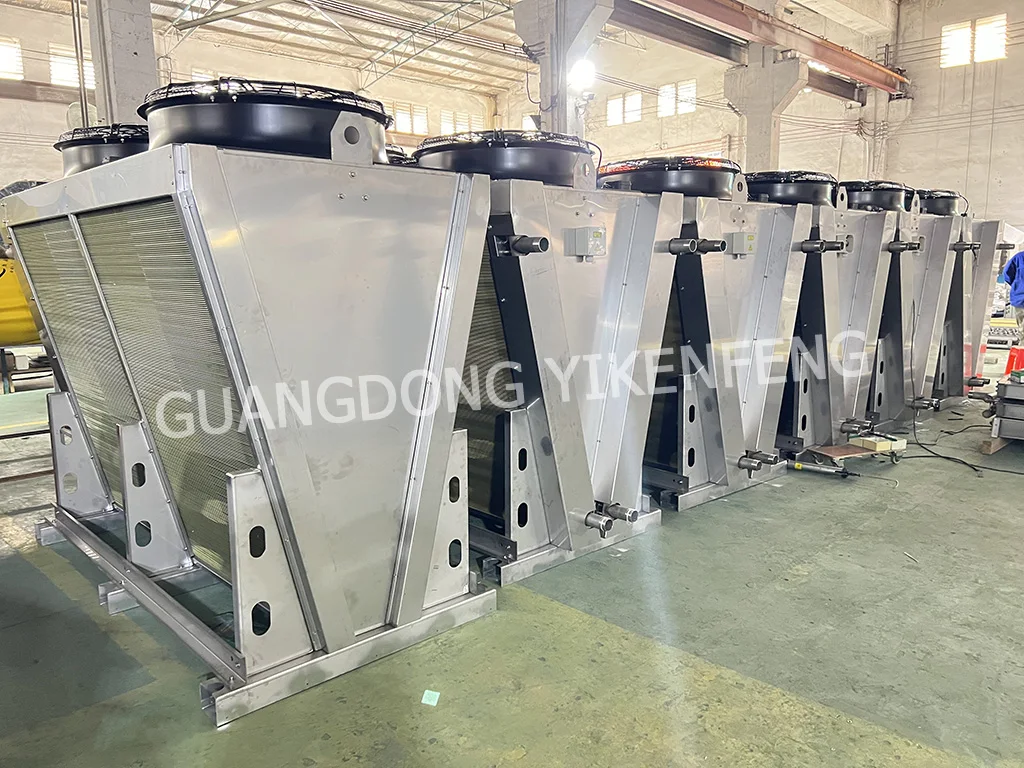

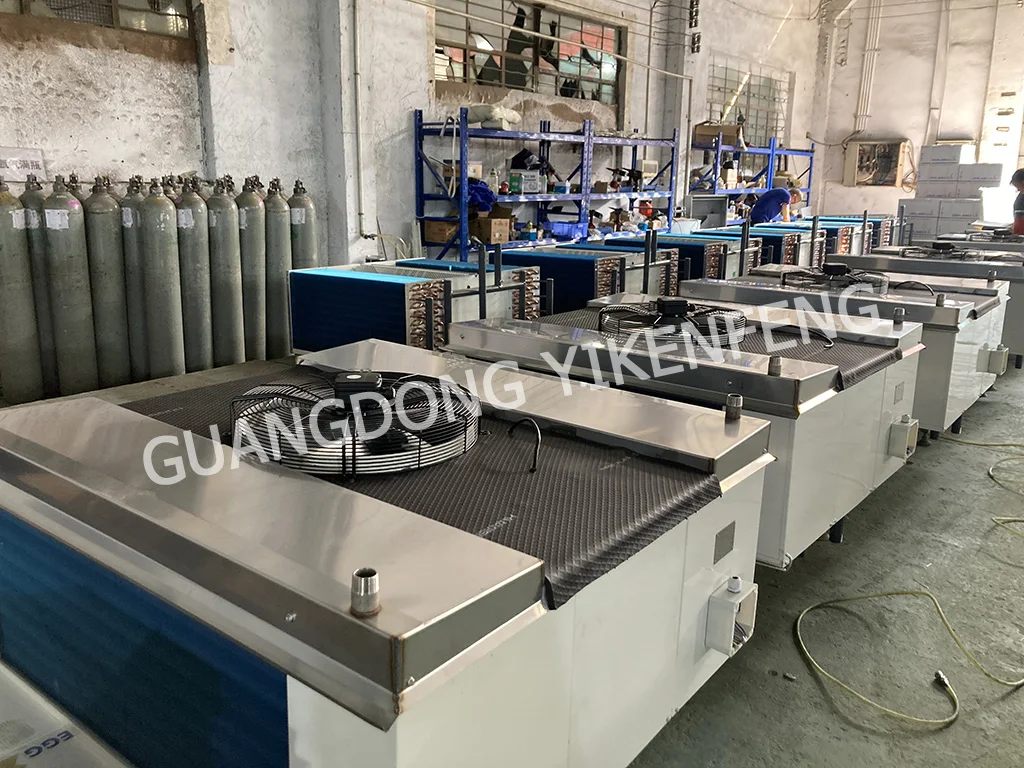

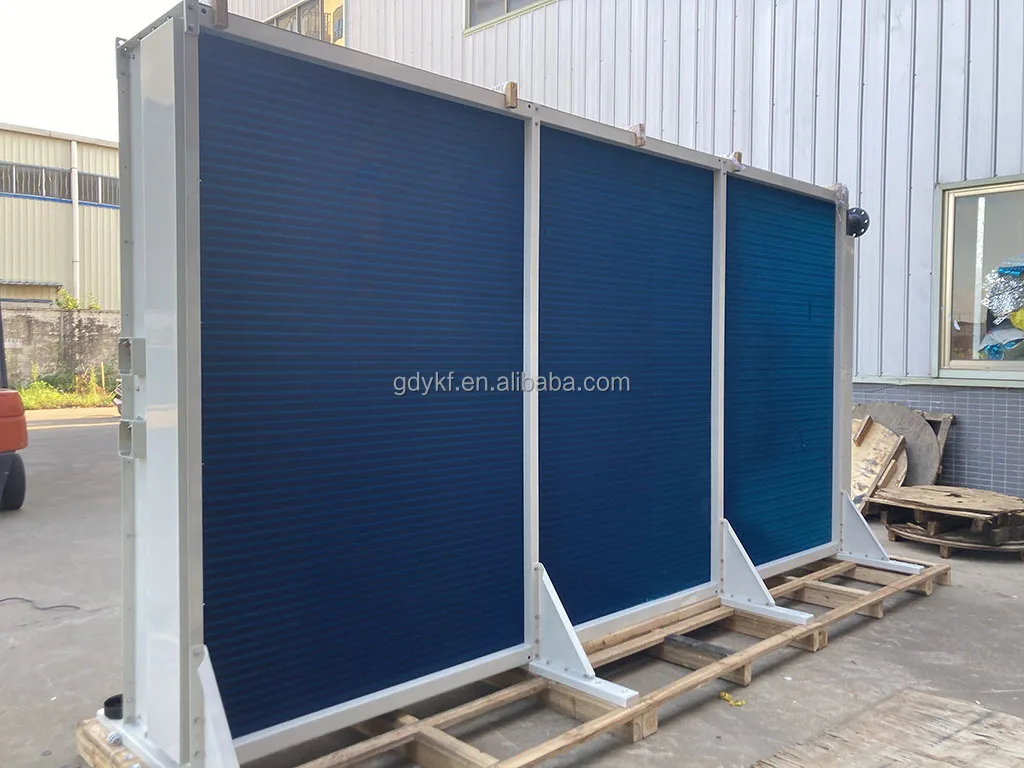

PRODUCT IN PRODUCTION

TECHNICAL SPECIFICATION FOR OEM

ITEMS			DETAILS
TUBES	Material	Copper, stainless steel, cu-ni
		Dimension	7.00mm, 9.52mm, 12.7mm, 15.88mm
FINS	Material	Aluminum, red copper, stainless steel
		Mold specification	21*18.19mm, 25*21.65mm, 25.4*22mm, 31.75*27.5mm, 38.1*33mm, 48*41.57mm, 50*50mm
		Pitch of fins	1.4-9.0mm
FRAME	Material	Galvanized steel, stainless steel of 201/ 304/ 316
		Thickness	1 – 3 mm
COLLECTION PIPE	Material	Copper pipe, seamless steel pipe, stainless steel pipe

How to start cooperation with Yikenfeng?

1, Model Selection for a new coil/ cooler：

C/N	Techinical Information Needed	Your Answer
1	The cooling/heating capacity						Kw
2	The air volume						m³/h
3	The inlet/outlet air temperature (℃)	IN:		OUT:	(optional, if you had)
4	The medium for heat exchanging
5	The medium temperature In and Out	IN:		OUT:
6	The heat exchange surface (optional to offer)						㎡
7	The quantity for order
Notes:   If there is any data need special attention, please put notes here.

2, Quotation for exisiting model/ design:

C/N	Techinical Information Needed	Your Answer
1	The material (Tubes, Fins, Frame, Inlet/outlet pipes)
2	The outer diameter of the tubes	①φ7      ②φ9.52       ③φ12.7      ④φ15.88
3	The rows and holes quantity	Rows:		Holes:
4	The fin length and height	FL:		FH:
5	The fin spacing (?mm or ?FPI)
6	The outer diameter of the inlet & outlet pipes	Inlet:		Outlet:
7	The quantity for order
Notes: If you had pictures of the coil that you want, please share the pictures for reference.

Company Profile

FAQ

1.How can I get the price?

-A drawing with data and clear requirement will be recommended for a quick quoation within 24 hours. -Email communication could be a good choice as well, sales@gdykf.com

2. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

3.What is your lead time?

-It depends on the order quantity and the selected items that you are planning to place for order.

-Usually we can ship within 7-15 days for small quantity after sample confirmed.

4.What is your payment/shipment term?

-We prefer EX-work or FOB Jiangmen ports, the other optional terms like CIF and CNF are also available. -We can accept T/T for payment, 30% deposit before production and 70% before shipment.

5.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?

-YKF is a 15 years experienced manufacturer in producing heat exchangers, we promise good quality and competitive price to ensure our customers benefit.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $2250 / piece
  • 10–29 piece: US $2205 / piece
  • 30+ piece: US $2160 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this room storage air cooler?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the room storage air cooler be supplied for my local voltage?

The standard configuration is 220/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Yikenfeng Electromechanical Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Yikenfeng Electromechanical Equipment Co., Ltd. range on HVACR Nexus.
