Key specification for this rotary evaporator: voltage 220, power source Electric. Everything below is reproduced from the factory data sheet. Made by Nantong Sanjing Chemglass Co., Ltd. (8 years on the platform, typical reply ≤9h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Rotary Evaporator
- Power Source: Electric
- Power(W): 180
- Motor Power(W): 180W
- Bath Power: 5
- Motor Power: 0.096
- Power: 220
Technical Specifications
| Processing | Vacuum Distillation |
|---|---|
| Material | high borosilicate glass |
| Power Source | Electric |
| Core Components | Engine, Motor, Pressure Vessel |
| Voltage | 220 |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate |
| Power(W) | 180 |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 190 |
| Brand Name | SANJING |
| Dimension(L*W*H) | 120*80*220 |
| Product Name | 50l rotary evaporator price with vacuum pump and chiller |
| Product Model | PR-50 |
| Evaporating Flask | 50L/F125 |
| Receiving Flask | 10L + 10L |
| Motor Power(W) | 180W |
| Bath Power | 5 |
| Motor Power | 0.096 |
| Rotation Speed | 5-110 |
| Evaporator Speed(H2O)) | 8L/h |
| Power | 220 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Application
Rotary evaporator is an evaporating instrument widely used in laboratory.Suitable for reflux operation, rapid evaporation of a large number of solvents, concentration of trace components and reaction processes requiring stirring, etc.
The rotary evaporator system can seal and decompress to 400~600 mm hg.A heating bath is used to heat the solvent in the distillation bottle, and the heating temperature is close to the boiling point of the solvent.At the same time also can carry on the rotation, the speed is 5~180 RPM, causes the solvent to form the thin film, increases the evaporation area.In addition, under the action of high efficiency cooler, the hot steam can be rapidly liquefied and the evaporation rate can be accelerated.
Product Modle | PR-2 | PR-5 | PR-10 | PR-20 | PR-50 |
Evaporator Flask(L) | 2L/29# | 5L/50# | 10L/95# | 20L/95# | 50L/125# |
Receiving Flask(L) | 1L | 2L/3L | 5L | 10L+5L | 10L+10L |
Motor Power(W) | 40 | 90 | 120 | 120 | 180 |
Bath Power(KW) | 1.5 | 2 | 3 | 5 | 5 |
Vacuum Degree(Mpa) | 0.096 | 0.096 | 0.096 | 0.096 | 0.096 |
Rotation Speed(rpm) | 10-180 | 10-90 | 5-110 | 5-110 | 5-110 |
Evaporator Speed(L/h) | 1.2 | 2 | 3.5 | 5 | 8 |
Power(V) | 220 | 220 | 220 | 220 | 220 |
Dimension(cm) | 55*35*75 | 55*35*110 | 100*50*180 | 110*70*200 | 120*80*120 |
Main Features
1) High evaporation, high recovery, using advanced frequency conversion and electronic speed regulation, ensure the steady operation of the motor.
2) The bath pot is raised and lowered by electric motor, which is easy to operate. When the low boiling point evaporates, the collecting bottle can be immersed in ice bath to reduce secondary evaporation.
3) Japanese technology ac induction motor, stepless speed regulation, no brush, no spark, can work effectively for a long time.
4)Intelligent temperature control, water and oil bath, more extensive application, temperature fluctuation only 0.2 degrees Celsius difference, evaporation more stable, not easy to flush.
Machine Parts
ROTARY FLASK
Brand: NTSJ
Original: China
The rotating bottle rotates at a constant speed, and then material inside will forms a large area of film on the bottle wall.

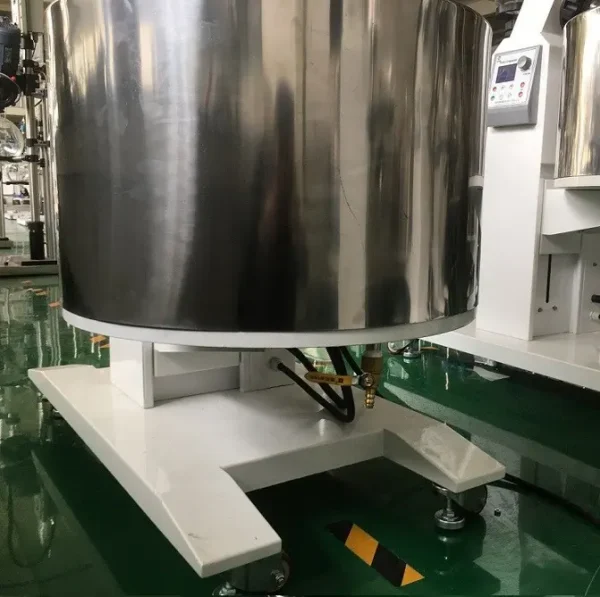

Name: BATH POT
Brand:NTSJ
Original: China
Bath pot can be easily lifted by electricity,and under the intelligent temperature control, both oil and water can be used in bath pot.

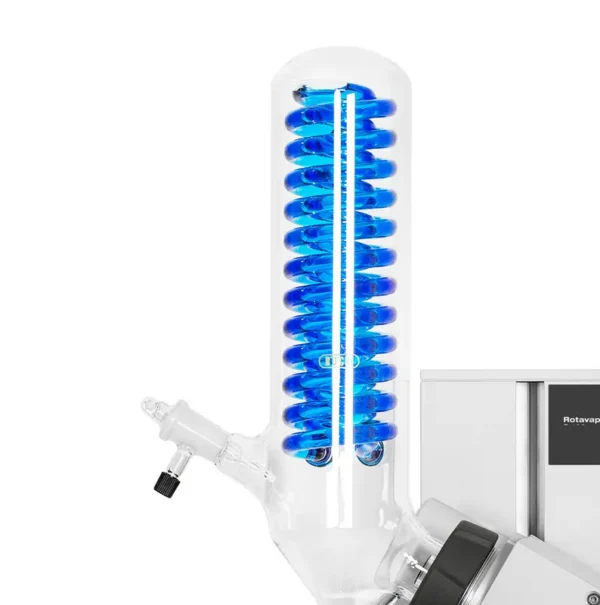

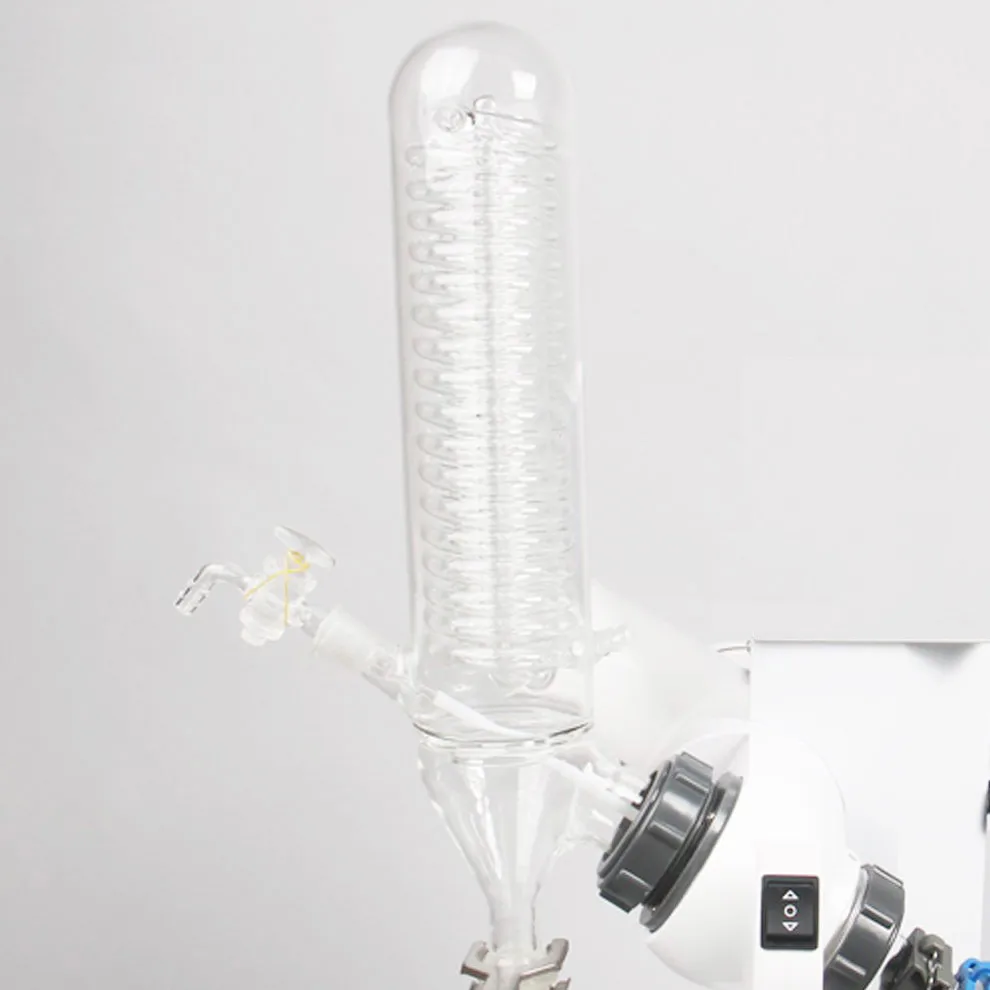

CONDENSER
Brand: NTSJ
Original: China
Double or three layer condenser is more effective during distillation or reflux.
Sanjing Chemglass is able to provide professional service with design, manufacturing, equipment selection, instrument supporting, installation, debugging and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, CBD oil purification and new material.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee customer satisfaction. As a result of our high-quality products and outstanding customer service, we have formed global sales network including Russia, America, Switzerland, India, Paraguay, New Zealand, Netherlands, Thailand and South Africa. In addition, we also build the relationship with more than 10 overseas distributors.
If you are interested in any of our product or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world.
A: We are professional manufacturer of lab equipment and we haveour own factory.
Q: How long is your delivery time ?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are notin stock.
Q: Do you provide samples? lisitfree?
A: Yes, we could offer the sample. Considering the high value of ourproducts,the sample is not free, but we'll give you our best price including shipping cost.
Q: What is your terms of payment?
A: 100% Payment before shipment or as negotiated terms with clients. For pro -tecting clients' payment security, Trade Assurance Orderis highly recommended.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $4000 / set
- 5–9 set: US $3800 / set
- 10+ set: US $3500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rotary evaporator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the rotary evaporator be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
