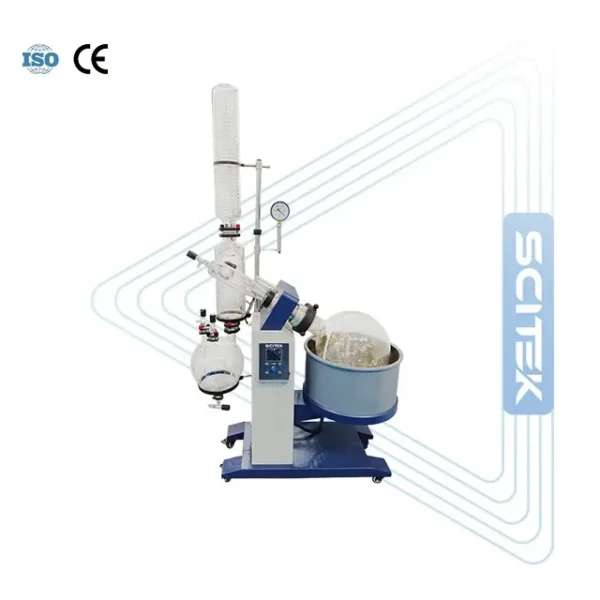

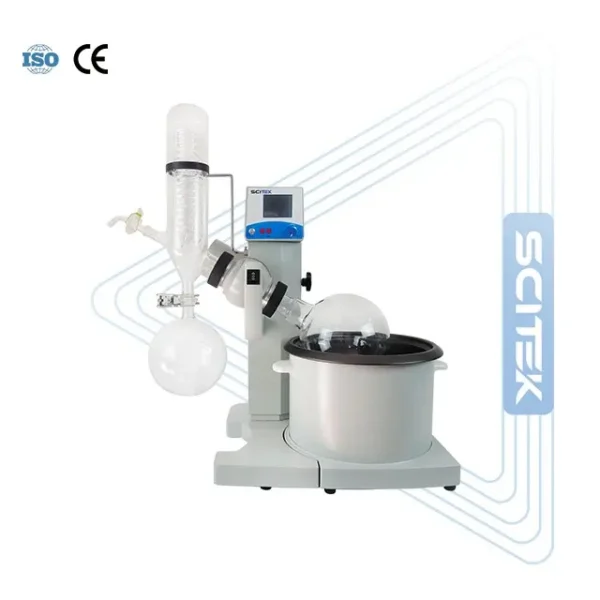

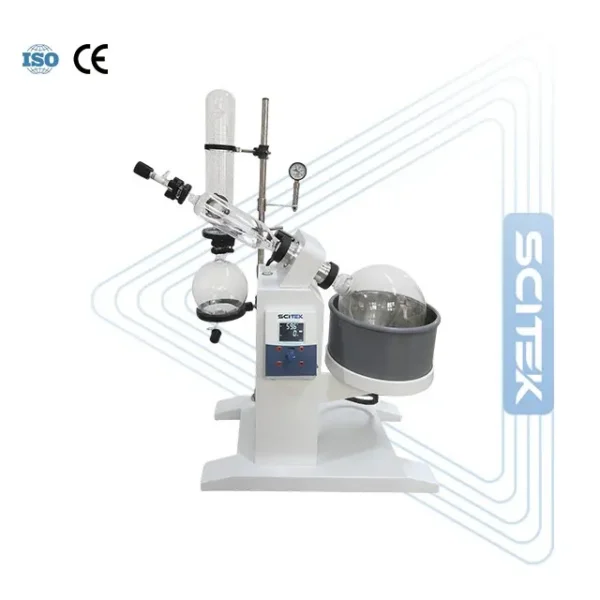

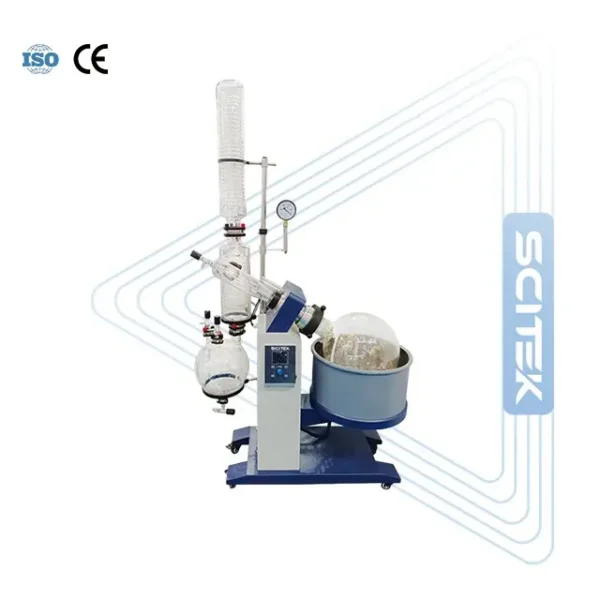

Key specification for this rotary evaporator: model RE-5200R; RE-5220R; RE-5250R. Everything below is reproduced from the factory data sheet. Made by Scitek Company Limited (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Rotary Evaporator
- Rotating Flask Capacity: 10 L; 20 L; 50 L
- Receiving Flask Capacity: 5 L; 10 L; 20 L
- Rotational Speed: 0-120 rpm; 0-90 rpm
- Speed Control: Electronic stepless speed regulation, knob adjustment
- Place Of Origin: Shandong, China
- Display Type: LCD Display
Technical Specifications
| Maximum Vacuum Pressure | / |
|---|---|
| Temperature Accuracy | ±1°C |
| Protection Class | / |
| Display Type | LCD Display |
| Place Of Origin | Shandong, China |
| Brand Name | SCITEK |
| Product Name | Rotary Evaporator |
| Model | RE-5200R; RE-5220R; RE-5250R |
| Rotating Flask Capacity | 10 L; 20 L; 50 L |
| Receiving Flask Capacity | 5 L; 10 L; 20 L |
| Rotational Speed | 0-120 rpm; 0-90 rpm |
| Lifting Travel Range | 0-180 mm |
| Temperature Control Accuracy | ±1 ℃ |
| Temperature Control | Button |
| Speed Control | Electronic stepless speed regulation, knob adjustment |
| G.W. | 108;125;155kg |
| Selling Units | Single item |
| Single Package Size | 115X70X147 cm |
| Single Gross Weight | 155.0 kg |
Product Details
Products Description
Advantage:
1. The design of structural adopts an upright style, making full use of space to arrange rotating, evaporating, condensing, and receiving devices, with a small footprint.
2. The sealing element is made of PTEE, which is corrosion-resistant and easy to clean.
3. The condenser is divided into two parts: main cooling and auxiliary cooling, using serpentine dual condensation to ensure high recovery rate. Quick open flange connection, easy to install and remove. The receiving flask is equipped with a check valve. The distillation and discharge can be carried out synchronously.
4. The connection between the evaporator flask and the host is made with a nut, which is convenient for loading and unloading.
5. Integrated LCD screen, used for displaying temperature and speed, capable of accurately setting heating temperature.
6. The speed adopts variable frequency speed regulation, and the LCD display is stable and reliable;
7. The constant temperature bath pot can be automatically adjusted to the appropriate position according to usage needs.
2. The sealing element is made of PTEE, which is corrosion-resistant and easy to clean.
3. The condenser is divided into two parts: main cooling and auxiliary cooling, using serpentine dual condensation to ensure high recovery rate. Quick open flange connection, easy to install and remove. The receiving flask is equipped with a check valve. The distillation and discharge can be carried out synchronously.
4. The connection between the evaporator flask and the host is made with a nut, which is convenient for loading and unloading.
5. Integrated LCD screen, used for displaying temperature and speed, capable of accurately setting heating temperature.
6. The speed adopts variable frequency speed regulation, and the LCD display is stable and reliable;
7. The constant temperature bath pot can be automatically adjusted to the appropriate position according to usage needs.
Product Paramenters
Model | RE-5200R | RE-5220R | RE-5250R | ||||
Rotating Flask | Capacity | 10 L | 20 L | 50 L | |||
Caliber | F125 flange port | ||||||
Receiving Flask | Capacity | 5 L | 10 L | 20 L | |||
Caliber | F50 flange port | F60 flange port | |||||
vent valve | F35 flange port*2 | ||||||
discharge valve | F50 flange port | ||||||
Type | Normal | ||||||
Feeding Switch | F35 flange port，11 mm barb fitting | ||||||
Condenser | Vertical main and auxiliary condenser, double-layer serpentine coil | ||||||
Condensation Area (㎡) | 0.57 | 1.2 | 1.5 | ||||
Condenser Size (Dia.×H)(mm) | Main condenser 125×560，secondary condensation 125×500 | Main condenser 158×780，secondary condensation 158×530 | |||||
Condenser Circulation Connection Port | 15 mm OD refrigerant port, 11 mm OD vacuum port | 15 mm OD barb fitting | |||||
Seal | Teflon and fluororubber dual sealing | ||||||
Temperature Control Accuracy | ±1 ℃ | ||||||
Rotational Speed | 0-120 rpm, variable frequency speed control | 0-90 rpm, variable frequency speed control | |||||
Screen Display | Temperature and speed LCD display | ||||||
Temperature Control | Button | ||||||
Speed Control | Electronic stepless speed regulation, knob adjustment | ||||||
Motor Power (W) | 250 | 140 | |||||
Bath pot Lifting Method | Electric lifting | ||||||
Bath pot Lifting Travel Range | ≈0-180 mm | ||||||
Evaporation Rate (Water) (L/h) | ＞3.2 | ＞5 | ＞12 | ||||
Vacuum Degree | -0.098 Mpa | ||||||
Power Supply | 220 V, 50 Hz | 380 V, 50Hz | |||||
Temperature Control Range | Water bath, RT to 99 ℃; oil bath, RT to 180 ℃ (can customize higher temperature oil bath pot for RT to 260 ℃) | ||||||
Bath Pot | Inner Liner Material | 304 stainless steel | |||||
Inner Liner Size (Dia.×H)(mm) | 400×240 | 450×260 | 550×320 | ||||
Capacity (L) | About 10 | About 20 | About 50 | ||||
Heating Power (kW) | 4 | 6 | |||||
Size (D×W×H)(mm) | ≈970×550×1800 | ≈1300×780×2500 | |||||
Shipping Size (D×W×H)(mm) | 1000×600×1200 | 1050×620×1300 | 1150×700×1470 | ||||
G.W. (kg) | 108 | 125 | 155 | ||||
Recommended Equipment (excluding) | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-1040 | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-2040 | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-5040 | ||||
