The sale for bldc motor listed here carries 72 V DC, model number ND72680, documented exactly as the manufacturer publishes it. Made by Zhejiang Siaecosys Technology Co., Ltd. (2 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Sale For Bldc Motor
- Model Number: ND72680
- Output Power: 4-6kw(5.36-8.05hp)
- Rated Power: 4-6KW
- Rated Voltage: 72 V DC
- Voltage: 72 V
- Warranty: 3 Months
Technical Specifications
| Rated Voltage | 72 V DC |
|---|---|
| Output Power | 4-6kw(5.36-8.05hp) |
| Voltage | 72 V |
| Protection Class (IP) | Ip67 |
| Maximum Current | 350A |
| Warranty | 3 Months |
| Controller Model | ND72680 hall |
| Model Number | ND72680 |
| Brand Name | FARDRIVER |
| Place Of Origin | China |
| Product Name | FARDRIVER |
| Application | Electric Motorcycle |
| Rated Power | 4-6KW |
| Current | 350A max |
| Model | ND72680 hall |
| Controller Type | Torque |
| NET Weight | 2.05kg |
| Waterproof | IP67 |
| Function | Curise/BOOST;high and low speed;anti-theif;low brake/high brake etc |
| Selling Units | Single item |
| Single Package Size | 30X19X15 cm |
| Single Gross Weight | 3.5 kg |
Product Details

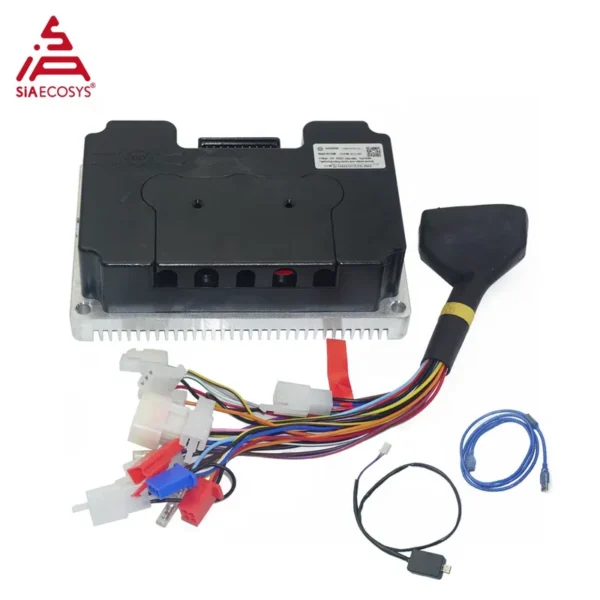

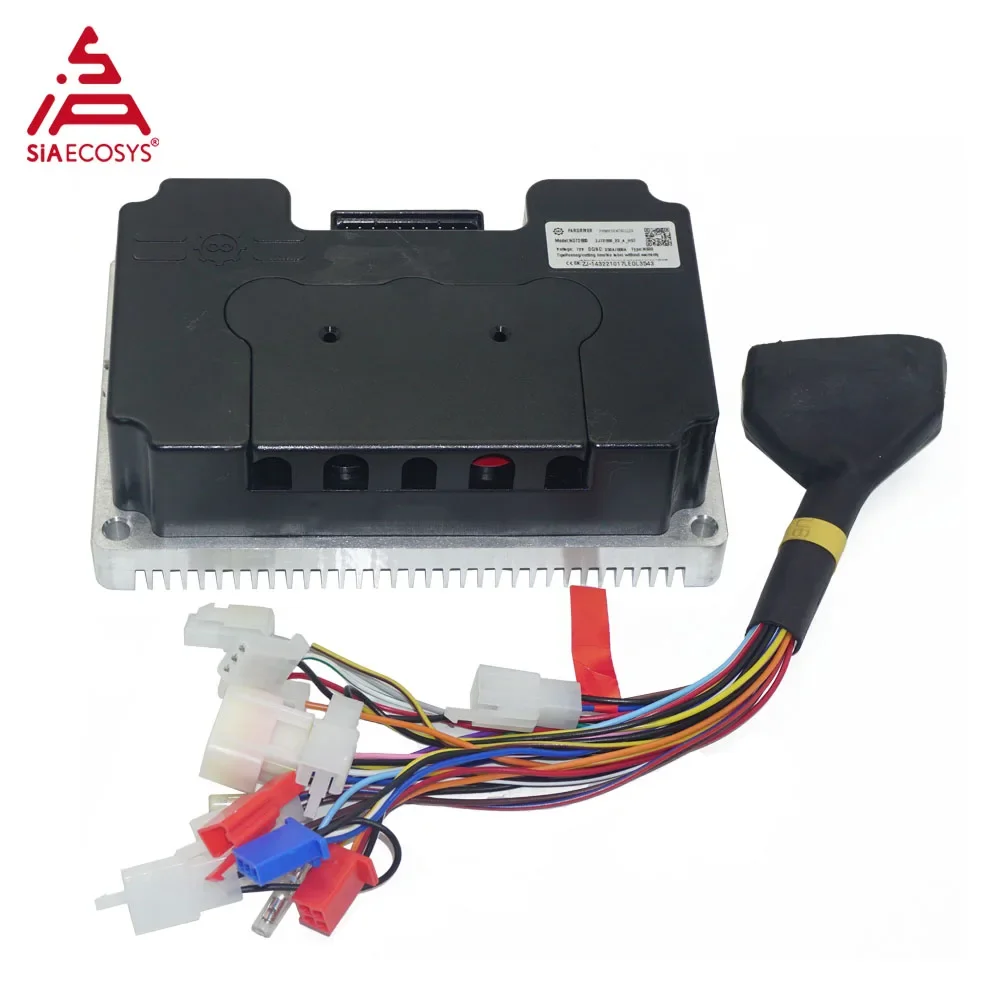

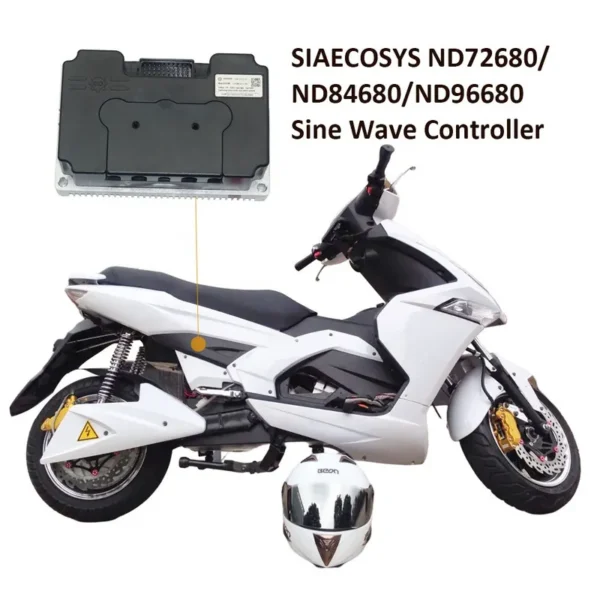

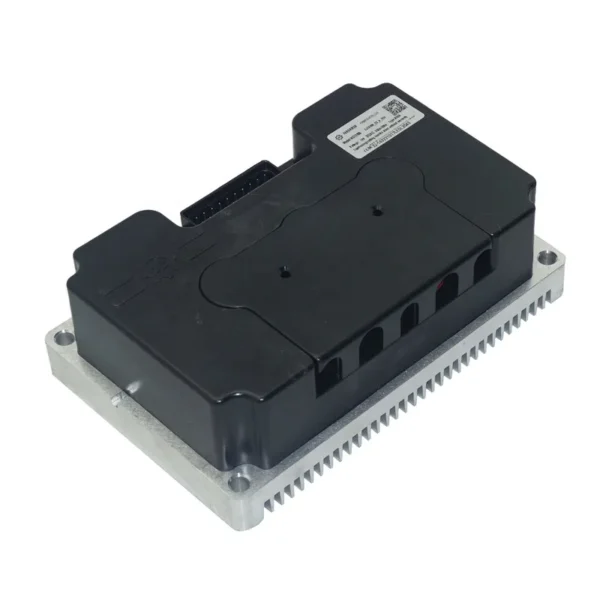

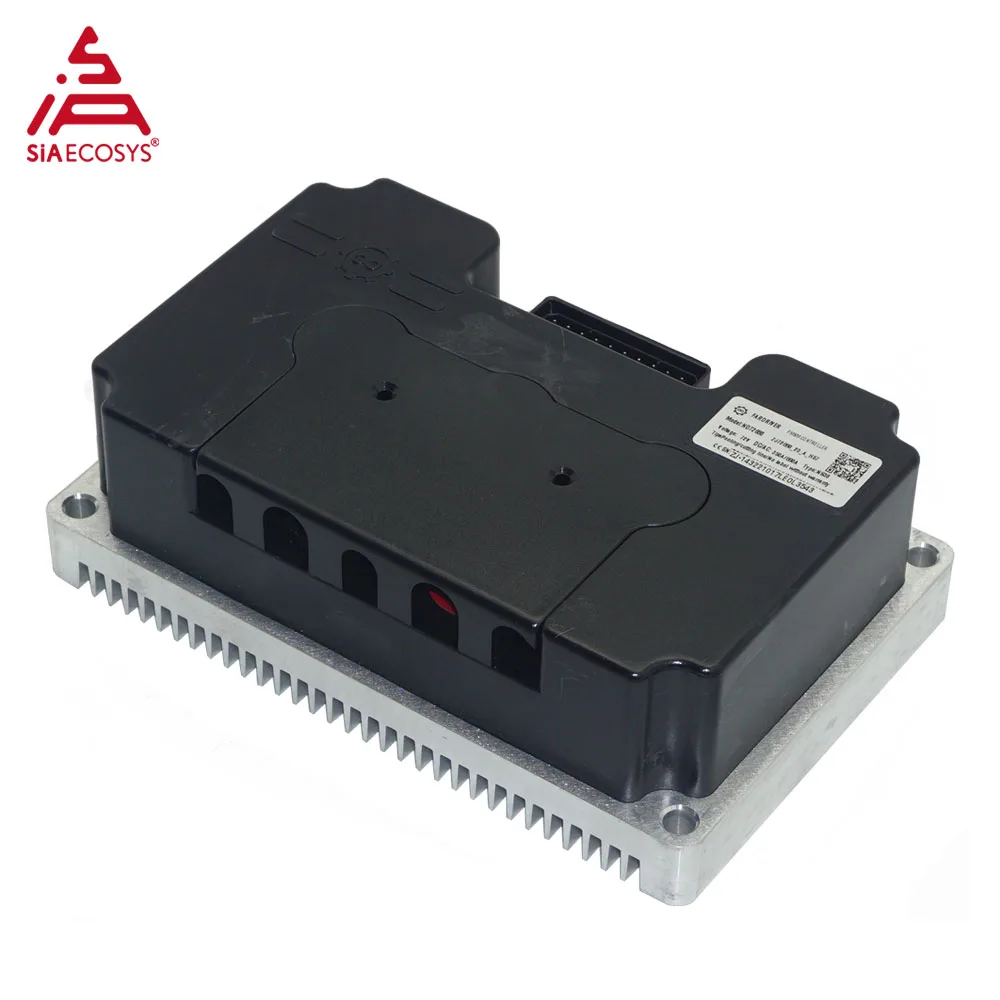

Fardriver Controller Fardriver ND72680 DC 350A High Power Electric Motorcycle Controller with Bluetooth Module
matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
1. | 1pc X ND72680 hall version motor controller |
2. | 1pc X Bluetooth Module or USB cable |

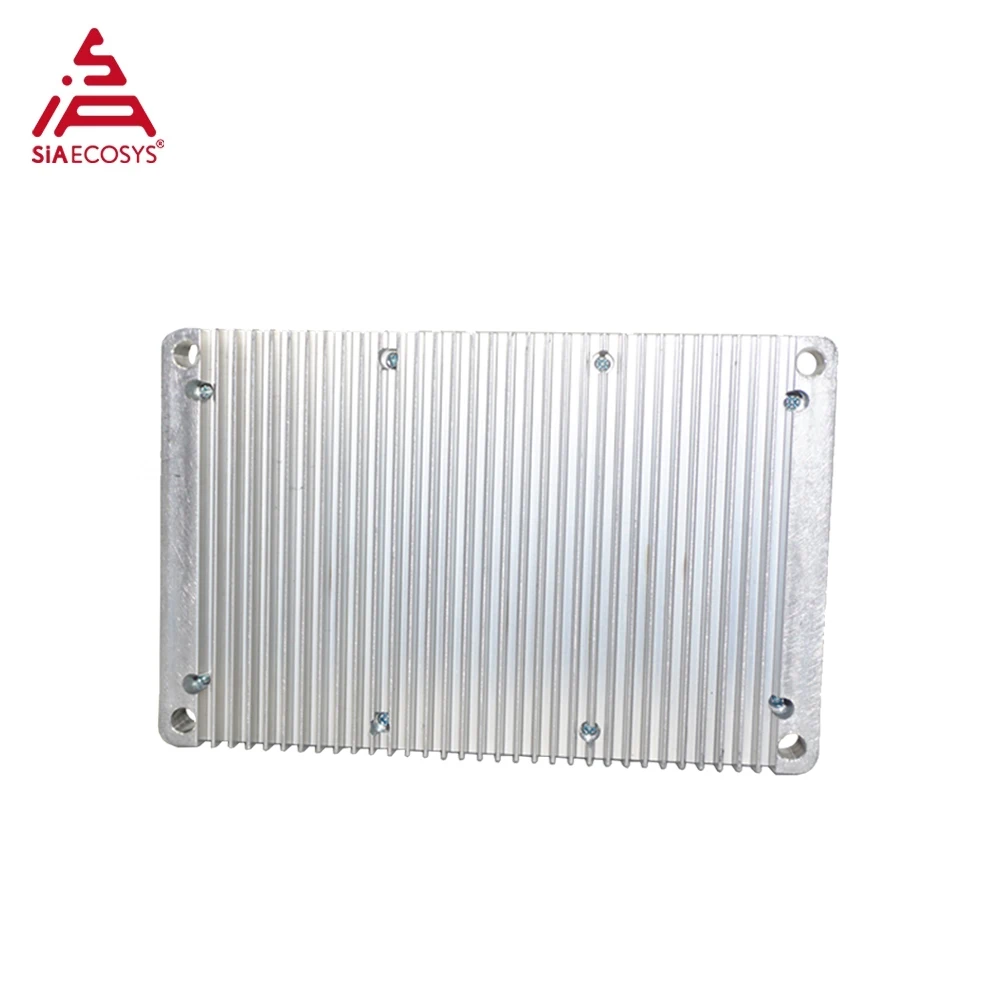

1. | All the raw materials are imported, using high-performance Moss tube,full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined. |
2. | With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board |
3. | Small in size |
4. | High efficiency, low temperature rise, small running current |
5. | With self-learning function, excellent commonality |
6. | The app compatible with Android and IOS |
7. | With flux weakening function.(The product does not contain magnetism) |
For ND72680, the peak voltage is 88V;
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.

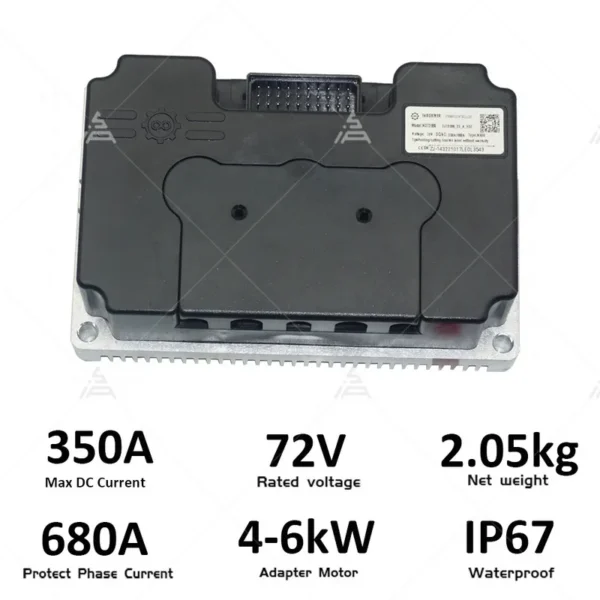

Max DC current | Rated voltage | Net. Weight |
350A | 72V | 2.05KG |
Protect phase current | Adapter motor | Waterproof |
680A | 4-6KW | IP67 |

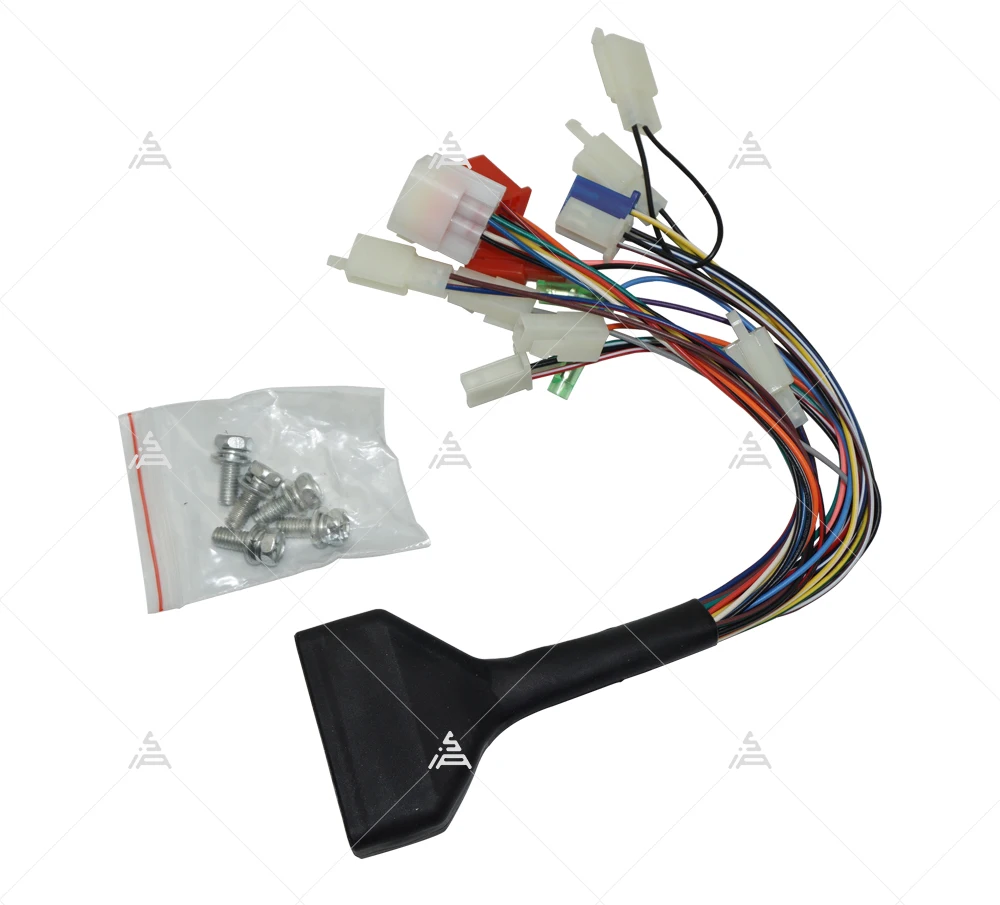

Adapter Cable

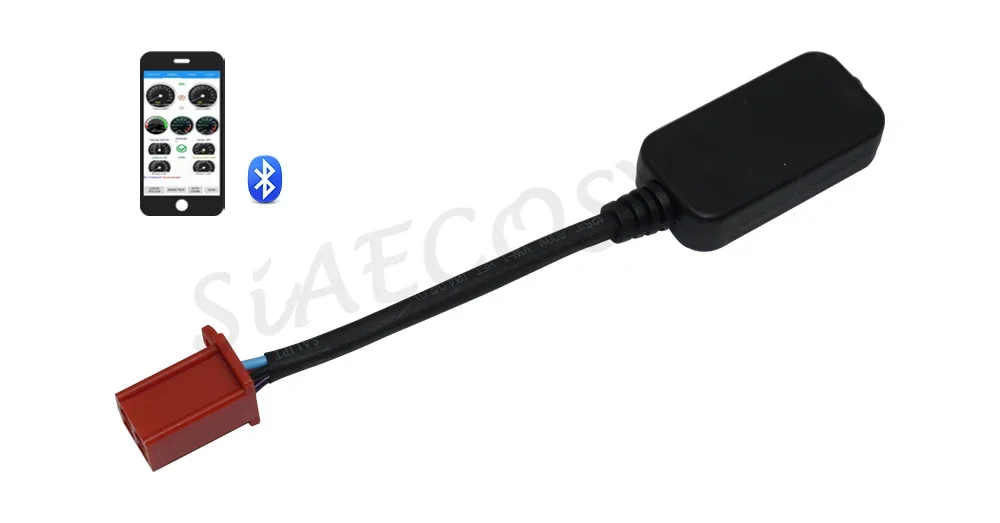

Bluetooth module

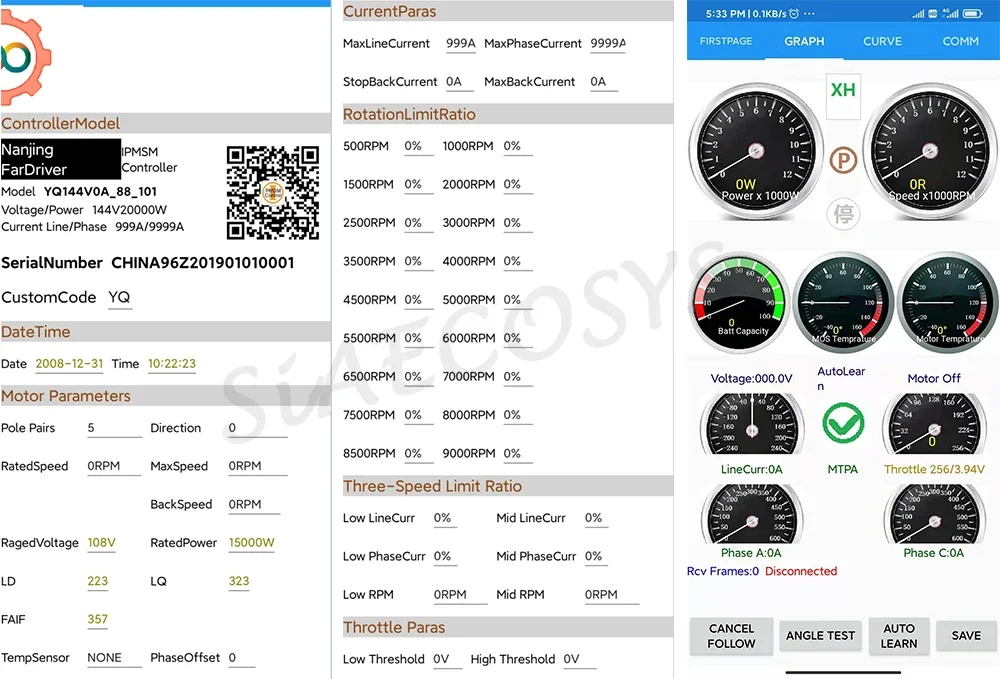

Software interface(APP)
Ordering and Pricing
- Minimum order quantity: 1 combo
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sale for bldc motor?
The standard minimum order quantity is 1 combo. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Months warranty. Spare parts and technical support remain available after the warranty period.
Can the sale for bldc motor be supplied for my local voltage?
The standard configuration is 72 V DC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Siaecosys Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Siaecosys Technology Co., Ltd. range on HVACR Nexus.
