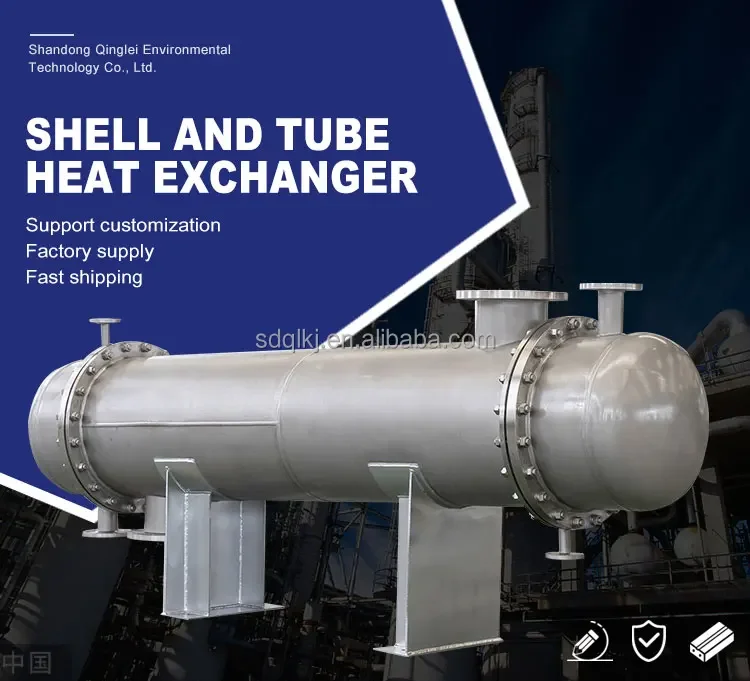

Key specification for this shell and tube heat exchanger: material Stainless Steel, heat exchanger type Tube Heat Exchanger. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Shell And Tube Heat Exchanger
- Voltage: none
- Flow Capacity: 225gpm
- Material: Stainless Steel
- Shell Material: SS 316L, 304,2205, 2507, pure titanium, zirconium, Hastelloy alloy
- Tube Material: SS 316L, 304,2205, 2507, pure titanium, zirconium, Hastelloy alloy
- Warranty: 1 Year
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Flow Capacity | 225gpm |
| Fluid Compatibility | Water |
| Material | Stainless Steel |
| Maximum Operating Temperature | 400-600c |
| Voltage | none |
| Core Components | Pressure Vessel, tube |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | high effiency |
| Working Temperature Range | -30℃-203℃ |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 200 |
| Brand Name | Qinglei |
| Liquid Flow Rate | customizable |
| Maximum Pressure Rating | 10Mpa(1450.38psi) |
| Dimension(L*W*H) | customized |
| Product | Heat Exhanger |
| Shell Material | SS 316L, 304,2205, 2507, pure titanium, zirconium, Hastelloy alloy |
| Application | heater, condenser, cooler,evaporate |
| Tube Material | SS 316L, 304,2205, 2507, pure titanium, zirconium, Hastelloy alloy |
| Certification | ASME,ISO,CE |
| Medium | Steam – Air,water,oil,milk,beer,juice,chemicals etc |
| Feature | High Efficiency Heat Transfer Technology |
| After-Sales Service Provided | Online Service |
| Package | Wooden Box |
| Selling Units | Single item |
| Single Package Size | 100X50X30 cm |
| Single Gross Weight | 50.0 kg |
Product Details

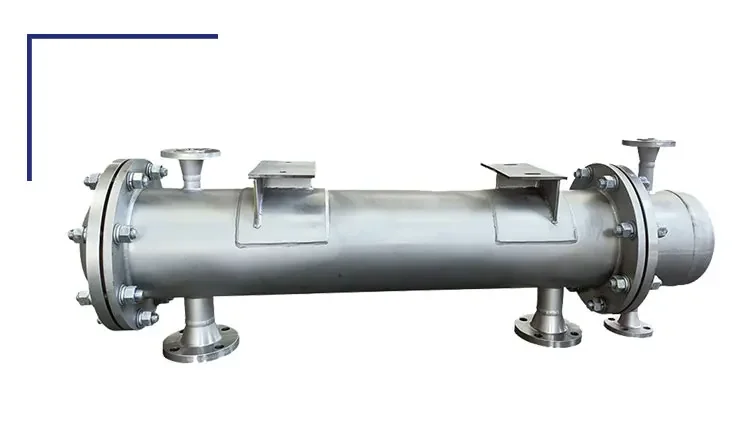

1. Various specifications of tube heat exchanger can be produced, fixed tubesheet heat exchanger,fixed tubesheet heat exchanger,floating head heat exchanger. U type heat exchanger,One pass,two pass ,multipaths and so on2.Function: Used for cooling, heating and condensing.

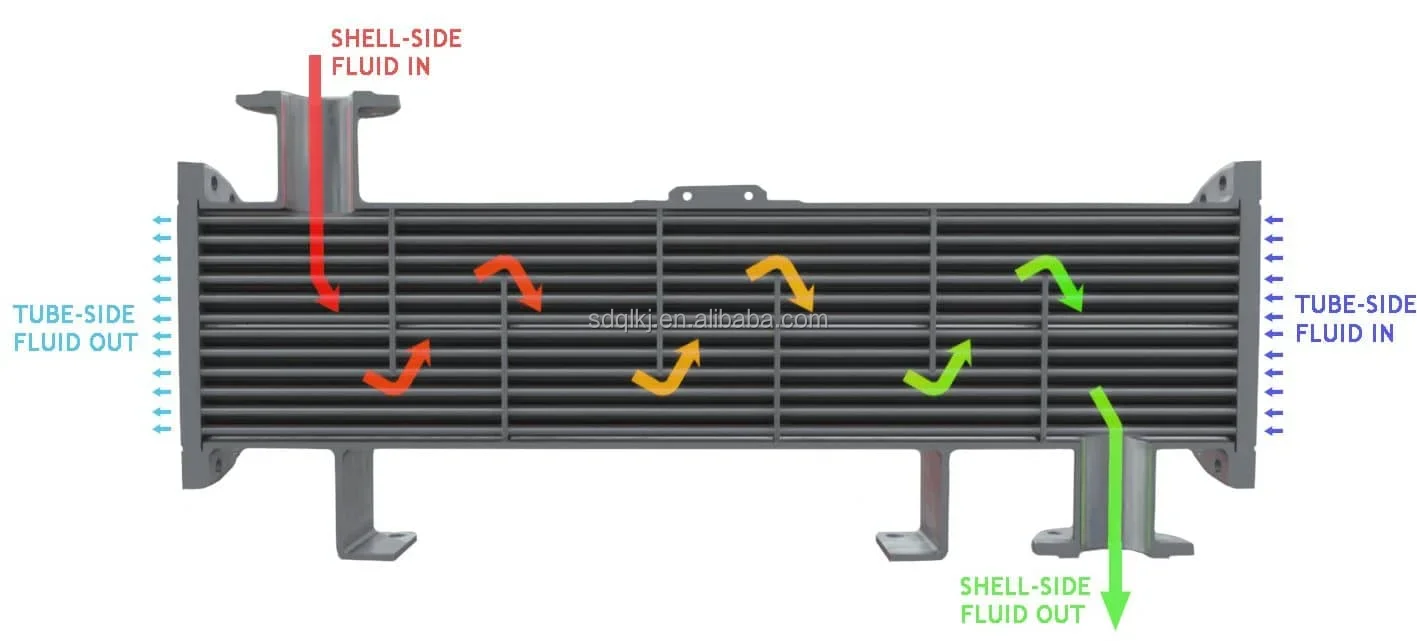

3. Condition:Liquid-liquid, Steam-liquid heat exchange
4. Large flux, more suitable for condensation in working conditions that require large flux, process conditions where the material has a tendency to crystallize, large corrosion margin, and high pressure resistance.
5 .Certificate: CE ,ASME and ISO
6. Professional customized according to working conditions.
Shell Material | 304 stainless steel, 316L, two-way steel 2205, titanium, Hastelloy,Zirconium etc |
Tube Material | 304,316L,2205,Hastelloy,Titanium,Zirconium etc |
Pipe specification | Φ8，Φ10，Φ12, Φ14，Φ16,Φ19，Φ25 etc. |
Tube wall thickness | 1mm-3mm |
Operating temperature | -20°C-603°C(customizable) |
Media | Steam-liquid,liquid-liquid,oil-steam |
Application fluids | steam, circulating water, frozen brine, glacial refrigerant, glycol; |

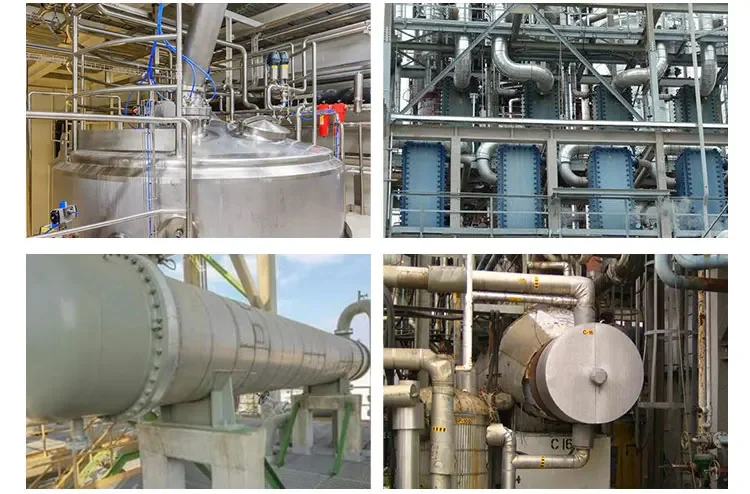

Application field | Chemical, metallurgy, petroleum, salt, sugar, paper,desalination, refrigeration and other industries |
A: We are the professional heat exchanger manufacturer in China.
2.How could we confirm the details of the products?
A: We will provide the detailed drawings for you to confirm.
3.What's the MOQ?
A: 1 pcs
4.Can it be customized?
A:Yes,we can design according to your working condition or produce according to your drawings.
5.What information do I need to provide if I want a price?
Please advise us the medium ,inlet and outlet temperature,working pressure,capacity or flow rate on cold side and hot
side,horizontal or vertical installation.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $750 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shell and tube heat exchanger?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this shell and tube heat exchanger carry?
It is supplied with ASME,ISO,CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the shell and tube heat exchanger be supplied for my local voltage?
The standard configuration is none. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer

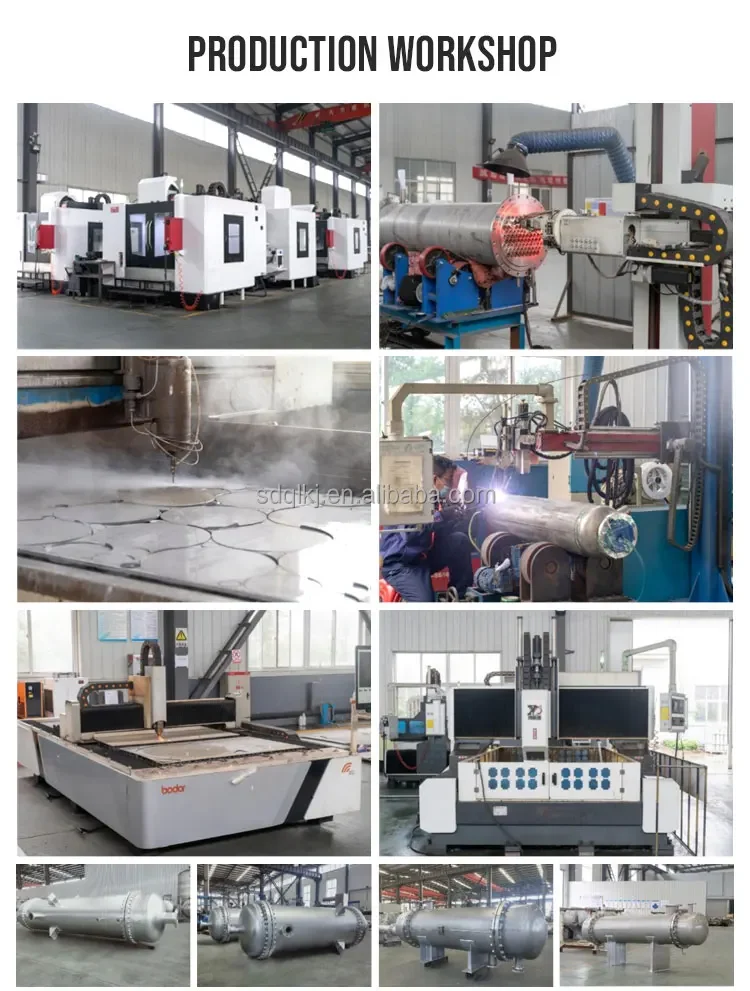

This product is produced by Shandong Qinglei Environmental Science And Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Qinglei Environmental Science And Technology Co., Ltd. range on HVACR Nexus.
