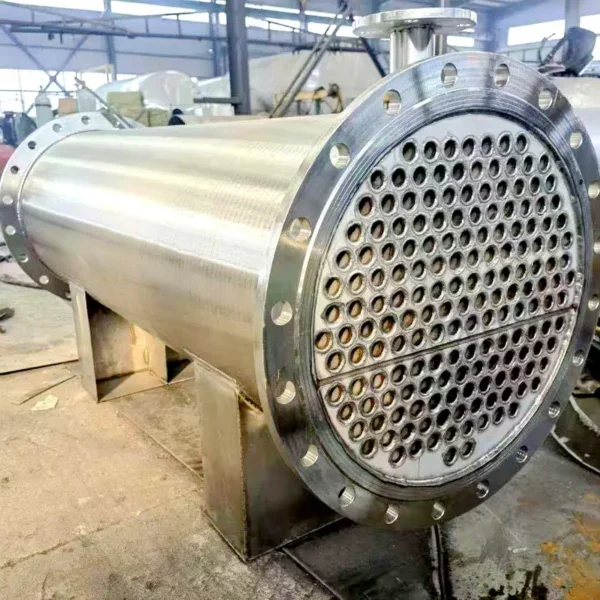

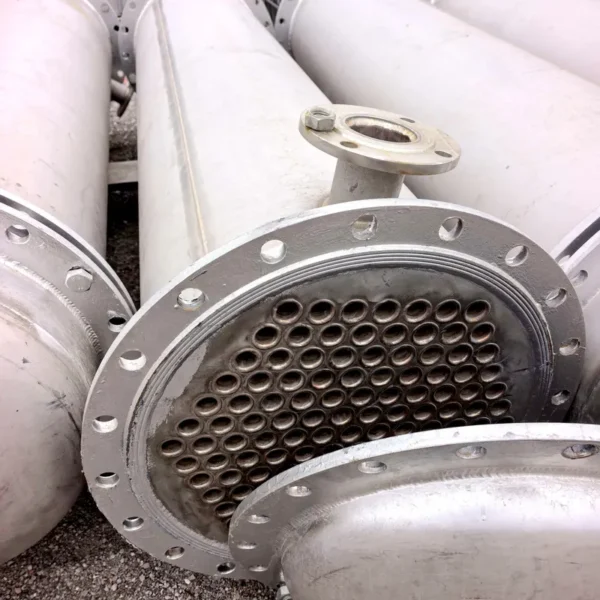

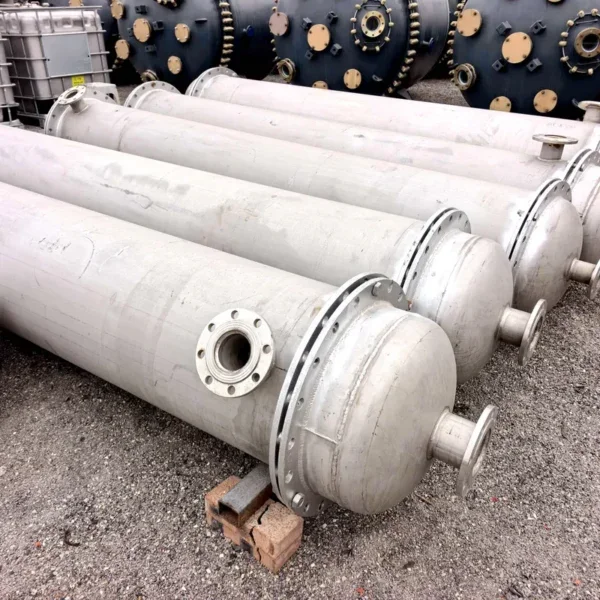

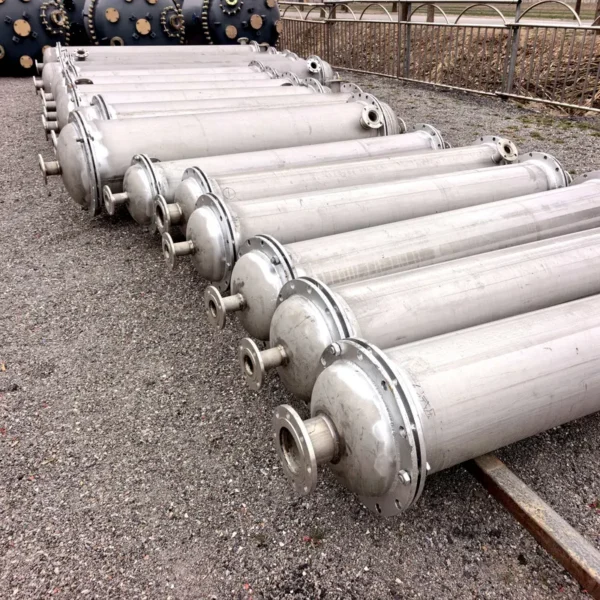

Shell and tube heat exchanger — 220 V, 380 V, 240 V, material Stainless Steel. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Shell And Tube Heat Exchanger
- Voltage: 220 V, 380 V, 240 V
- Material: Stainless Steel
- Tube Material: Cu/sus304/sus316/b10/b30/ti
- Fin Material: Stainless Steel 316/304
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Heat Exchanger Type | shell and tube |
|---|---|
| Material | Stainless Steel |
| Maximum Operating Temperature | -20℃~300℃ (customizable) |
| Voltage | 220 V, 380 V, 240 V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Low Maintenance Cost |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 200 |
| Liquid Flow Rate | 3m/s |
| Maximum Pressure Rating | 3.5Mpa(507.63psi) |
| Dimension(L*W*H) | 2100*400*450/customize |
| Application | Heavy Industry Cooling |
| Type | Tube Typle |
| Tube Material | Cu/sus304/sus316/b10/b30/ti |
| Feature | Quick Cool |
| Function | Cooling Liquid |
| Fin Material | Stainless Steel 316/304 |
| Name | Cooled Tube Heat Exchanger |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

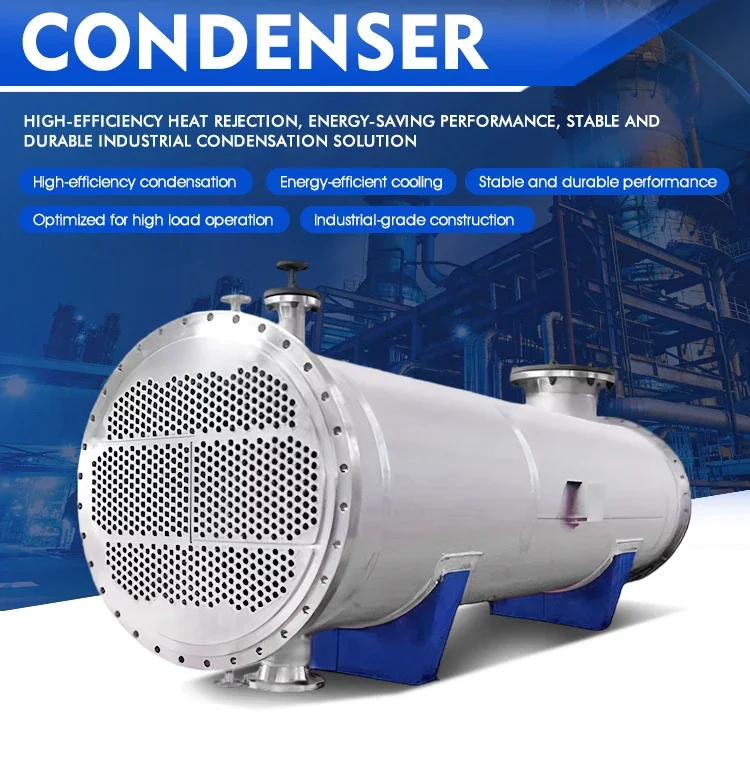

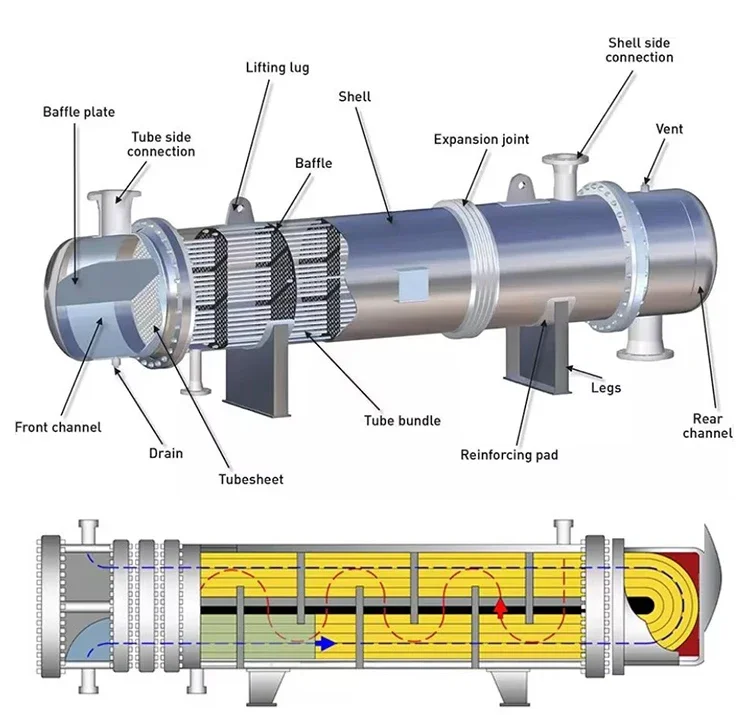

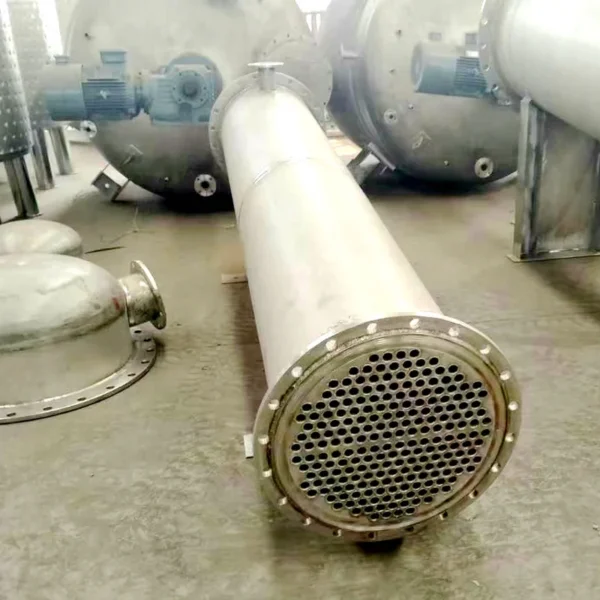

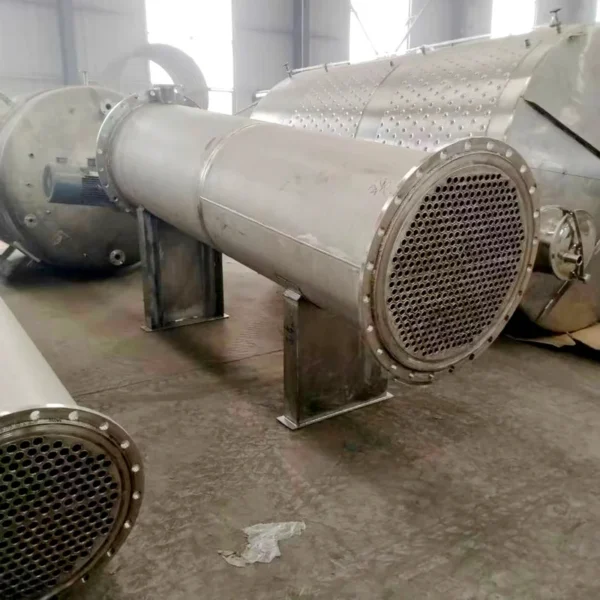

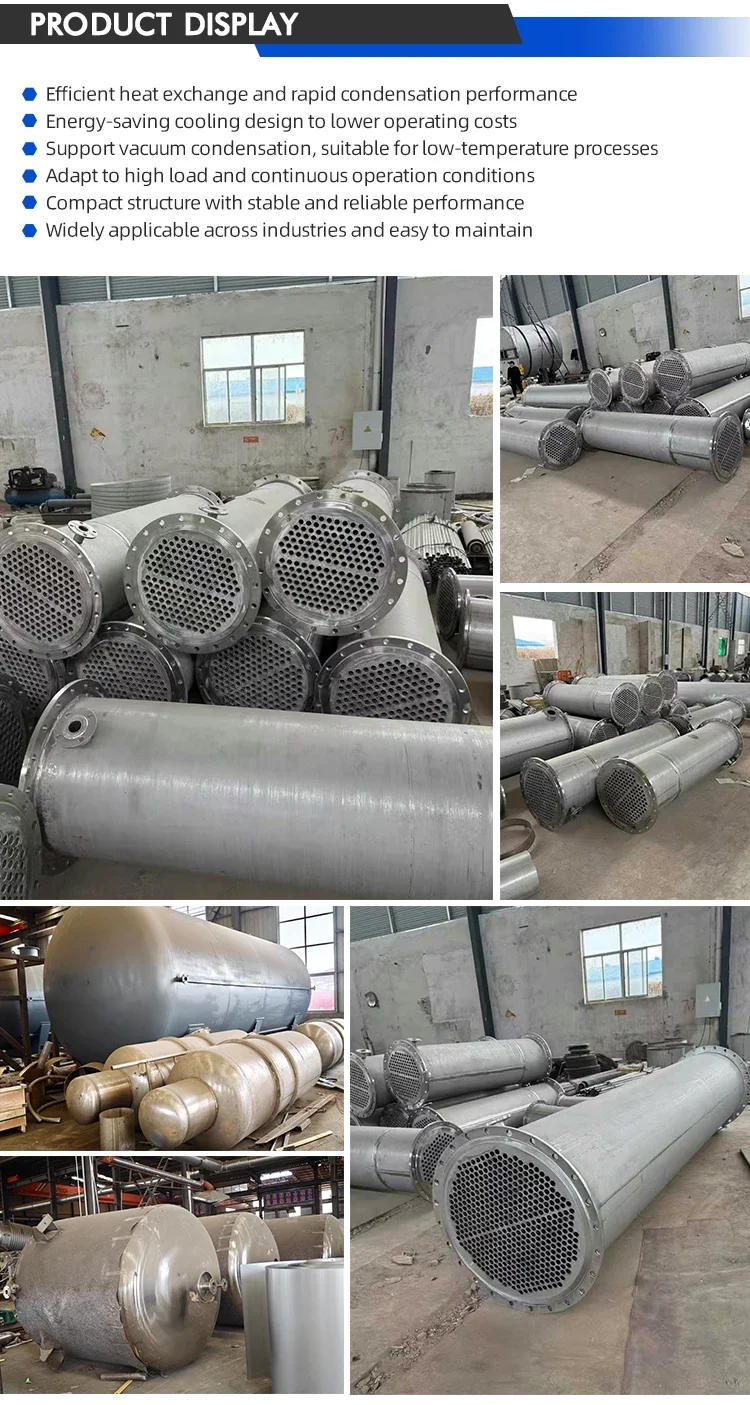

The shell and tube condenser adopts an optimized tube bundle structure design, which enhances the turbulence effect on the shell side and significantly improves the condensation and heat transfer efficiency. The internal flow channel is scientifically arranged to achieve rapid heat release and efficient condensation of steam into liquid, ensuring stable and reliable operation. The main material is mostly made of stainless steel 316L, which has excellent corrosion resistance and long-term stability. It is suitable for steam condensation and waste heat recovery systems in industries such as food, beverage, and fine chemicals, and is a key heat exchange equipment in high standard industrial production.
Profile type | Tuber exchanger |
Material | SS304 or SS316L |
Capacity | 0.1T/H-100T/H (Customized) |
Working pressure | 0.8Mpa(Customized) |
Heating Area/Cooling Area | 0.1~20M2 |
The Diameter of Pipe | Φ6/Φ9/Φ12/Φ16/Φ19/Φ25mm |
Inlet Outlet | Φ19~ Φ219mm |

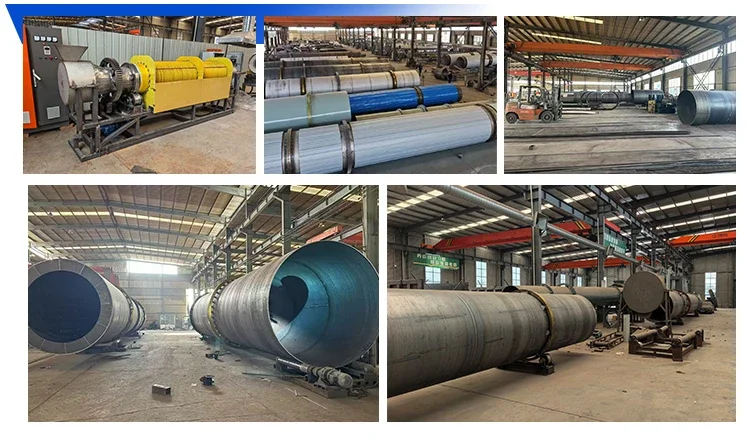

Liangshan Zhongyi Machinery Equipment Co., Ltd. covers an area of 6,600 square meters and boasts an experienced technical team, with engineering and technical personnel accounting for over 60% of the workforce. Equipped with more than 20 sets of advanced production machinery, the company possesses end-to-end service capabilities from design and manufacturing to installation, commissioning, and training. We specialize in the research, development, and manufacturing of process equipment for industries including chemicals, food, dairy, beverages, fermentation, and new materials. Our core products include sanitary-grade fluid equipment, ethanol recovery systems, concentration and extraction systems, tomato drum dryers, electromagnetic rotary kilns, and integrated automated control solutions. These systems are widely applied in material drying, calcination, thermal treatment, and continuous processing operations. Adhering to the philosophy of "Quality First, Technology-Driven, Integrity and Win-Win Cooperation," the company implements a stringent quality management system to ensure compliance with international standards. We provide comprehensive turnkey project services, covering solution design, equipment selection, manufacturing, installation, commissioning, operator training, and long-term after-sales support, delivering reliable and efficient full-plant solutions to global customers.
Q1: Are you a factory or a trading company? A: We are factory direct sales, but we also have our own sales company that can help you purchase anything.
Q2: Can you accept private customization? A: Yes, of course. The minimum order quantity we can accept for customization is from 1 piece, and we can customize the trademark logo, color, style, and packaging.
Q3: What are the payment terms? A: 1. We accept payment methods such as TT transfer, credit card, PayPal, and L/C; 2. You need to pay a 30% or 50% deposit first, and pay the full amount before shipping. After the goods are ready, we will take a video to confirm with you.
Q4: What is your sample time? A: Usually we will take 15-30 days to make the samples.
Q5: How long can you ship the goods? A: 1. For products that are in stock, we can deliver to you in about 3-7 days. 2. For mass production, the regular delivery time is 15-30 days, and the specific time depends on the order quantity and customization requirements.
Q6: Which shipment way is available? A: By sea or land transportation.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $600 / set
- 3–4 set: US $595 / set
- 5–9 set: US $590 / set
- 10+ set: US $580 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shell and tube heat exchanger?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the shell and tube heat exchanger be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 240 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
