The shutter ventilating exhaust fan listed here carries material Metal, documented exactly as the manufacturer publishes it. Made by Zhongshan Yongning Ventilation System Manufacturing Co., Ltd. (17 years on the platform, typical reply ≤8h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Shutter Ventilating Exhaust Fan
- Material: Metal
- Place Of Origin: China
- Application: Commercial, Garage, Hotel, Household
- Features: Exhaust the foul /Damp air the steam / Smoke in the room
- Single Gross Weight: 0.0 kg
- Blade Diameter: 10.0 – 12.9 in
Technical Specifications
| Application | Commercial, Garage, Hotel, Household |
|---|---|
| Blade Diameter | 10.0 – 12.9 in |
| Material | Metal |
| App-Controlled | No |
| Number Of Blades | 5 |
| Place Of Origin | China |
| Product Name | Shutter Exhaust Fan |
| Style | Modern |
| Color | White |
| Temperate Climates Or Tropical Climates | T50 |
| Working Temperature(℃) | -20~45℃ |
| Rated Frequency | 50/60Hz |
| IP Ratin | IPX4 |
| Features | Exhaust the foul /Damp air the steam / Smoke in the room |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
6 8 10 12 Inch Wall Mounted Window Shutter Ventilating Exhaust Fan For Kitchen
| Product name | MODEL NO. | APB15-3A | APB20-4A | APB25-5A | APB30-6A |
| Shutter Exhaust Fan With Grill | Spec(mm) | 150(6") | 200(8") | 250(10") | 300(12") |
| power(W) | 25 | 30 | 40 | 45 | |
| speed(r/min) | 1850 | 1350 | 1350 | 1350 | |
| capacity(m3/min) | 4.5 | 7.38 | 11.4 | 16.4 | |
| protection against electric shock | ClassⅠ | ClassⅠ | ClassⅠ | ClassⅠ | |
| rated frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| Rated voltage or voltage range(V) | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V | |
| Temperate climates or tropical climates | T50 | T50 | T50 | T50 | |
| Working Temperature(℃) | -20~45℃ | -20~45℃ | -20~45℃ | -20~45℃ | |
| IP Ratin | IPX4 | IPX4 | IPX4 | IPX4 | |
| Size(cm) | 24.5×13.7×25 | 32.5×14.8×33 | 37.2×15.5×38 | 42.2×15.3×42.5 | |
| Warranty(Years) | 1 year | 1 year | 1 year | 1 year | |

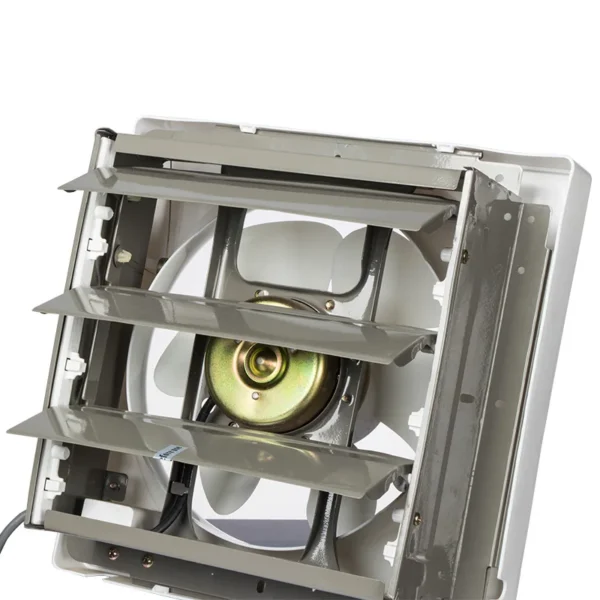

| 1.Factory metal shutter kitchen/ bathroom/ wall mounted square exhaust fan 100% copper motor 2.Pure copper motor for long service life 3.PP panel, metal body and rear shutter 4.Oil box for easily installed and cleaning 5.Optional in one way and two ways 6.Exhaust the foul and damp air the steam and smoke in the room 7.Applicable in kitchen, bathroom, houses, hotel, restaurants, etc | |||||
1. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures
2. What is your terms of payment?
Usually,we accept T/T,irrevocable L/C at sight.For regular orders, Terms of payment 30% deposit,full payment before delivery the goods.
3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of packing?
Generally, we pack our goods in neutral cartons.If is fragile we will make wooden frame.and we also can according to your requirements.
5. What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
6. How to solve the quality problems after sales?
Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
7. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
8. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
9. You are manufacturer or trading company?
We are factory. Welcome to visit our factory at anytime.
Ordering and Pricing
- Minimum order quantity: 300 piece
- Volume pricing:
- 300+ piece: US $8.7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shutter ventilating exhaust fan?
The standard minimum order quantity is 300 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Yongning Ventilation System Manufacturing Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhongshan Yongning Ventilation System Manufacturing Co., Ltd. range on HVACR Nexus.
