Oscillating mist fan — power source Electric, material Metal. The complete factory specification follows. Made by Zhongshan Yongning Ventilation System Manufacturing Co., Ltd. (17 years on the platform, typical reply ≤9h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Oscillating Mist Fan
- Model Number: MFB5-50
- Power Source: Electric
- Power (W): 180
- Material: Metal
- Wind Speed: Three
- Warranty: 1 Year
Technical Specifications
| Application | Hotel, Outdoor, Garage, Commercial, Household |
|---|---|
| Type | Water Mist Fan |
| Power Source | Electric |
| Blade Diameter | 500mm |
| Material | Metal |
| Power (W) | 180 |
| Wind Speed | Three |
| Control Type | Mechanical |
| Remote Control | No |
| Timer | No |
| App-Controlled | No |
| Number Of Blades | 3 |
| Warranty | 1 Year |
| After-Sales Service Provided | None |
| Place Of Origin | Guangdong, China |
| Brand Name | YONGHUA |
| Dimensions (L X W X H (Inches) | — |
| Featured Function | Waterproof |
| Model Number | MFB5-50 |
| Product Name | Misting Wall Fan |
| Style | Modern |
| Color | Black |
| Temperate Climates Or Tropical Climates | T45 |
| Working Temperature(℃) | -20~45℃ |
| Rated Frequency | 50Hz |
| IP Ratin | IP24 |
| Features | Atomization and air delivery driven |
| Certification | ce |
| Selling Units | Single item |
Product Details

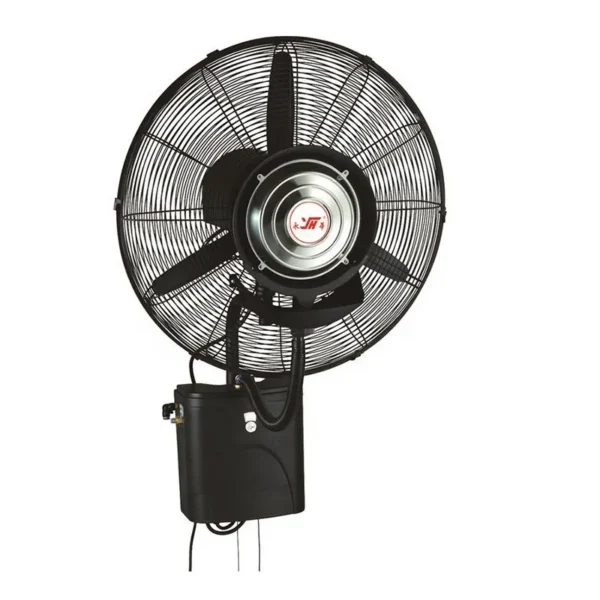

Wholesale Durable 20 Inch Oscillating Mist Fan Wall Mounted Industrial Water Mist Fan
| Product name | Model | MFB5-50 | MFB5-65 |
| Misting Wall Fan | Spec(mm) | 500(20") | 650(26") |
| power(W) | 180 | 300 | |
| speed(r/min) | 1350 | 1350 | |
| capacity(m3/min) | 170 | 205 | |
| protection against electric shock | ClassⅠ | ClassⅠ | |
| rated frequency | 50Hz | 50Hz | |
| Rated voltage or voltage range(V) | AC 220-240V | AC 220-240V | |
| Temperate climates or tropical climates | T45 | T45 | |
| Working Temperature(℃) | -20~45℃ | -20~45℃ | |
| IP Ratin | IP24 | IP24 | |
| Size(cm) | 568*560*790 | 640*720*980 | |
| Warranty(Years) | 1 year | 1 year | |
| 1.20"/26" Outdoor Powerful full metal Centrifugal Mist Fan – CE SAA approvals 2.centrifugal power design,without nozzle,easy for mantanience 3.Adjustable misting volume,low noise 4.Atomization and air delivery driven by separate motor,convenient to use and easy to maintain 5.The fan surfaced with powder coating,it's rust prevention and long service life 6.Motor has overloaded protection,low temperature rising,steady performance Protective device for pump running when water is ove 7.Waterproof electric design,safe to use 8.90 degree oscillation,three speeds with a 4L water tank or directly connect to water supply,3M water pipe at 6mm diameter 9.Suitable for household use,Restaurant,bars,Manufacturing environment,Hotels poolside and outdoor sitting areas | |||
1. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures
2. What is your terms of payment?
Usually,we accept T/T,irrevocable L/C at sight.For regular orders, Terms of payment 30% deposit,full payment before delivery the goods.
3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of packing?
Generally, we pack our goods in neutral cartons.If is fragile we will make wooden frame.and we also can according to your requirements.
5. What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
6. How to solve the quality problems after sales?
Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
7. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
8. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
9. You are manufacturer or trading company?
We are factory. Welcome to visit our factory at anytime.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10+ piece: US $177 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this oscillating mist fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this oscillating mist fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
