Key specification for this side channel blower: 380 V, 415V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Taizhou Haihong Pump Industry Mechanical And Electrical Co., Ltd. (1 year on the platform, typical reply ≤12h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Side Channel Blower
- Power Source: Electric
- Power Cord Length: none
- Rated Voltage: 380 V, 415V
- Material: copper
- Blade Material: Aluminum
- Noise Level: 40-60dB
Technical Specifications
| Power Source | Electric |
|---|---|
| Rated Voltage | 380 V, 415V |
| Electric Current Type | AC |
| Motor Type | AC Motor |
| Material | copper |
| Blade Material | Aluminum |
| Noise Level | 40-60dB |
| Pressure | High Pressure |
| Warranty | 1 Year |
| Customized Support | OEM |
| Power Cord Length | none |
| Place Of Origin | Zhe jiang China |
| Brand Name | FuLi |
| Logo | Min. order: 50 sets |
| Packge | Min. order: 100 sets |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
| application | Family Homes, Industrial Boilers, Industrial Utilities | pressure | High Pressure |
| warranty | one year | voltage | Three-phase 380V |
| place of origin | Zhejiang, China | customized support | OEM |
| power source | Electric | structure | Single-stage Pump |
| model number | Fl-2200SC | horsepower | 2200W |
| motor | 100% Copper | Structure | Single stage |
| Standard or Nonstandard | Standard | Max airflow | 37kpa |
| Max vacuum | -33kpa | Speed | 2800r/min |
Product Description

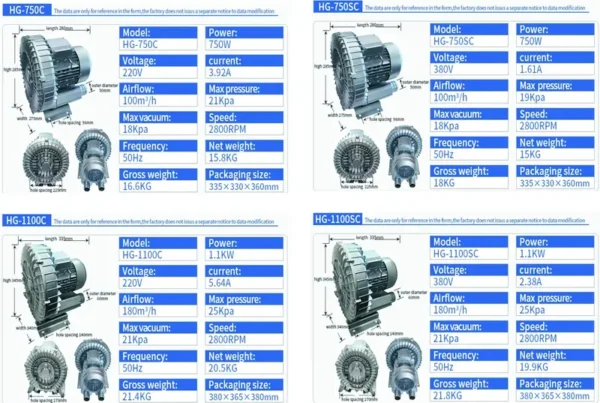

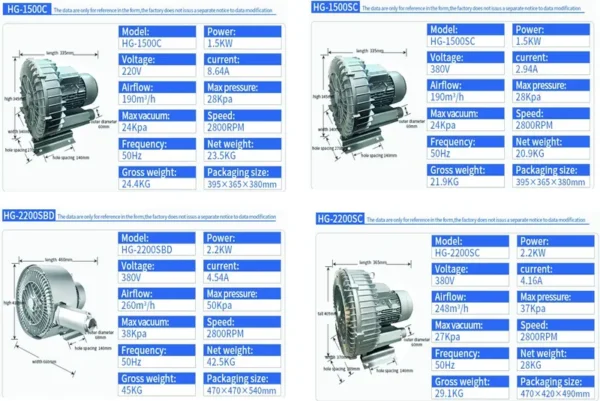

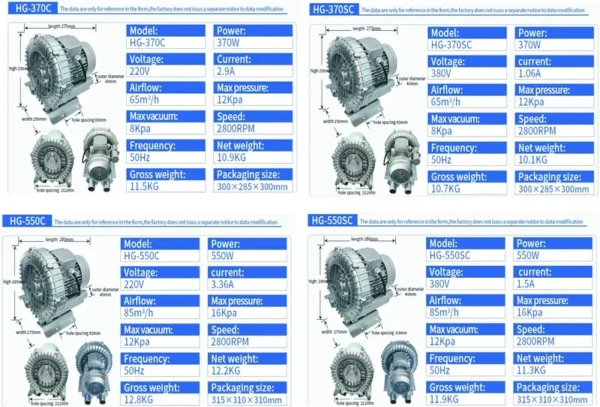

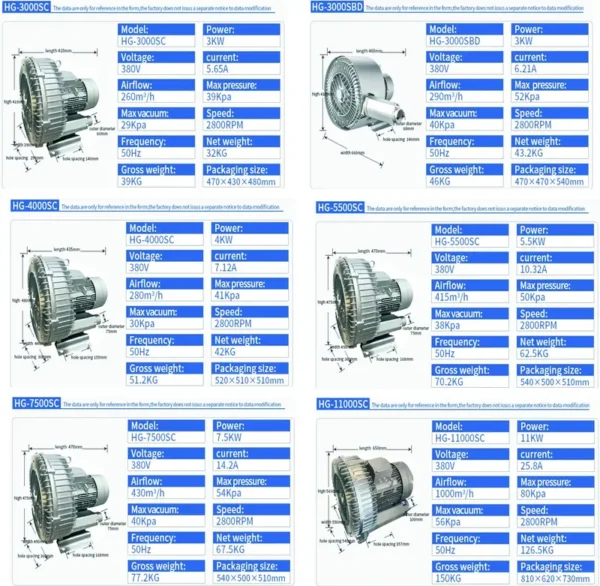

| Type | Voltage (V) | Rated Current (A) | Maximum Positive Pressure (Kpa) | Maximum Vacuum (-Kpa) | Maximum Flow (m³/h)
| Rotaryspeed (r/min) | Weight (kg) |
| HG-370C | 220 | 2.9 | 12 | 8 | 65 | 2800 | 11.5 |
| HG-370SC | 380 | 1.06 | 12 | 8 | 65 | 2800 | 10.7 |
| HG-550C | 220 | 3.36 | 16 | 12 | 85 | 2800 | 12.8 |
| HG-550SC | 380 | 1.50 | 16 | 12 | 85 | 2800 | 11.9 |
| HG-750C | 220 | 3.92 | 21 | 18 | 140 | 2800 | 16.6 |
| HG-750SC | 380 | 1.61 | 19 | 18 | 140 | 2800 | 15.8 |
| HG-1100C | 220 | 5.64 | 25 | 21 | 180 | 2800 | 20.5 |
| HG-1100SC | 380 | 2.38 | 25 | 21 | 180 | 2800 | 19.9 |
| HG-1500C | 220 | 8.64 | 28 | 24 | 250 | 2800 | 24.4 |
| HG-1500SC | 380 | 2.94 | 28 | 24 | 250 | 2800 | 21.9 |
| HG-2200SC | 380 | 4.16 | 37 | 33 | 310 | 2800 | 29.1 |
| HG-3000SC | 380 | 5.65 | 39 | 34 | 350 | 2800 | 39 |
| HG-4000SC | 380 | 7.12 | 41 | 30 | 400 | 2800 | 51.2 |
| HG-5500SC | 380 | 10.32 | 54 | 49 | 480 | 2800 | 68.2 |
| HG-7500SC | 380 | 12.56 | 57 | 51 | 500 | 2800 | 72.2 |
| HG-11000SC | 380 | / | 80 | 56 | 1000 | 2800 | 150 |
Ordering and Pricing
- Minimum order quantity: 1 combo
- Volume pricing:
- 1–9 combo: US $168 / combo
- 10–19 combo: US $163 / combo
- 20+ combo: US $157 / combo
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this side channel blower?
The standard minimum order quantity is 1 combo. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the side channel blower be supplied for my local voltage?
The standard configuration is 380 V, 415V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

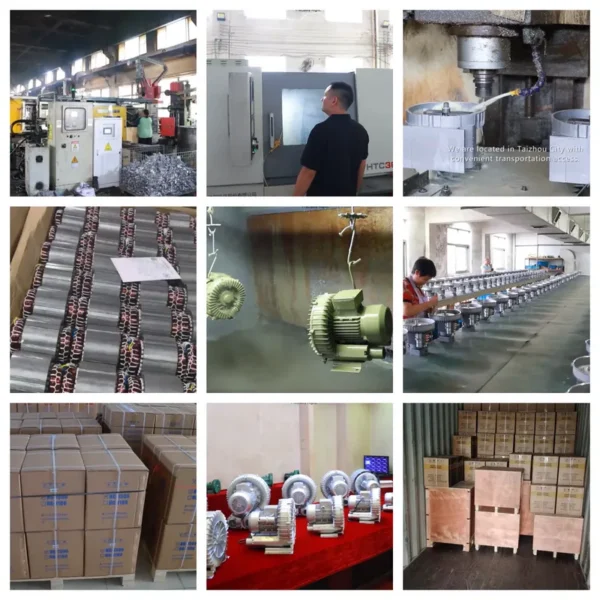

About the Manufacturer
This product is produced by Taizhou Haihong Pump Industry Mechanical And Electrical Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taizhou Haihong Pump Industry Mechanical And Electrical Co., Ltd. range on HVACR Nexus.
