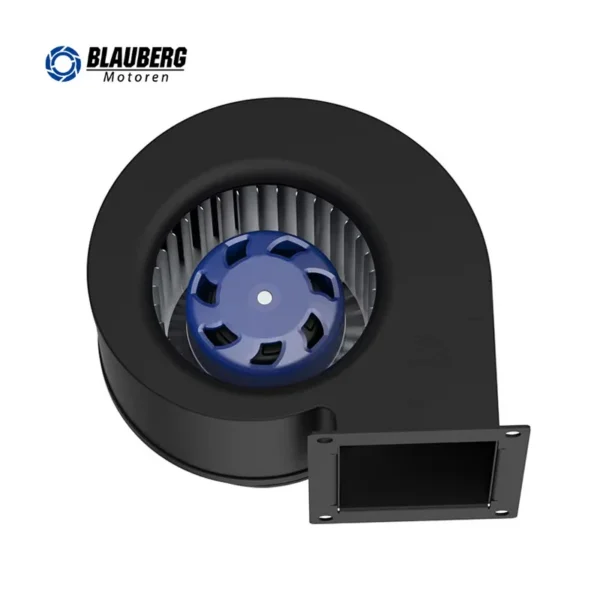

Single Inlet Cooler, 230V, Wall, Centrifugal, Radial

This single inlet cooler is listed with the manufacturer’s full published specification — voltage 230 V, blade material Cast Iron, type EC Single Inlet Centrifugal Fan. It is produced by Suzhou Blauberg Motoren Technology Co., Ltd., a verified supplier of 6 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Single Inlet Cooler

• Model Number: SD-F160C-EC-01
• Voltage: 230 V
• Blade Material: Cast Iron
• Warranty: 2 Years
• Certification: CCC,CE,RoHS
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Company Profile

Product Paramenters

Type	SD-F160C-EC-01	Nominal Speed	3450+5%RPM
Motor	EC059AC230V040W	Max. Input Power	86W
Phase	1~	Max. Input Current	2.3A
Nominal Voltage	230VAC	Sound level	70dB(A)
Nominal Voltage Range	184~276VAC	Min.Ambient Temperature	-25℃
Frequency	50/60 Hz	Max.Ambient Temperature	60℃
Method of Obtaining Data	FA	ML=Max. load ME=Max, effciency FA=Free Air

Related Product

Model	Nominal voltage[VDC]	Speed (RPM)	Power input max(W)	Current max(A)	Sound pres level[dB(A)]	Perm amb temp[*c)	Electrical connection
SD-F120B-EC-00	24	3650	75	3.2	67	-25 ºC ~ +60 ºC	D
SD-F140B-EC-00	24	1860	85	3.6	72	-25 ºC ~ +60 ºC	D
SD-F140C-EC-00	24	1860	85	3.6	72	-25 ºC ~ +60 ºC	D
SD‐F160B‐EC‐01	24	3050	150	6.5	72	-25 ºC ~ +60 ºC	D
SD-F160C-EC-00	24	2650	85	3.6	66	-25 ºC ~ +60 ºC	D
SD-F160C-EC-01	24	3050	150	6.5	68	-25 ºC ~ +60 ºC	D
SD-F180A-EC-01	24	2000	150	6.3	66	-25 ºC ~ +60 ºC	D

Our Advantages

Customer Service

Fast Delivery

Industry-leading Prototype Delivery Cycle
Deep Customization

Product Customization；Propose System Solutions
Various Support

CNAS Testing Laboratory；Multilingual Technology Files；Global Services；Prompt Response

Global Services

Global Service Network

FAQ

Q: Who are we?

A: Blauberg Motoren, part of Germany's Blauberg Group, manufactures fans and motors. The Group offers a wide range of ventilation products—from domestic to industrial—and specializes in providing customized solutions and parts to meet diverse client needs with an optimal balance of price and quality. Q: Why choose us？ A: Large-scale producer of fans with modern facilities, high annual capacity, and a strong focus on customized solutions and customer support. Q: Wonder if you accept small orders? A: Do not worry. Feel free to contact us .In order to get more orders and give our clients more convener ,we accept small order. Q: Can you do OEM for me?

A: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you. Q: What's your payment terms ?

A: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–199 piece: US $59.8 / piece
  • 200–1999 piece: US $55.39 / piece
  • 2000+ piece: US $49.24 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this single inlet cooler?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this single inlet cooler carry?

It is supplied with CCC,CE,RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the single inlet cooler be supplied for my local voltage?

The standard configuration is 230 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Suzhou Blauberg Motoren Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Suzhou Blauberg Motoren Technology Co., Ltd. range on HVACR Nexus.
